Пластиковая дробилка из полипропилена, 800 кг/ч
US $10000-$28000
Измельчитель кузова автомобиля/Измельчитель
- Категории: Plastic Crushing Machines >>>
- Поставщик: Gongyi,Jinlonghengji,Heavy,Industry,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

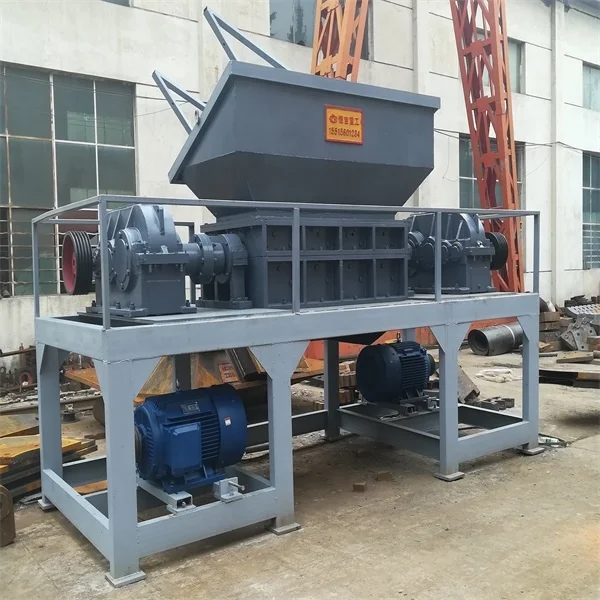

The double shaft shredder have been designed for a wide array of applications and industries, suitable for shredding solid material such as E-waste, metal, wood, plastic, scrap tires, packaging barrel, pallets, etc. Depending on input material and the following process the shredded material can be used directly or go into the next step of size reduction. It is widely used in industry waste recycling, medical recycling, electronic recycling, pallet recycling, municipal solid waste recycling, plastic recycling, tire recycling, papermaking industry and etc.
modle | size(L*W*H) (mm) | feed inlet size (mm) | blade diameter (mm) | blade thickness (mm) | blade quantity | power (kw) | weight (kg) |
SZ-500 | 2800*1300*1850 | 500*480 | 200 | 20 | 24 | 11*2 | 2200 |
SZ-800 | 3000*1300*1850 | 800*480 | 200 | 20 | 40 | 15*2 | 2500 |
SZ-1000 | 3300*1900*2200 | 1000*690 | 300 | 40 | 24 | 22*2 | 5200 |
SZ-1200 | 3600*2000*2200 | 1200*690 | 330 | 40 | 30 | 30*2 | 6400 |
SZ-1500 | 4180*2100*2400 | 1500*690 | 550 | 50/75 | 30/20 | 55*2 | 9000 |
SZ-1800 | 5800*2400*3300 | 1800*1206 | 550 | 50/75 | 36/24 | 75*2 | 13600 |
SZ-2000 | 6400*2700*3500 | 2000*1490 | 600 | 50/75 | 40/26 | 90*2 | 20100 |
SZ-2500 | 7500*3200*3800 | 2500*1800 | 600 | 75/100 | 32/24 | 110*2 | 25000 |
SZ-3000 | 8600*3500*4000 | 3000*1800 | 600 | 75/100 | 40/30 | 160*2 | 31000 |
Remarks:
1. The number of blade claws, diameter and thickness can be customized according to the type of material and the size of the discharge;
2. The output of the equipment will be different due to different material types and discharge scales.
1. The number of blade claws, diameter and thickness can be customized according to the type of material and the size of the discharge;
2. The output of the equipment will be different due to different material types and discharge scales.
Biaxial shredders use two-axis independent drive, so that the production of materials to produce the corresponding pressure, to achieve automatic feeding function, a unique knife shaft structure and four-corner rotary tool, low speed high torque in the production process ,There will be no winding shaft, or stuck phenomenon of the device, thereby increasing the production efficiency, the device is suitable for all kinds of toughness, high viscosity material crushing
Our advantage：
1. It has the characteristics of low speed, high torque and low noise. It is controlled by PLC. It has the functions of starting,stopping, reversing and overloading automatic reversing.

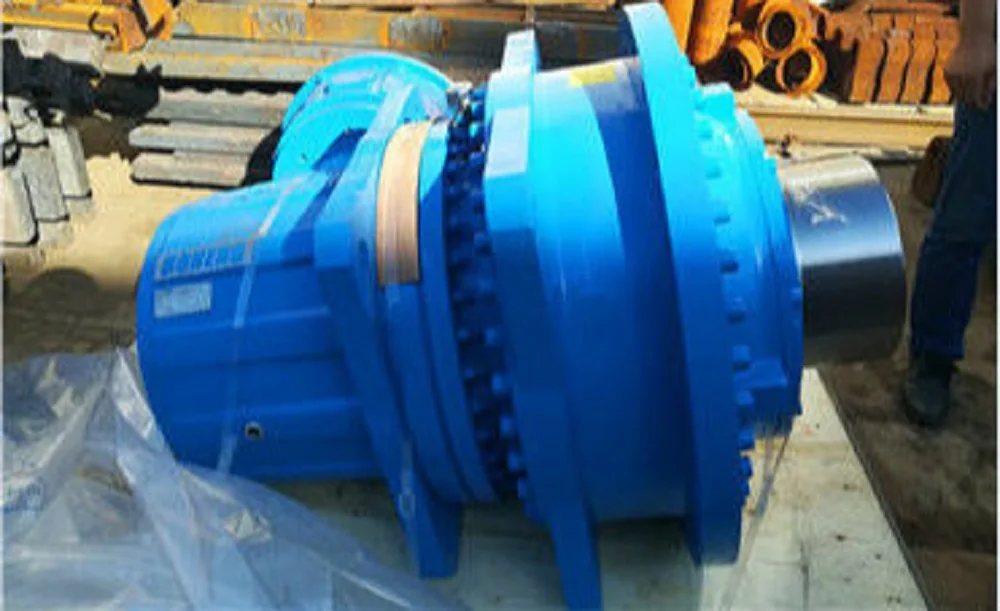

2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.

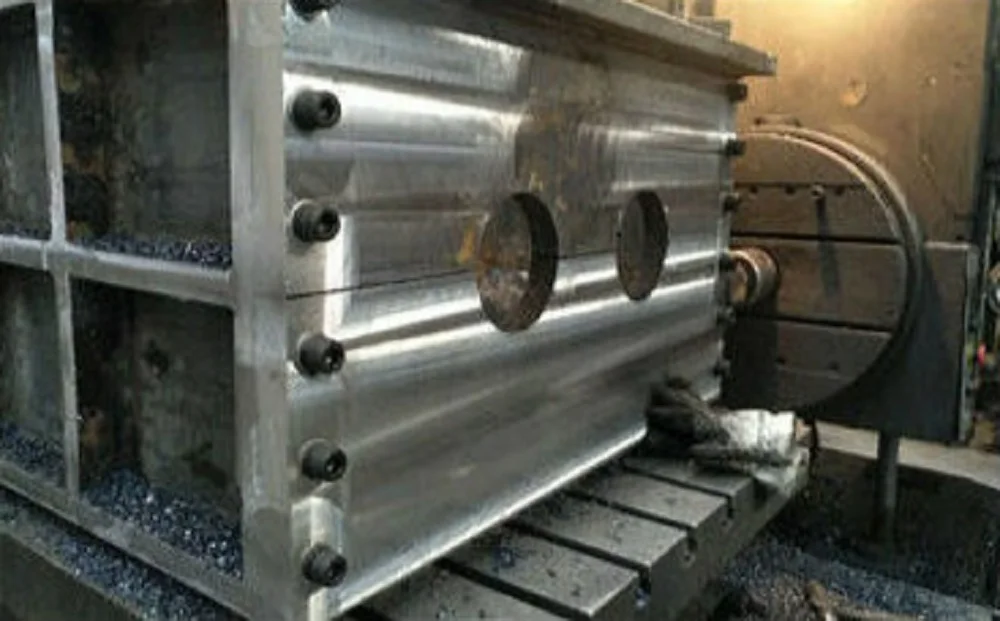

5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
2. The motor + reducer drives the cutter shaft to achieve the shearing effect of low speed and high torque.
3. Bearing six-fold seal, effective waterproof and dust-proof, prolong the service life of bearings.
4. After tool wear, the repair technology of tool coating and welding is adopted to realize the repeated use of the tool, which greatly reduces the maintenance cost of the tool.
5. Separate box design, can easily and quickly remove the entire axle (axle, blade, bearing, sealing system).
6. Tools are arranged according to helix to achieve high efficiency cutting.
7. Both the inner hole and the spindle face of the cutter are designed in hexagonal form to realize the uniformity of the force exerted on the cutter.
8. According to different materials and product shapes to be torn up, different types of cutters can be selected.
1 )Selecting equipment type;
2 ) Designing and fabricating the products in accordance with the special requirements of the clients;
3 )Training technical personnel for our clients;
4 ) Providing construction and technology consultations or working out proper construction schemes for those new,
2 ) Designing and fabricating the products in accordance with the special requirements of the clients;
3 )Training technical personnel for our clients;
4 ) Providing construction and technology consultations or working out proper construction schemes for those new,
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1)Checking products acceptance ahead of delivery;
2)Introducing the service system to our clients.
1)Checking products acceptance ahead of delivery;
2)Introducing the service system to our clients.
lmprove the added value of our products,and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;

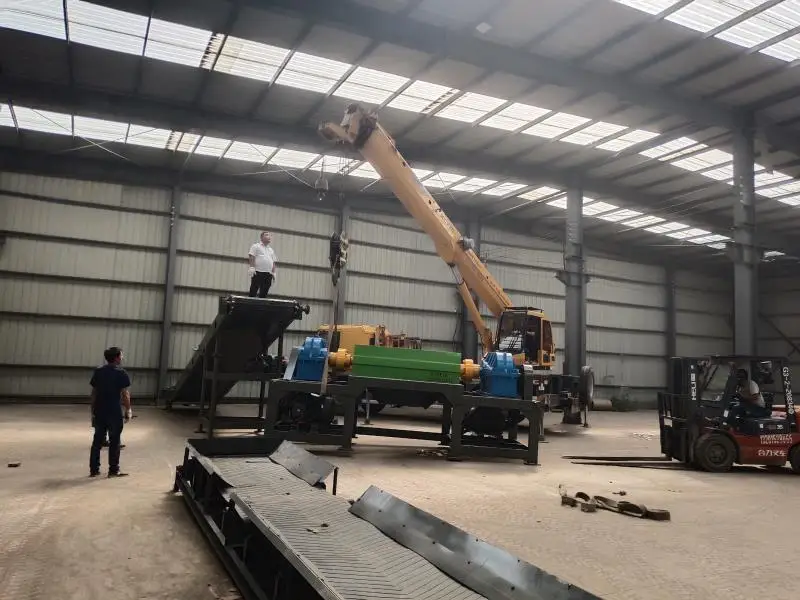

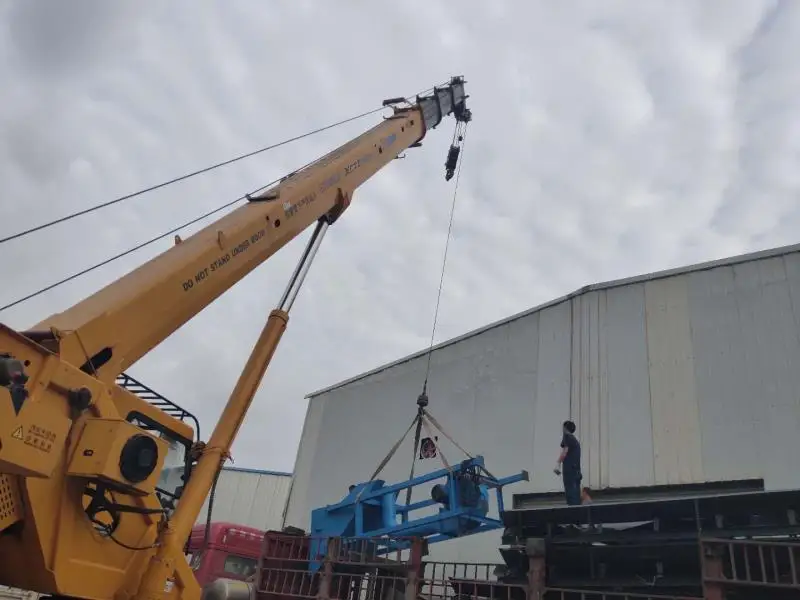

2) Installing and testing the equipments;
3)Training the first-line operators on site;
4)Examining the equipment regularly;
5)Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7)Providing technical exchanging;
8) Providing maintenance for big items.
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3)Training the first-line operators on site;
4)Examining the equipment regularly;
5)Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7)Providing technical exchanging;
8) Providing maintenance for big items.
