Цена:3 818,00 $ - 4 018,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Product Description


STMA 1.5 tonne 2 tonne 2.5 tonne standing full electric stacker with optional 3.5m 4m 4.5m 5m 5.5m


standing full electric stacker




Specifications of full electric stacker


Model
CDD15E/CDD20E










Performance
Maximum load capacity
kg
1500-2000
with load center at
mm
600
Maximum lifting height
mm
1600/2000/2500/3000/3500/4000/
4000S/4500S
Travel speed (without load)
km/h
5
Travel speed (with load)
km/h
4.5
Lifting speed (without load)
mm/s
120
Lifting speed (with load)
mm/s
100
Lowered speed (without load)
mm/s
100
Lowered speed (with load)
mm/s
100
Ascend slope ability (without load )
%
8
Ascend slope ability (with load )
%
5
Weight (without battery)
kg
1150










Dimensions
Overall length of frame
mm
2010/2060;2050/2100
Overall width of frame
mm
850
Mast lowered height
mm
2010/1485/1735/1985/2235/2485/ 1820/1990
Max height
mm
2035/2435/2935/3435/3935/4435/ 4435/4935
Wheelbase
mm
1380/1410
Fork length
mm
1100/1150
Fork outside width
mm
560/680
Fork inside width
mm
220/340
Fork thickness
mm
65
Fork lowered height
mm
90
Min frounf height
mm
30
Minimum turning radius (with platform)
mm
2090
Minimum turning radius (without platform)
mm
1675/1720
Minimum intersecting aisle
mm
2325/2370


Tire
Front wheel
mm
80*70
Drive wheel
mm
250*75
Caster wheel
mm
115*55
Wheel material
polyurethane（聚氨酯）



Electrical components
Drive motor type
AC series motor（交流电机）
Rated output
kw
1.5
Hoist motor type
DC series motor（直流电机）
Rated output
kw
2.2/3.0

battery
Voltag
V
24
Capacity
AH
210
Weight
kg
195

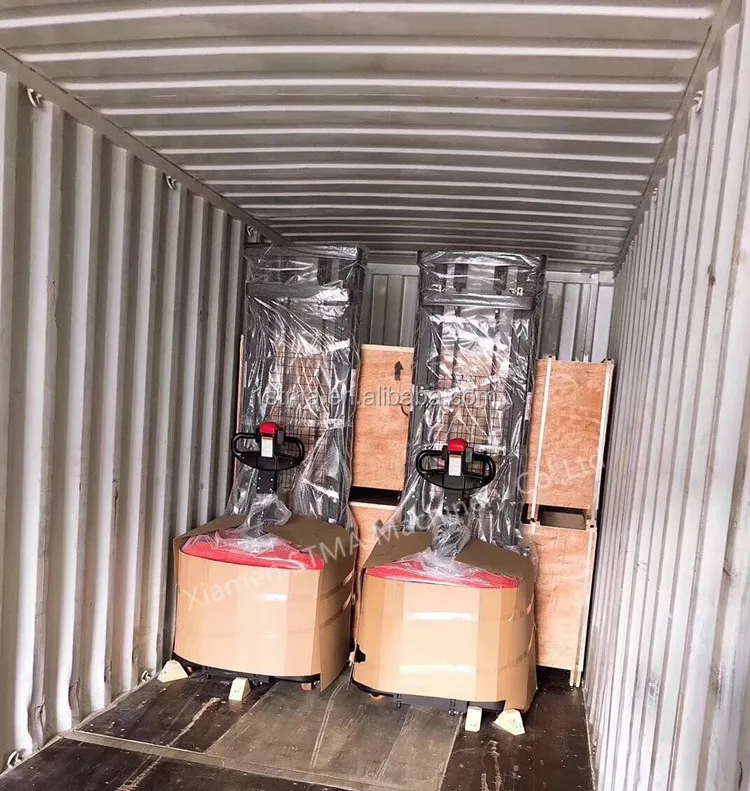

Packing & Delivery






After Sales Service


1. STMA Warranty: 1 years or 2000 working hours spare parts warranty for STMA forklifts which occurs first

2. STMA 24hours Service system: Any quality claim or question from STMA customers will be replied by STMA service man within 24 hours, to assure all customers get a quick feedback from STMA for their problem.

3. Free Training System: STMA supply a free training for customers to help them know better about the quality of STMA forklifts, and also its performance..

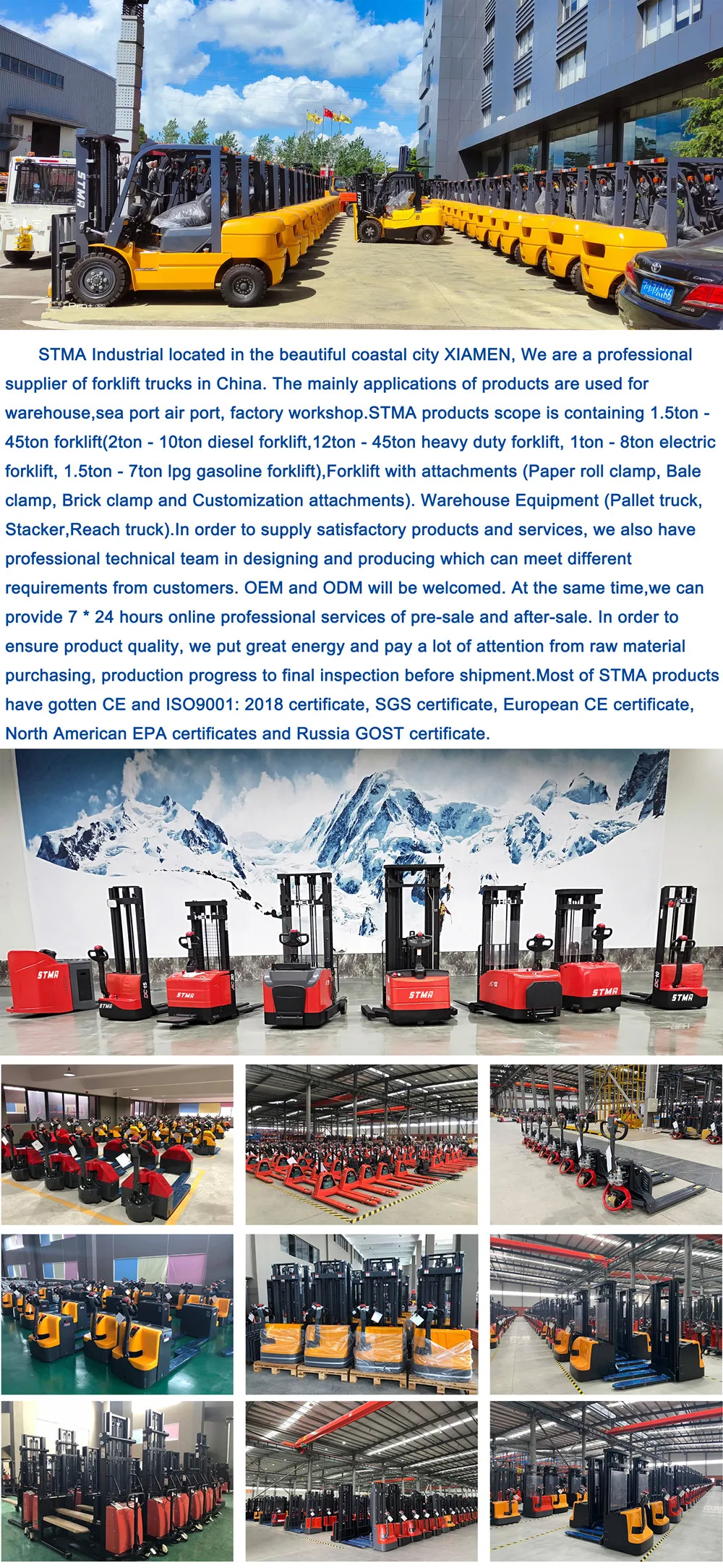

Our factory






FAQ


Q. What's the Certificate do you have?
A. STMA forklift meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.

Q.What are our advantages compared with other manufactures/factories?
A.1) Reliable Quality: Carefully select regular manufacturers for supporting spare parts, like engines, bridge,transmissions, and many parts designed and produced by ourselves, always adapting the best materials
A.2) Fast Delivery: Generally, we can delivery within 7 working days in factory after receiving pre-payment from customers.

Q. Which payment terms can we accept?
A. Normally we can work on T/T or L/C.
A.1) On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or againes the copy of original B/L for old long cooperation clients.
A.2) On L/C term, 100% irrevocable LC at sight without "soft clauses" can be accepted.

Q. Can we provide OEM SERVICE?
A. STMA can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
