Product Description
Product Application

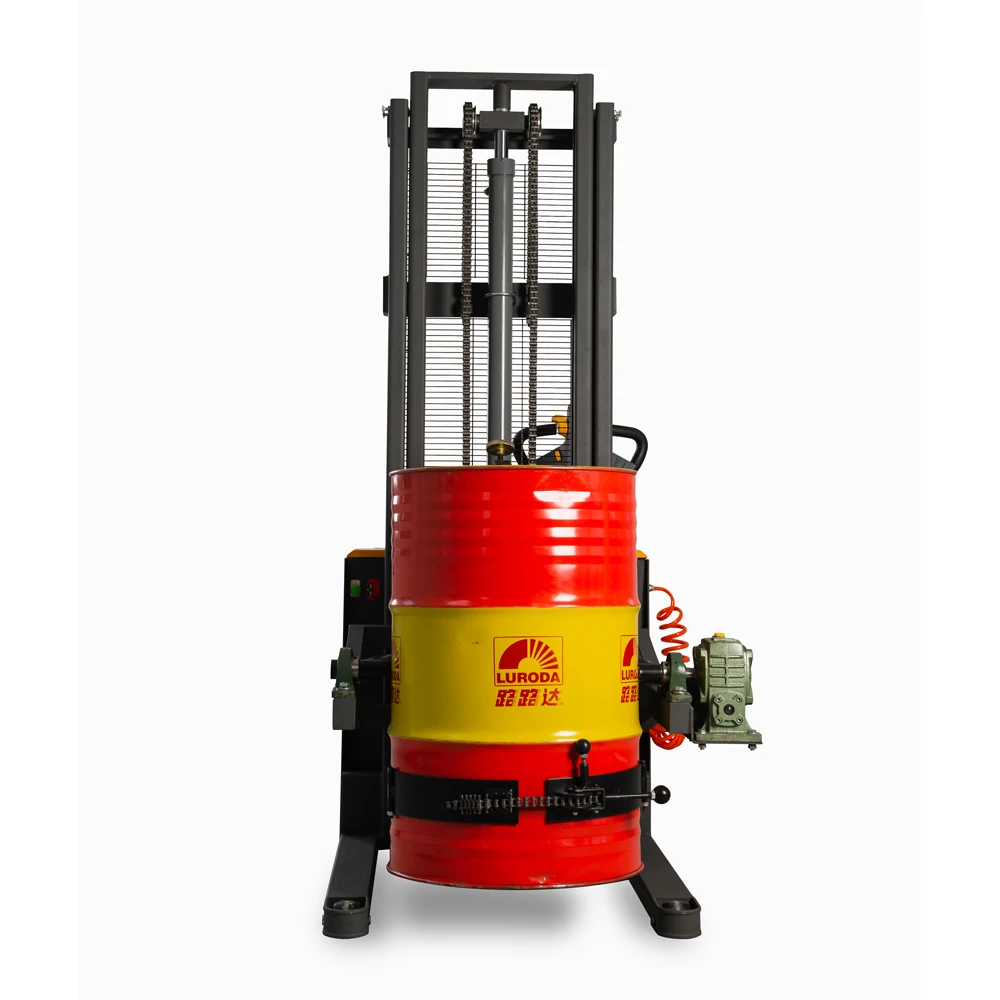

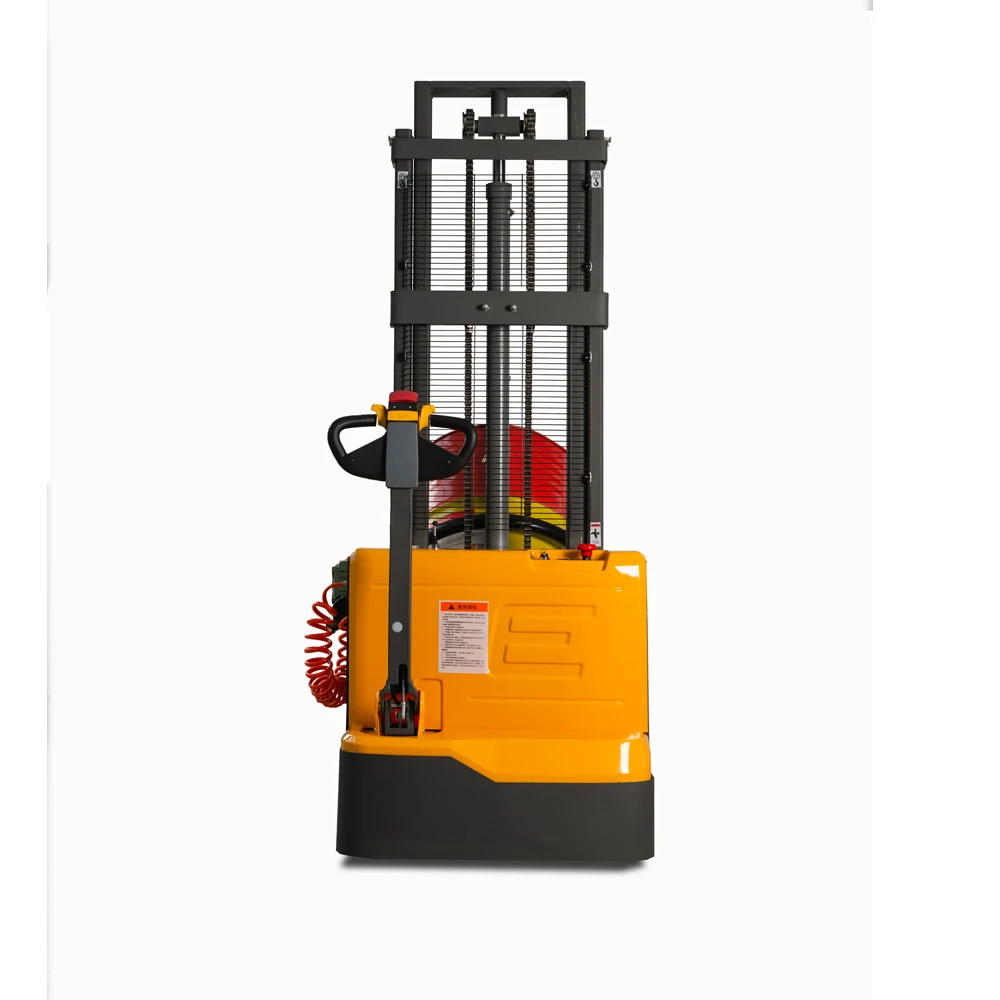

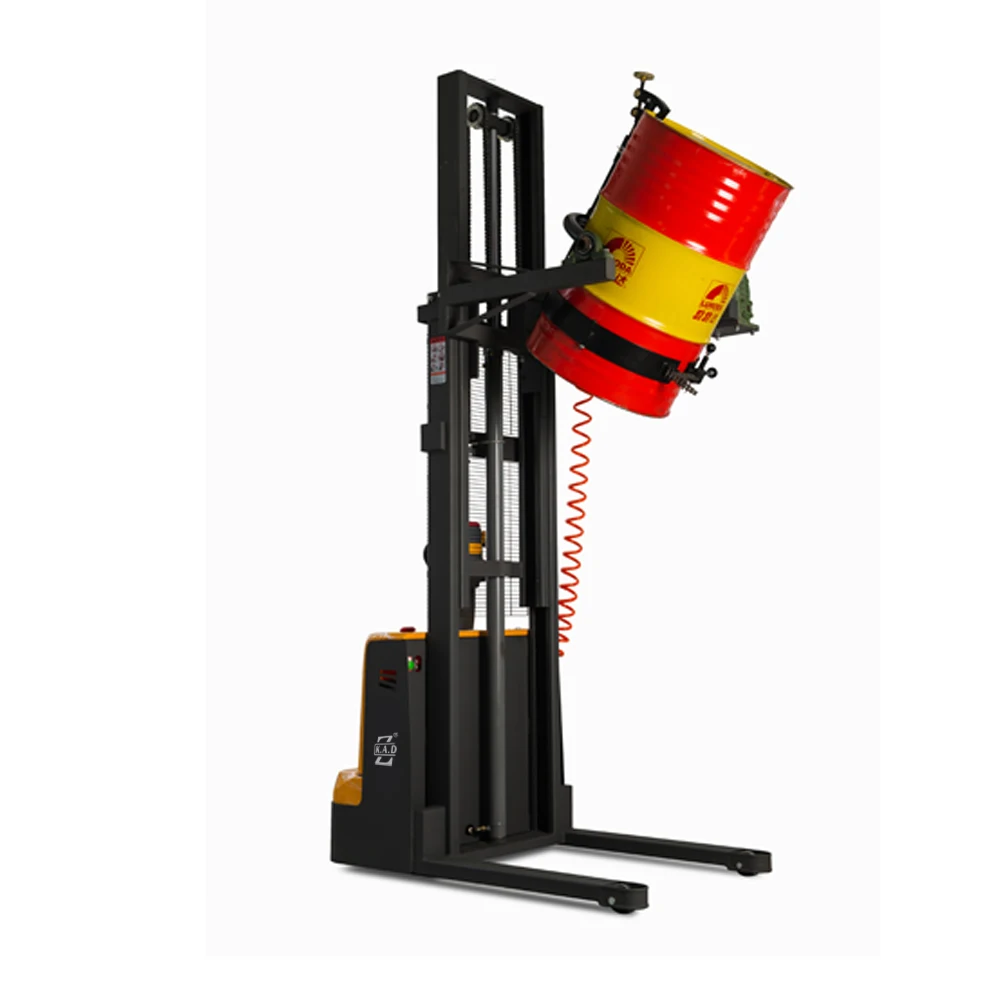

Factory Electric Drum Lifter Electric Oil Drum Forklift Porter Lifter
In small warehouses, production or retail environment,which is the entry level stacker you need to optimist your daily working routine. Due to its very small dimension, this stacker plays out its strengths in limited spaces.It can operate in narrow space, easy to operate and save much labor.
Main Features
1) Using Curtis controller,which can be serviced by any forklift service company around the world.
2) With its integrated charger it gives you the flexibility you need in a modern, urban supply chain.
3) Maintenance-free batteries,no need to add water.
4)High strength fork
Specification
MODEL | CDDW10 CDDW15 | ||||
Features | Drive system | Battery | |||
Features | Driving mode | Walkie | |||
Load Capacity | Q | KG | 1000 | ||
Load Center | C | MM | 500 | ||
Weight | Weight(With battery) | KG | 480/495/515/535 | ||
Wheels | Material | PU | |||
Size | Lifting Height | H3 | MM | 1600/2000/2500/3000 | |
Lowest Mast | H1 | MM | 2080/1580/1830/2080 | ||
Max.Height when operating | H4 | MM | 2080/2730/3230/3730 | ||
Min.Height of Fork | H13 | MM | ≤90 | ||
Length | L1 | MM | 1770 | ||
Width | B1 | MM | 850 | ||
Size | Fork Length | L | MM | 1070 | |
Wheelbase | Y | MM | 1250 | ||
Fork Outside Width | B5 | MM | 680 | ||
Fork Inside Width | MM | 305 | |||
Min.Turning Radius | WA | MM | 1390 | ||
Performance | Driving Speed （Empty/Full Load） | MM/S | 5.0/5.0 | ||
Lifting Speed （Empty/Full Load） | MM/S | 140/135 | |||
Descending Speed （Empty/Full Load） | MM/S | 150/155 | |||
Max.Gradient （Empty/Full Load） | ° | 7/5 | |||
Brake | Electromagnetic brake | ||||
Driving Motor | KW | DC/0.75 | |||
Lifting Motor | KW | DC/2.2 | |||
Battery | Capacity | V/Ah | 24/80Ah | ||
Detailed Images
Main Parts

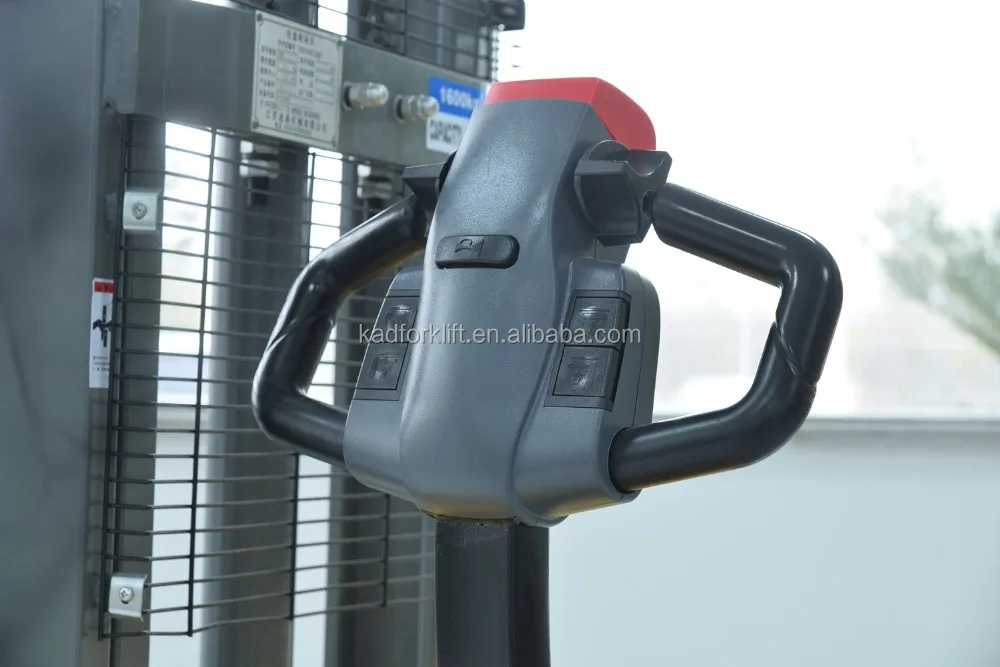

Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively. Using Curtis brand accelerator to ensure the safe operating.

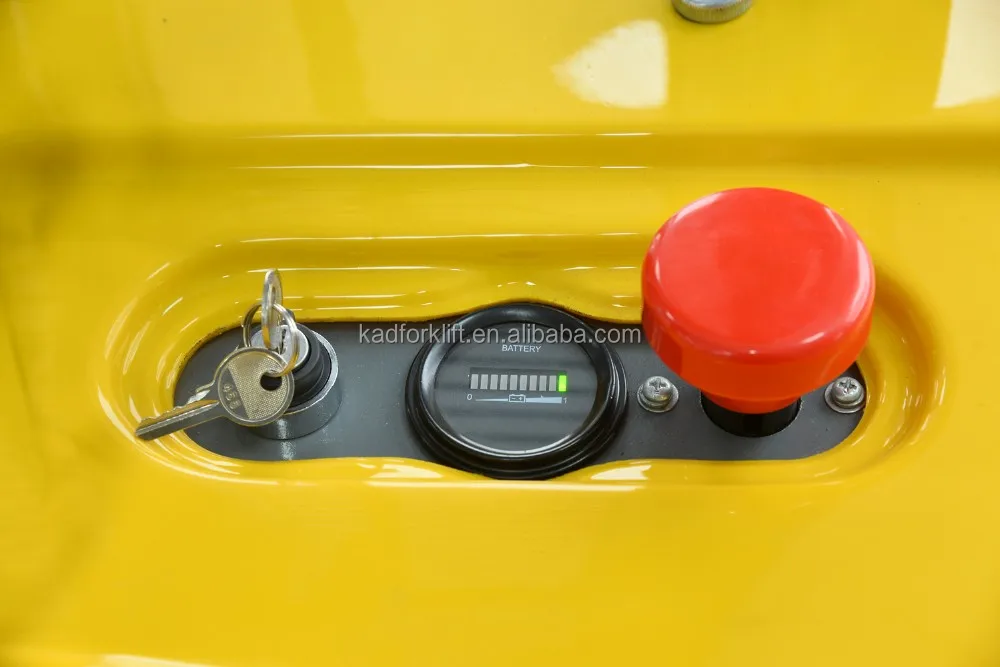

Operation panel
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.

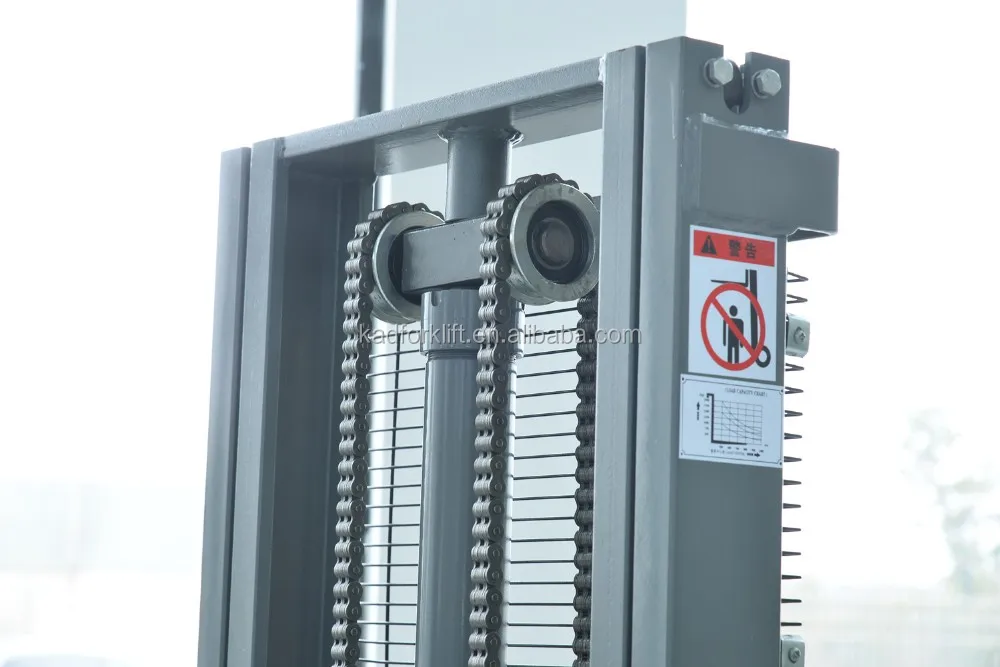

Machine Parts
Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.
Main Features
Humanized design, operation can maintain a safe distance, will not be tired after long time work.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas if become our distributor
Our Company
Related Products
Hand Pallet Truck
Manual Stacker
Drum Stacker
Full electric Stacker
Semi-electric Stacker
Electric Reach Stacker
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in paper package and Iron pallet.
We can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or As negotiated
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
