Автоматическая гидравлическая трансмиссия вилочный погрузчик 3 тонны 2 5 Тонн дизельный LPG двухтопливный
- Категории: Forklifts >>>
- Поставщик: Qingzhou,Grace,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product advantagesheli forklift,hangcha forklift,zoomlion forklift,doosan forklift,teu forklift,hecha forklift,forklift toyota new, vna forklift,hyder forklift, ep electric forklift 2.5 ton,samcy best selling 3 ton diesel forklift,komatsu forklift,forklift doosan
》Hydraulic Automatic Transmission.
》Electric-hydraulic Directional Control Valve.
》 Full hydraulic steering device, with small turning radius, light and flexible steering, safe and reliable
》Low position instrument frame and wide view portal mast design
》variety of power memory options, energy-saving shock
》Low noise, small vibration, energy saving and environmental protection
》The smaller front suspension design service life of front tires and drive axle
》Low position instrument frame and wide view portal mast design
》variety of power memory options, energy-saving shock
》Low noise, small vibration, energy saving and environmental protection
》The smaller front suspension design service life of front tires and drive axle
Model | GLPD15 | GLPD25 | GLPD30 | GLPD35 | GLPD38 | ||||||
Load Centre | 500mm | 500mm | 500mm | 500mm | 500mm | ||||||
Load capacity | 1500kg | 2500kg | 3000kg | 3500kg | 3800kg | ||||||
Mast | 2-stage-mast | 2-stage-mast | 2-stage-mast | 2-stage-mast | 2-stage-mast | ||||||
Fork size | 920×120×35 | 1070×120×40 | 1070×125×45 | 1070×125×50 | 1070×125×50 | ||||||
Engine | GUANGQING ENGINE （ Optional ：Japanese engine NISSAN K25） | ||||||||||
Tire Front | 6.50-10-12PR | 7.00-12-12PR | 28×9-15-12PR | 28×9-15-12PR | 250-15-16PR | ||||||
Tire Rear | 5.00-8-10PR | 6.00-9-10PR | 6.50-10-10PR | 6.50-10-10PR | 6.50-10-10PR | ||||||
Length to face of fork | 2285mm | 2595mm | 2730mm | 2775mm | 2890mm | ||||||
Overall Width | 1086mm | 1150mm | 1225mm | 1225mm | 1410mm | ||||||
Overhead Guard Height | 2040mm | 2070mm | 2090mm | 2090mm | 2120mm | ||||||

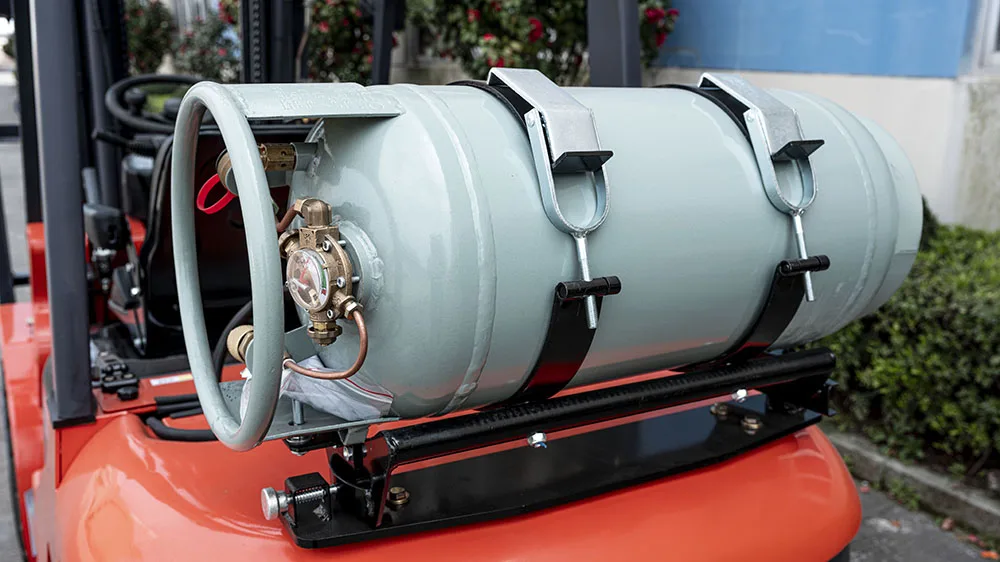

Natural gas cylinder
GRACE forklift Natural gas steel cylinders are made from high-quality steel, welded to create a seamless cylinder. They undergo rigorous testing and are coated to prevent corrosion. The manufacturing process is highly regulated to ensure safety and quality.
Frame
The integral hood with large opening angle and internal frame rib plate structure are adopted, with high strength and reliable quality
Oil cylinder
The whole Forklift uses the famous brand Changjiang oil cylinder, which has been tested for 100 hours before leaving the factory. Reliable quality, no oil leakage.
Gearbox
The gearbox, drive axle and other core components are self-made together, and the key components are imported, with low failure rate and reliable quality
Axle
Equipped with cast steering axle, it has compact structure, small load deformation, dustproof and waterproof, and improves service life and reliability
Mast
Wide field of vision mast is adopted, with wide field of vision; The section of mast channel steel is enlarged, and the overall structure is firm and reliable
Air filter
Large iron shell air filter is adopted, which has high strength and aging resistance. Can better adapt to the harsh working
environment
environment
Guangqing engine
The standard version uses the Guangqing engine specially designed for forklifts, which is fuel-efficient, powerful, reliable and stable in quality, and conforms to Chinese national standards.
Nissan K25 engine
The Nissan K25 engines, Power Rated at 61.7 HP and meets EPA Tier II and CARB III specifications with state-of-the-art electronic engine management and catalytic converters.
