Однослойная перерабатываемая машина для выдувания пластиковой пленки
- Категории: Blown Film Production Line >>>
- Поставщик: Wenzhou,Xianghai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
product description
Insist---Concentration---Innovate---Service
Constant innovation and beyond just to create higher value for you！
Constant innovation and beyond just to create higher value for you！
Machine Description:
This machine is used for blowing low density polyethylene(LDPE)and high density polyethylene(HDPE) color striped film,etc.Which are widely used for packing food,fruit,garments,textile,daily necessities and other civil and industrial products.The cylinder and the screw extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment.The coiling unit adopts torque motor to keep proper tension and make roling even and roll-changing easy.
Main technical parameters
Model | XH-A50 | XH-A55 | XH-A60 | XH-A65 | |||
Suitable material | HDPE/LDPE/LLDPE | ||||||
Film width | 100-600mm | 200-800mm | 300-1000mm | 400-1200mm | |||
Film thickness | 0.008-0.1mm | ||||||
Max.output | 50kg/h | 60kg/h | 70kg/h | 80kg/h | |||
Screw diameter | 50 | 55 | 60 | 65 | |||
ScrewL/D | 30:1 | ||||||
Screw material | Sacm-645/38 crmoala | ||||||
Cylinder cooling | 120w*2 | 120w*2 | 120w*2 | 120w*2 | |||
Main motor | 15kw | 18.5kw | 22kw | 30kw | |||
Die size | 60-120mm | 80-150mm | 100-220mm | 120-250mm | |||
Air ring | 620mm | 780mm | 780mm | 780mm | |||
Air blower | 1.5kw | 2.2kw | 3kw | 3kw | |||
Roller width | 700mm | 900mm | 1100mm | 1300mm | |||
Traction speed | 5-60m/min | ||||||
Winding type | Surface frication type | ||||||
Winding motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw | |||
Winding speed | 5-60m/min | ||||||
Machine size | 4.1m*1.7m*4.3m | 4.8m*1.9m*4.7m | 5.5m*2.1m*4.8m | 5.8m*2.5m*5.0m | |||
Machine weight | 1.5T | 2T | 2.5T | 3T | |||
Product characteristics:
Single-layer film blowing machine, The product is widely used in composite film, packaging film, agricultural covering film, textile packing, garment bag and film packaging and other packing area. The main motor adopts inverter speed control, this greatly increases the stability of main motor, and can save 30% power. Screw and barrel are made of 38CrMoAl, with nitrogen treatment. The traction frame adopts up-down type, let film get best cooling whatever film size big or small.

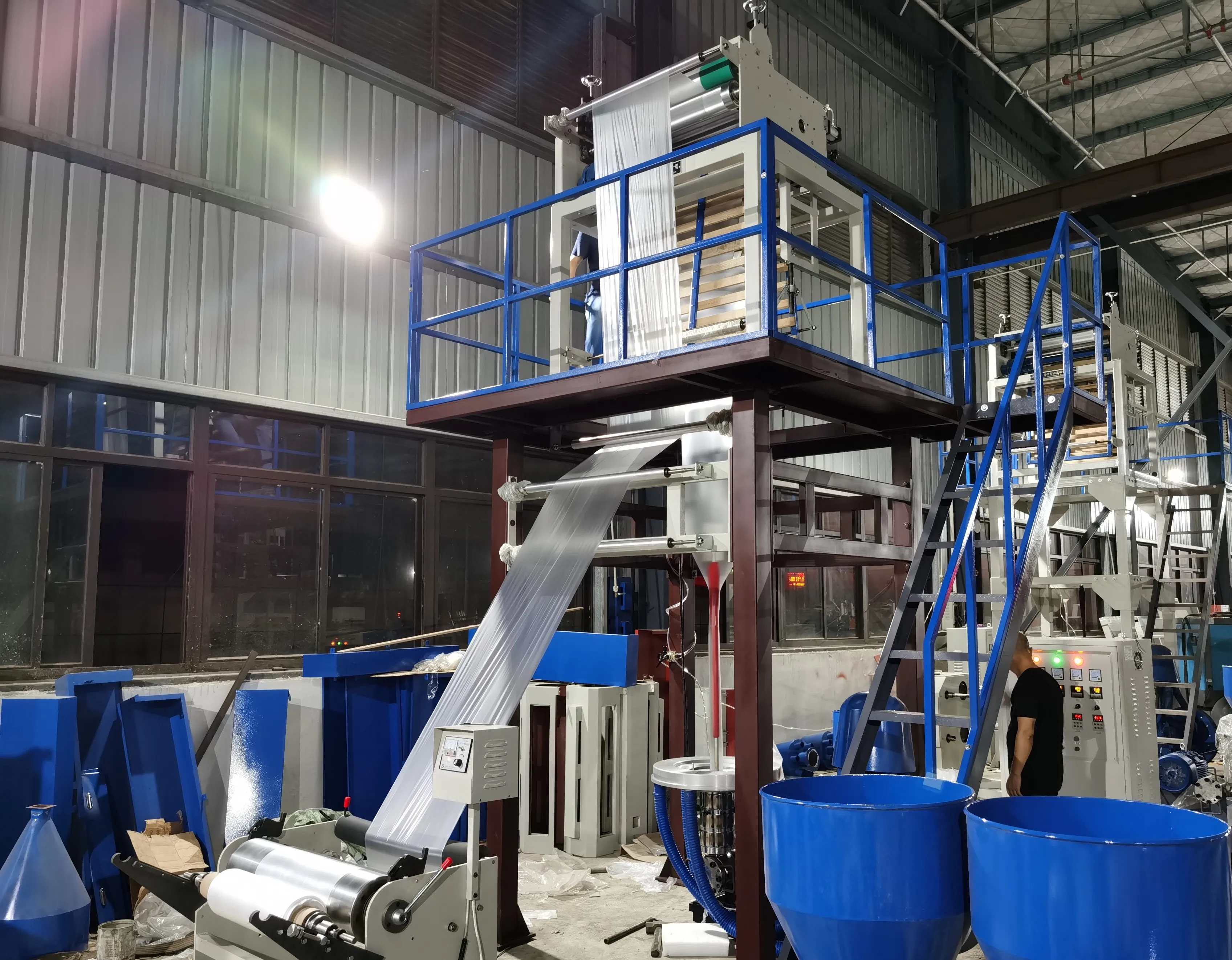

Product Display

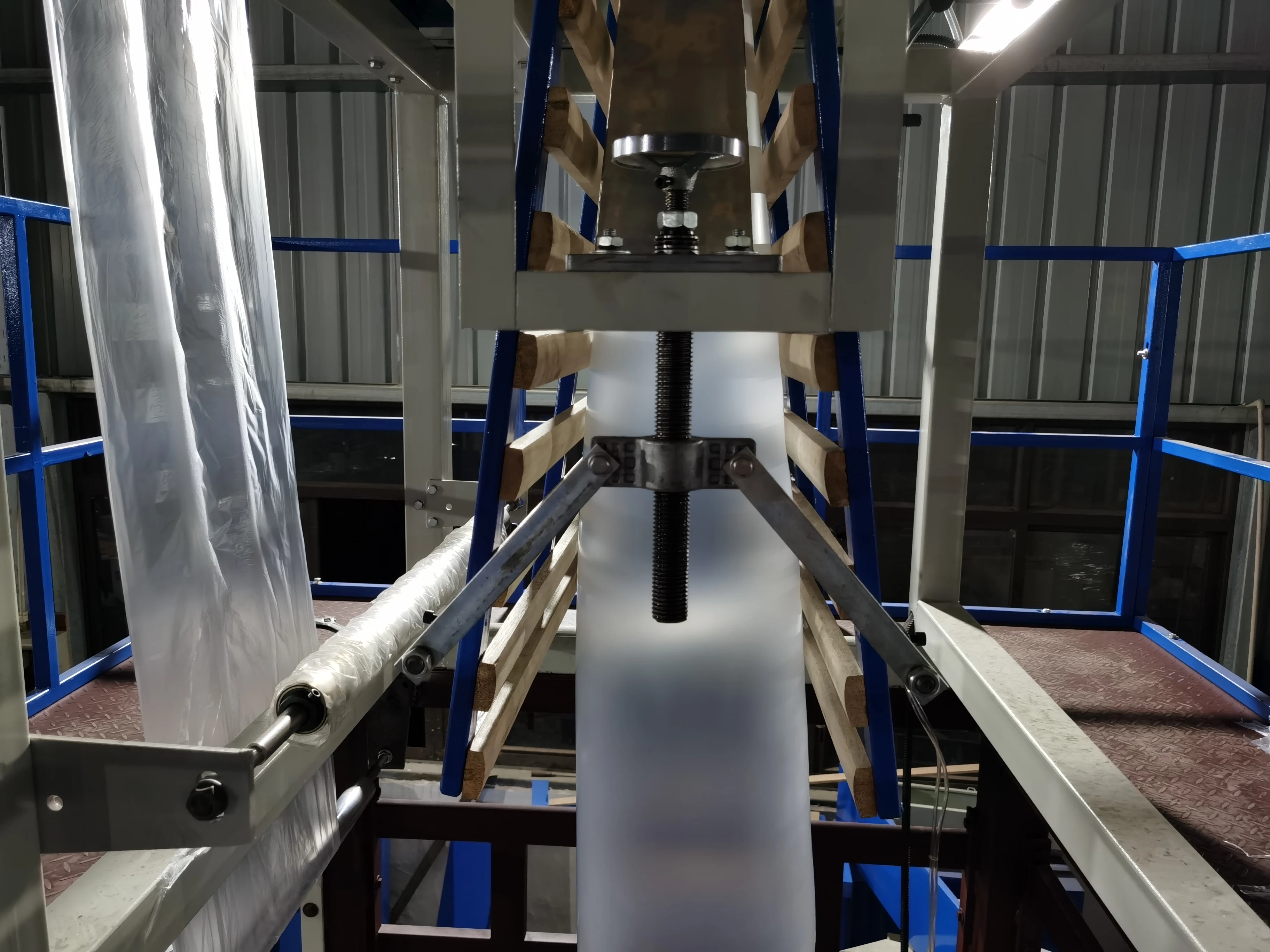

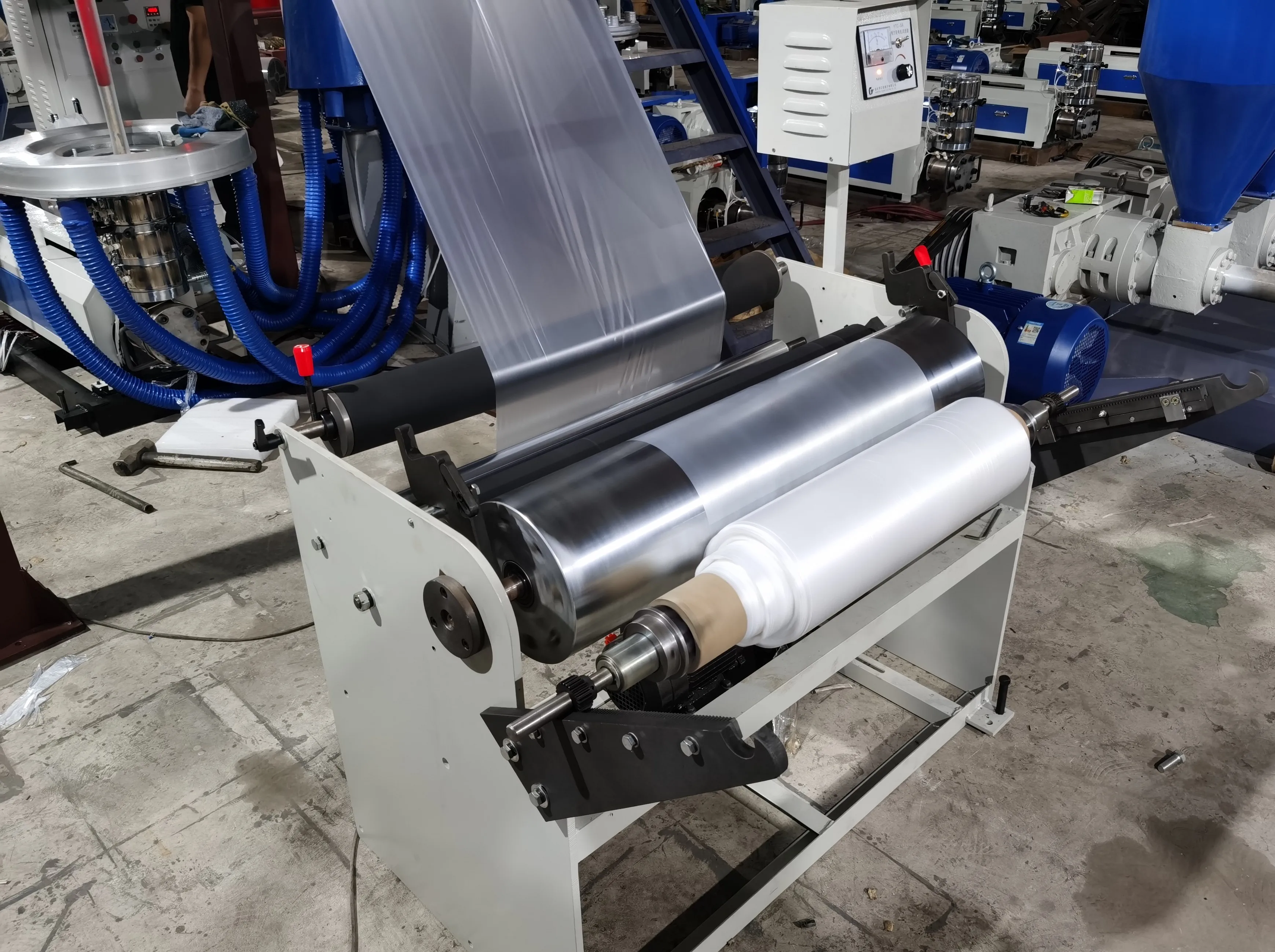

More details and design

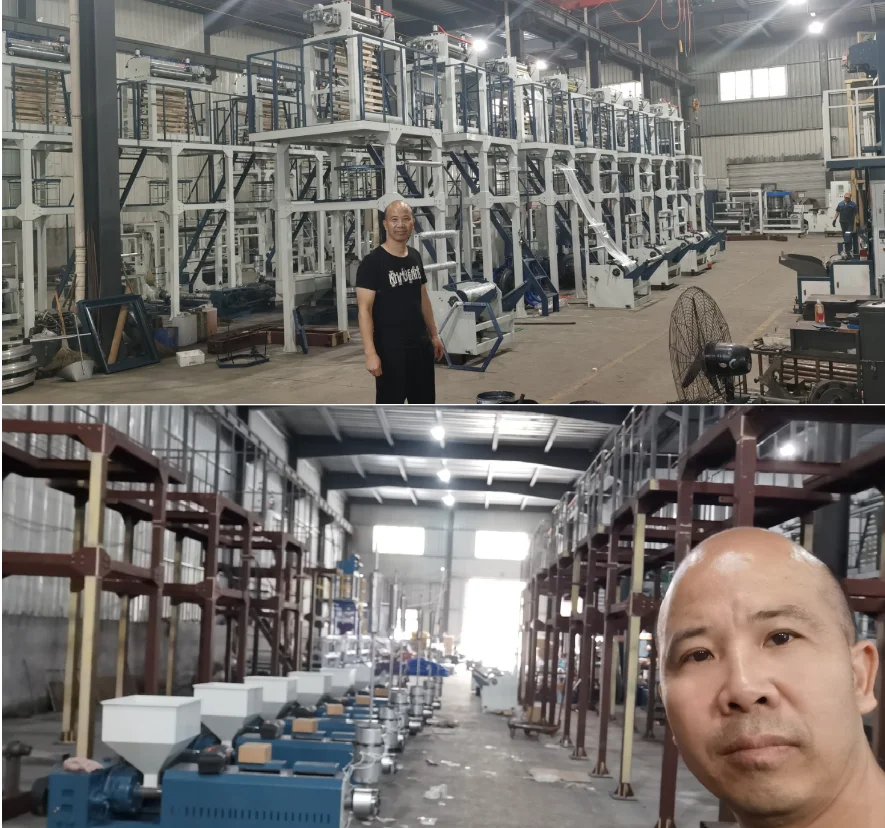

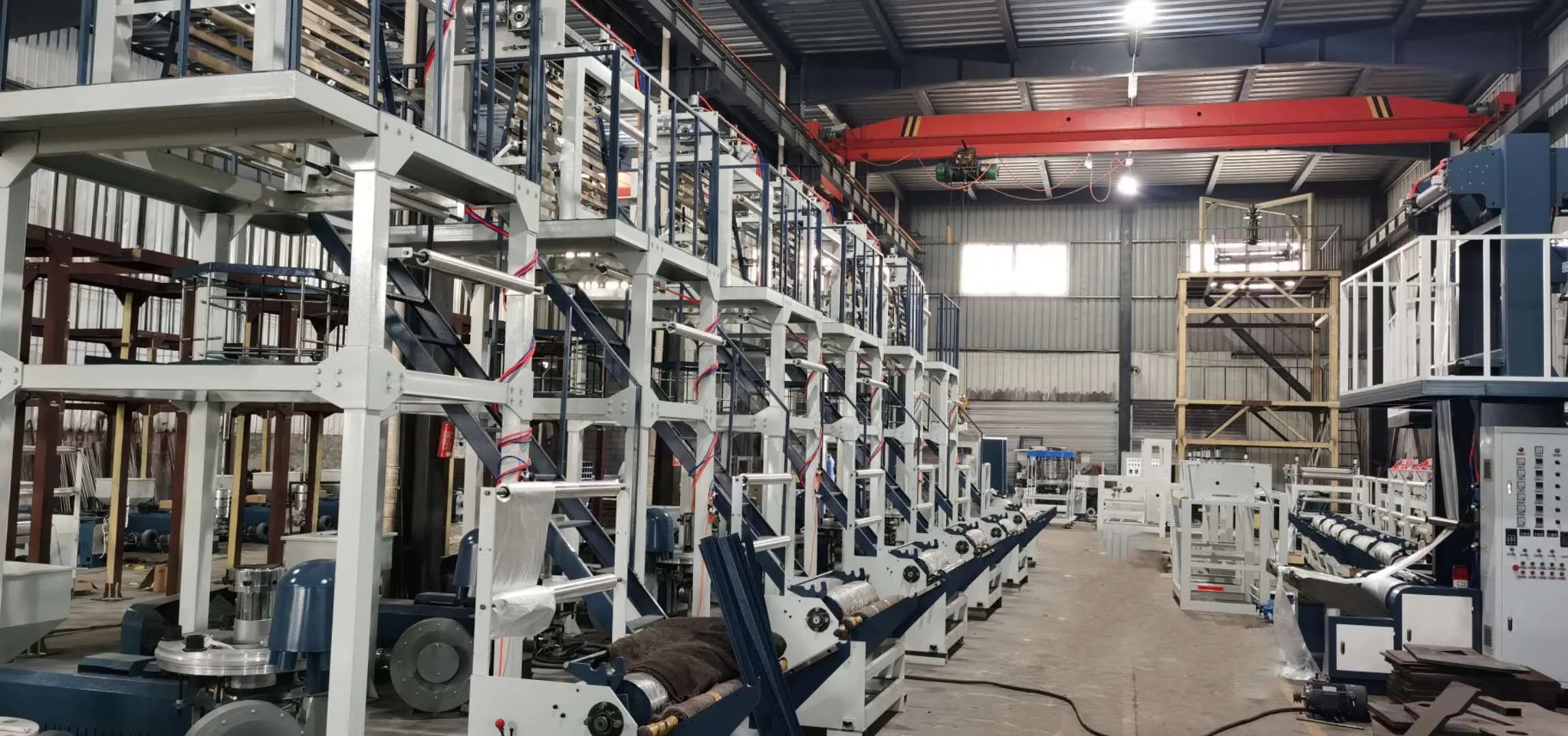

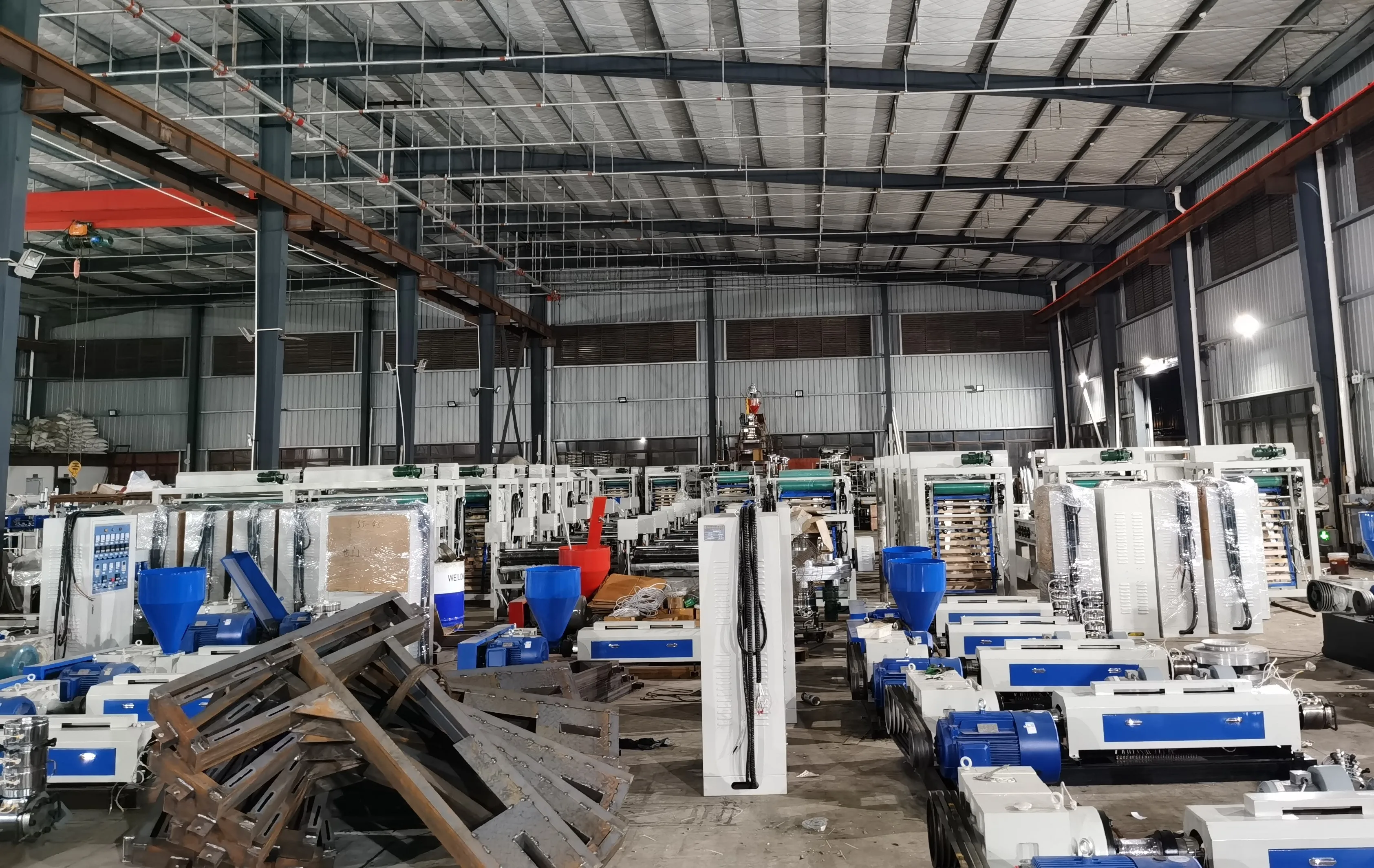

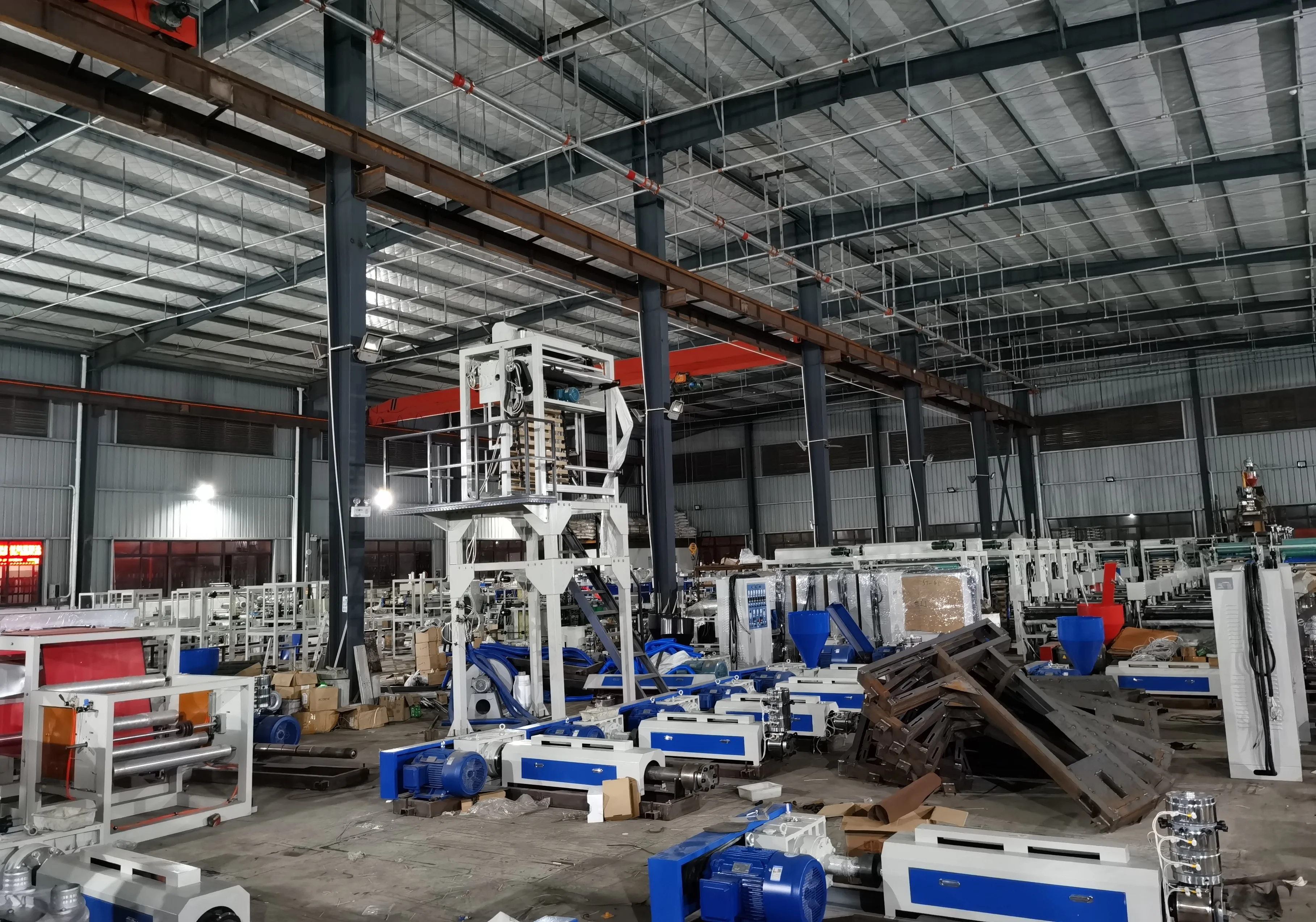

Workshop Pictures

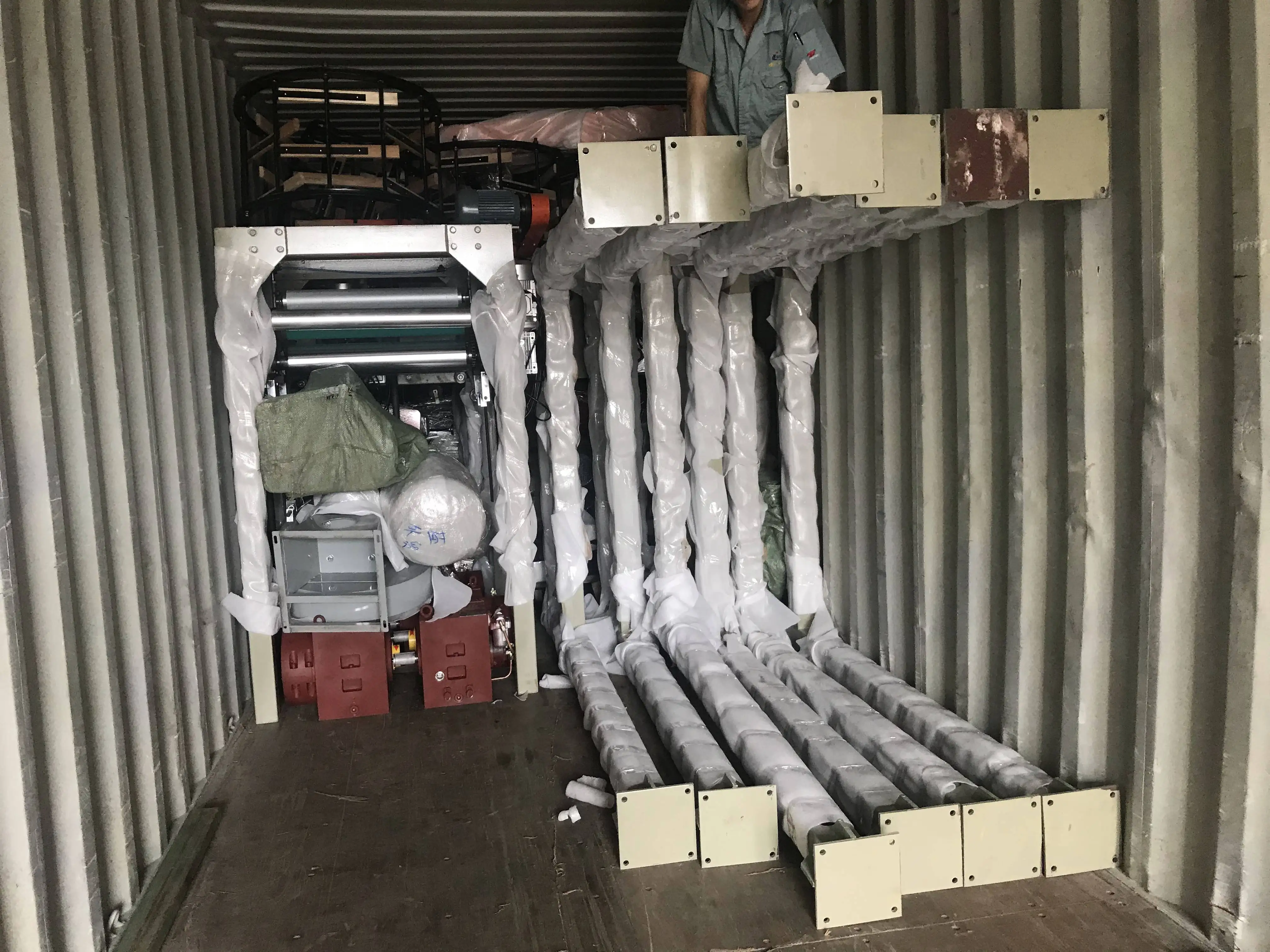

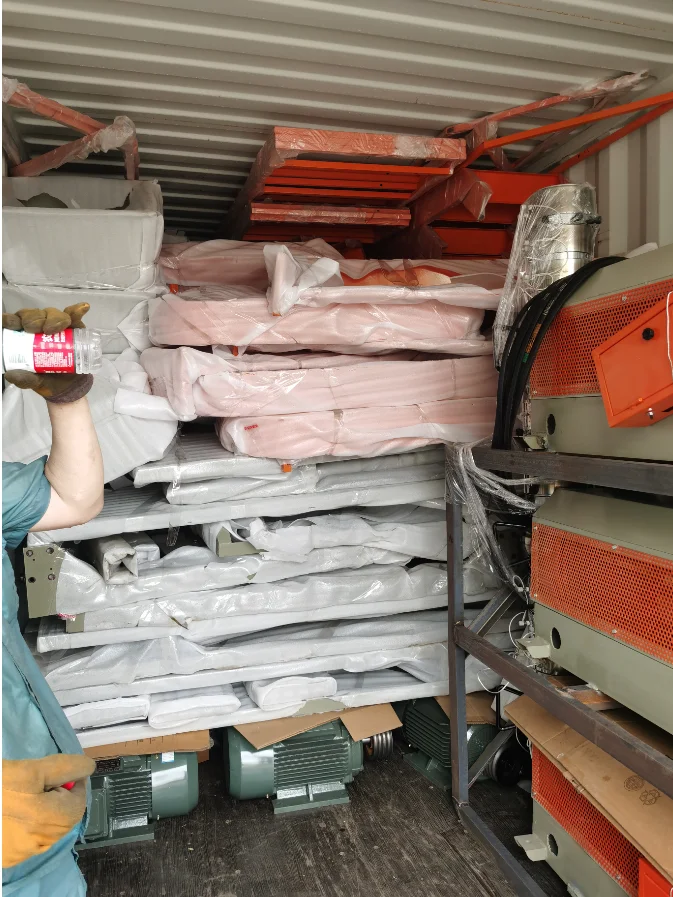

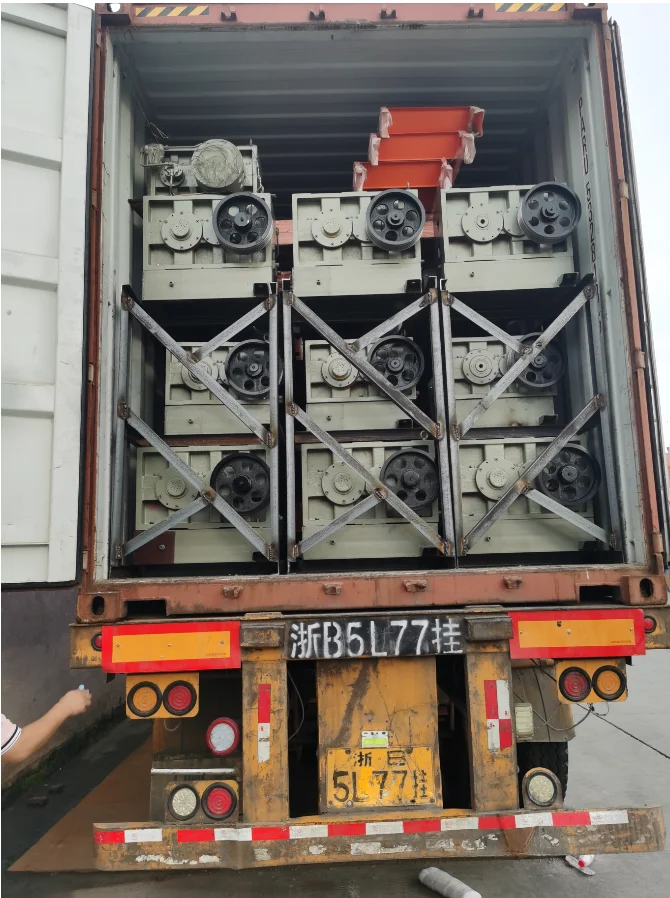

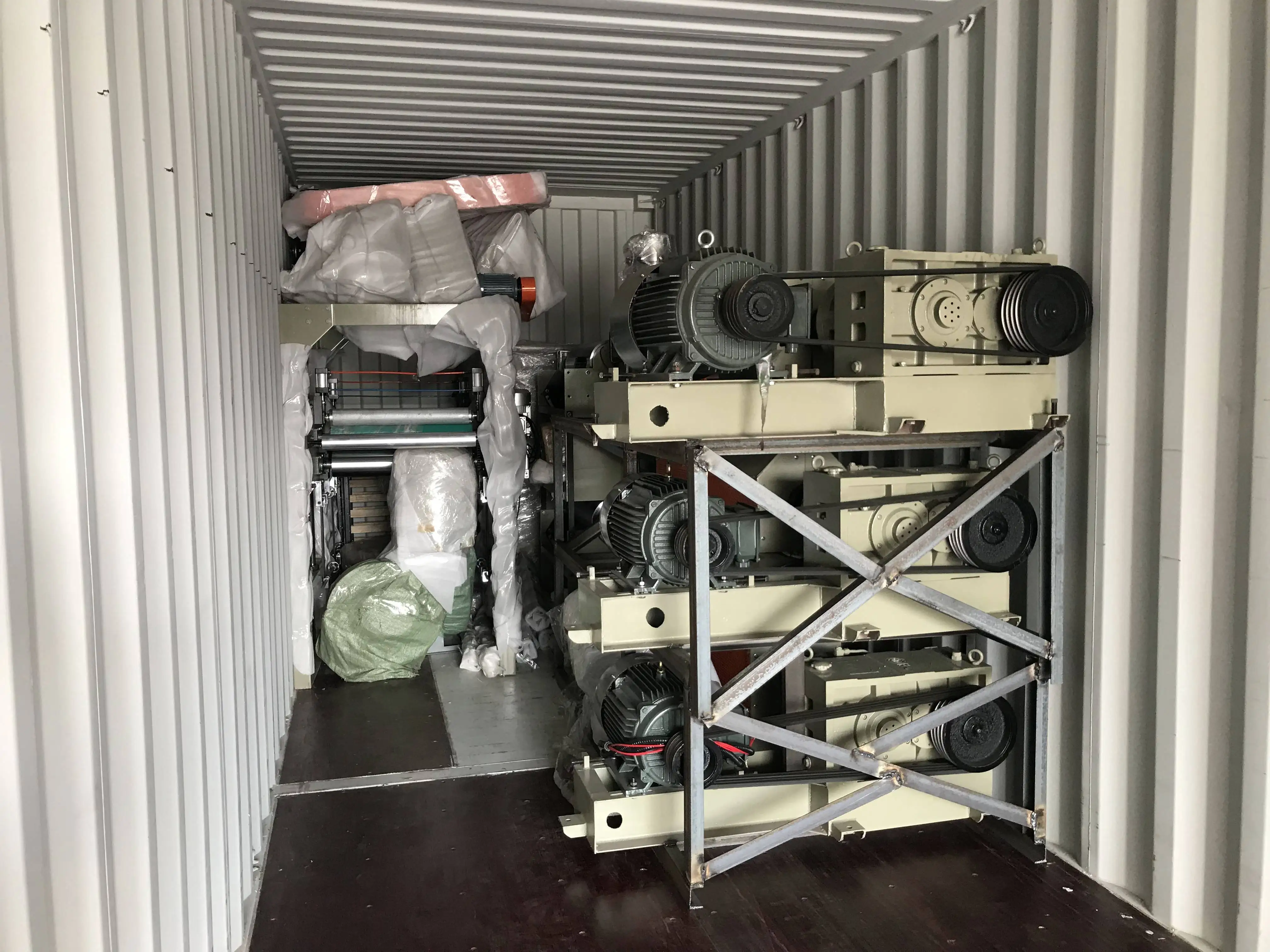

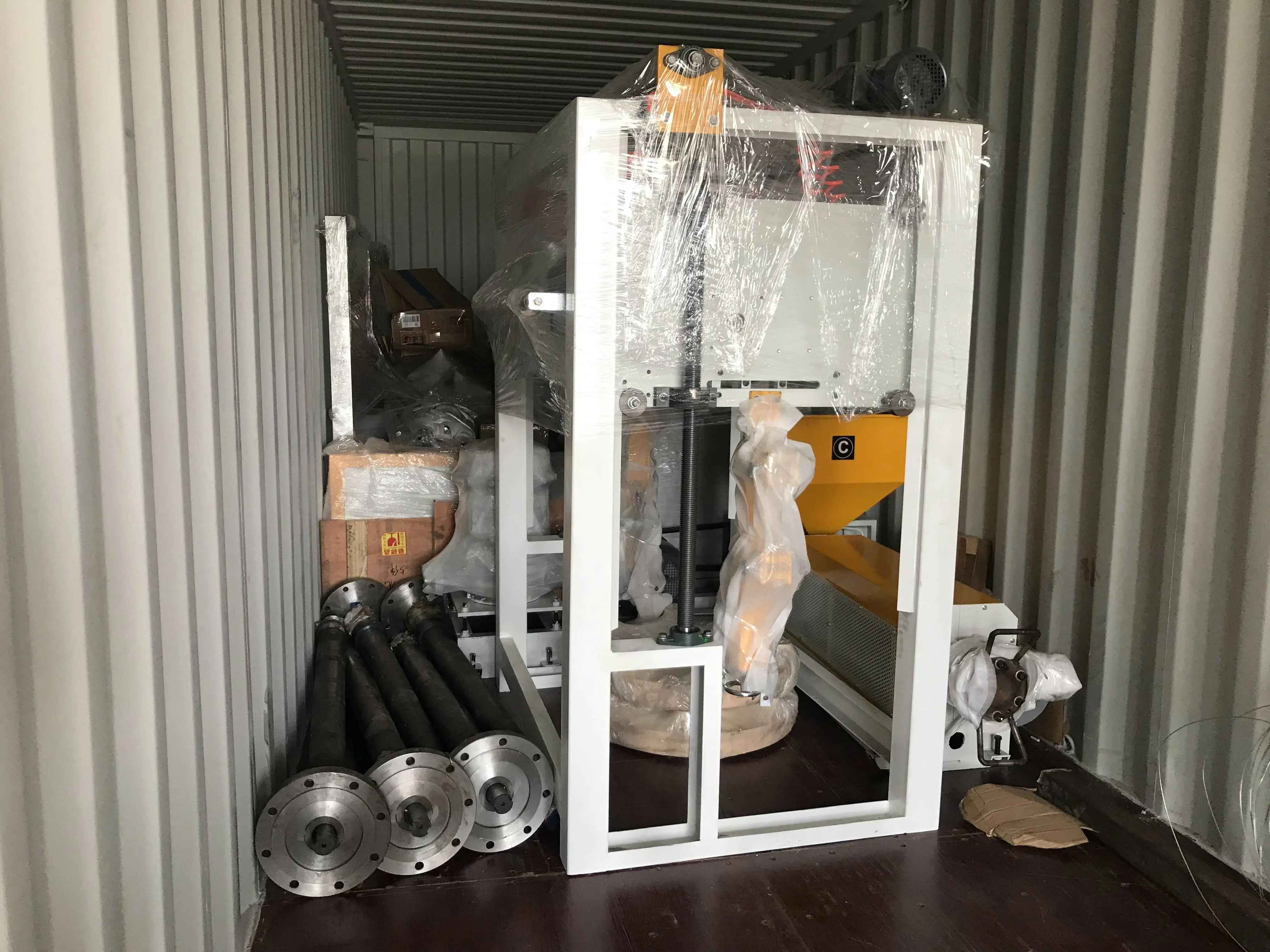

Loading
After-Sales Service

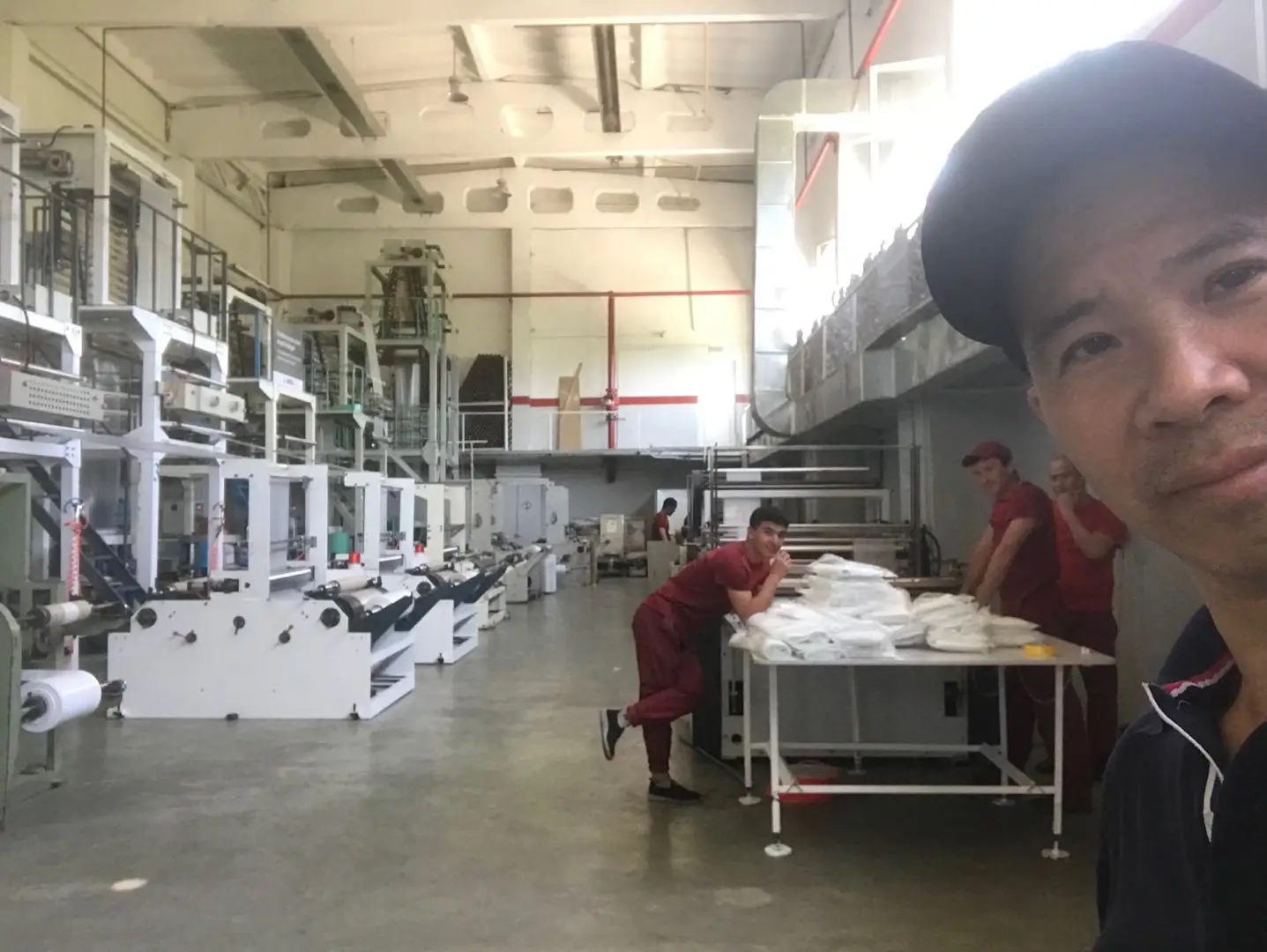

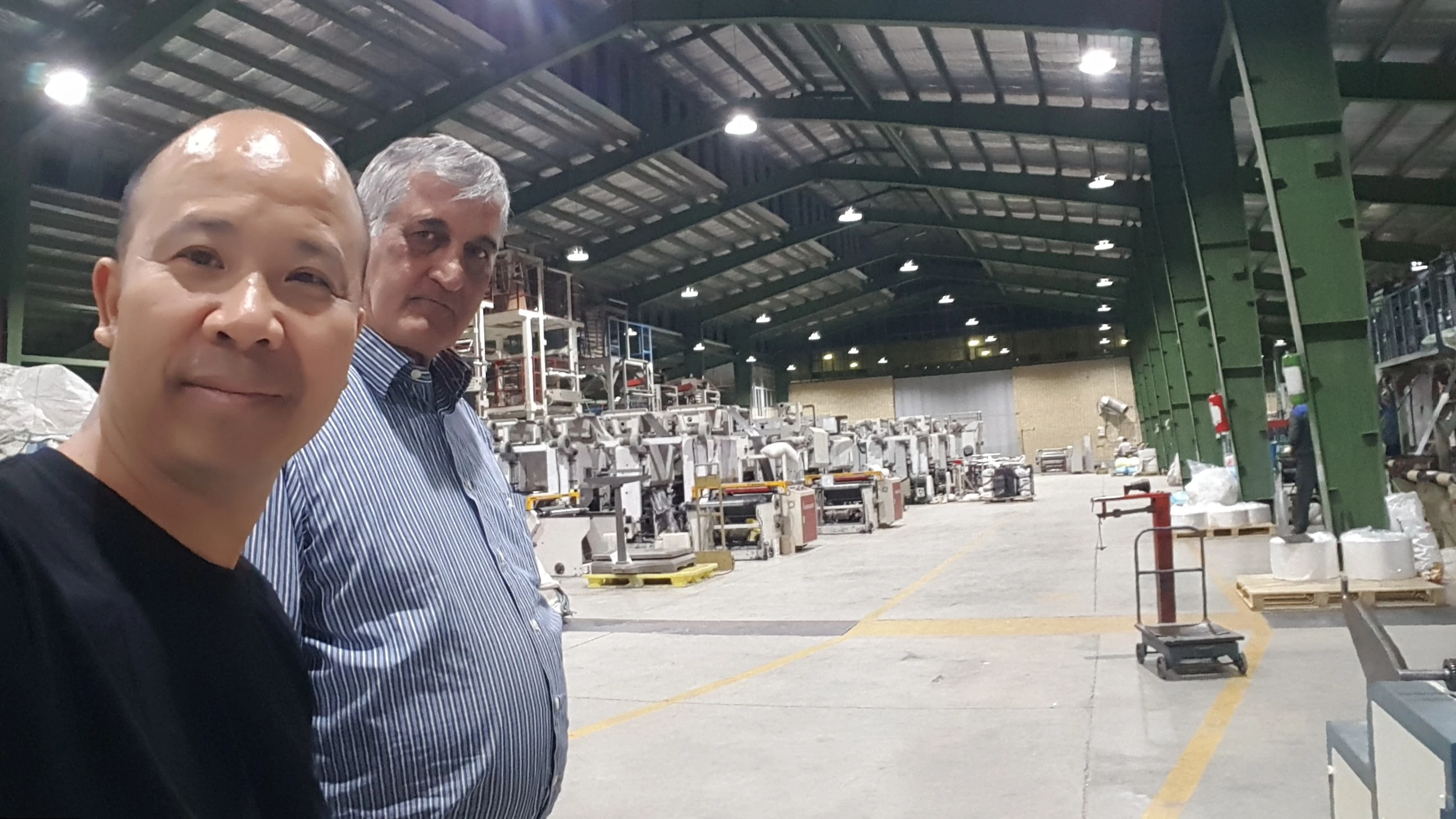

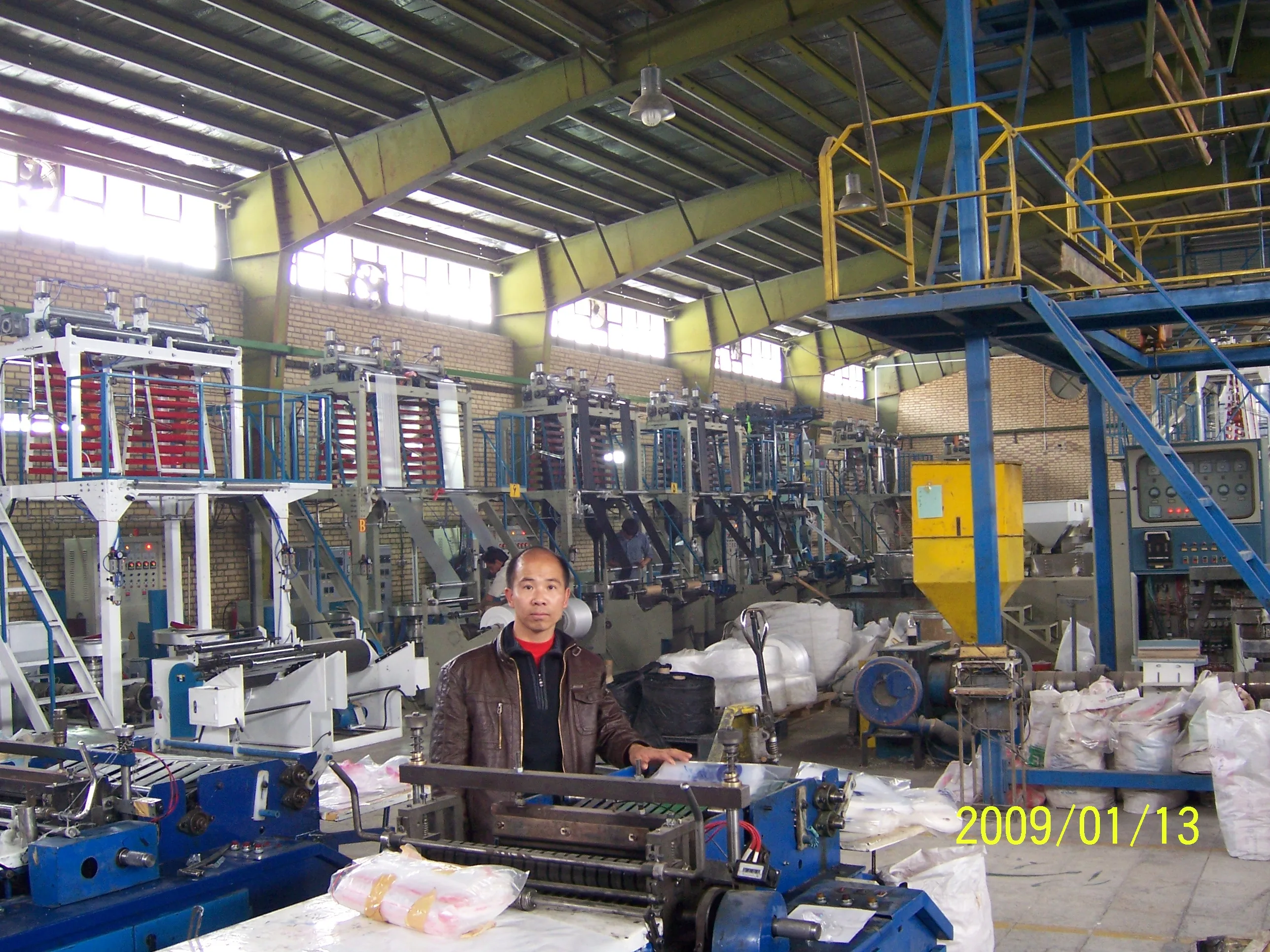

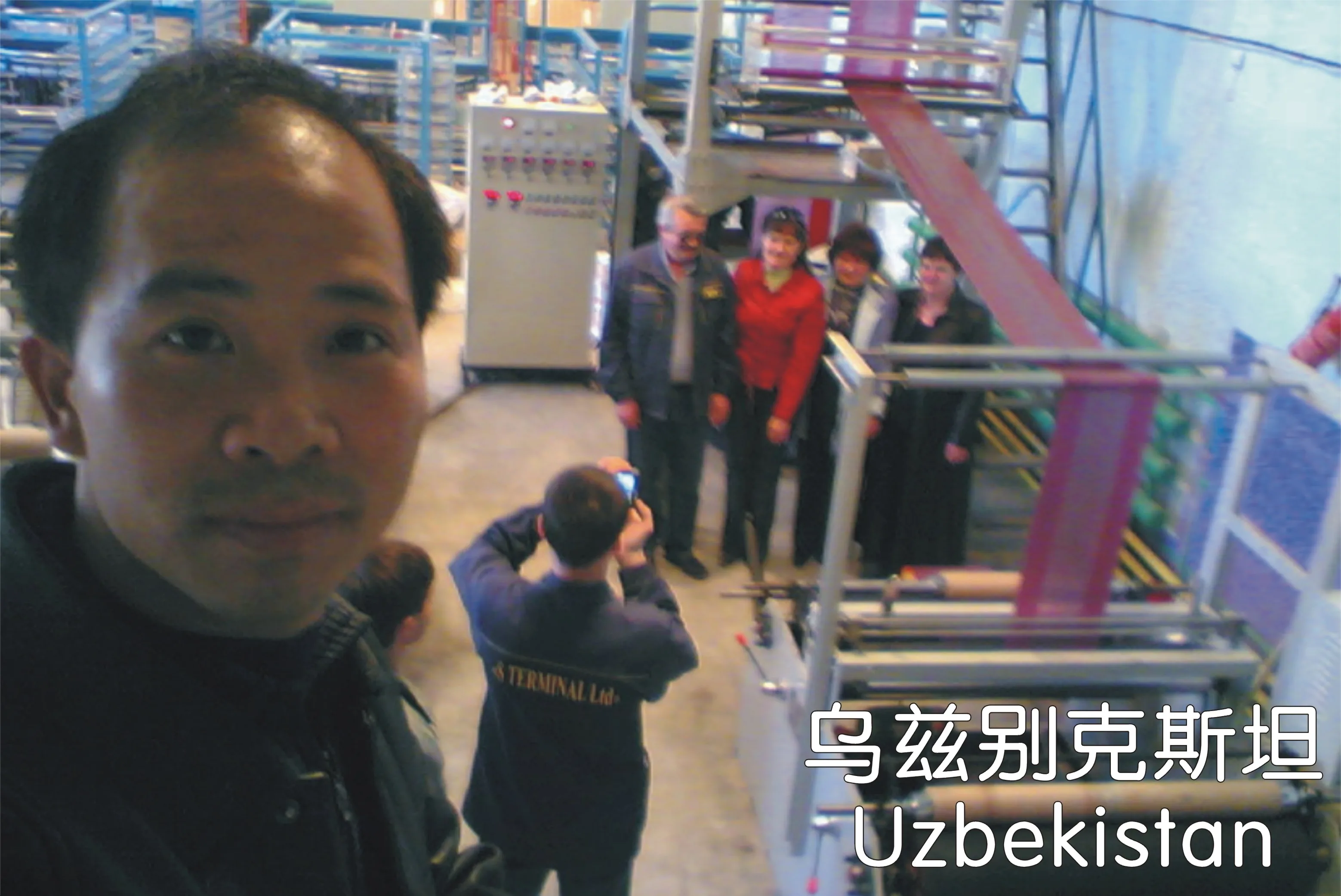

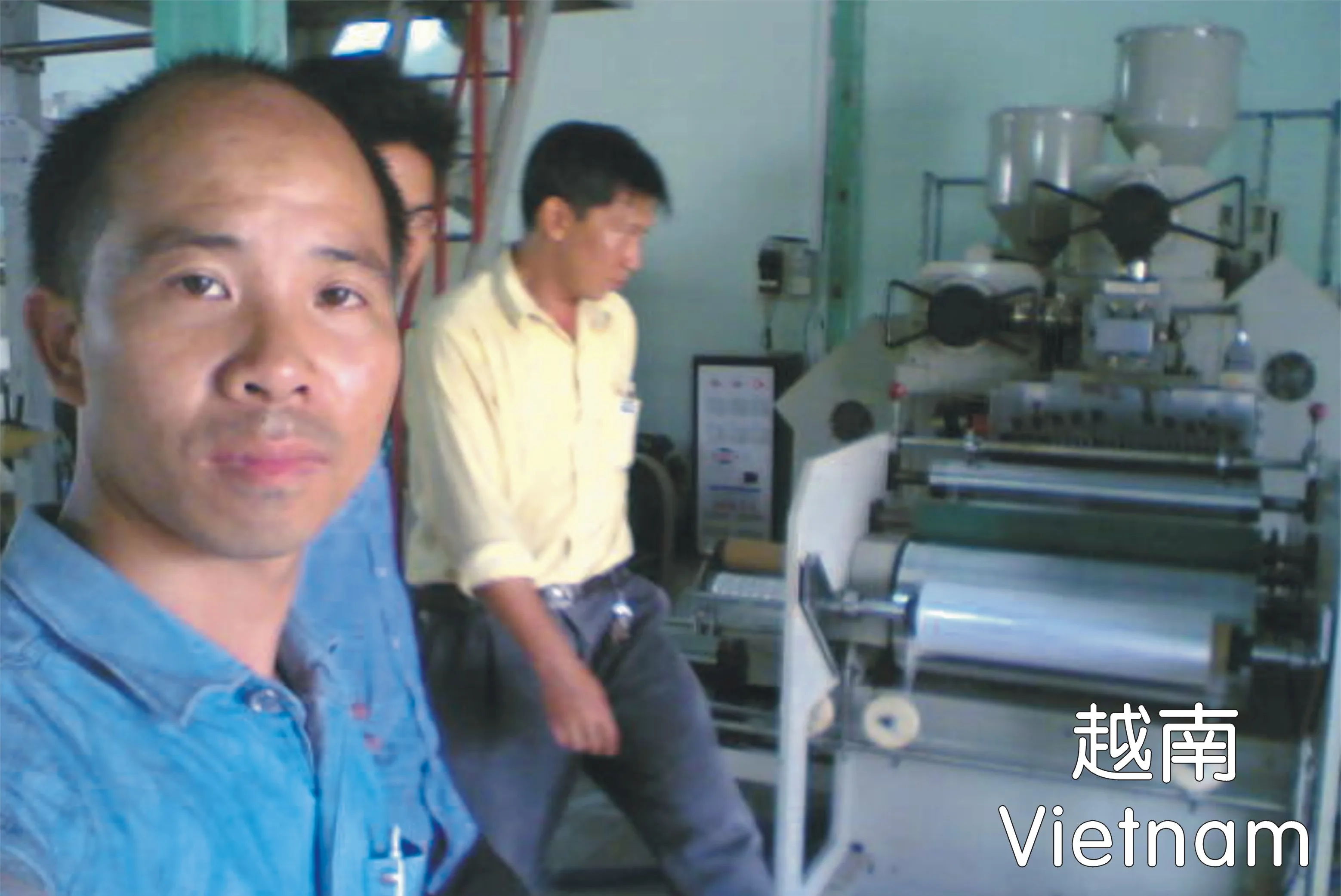

User Factory
Exhibition
Related Products
Our Advantages
1,WENZHOU XIANGHAI MACHINERY CO., LTD. company manager from 1995year start in plastic packaging production, plastic machinery Operation technology and related machinery making, The manager of the company is a plastic packaging mechanical engineer，we can very easy understand you，and you can very easy understand our ！ we with rich experience can give very good machinery for you ！
2,If you buy our equipment, we will treat your equipment as our, from factory production, to equipment delivery checking，to equipment loading, and after-sales service. We will Tracking and supervision all, will let you have a perfect purchase and Comfortable use !
Company Information
WENZHOU XIANGHAI MACHINERY CO., LTD. focuses on the production of plastic machinery and sales, specializing in film blowing machine, printing machine, bag making machine, plastic recycling machine and other related plastic packaging equipment. We From 1995year to now, In the industry of plastic packaging equipment for more than 25 years. Our products have been sold to more than 30 countries in the world, we have professional production team and perfect after-sales service. Our company according "service first, reputation first".for our customer.
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery.
Q4.your company have our need the machine ？
A4.Our company has a lot of plastic packaging machines that you need, if some machine we don't have we also can help find the good machines for you by favorable price
