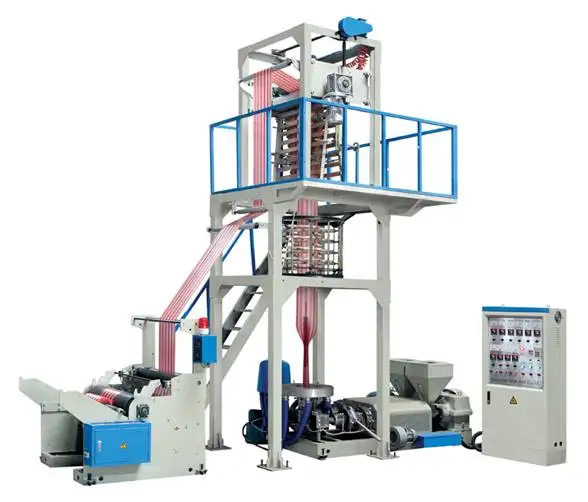

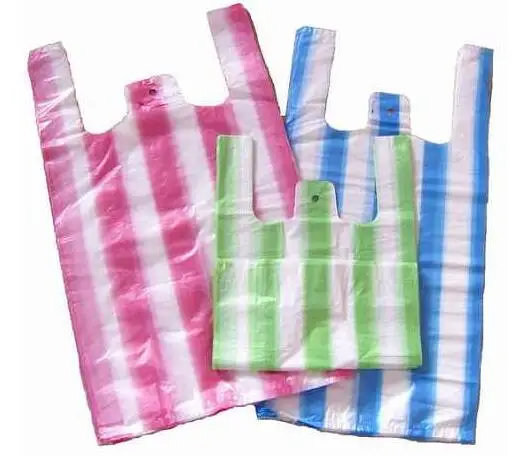

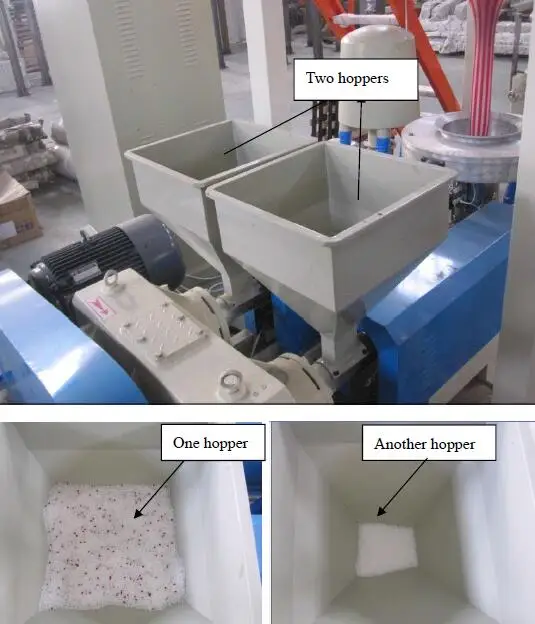

SJ50*2/800 double color LDPE film blowing

SJ50*2/800 Double color film blowing machine with 2PCS 11KW motor,2PCS 133# gear box,L/D28:1 38CRMOALA material screw, Fixed die head. single rewinder.

max extrusion is 60KG/hour.

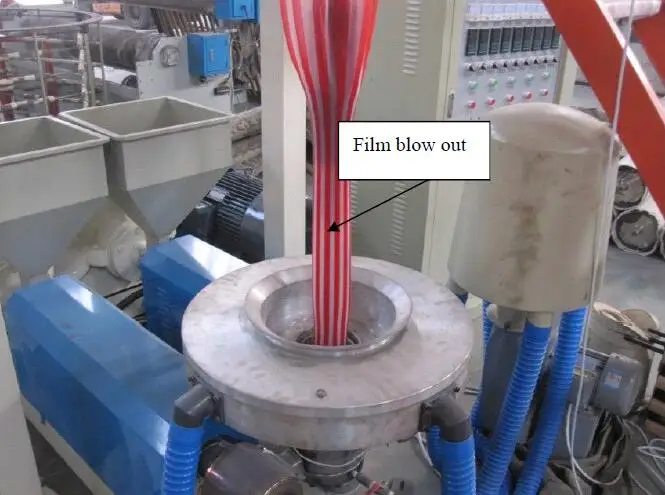

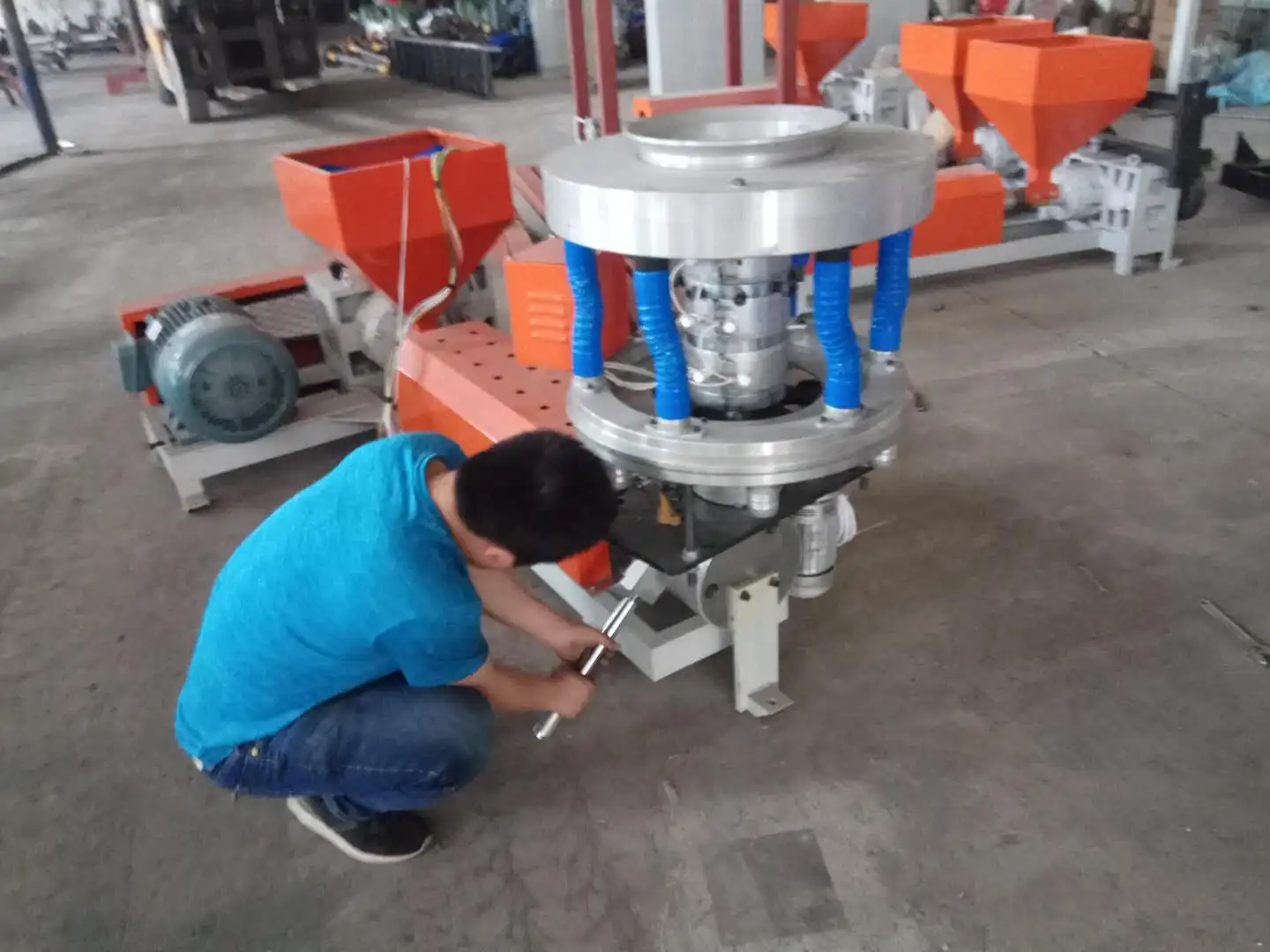

install 1PCS 80mm LDPE double color die head ,Film width blown range 350-800mm. Film thickness range is 20-120micron. all chinese famous brand parts .

Main Technical Description

Extruder part

Single screw extrusion die

Screw + cylinder material SACM-645/38 CRMOALA  screw produced in Zhoushan

Processing technology: normalizing - quenching and tempering - eliminating stress nitriding

Manual screen changer No. 45 steel heat treatment (after the screw is removed, the net is replaced) (with mesh filter set)

The 8 District Heating Control District of Yuyao from 8 in the same temperature control cabinet

Temperature control: an intelligent temperature control meter, phenotype

All stainless steel heaters are used

Barrel cooling fan: 1 groups, voltage 380V power 380W three-phase centrifugal fan

Cooling fan: 1.5KW three-phase centrifugal fan

Cooling air ring: aluminum alloy wind ring

Gear box: Changzhou Jiangsu rich and 133# hardened gear cylindrical water-cooled gear box (with oil pump)

Electric control system of whole machine (CHINT switch, self energy temperature control meter)

Traction part

Rack height: 4.2 meters fixed traction

Steel frame structure: equipped with safe operation platform and safety guardrail

Traction motor: 1.5KW

Shanghai pioneer general inverter (1.5KW inverter and host in the same control cabinet)

Traction roller width: 900mm traction roller material: rubber roller

The baffle type foam stabilizing frame is used for 800 film width

Spica splint: Mucha split

Maximum angle: 22 degrees (adjustable)

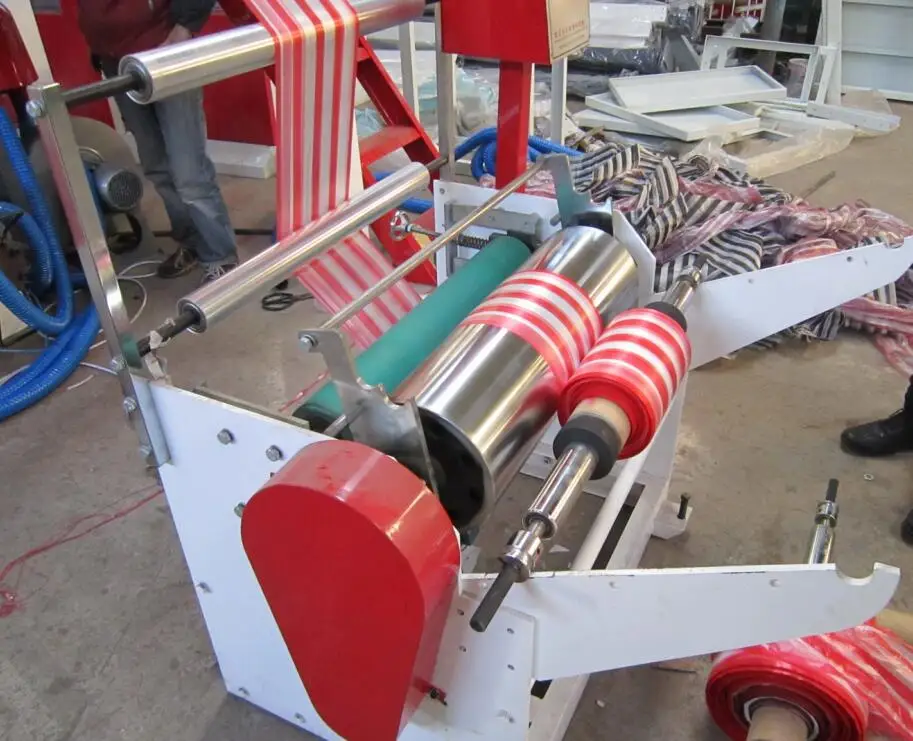

Take-up part

Winding way: friction single winding, big rubber roller close

Diameter of take-up roller (mm): 250mm (horizontal rhombus pattern)

Length of take-up roller (mm): 800mm

Reel structure: horizontal take-up reel

Number of motor: 1 torque speed regulating three phase torque motor

Number of take-up reels: 2PCS nomal reels.

 Spare Parts

Our Services

• Your inquiry related to our product & price will be replied within 24hours.

• Well-trained & experienced staff are to answer all your inquiries

• OEM & ODM projects are both available.

• Your business relationship with us will be confidential to any third party.

• Good after-sale service offered, please get back to us if you got any questions.

Our four promises

We can do the designs according to the customers' requirements.

We can offer you the high quality & reasonable price.

We can offer you a good after-sell service.

Prompt delivery.

If you request quotation by CIF ,please let ue know the port of destination so as to check the freight with our forwarder.
