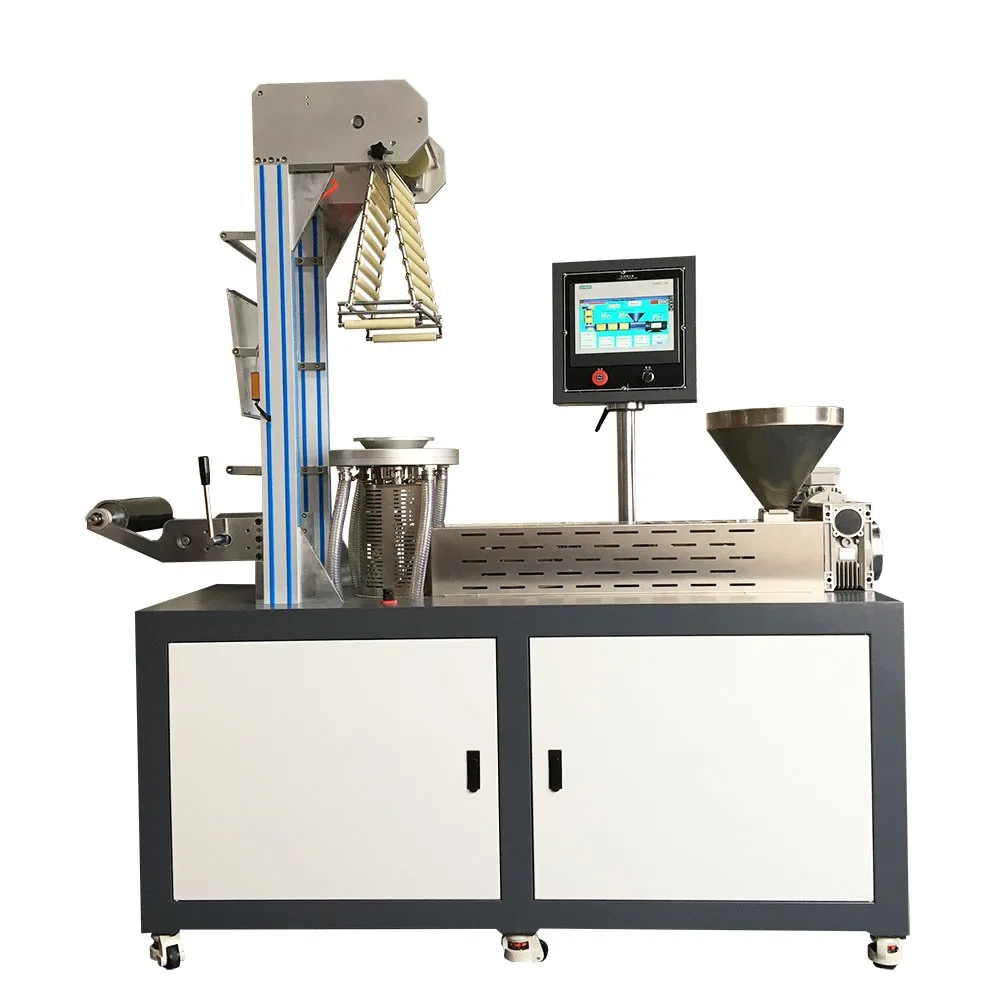

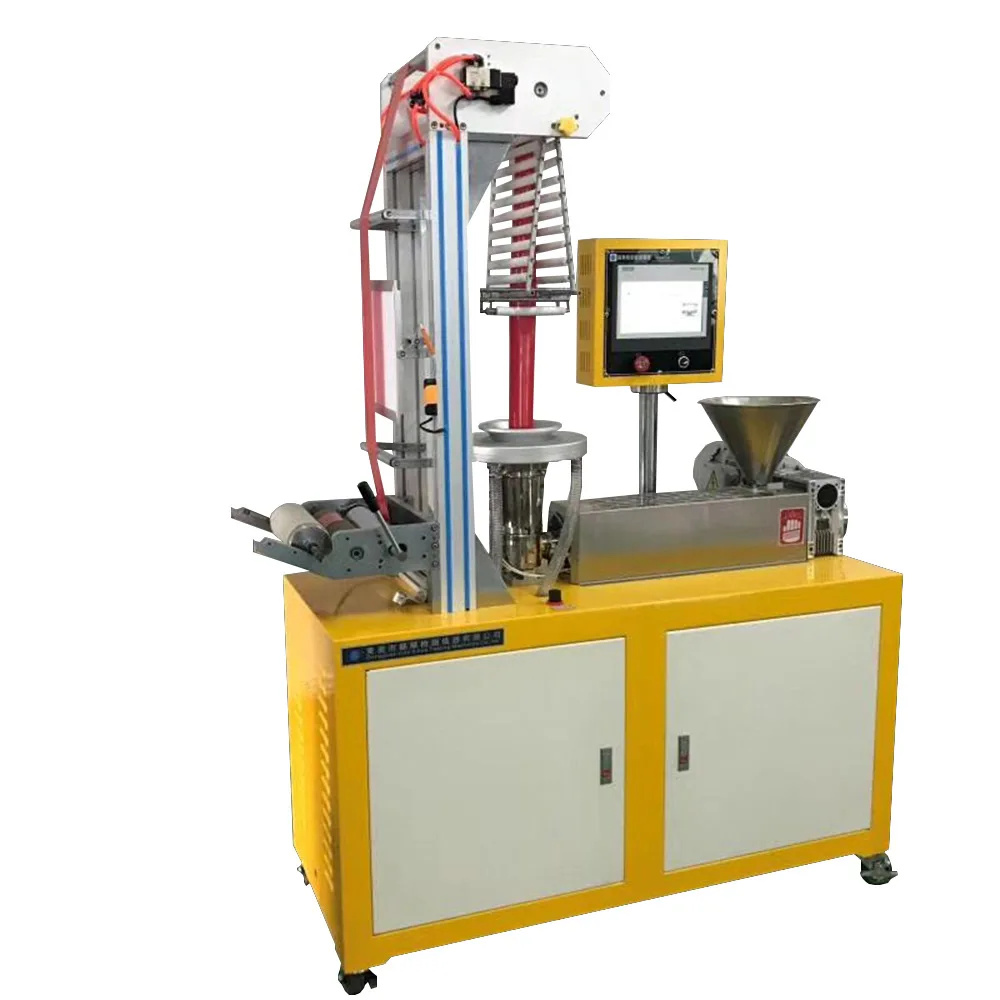

OLLITAL маленькая лабораторная мини HDP LDPE LLDPE PE PP PET машина для выдувания пластиковой
- Категории: >>>
- Поставщик: Xiamen,Ollital,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
The casting unit is a new type of equipment developed by our company, mainly composed of a small casting machine. The casting machine is a mechanical equipment for the molding of rubber and plastic material cast film products. It is mainly used in the fields of casting film product molding, casting material formulation development, and casting material performance research, such as conveying materials to flow The casting machine is made of cast film products. Its advantage is light and practical. During use, the rotation speed of the casting roller and the traction roller can be controlled by the frequency conversion motor, so that the conveying speed of the material can be adjusted to produce various sheet products that meet the requirements of users.

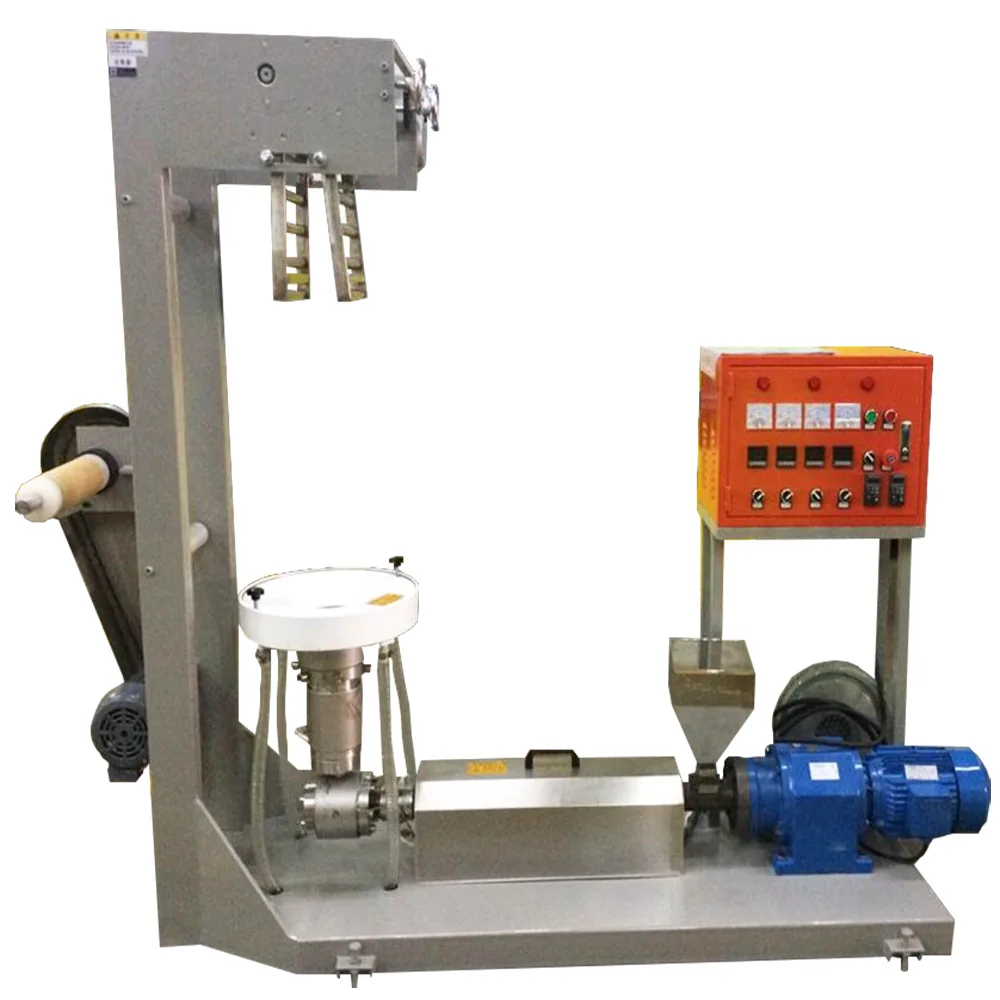

This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electric control system, casting die, two-roll calendering and so on.
Its working principle is: the material flows from the hopper into the plasticizing and extruding through the extruding device into a casting state, and then comes out from the host through the die, and is calendered by a two-roll calender.
This machine is mainly composed of main drive motor, transmission device, extrusion device, feeding hopper, electric control system, casting die, two-roll calendering and so on.
Its working principle is: the material flows from the hopper into the plasticizing and extruding through the extruding device into a casting state, and then comes out from the host through the die, and is calendered by a two-roll calender.
Technical Parameters
Model | ZS-432-25 |
Screw diameter | ￠25 |
Length to Diameter Ratio | 33:1 |
Screw Speed | 0-95rpm frequency conversion speed regulation |
Heating Zone | room temperature ~ 300 degrees, five zones heating, of which three zones cast aluminum heater, die head two zones heater |
Cooling Zone: | 3 sets of multi-wing fan cooling |
Electric Control System: | PLC programmable touch mode |
Volume (W×D×H) | 1000×700×800mm |
Power Supply | 3∮, AC380V |
Weight | about 175KG |
Details Images

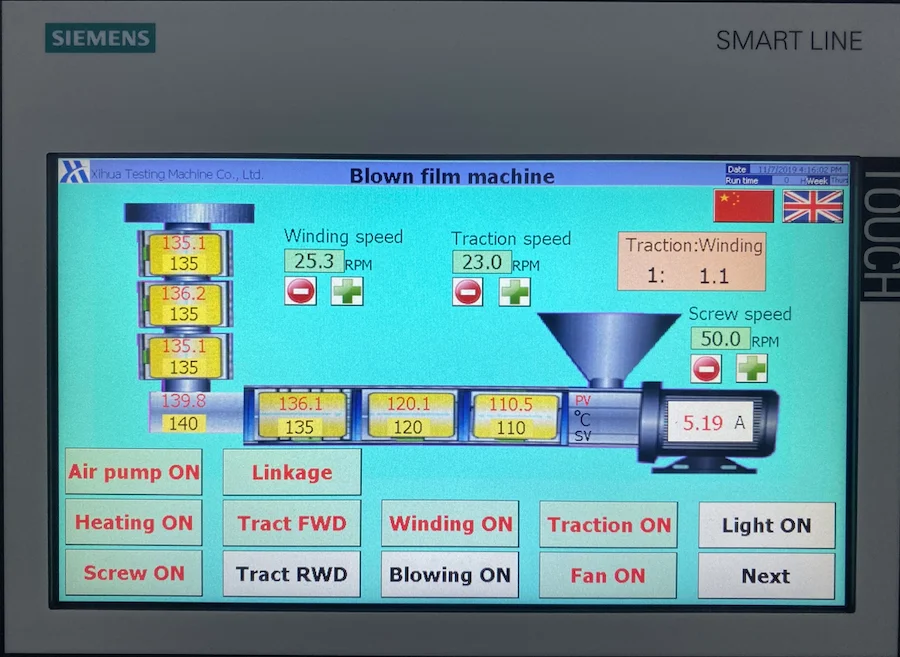

All operating will be done on the PLC interface, such as set temperature for each zone, adjust the screw speed, traction speed and
winding speed, start/stop heating, start/stop screw rotate,winding, blowing and so on. It's very easy for operation the machine.

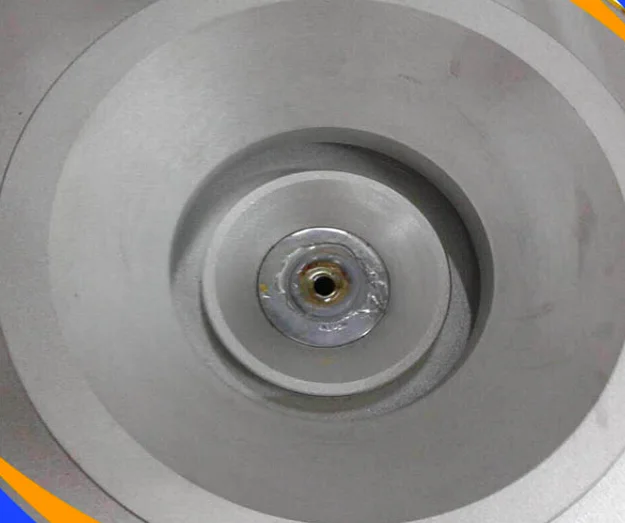

The diameter of blow film die is 25mm.

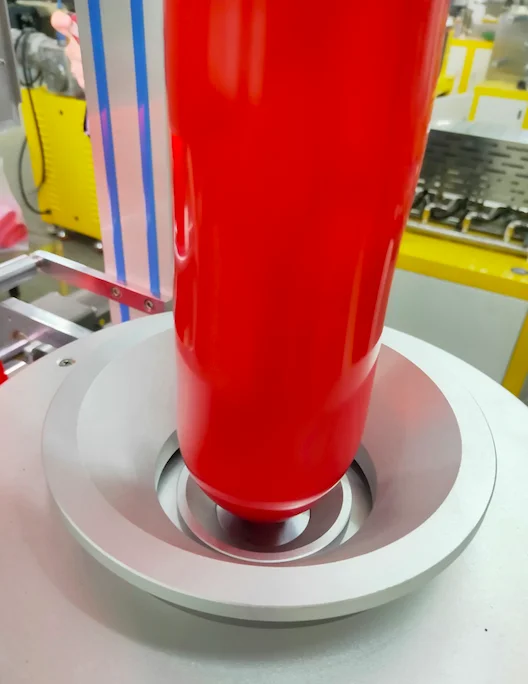

The max fold width for film can be adjust from 60mm to 200mm. Film thickness can be adjust 0.02-0.2mm

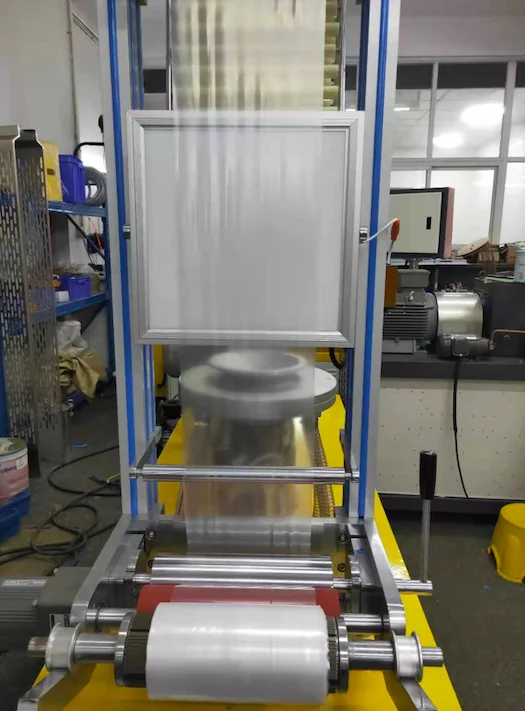

The cooled plastic film is mechanically wound into a roll.
Main Products
Why Choose Us
Company Profile
Xiamen Ollital Technology Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. It provides professional first-class packaging solutions for food, pharmaceutical, daily chemical and electronic products.The company's main products are automatic capsule filling machine, blister packaging machine, cartoning machine, tablet press machine, counting machine and other related pharmaceutical equipment. The company has passed the SGS and ISO9001:2015 quality certification management system, some products have passed the CE certification of the EU, and obtained the right to import and export. The company has pre-sales consulting department, packaging solution consulting department, after-sales service training department, and strive to provide customers with star brand service!Now, through the efforts of all Hanyoung employees, our products have been sold to more than 30 provinces, cities and territories in the country, and sold in the United States, Canada, Russia, Britain, Germany, Spain, Malaysia, Indonesia, Thailand, India, Brazil, etc. More than 100 countries have won good reputation and credibility in the international and domestic markets. In the course of development, the company has always adhered to the "excellence" work attitude, scientific production management, intimate service to impress customers, on the road of development, to conquer more difficult obstacles, and grow together with customers.
Packing & Delivery
