Мини-пульт дистанционного управления печатная машина ручная печать запечатанная чернильная

Мини-пульт дистанционного управления печатная машина ручная печать запечатанная чернильная

Категории: Pad Printers >>>
Поставщик: Zhejiang,Taoxing,Intelligent,Equipment,Technology,Co.,Ltd.

Цена:394,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Machine Description

Application

It is suitable for precision printing of metal, glass, ceramic, plastic, wood, leather and other materials with relatively small
printing area of plane, camber and irregular surface products.

Main Feature

This model is the earliest product developed by our factory, which has many years of production history. Up to now, we have modified this product three times. In order to meet the needs of users, we have redesigned it from the aspects of overall appearance, technical specifications and printing accuracy, so that the quality of this machine has been significantly improved.

It has the obvious advantages of energy saving, convenient movement, low cost, high printing accuracy and simple operation.

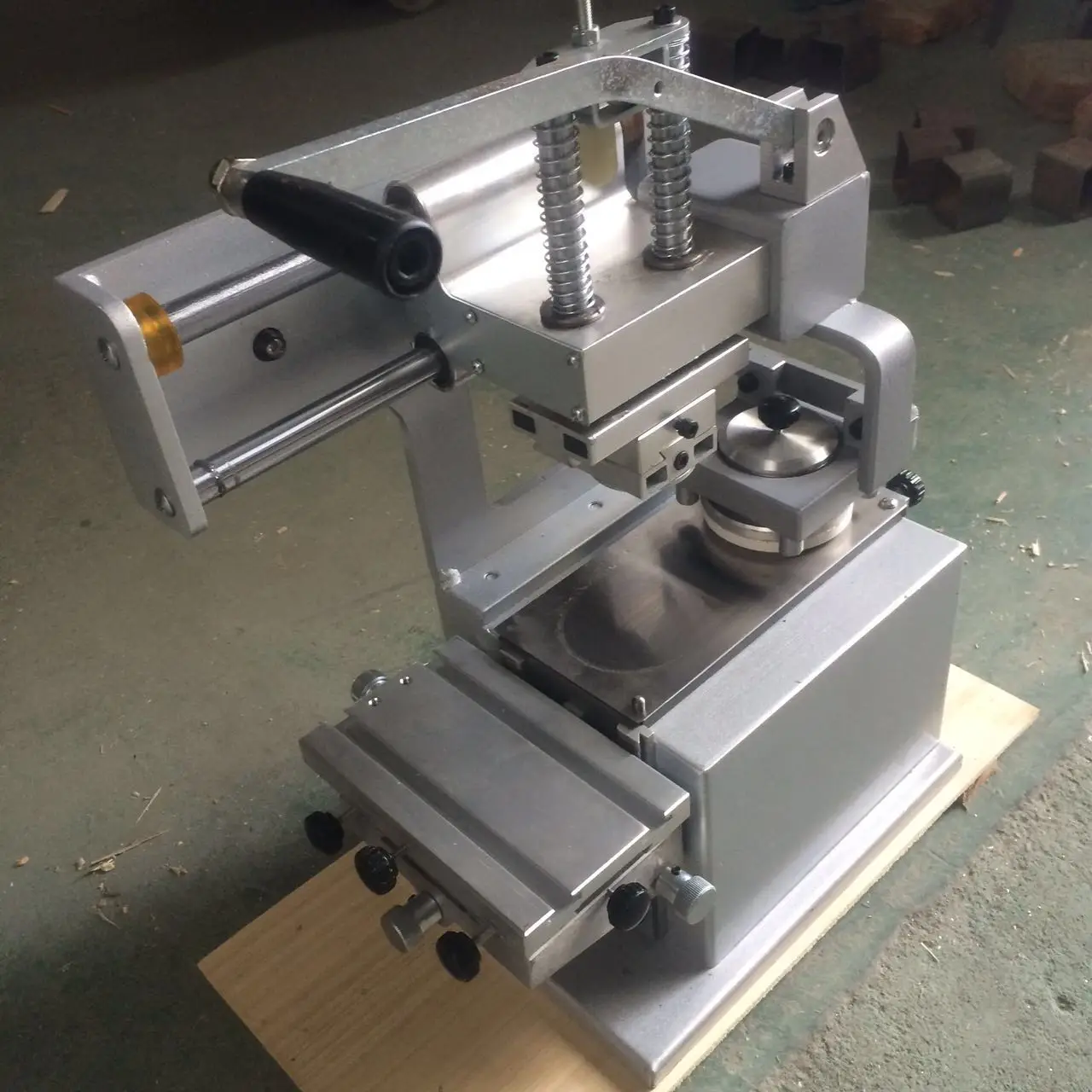

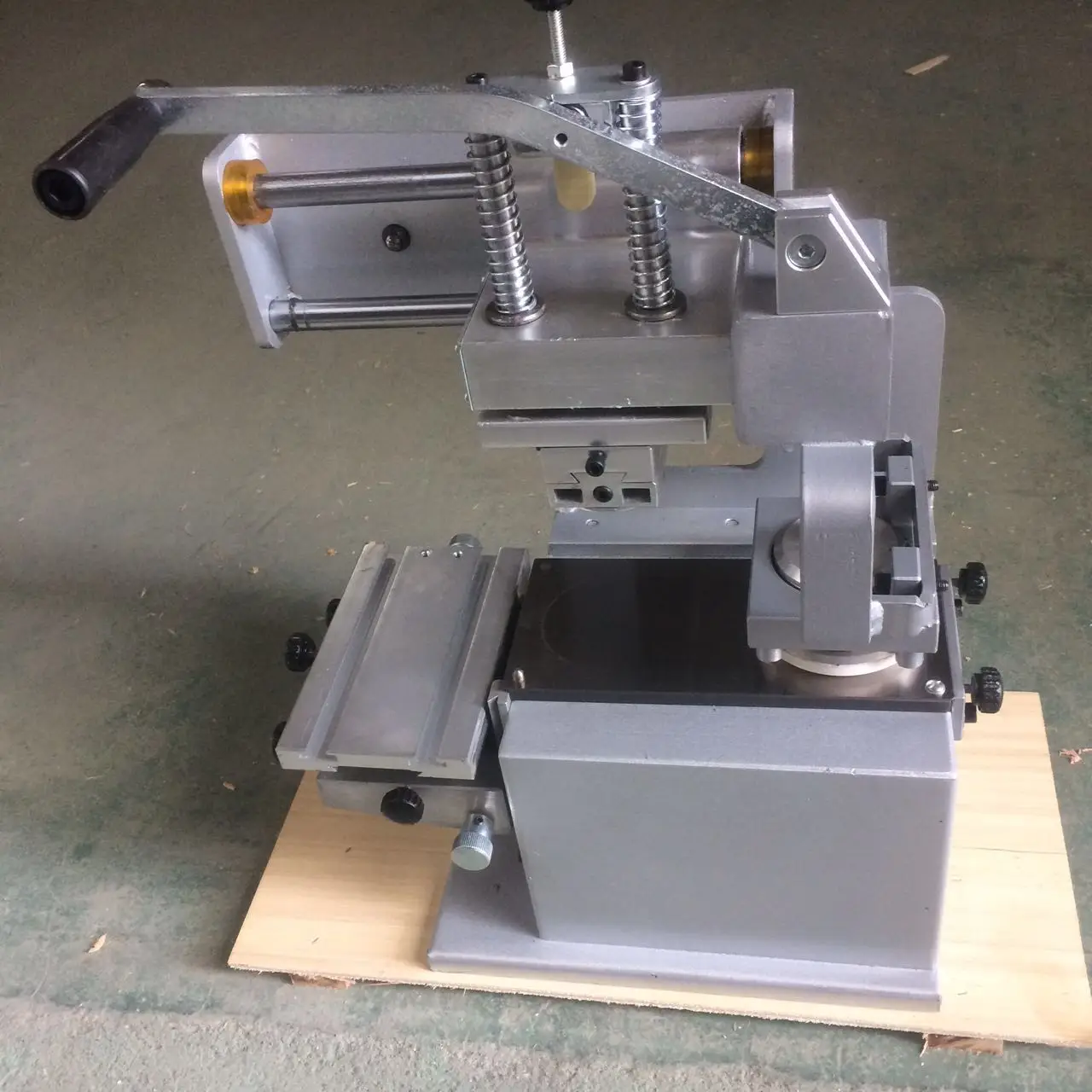

TXD-200-80 manual ink cup pad printing machine
Model	TX-200-80	Max. printing area	50*80mm
No.of color	1color	Steel Plate Size	100*215mm
Max.Worktable Length	150mm	Machine weight	30kg
Level Stroke	100mm	Pad Vertical Distance	60mm
Packing Demension	400220490mm	Operation Way	Munual

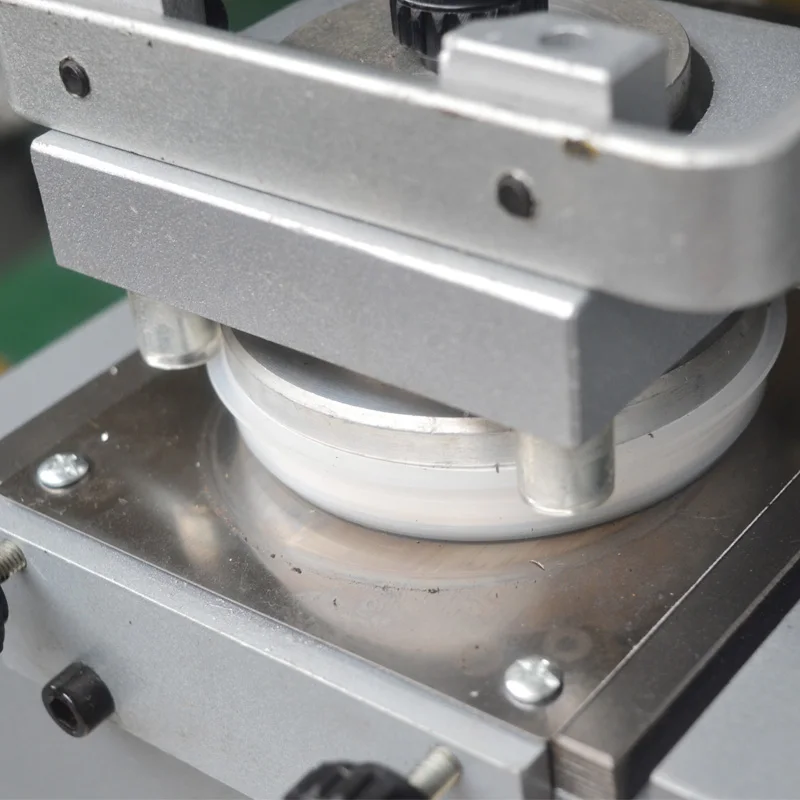

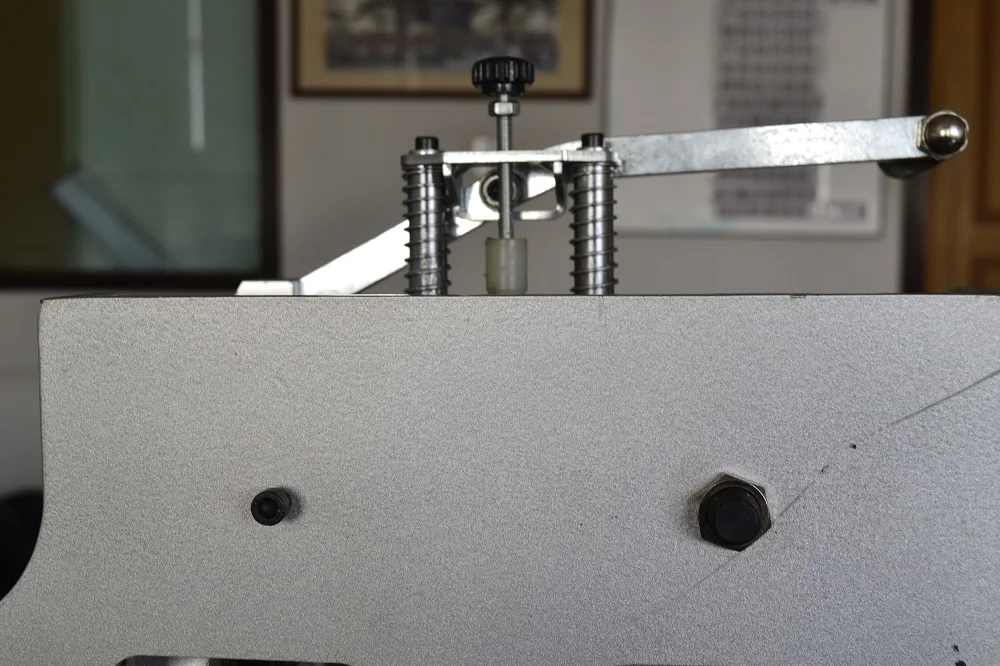

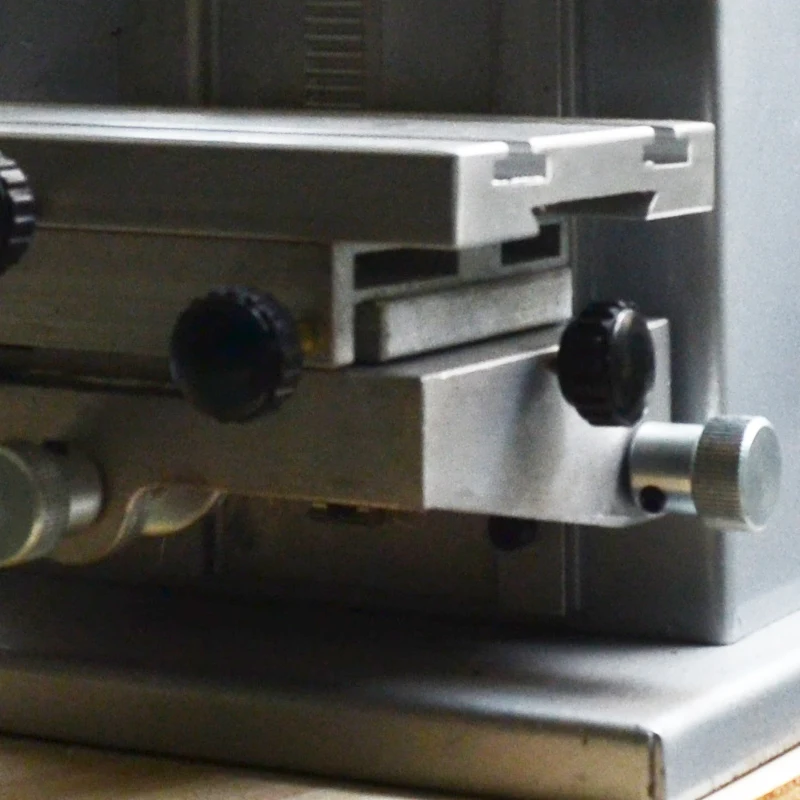

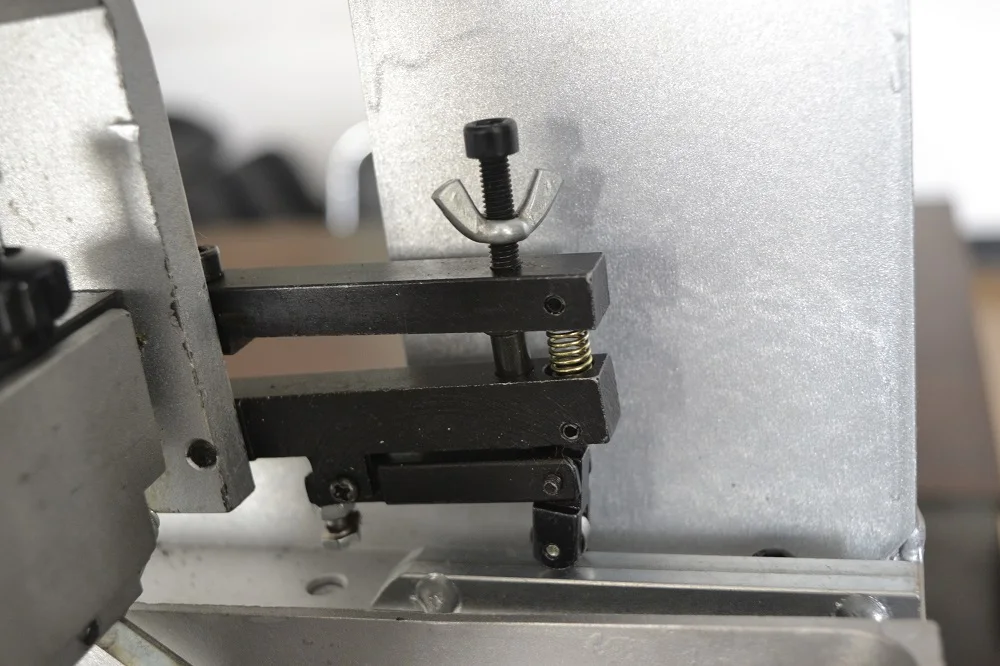

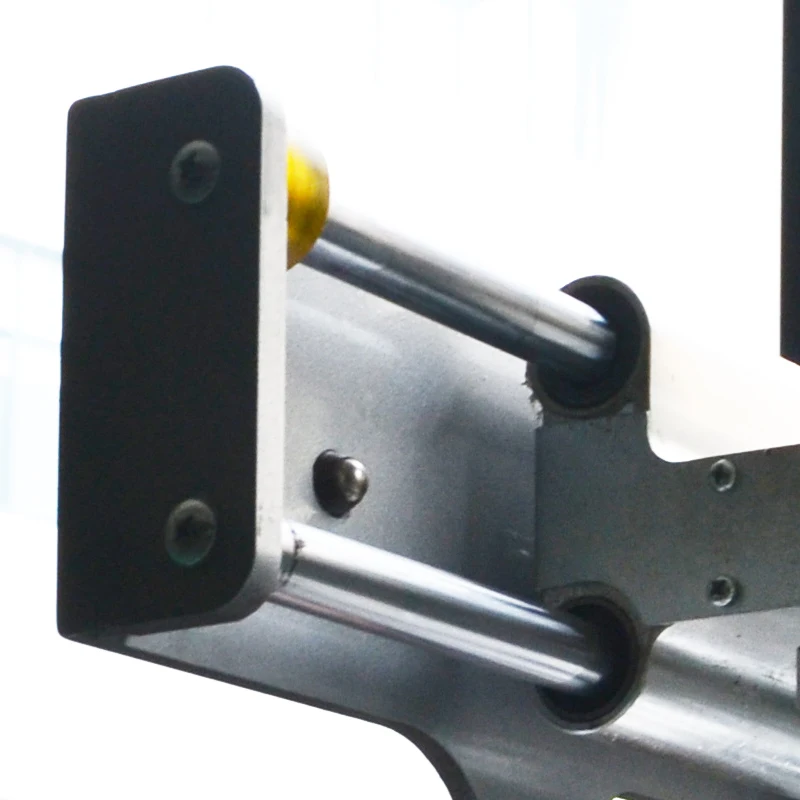

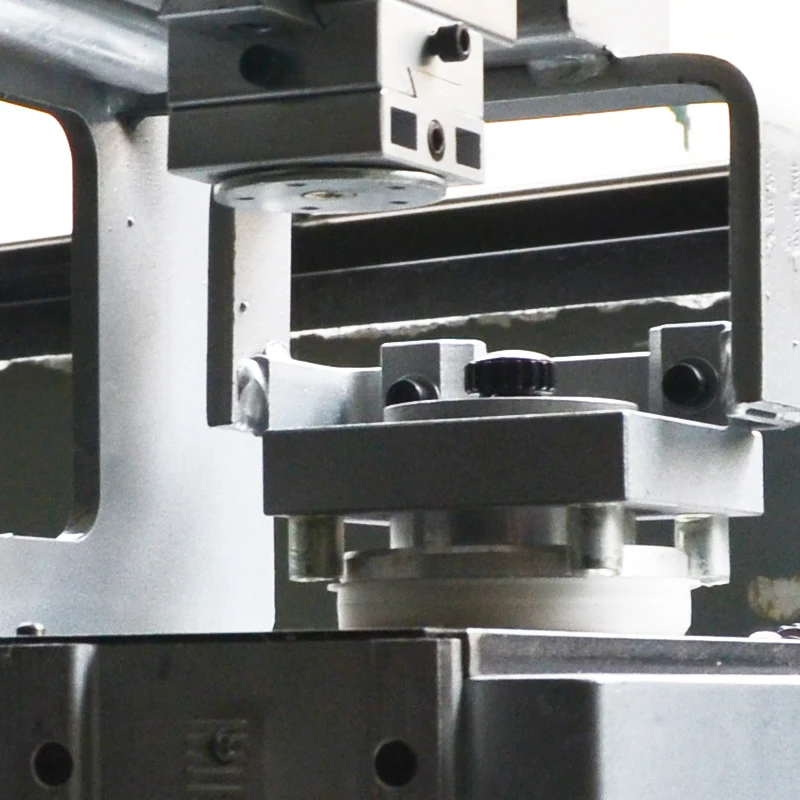

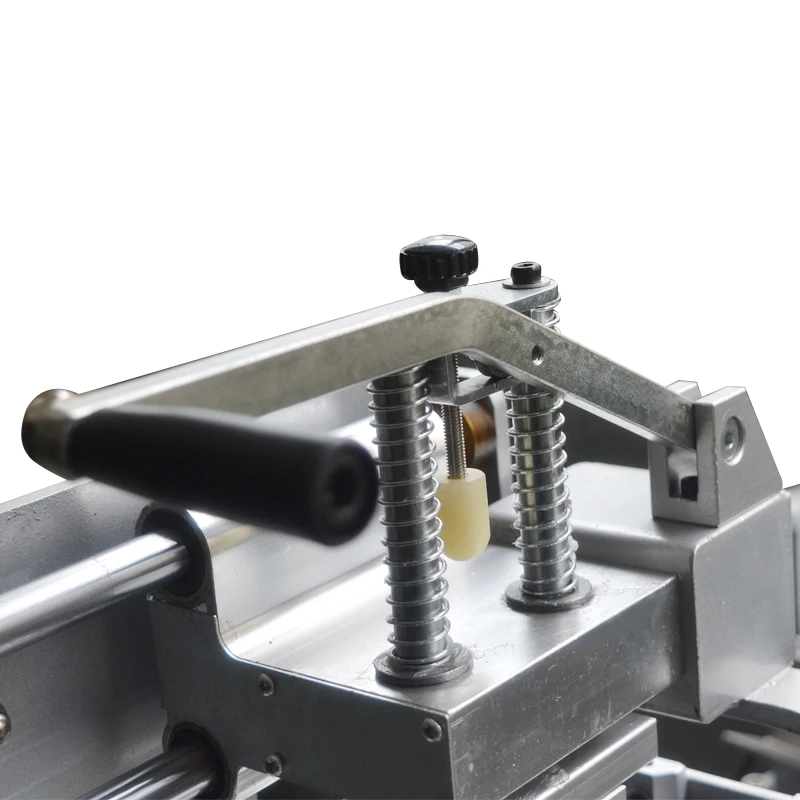

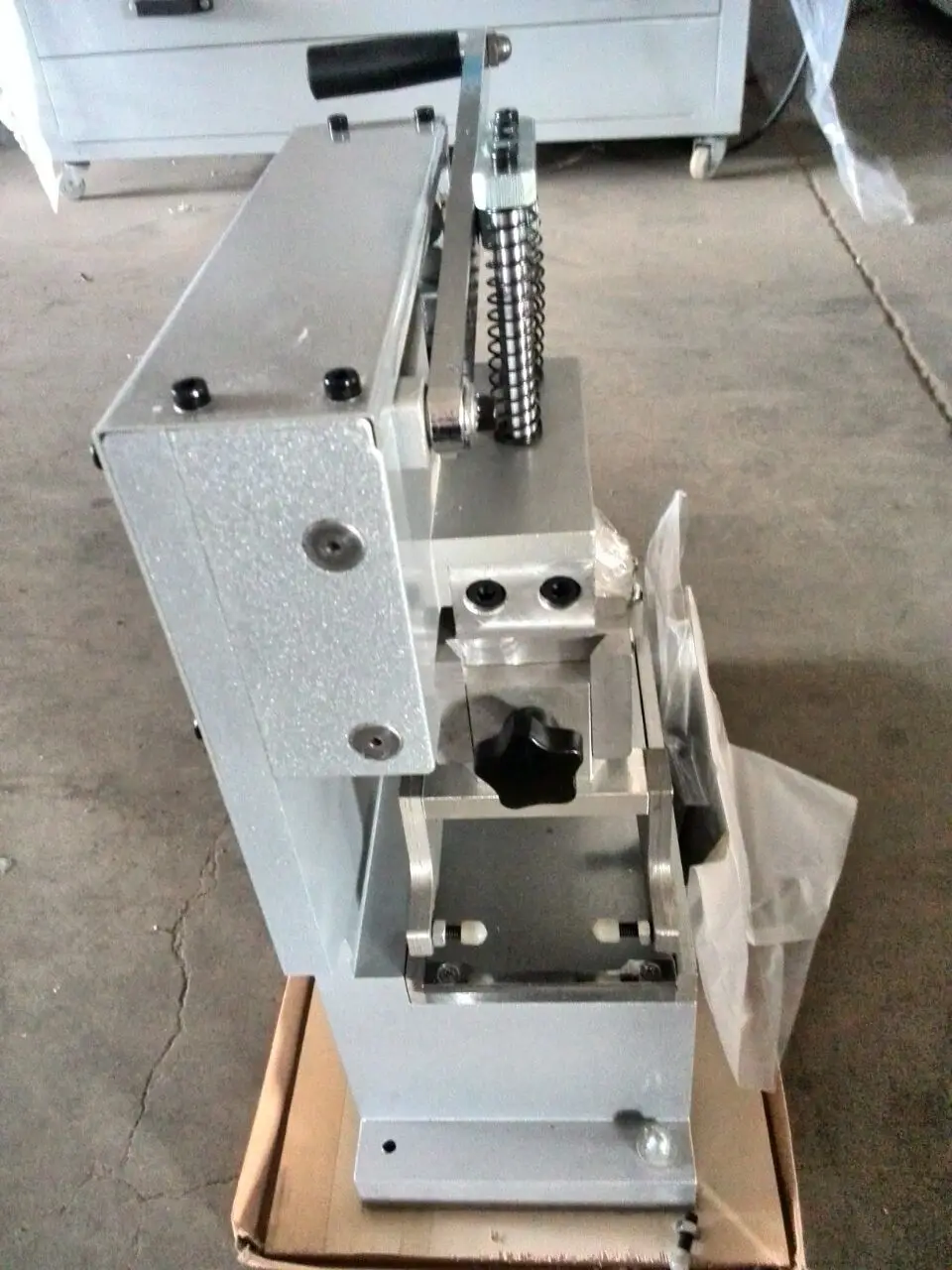

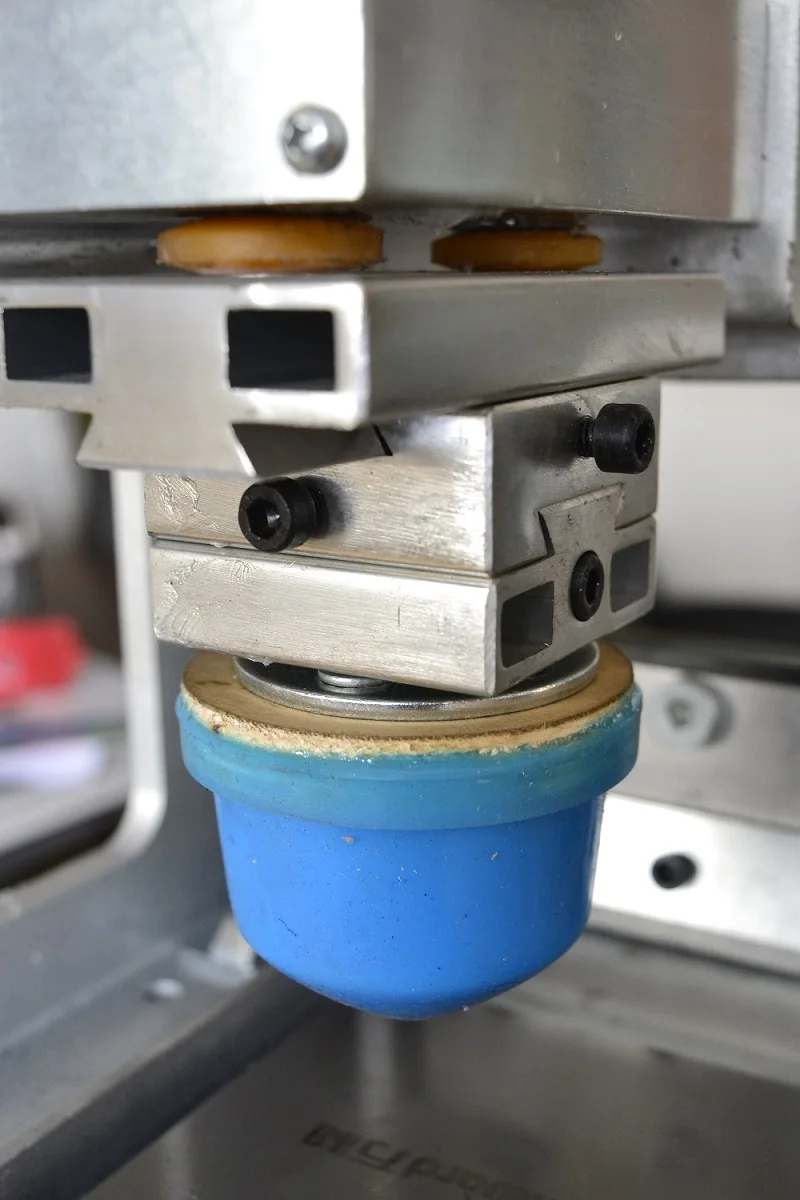

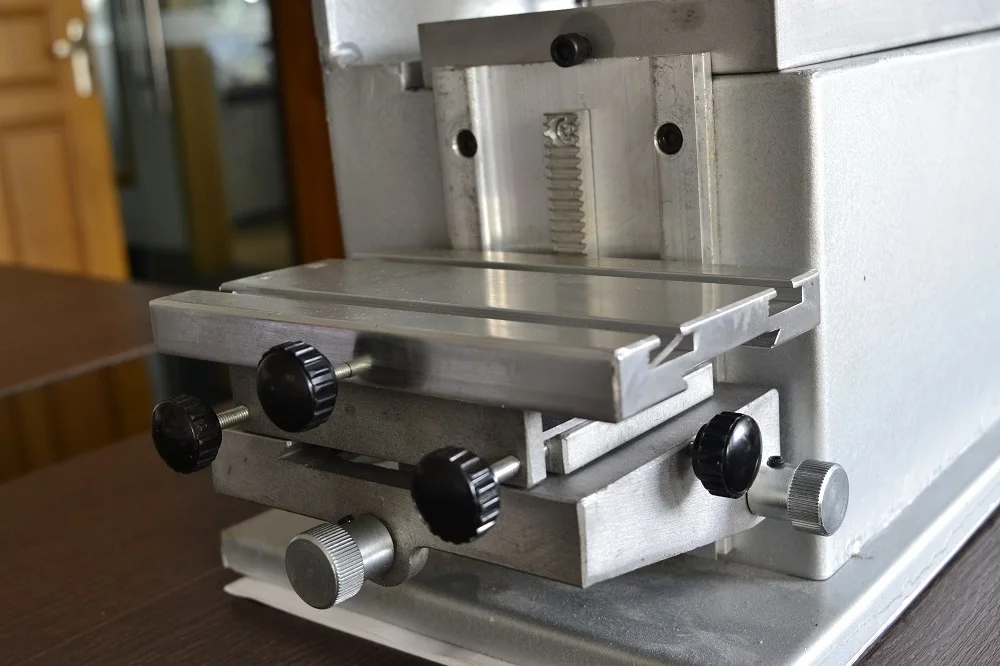

Machine Details

Details Steps

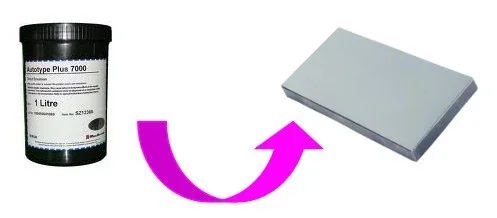

Step 1

Make sure you got the blank steel plate is clean,then brush photo sensitive emulsion on the surface,do a couple times,make sure
the surface is well-coated by the photo sensitive emulsion,later,put the steel plate into the oven,or other drying equipment to
dry up the photo sensitive emulsion.

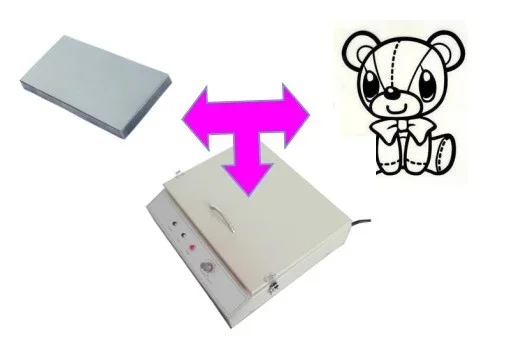

Step 2

Get ready for the exposure machine and the film，put the film on the coated emulsion steel plate with tape,then, put them onto the
exposure machine,set the time,then exposure for a couple of minutes(5-8 minutes)

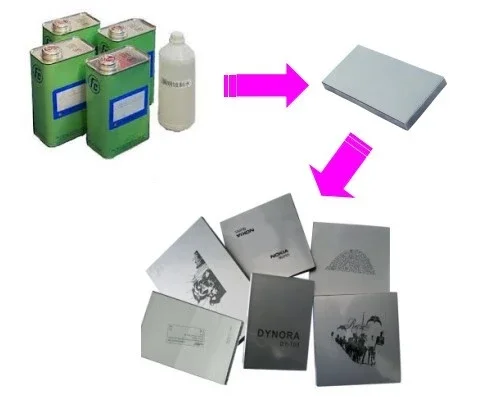

Step 3

After exposure ,take off the film ,then ,there is the image of the film show on the steel plate,it might not be so clear,wash by
water,after that,the emulsion covered by the film is away,leave the in-depth image on the steel plate,brush the developing agent
on the plate,slowly.Next,prepare the etching liquid,drop the liquid on the in-depth image on the steel, etching begin,after,30-60

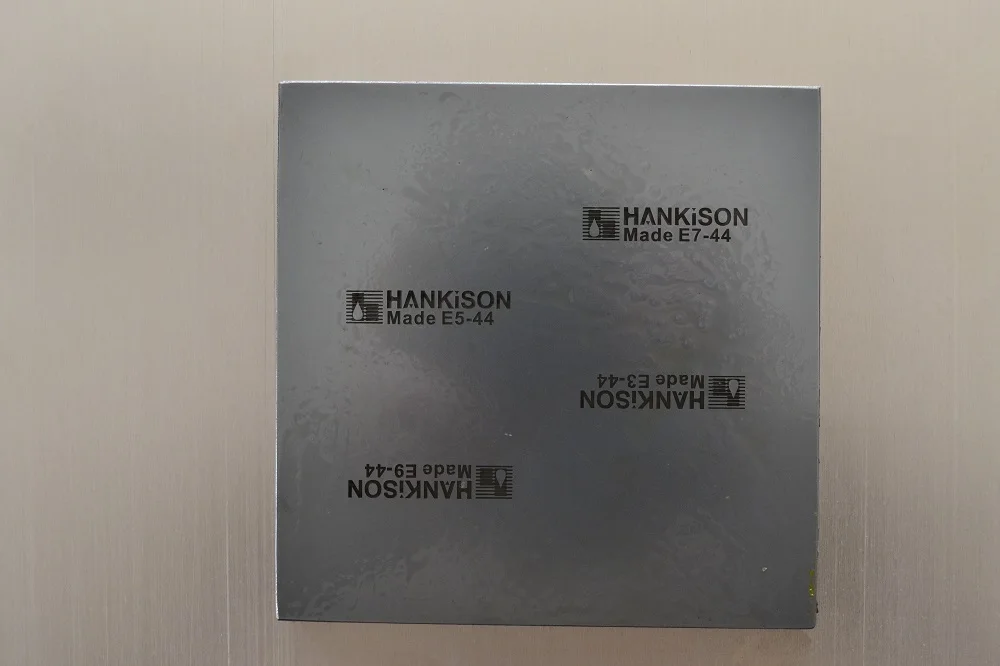

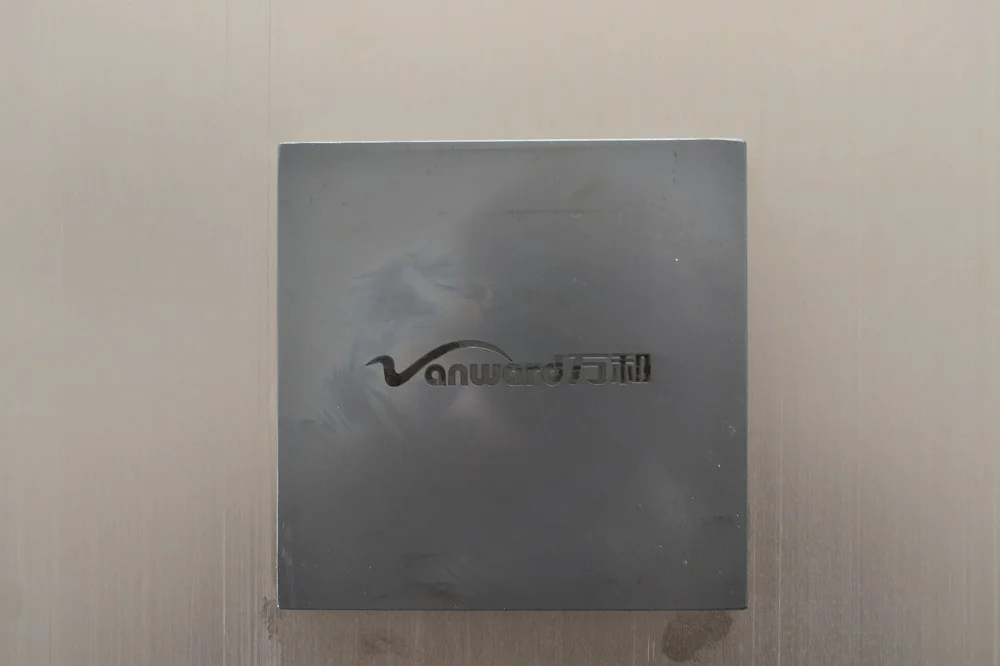

sec,wash again by water for the steel plate,get rid of the emulsion,then,the finished steel plate is ready!

Packing&Delivery

Safety and Fast Transportation

1. Packing: Plywood Case for Each Machine

2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery)
3. Delivery date：3~15 business days after received the payment.
4. Delivery means: By sea from Shanghai

FAQ

Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to
supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the
competitiveness of our products and services.

Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.

Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.

Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.

Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales
service. We believe in total customer satisfaction, aside from our no-hassle guarantee.

To provide you with the best printing solutions

Company Profile

Zhejiang Taoxing Intelligent Equipment Technology Co., Ltd. Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine,mask machine and other machine.
