Product Description
Ink cup pad printer
Accessories
The biggest advantage of pad printing is that pad printer can print on irregular surface, flat & round surface, such as
⦁ Electric, switch, socket, fuse, circuit breaker, button, knob
⦁ Plastic, Hanger, plug, brush, glasses, glass cover
⦁ Automotive; plastic and metal parts, hoses, golf ball, toy, PC mouse
⦁ Promotional items; hotel equipment, pen/pencil, lighter, bottle, cap, lipstick, nail polish bottle
⦁ Plastic, Hanger, plug, brush, glasses, glass cover
⦁ Automotive; plastic and metal parts, hoses, golf ball, toy, PC mouse
⦁ Promotional items; hotel equipment, pen/pencil, lighter, bottle, cap, lipstick, nail polish bottle

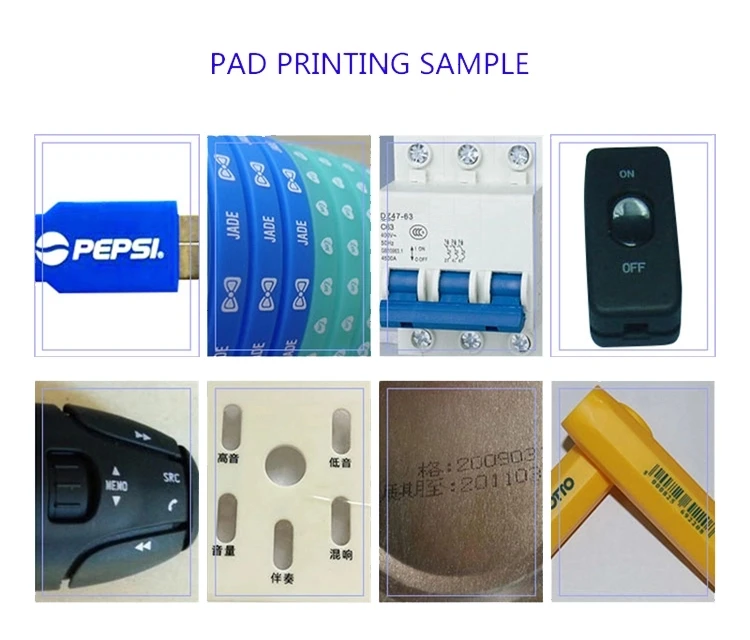

Print Samples

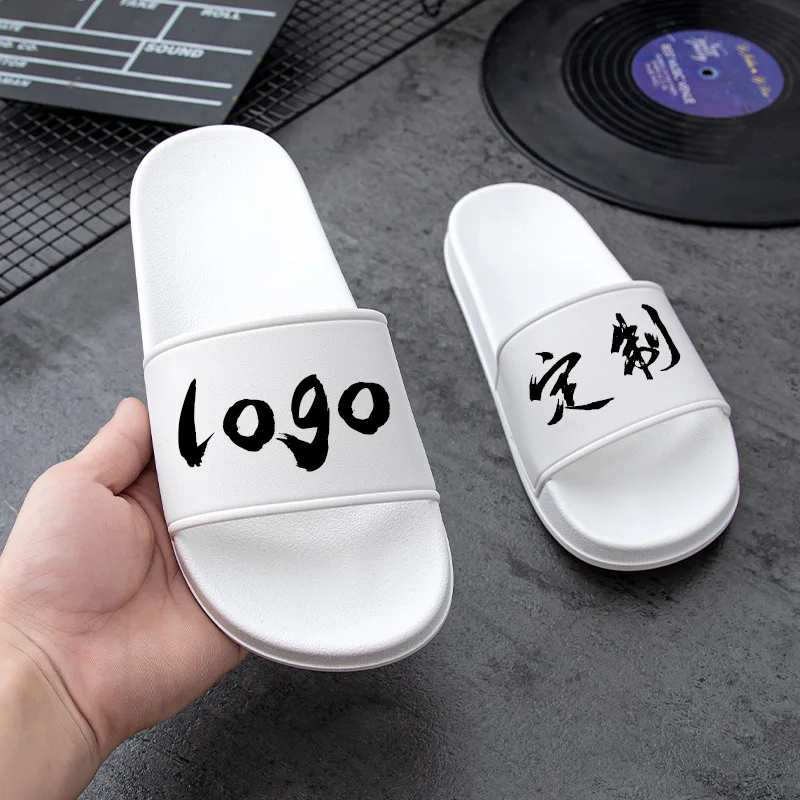

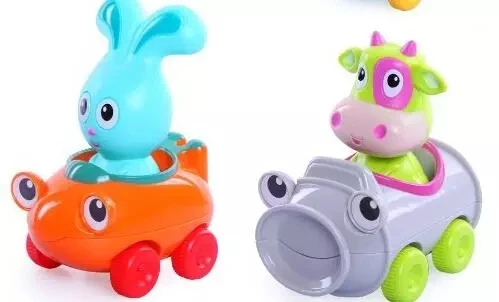

Slippers | Ball or Golf ball | Plastic object | Toy | |||
More printing samples of the pad printer, please contact us directly. | ||||||
Specification
Specification for TXD-225-90 sealed ink cup pad printer | ||||||
Plate size | 225*100mm | Max Printing size | 100*70mm | |||
Max printing Speed | 1500pcs /hour | Drive | Electro-Pneumatic | |||
Power | 220V/110V 30W | Compressed Air | 5-6MPA | |||
Dimensions (L*W*H) | 720X500X1350mm | Weight | 130KG | |||
More details
Main Features for easy operate TXD-225-90 sealed ink cup pad printer
1. Advanced microcomputer system control with small size and light weight, it can print speedy, max. 1500 piece per hour.
2. Built-in digital counter, real-time statistics of the number of printed piece.
3. Sealed ink cup, less smell when printing, environment friendly and healthy.
4. Pad and printing stroke are easily adjustable for different printing requirements.
5. Ceramic ring blade with integrated scraper and ink return blade, no need to adjust the blade, easy operating.
2. Built-in digital counter, real-time statistics of the number of printed piece.
3. Sealed ink cup, less smell when printing, environment friendly and healthy.
4. Pad and printing stroke are easily adjustable for different printing requirements.
5. Ceramic ring blade with integrated scraper and ink return blade, no need to adjust the blade, easy operating.
Simple operate panel
Built-in digital counter with All Clear(reset) button, real-time displays the output.
Fixture worktable
Height adjustable, fit your needs to print different goods
Can be easily discharged and install your own fixture to reach the well printing effect if need.
Steel plate
Etch your customized logo on the steel plate.
Imported high strength steel material, make it longer lifetime.
Silicone pad
Smoothly surface and high-flexibility, ensures a high performance during the press and printing.
Shape and size can be customized according to the demands.

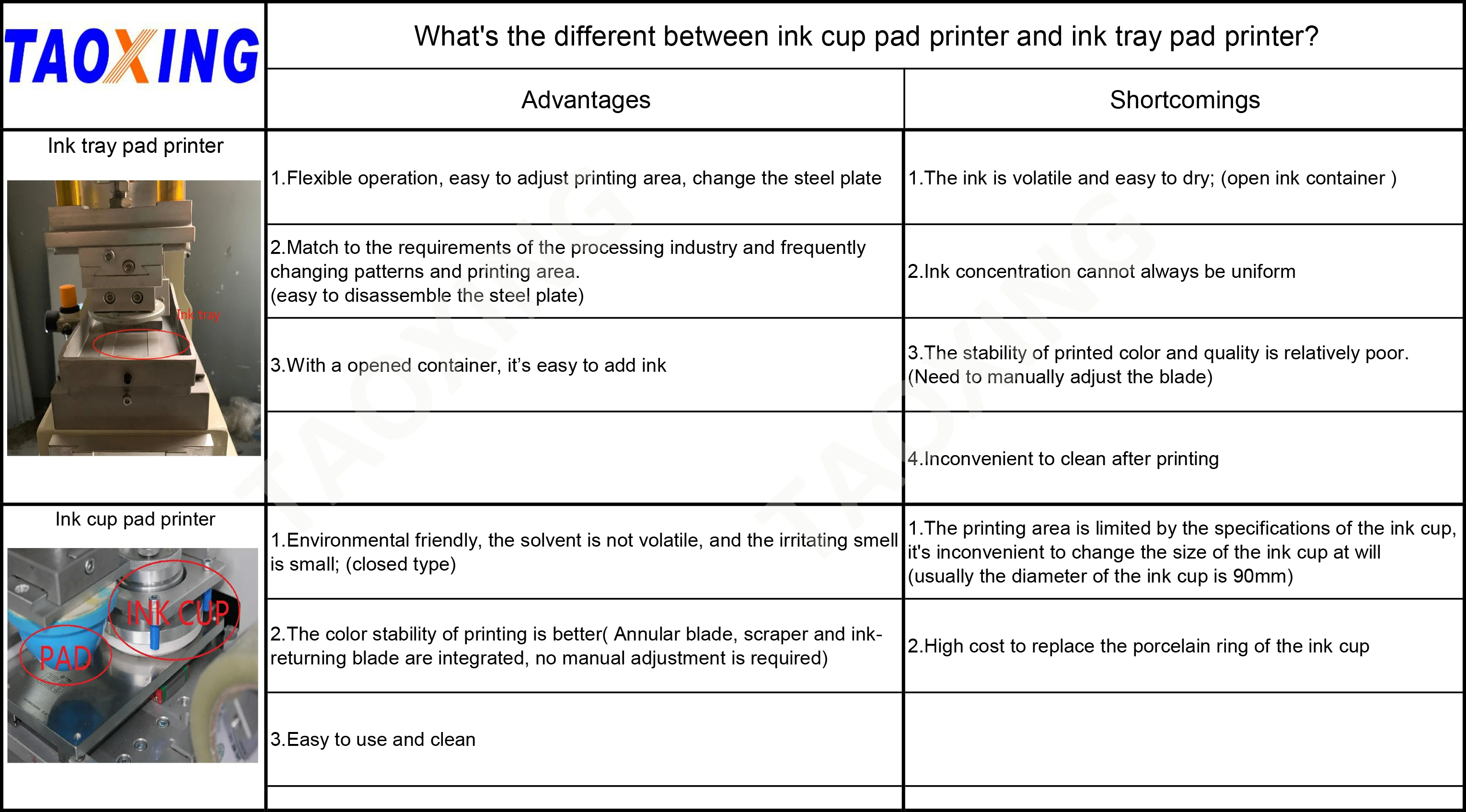

What's the difference between ink cup pad printer and ink tray pad printer?
Though the price of ink cups is a little bit higher than ink tray pad printer, we'll highly recommend the ink cup pad printer to new users and customer who have strict environmental requirements, as the ink cup type is much cleaner and easy to use.
Packing&Delivery
Packing & Deliver |
1. Packing: Plywood Case for Each Machine |
2. Payment terms: T/T (50% deposit to start the production, 50% paid before delivery) |
3.Delivery date：7-30 business days after received the payment. |
4. Delivery means: By sea from Shanghai or Ningbo Port |
Company Profile
Zhejiang Taoxing Intelligent Equipment Technology Co., Ltd. Established in 2008 and have a team of experienced engineers and sales and after-sales service teams. We have our own factory in Haining,Zhejiang,where manufacture full series of high-quality screen printing machines,Drying Tunnel,book binding machine,mask machine and other machine.
Foreign Cooperative Partners
Photo of Factory
FAQ
Q: Are you a factory or trading company?
A: We’re a professional factory providing screen printing machinery with more than 20 years experience. Located in Hangzhou, Zhejiang Prov.
Q: How to get a quotation?
A: Just send us your detail requirement, such as material, size, color, etc.
Q: Can you make the customized or OEM machine?
A: Yes, we have a professional technique team, we can produce the machine as per requested.
Q: How can I know your machine works well?
A: Before delivery, we’ll test the machine working condition and shot the running video to you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we’ll test it using our machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q: Which terms of payment acceptable?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service.
If when we may not be able to promptly reply to your message, please call us directly for urgent.
If you are interested in our products, please feel free to contact us for more information. →
Q: How to get a quotation?
A: Just send us your detail requirement, such as material, size, color, etc.
Q: Can you make the customized or OEM machine?
A: Yes, we have a professional technique team, we can produce the machine as per requested.
Q: How can I know your machine works well?
A: Before delivery, we’ll test the machine working condition and shot the running video to you.
Q: How can I know your machine is designed for my product?
A: You can send us samples of your product and we’ll test it using our machine.
Q: Do you have a CE certificate?
A: For every model of machine, it has a CE certificate.
Q: Which terms of payment acceptable?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service.
If when we may not be able to promptly reply to your message, please call us directly for urgent.
If you are interested in our products, please feel free to contact us for more information. →
