Электрический штабелеукладчик подъемный штабелер грузоподъемность 1000/2000 кг полный вилочный погрузчик на
- Категории: Forklifts >>>
- Поставщик: Xiamen,Runtx,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Semi-electric Stacker for walkie type
Name | Electric pallet stacker(CDD*C)(Walkie type) | |||||||||||
Model No. | unit | CDD10C- 16 | CDD10C- 25 | CDD10C- 30 | CDD15C- 16 | CDD15C- 25 | ||||||
Capacity | kg | 1000 | 2500 | 3000 | 1500 | |||||||
Max.lifting height | H(mm) | 1600 | 2500 | 3000 | 1600 | 2500 | ||||||
Load centre | C(mm) | 500 | 500 | 500 | 500 | |||||||
Wheel type | PU solid tire | PU solid tire | ||||||||||
Fork Size | mm | 1150x160 | 1200*175 | 1200*175 | 1150x160 | |||||||
Fork spread | mm | 685/540 | 210-680 | 245-702 | 560/680 | 560/680 | ||||||
Overall length | L(mm) | 1785 | 2914 | 3064 | 1785 | |||||||
Overall width | S(mm) | 800 | 983 | 983 | 800 | |||||||
Mast lowered height | H1(mm) | 2075 | 1825 | 2075 | 2075 | 2075 | ||||||
Mast extend height | H2(mm) | 2075 | 3037 | 3537 | 2075 | 3037 | ||||||
Min fork height | h1(mm) | 85 | 85 | 85 | 85 | 85 | ||||||
Turning radius | W(mm) | 1380 | 1380 | 1380 | 1380 | 1380 | ||||||
The front wheels to the fork end distance | mm | 430 | 430 | 430 | 430 | 430 | ||||||
Grade ability | % | 3/6 | 5/8 | 4/6 | ||||||||
Total weight | kg | 506 | 546 | 566 | 596 | 666 | ||||||
Driving wheel | mm | 210*70 | 382*142 | 210*70 | ||||||||
Front wheel | mm | 80*70 | 267*114 | 80*70 | ||||||||
Balance wheel | mm | 125*50 | 180*76 | 125*50 | ||||||||
Battery capapcity | V/Ah | 24/80 | 24/210 | 24//210 | 24/80 | |||||||
Drave motor | KW | 0.75 | 1.5 | 2.5 | 0.75 | |||||||
Lifting motor | KW | 2.2 | 0.8 | 0.8 | 2.2 | |||||||
Walking adjuststable | Holzer type accelerator | |||||||||||
Performance
Runtx ELECTRIC PALLET STACKER (CDD*C) (WALKIE TYPE)
1. Built-in high-energy sealed battery, Long-term use without maintenance, you don't need to add water during the period of life.
2. The forklift has many advantages, like compact size, easy to display, and saving working space. In particular,
it can successfully go through even in a small channel.
3. Bias control can greatly improve the working vision; also can avoid collision between operators and the car in the process of driving.
4. Long handle operation, greatly reduces the operating force make the operation more portable.
5. We consider emergency power switch as a standard configuration. Just press the emergency stop button to cut off all the power in case of an emergency, the car can stop immediately.
6. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.
2. The forklift has many advantages, like compact size, easy to display, and saving working space. In particular,
it can successfully go through even in a small channel.
3. Bias control can greatly improve the working vision; also can avoid collision between operators and the car in the process of driving.
4. Long handle operation, greatly reduces the operating force make the operation more portable.
5. We consider emergency power switch as a standard configuration. Just press the emergency stop button to cut off all the power in case of an emergency, the car can stop immediately.
6. We have Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button). All this function makes the operation more comfortable.
Details
1 .Adjustable pallet fork
2.The multi-function handle
3. Emergency Stop Switch
4. Apply to single-deck pallet
5. Battery optional
Packaging and Shipping
Production Workshop
Company Profile
RUNTX Machinery Group was established in 2006. We have small tonnage forklifts, heavy duty forklifts, port equipments, warehouse equipments factories in China. Which are specialized in the manufacturing, sale, after sales service and R&D of construction and engineering machinery.
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
We are one of the professional forklift manufacturers in China, which has 37,000 square meter area workshop and outputs 6000 sets forklifts annually. Since foundation, RUNTX has always kept its professional role in Chinese construction machinery industry. At present, it among Top 50 Chinese construction machine enterprises. Now our products include counter-balance diesel forklift, gas/lpg/cng forklift, warehouse equipments, heavy duty diesel forklift, port equipment etc. With first class technology and stable quality, Runtx products won the appreciation form majority of overseas customers. Our products have been exported to Europe, America, Canada, Australia, the Middle East, Southeast Asia, Africa and many other countries and regions.
RUNTX is committed to build parts system. Give our clients the best after sales parts service 7X24 hours. All the Products have been approved by the ISO 9001:2015 and CE certificate. The 1.0-35 ton diesel and 1.0-7 ton LPG and 1.0- 12 ton electric forklift series, meet with the Europe and USA EPA requirement.
We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other high-class machines and testing equipment, which ensure perfect quality of each forklift from Runtx.
Our clients include U.S. General Motors, Volkswagen of Germany, Lafarge SA, Shell Oil, China Sinopec, China Petrolem Chemical Corporation, Carrefour, Sharp Electronics, China COSCO, Maersk Logistics. Provide top-class service with our clients.
Welcome to visit our factory!
Company history
The permit of sale: June, 2006
The date of conerstone:July, 2006
The permit of completion:October, 2006
The permit of manufacturing:December, 2006
ISO9001:2008 Quality Management System Certificate: March, 2007
Customers Show

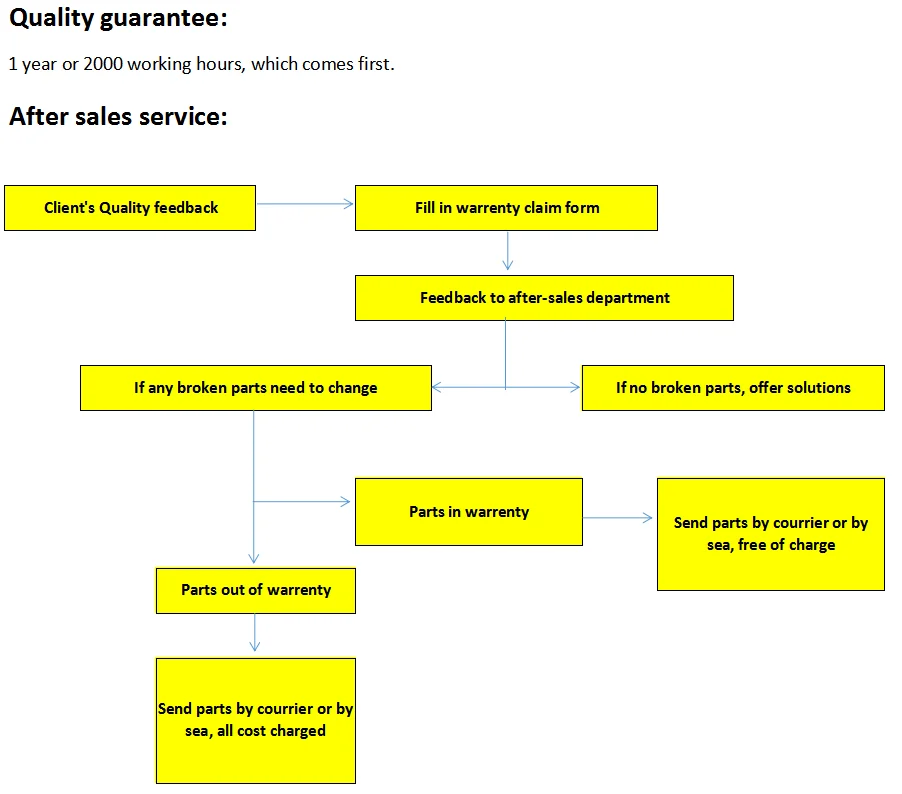

After-sale Service
