Industrial spices mixer mixing machine
- Категории: Mixing Equipment >>>
- Поставщик: Shanghai,SIEHE,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Application
[Materials Specific Gravity]: Less than 5g/cm3
[batch capacity]: 50-30,000L
[batch capacity]: 50-30,000L
Food / pharmacy / cosmetic industry
spice, flavor, seasoning, milk powder, coffee powder, protein powder, supplement powder, wheat bran, food additives, salt, etc.
Food / pharmacy industry
meet GMP
all stainless steel
food grade stainless steel
inside and outside mirror polished
pneumatic control flap valve for discharging, 5-10 minutes
movable storage hopper
food grade stainless steel
inside and outside mirror polished
pneumatic control flap valve for discharging, 5-10 minutes
movable storage hopper
For chemical industry
contact part SS304/SS316L, other part carbon steel coated with anti-corrision paint;
inner can be coated with non-convential materials
jacket for heating and cooling
side cleaning door for cleaning
manual butterfly valve for discharging
support legs and stairs for manual charging
manual butterfly valve for discharging
support legs and stairs for manual charging
For paste like materials
suitable for materials with large content of liquid
operational platform
operational platform

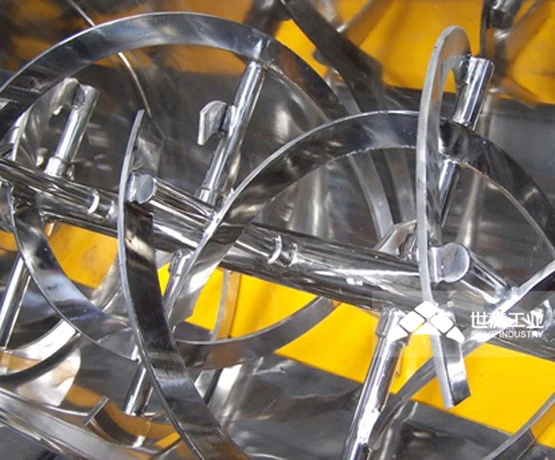

Detailed images
Certifications
Model Select
Model | Power (KW) | Speed (rpm) | Thickness (mm) | Capacity (L) | Referential Size (mm) ( Length *Width * Height) | Weight (kg) |
SHLD-0.1 | 3 | 60 | 4 | 30-60 | 1500*500*700 | 400 |
SHLD-0.2 | 4 | 60 | 4 | 60-120 | 2000*600*900 | 600 |
SHLD-0.3 | 5.5 | 41 | 4 | 90-180 | 2500*700*1000 | 800 |
SHLD-0.5 | 7.5 | 41 | 5 | 150-300 | 2500*800*1400 | 1200 |
SHLD-1 | 11 | 33 | 5 | 300-600 | 2700*1000*1450 | 1800 |
SHLD-2 | 15 | 33 | 5 | 600-1200 | 3400*1200*1700 | 2300 |
SHLD-3 | 18.5 | 33 | 6 | 900-1800 | 3800*1300*1950 | 3200 |
SHLD-4 | 22 | 26 | 6 | 1200-2400 | 4100*1400*2000 | 4000 |
SHLD-5 | 30 | 26 | 6 | 1500-3000 | 4200*1500*2000 | 4500 |
SHLD-6 | 37 | 26 | 6 | 1800-3600 | 4500*1700*2100 | 6000 |
SHLD-8 | 45 | 20 | 6 | 2400-4800 | 5000*1800*2200 | 7000 |
SHLD-10 | 55 | 20 | 8 | 3000-6000 | 5000*1900*2500 | 8000 |
SHLD-15 | 90 | 20 | 8 | 4500-9000 | 6500*2100*2800 | 9800 |
SHLD-20 | 110 | 18 | 8 | 6000-12000 | 7500*2400*3000 | 13000 |
SHLD-30 | 132 | 16 | 10 | 9000-18000 | 9000*2600*3500 | 18000 |
Remarks:
1. Not all products included, to learn more just connect us.
2. If any update of the data, without notice and subject to the official quote.
Auxiliary Devices
Unpacking and auto feeding raw materials
Spraying liquids during mixing
Auto packing
Product Related
FAQ
Q 1: Payment terms?
A 1: L/C, T/T, D/P, cash, Alibaba trade assurance;
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP, CIF and DDU;
Q 3: Validity of quotation?
A 3: Within 30 days;
Q 4: Modes of shipment?
A 4: By sea, by railway, by air and by express;
Q 5: Warranty?
A 5: One year and lifelong service provided at cost;
Q 6: Installation & Commissioning & Training
A 6: For single set of machine, usu. tel or mail guidance for installation;
For production line, paid overseas engineering service provided to customers' factory for installation and debugging, as well as training the worker to use the production line.
A 1: L/C, T/T, D/P, cash, Alibaba trade assurance;
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB Shanghai, CFR, CIP, CIF and DDU;
Q 3: Validity of quotation?
A 3: Within 30 days;
Q 4: Modes of shipment?
A 4: By sea, by railway, by air and by express;
Q 5: Warranty?
A 5: One year and lifelong service provided at cost;
Q 6: Installation & Commissioning & Training
A 6: For single set of machine, usu. tel or mail guidance for installation;
For production line, paid overseas engineering service provided to customers' factory for installation and debugging, as well as training the worker to use the production line.
Our Services
Pre-sales
1. Muti-language consult, English, Chinese, Russia, etc.
2. Suitable, reasonable technical advise and solutions;
3. Lab room with experiments and instruments for test service to obtain data and production experience;
4. Tel: +86-021-52913185 ~120
Cell: +86-13611934398 (Whatsapp / wechat / skype)
2. Suitable, reasonable technical advise and solutions;
3. Lab room with experiments and instruments for test service to obtain data and production experience;
4. Tel: +86-021-52913185 ~120
Cell: +86-13611934398 (Whatsapp / wechat / skype)
On-sales
1. Project-Manager system: one customer, one project manager.
2. Schematic drawing for core equipments;
3. Production process follow-up;
4. Factory visit for equipment test before delivery;
5. Technical documents, e.g. English version operational manual, drawing of circuit, etc.
2. Schematic drawing for core equipments;
3. Production process follow-up;
4. Factory visit for equipment test before delivery;
5. Technical documents, e.g. English version operational manual, drawing of circuit, etc.
After sales
1. One year warranty;
2. 7×24h service line;
3. Overseas engineering service team for installation and training at your site;
4. Abundant warehouse of spare parts purchasing;
5. Equipment update service;
6. Detailed records of communications;
2. 7×24h service line;
3. Overseas engineering service team for installation and training at your site;
4. Abundant warehouse of spare parts purchasing;
5. Equipment update service;
6. Detailed records of communications;
