Китайский цифровой токарный станок Hoston CQ6251
- Категории: Manual Lathe >>>
- Поставщик: Jiangsu,Hoston,Machine,Tools,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Machine Features for Chinese Supplier Engine Lathe Machine In Uae Pakistan For Sale With Certificates
- Precision ground.
- Clutched head stock.
- CE-conformity.
- Safety torque Limiting device for lead screw.
- Safety overload clutch for feedrod.
- Rapid traverse (optional).
- Main spindle supported at 2 points with precision taper roller bearings.
- 3000-4000mm Lathe with follow chip cuard.
Technical Parameter for Chinese Supplier Engine Lathe Machine In Uae Pakistan For Sale With Certificate
| MODEL | C6260Y | C6266Y | C6280Y | C62100Y | |
CAPACITIES | Max swing over bed | 600mm (23 3/5") | 660mm (26") | 800mm (31 1/2") | 1000mm (39 1/3") | |
Max swing over slide | 375mm(14 3/4" ) | 435mm(17 1/8") | 545mm(21 2/5") | 745mm(29 1/3") | ||
Workpiece cutting length | 1000mm, 1500mm, 2000mm. 3000mm.4000mm | |||||
Max swing over gap | 800mm(31 1/2") | 860mm(33 4/5") | 1000mm (39") | 1200mm(47 1/4") | ||
Effective length of gap | 280mm (11") | |||||
Bed width | 400mm (15 7/10") | |||||
HEADST0CK | Spindle hole | 103mm(4 1/16")/ 130mm(5 1/8") | ||||
Spindle nose | IS0-D11 | |||||
Spindle taper | Metric 115mm / 140mm (1:20) | |||||
Spindle speeds (number) | 9-1275 rpm (18 steps)/ 9-938 rpm (12 steps) | |||||
FEEDS | Metric threads range (kinds) | 0. 5-112mm (72 kinds) | ||||
Inch threads range (kinds) | 1/4-56inch (72 kinds) | |||||
Module threads range (kinds) | 0. 5-7m π(36 kinds) | |||||
Pitch threads range (kinds) | 4-56D.P (36 kinds) | |||||
Longitudinal feeds range (kinds) | 0.073-4.066mm/rev (0.0028-0.16 inch/rev) (54 kinds) | |||||
Cross feeds range (kinds) | 0.036-2.033mm/rev (0.0014-0.08 inch/rev) (54 kinds) | |||||
Rapid traverse speed | 5m/min (16.4 ft/min) | |||||
Leadscrew size: diameter/ pitch | 40mm/12mm or 40mm 1/2" | |||||
CARRIAGE | Cross slide travel | 325mm (12 4/5") | ||||
Compound rest travel | 110mm (4 1/3") | |||||
Cross-section size of tool shank | 32mm X 32mm | |||||
TAILSTOCK | Taper of tailstock sleeve | MT6 | ||||
Diameter of tailstock sleeve | 90mm (3 1/2") | |||||
Travel of tailstock sleeve | 150mm (5 7/8") | |||||
MOTOR | Main motor power | 7. 5kw or 11kw | ||||
Cooling bump motor | 0.125kw | |||||
Rapid motor | 0.12kw | |||||
Center Distance Packing size(L*W*H)
| 1000mm 2820X1300X2100mm(111X51X82. 5inch) 1500mm 3320X1300X2100mm(130X51X 82. 5inch) 2000mm 3820X1300X2100mm(150X51X82. 5inch) 3000mm 4820X1300X2100mm(189X51X82. 5inch) 4000mm 5820X1300X2100mm(229X51X82. 5inch) | |||||
Center Distance Net weight / gross weight (Kgs) | 1000mm 2900/3500kg 3000/3600kg 3150/3750kg 3450/4050kg 1500mm 3150/3750kg 3250/3850kg 3400/4000kg 3700/4300kg 2000mm 3400/4050kg 3500/4150kg 3650/4300kg 3950/4600kg 3000mm 3800/4450kg 3900/4550kg 4050/4700kg 4350/5000kg 4000mm 4200/4850kg 4300/4950kg 4450/5100kg 4750/5400kg | |||||

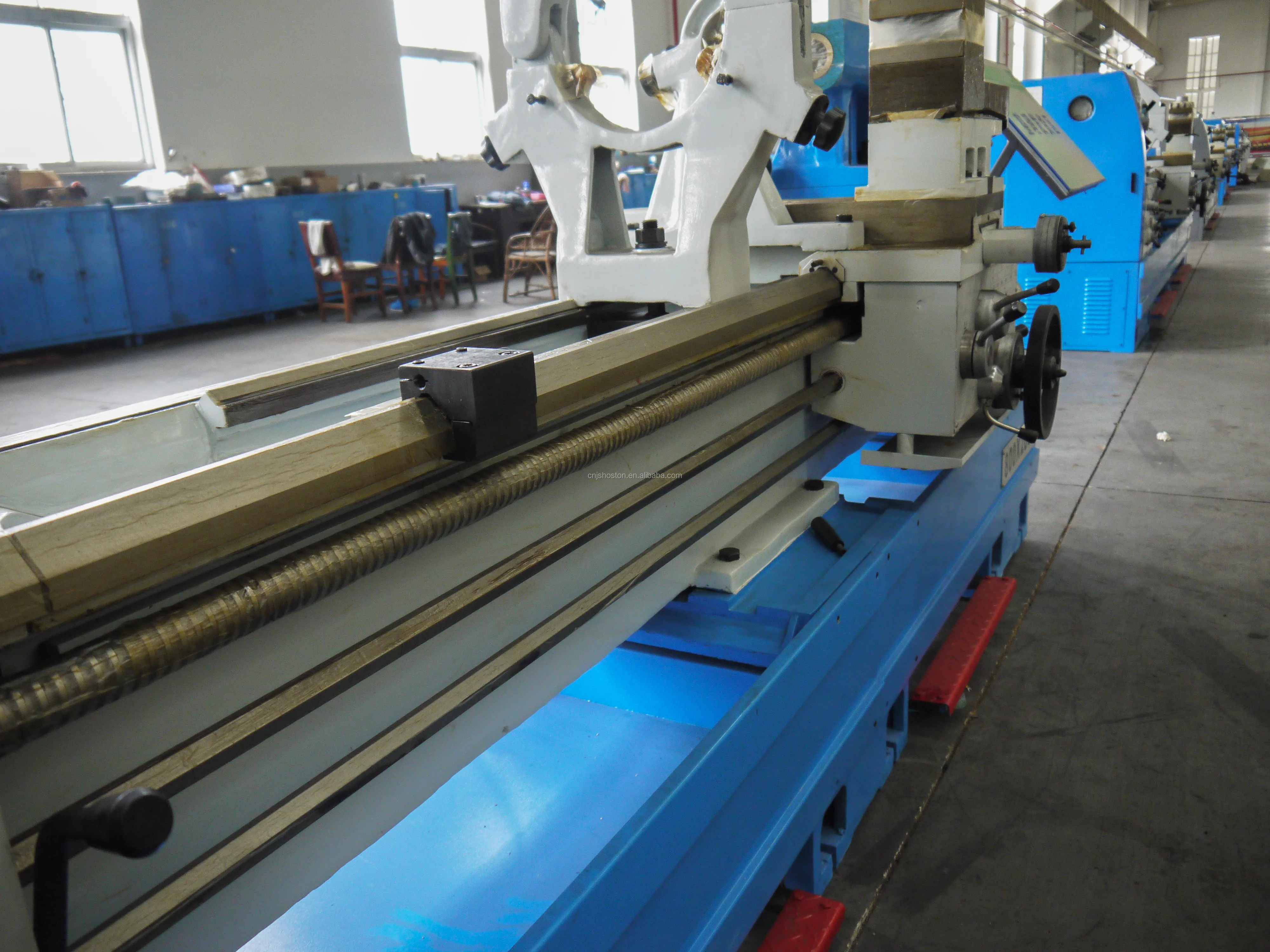

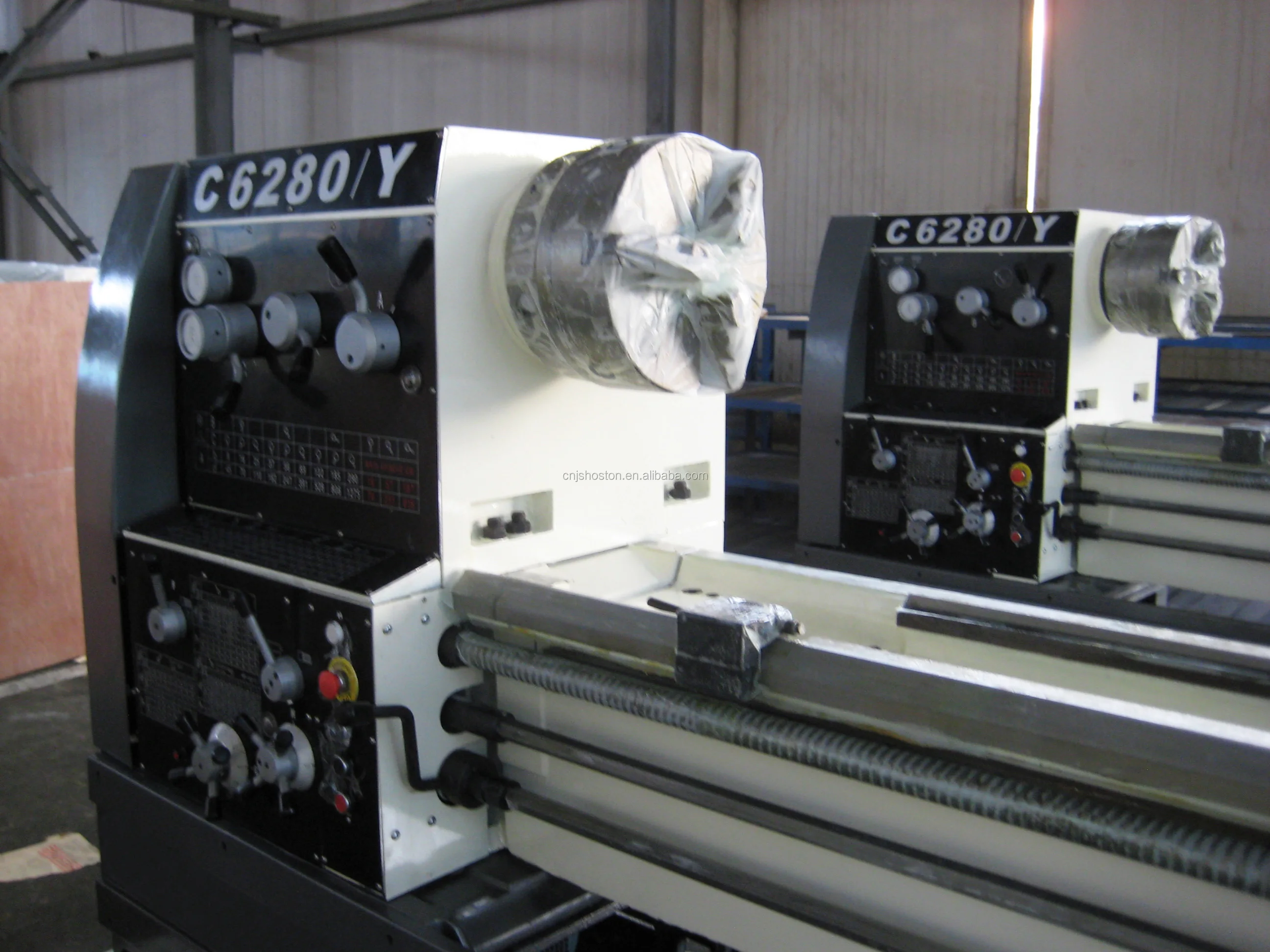

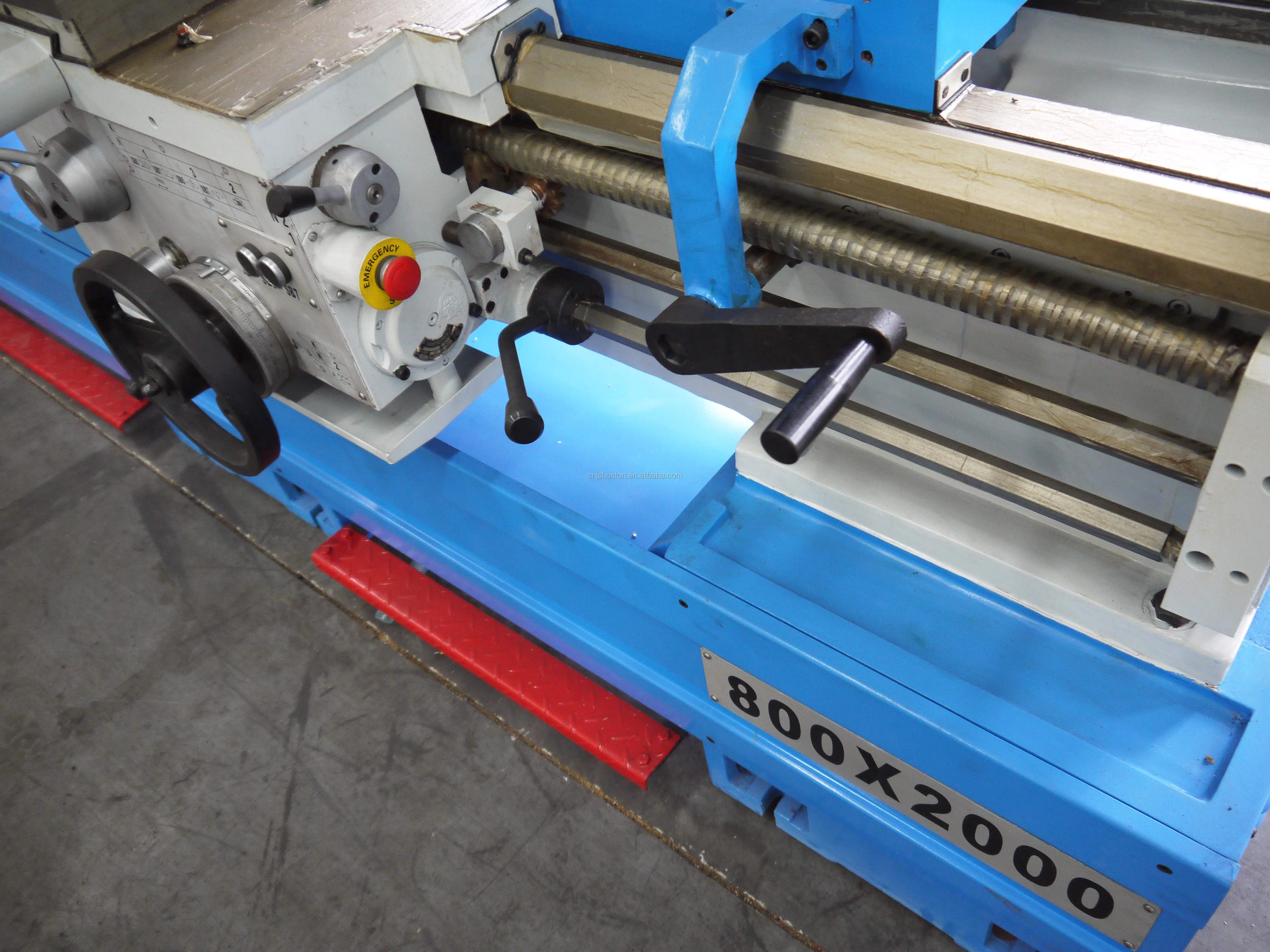

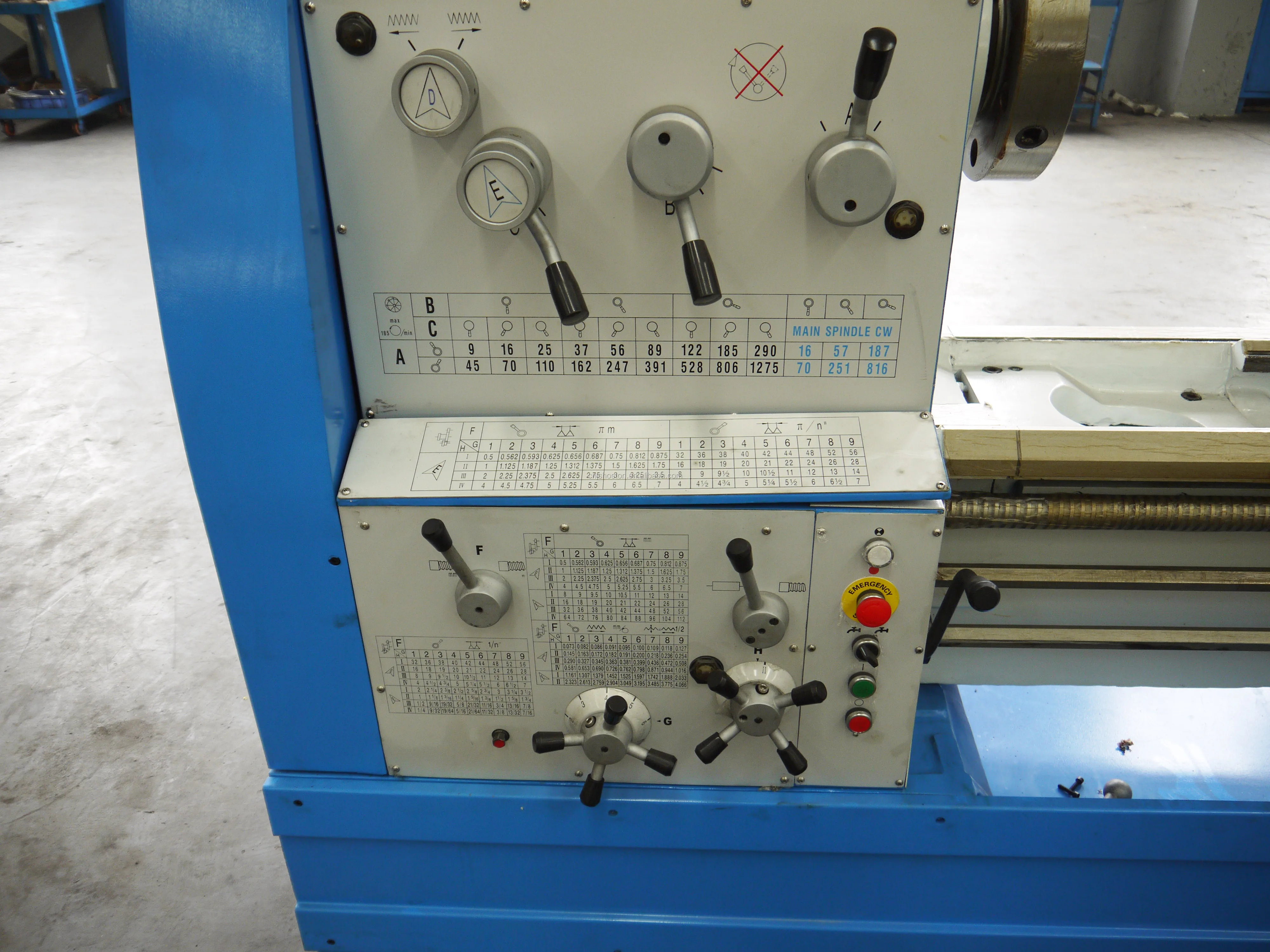

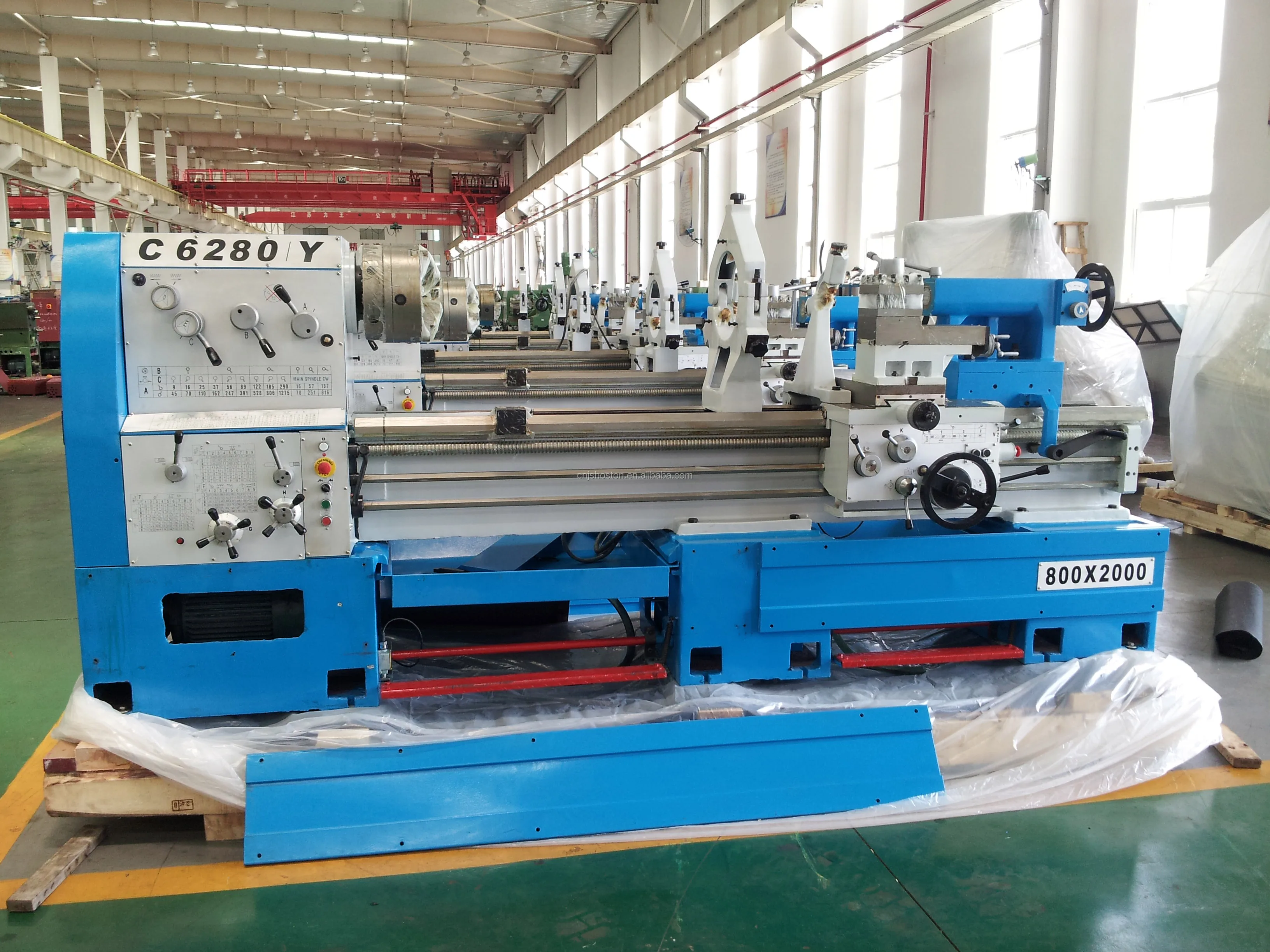

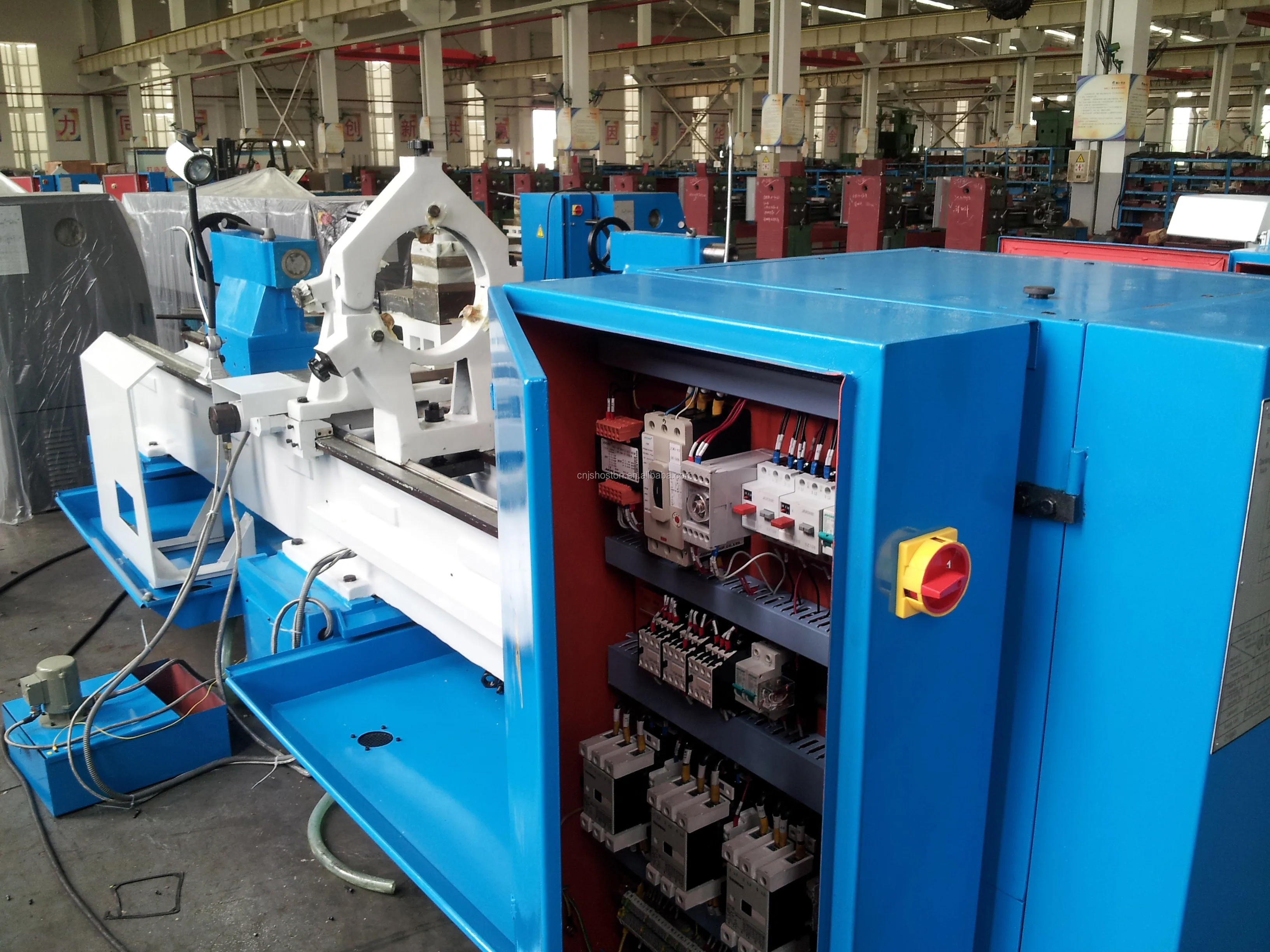

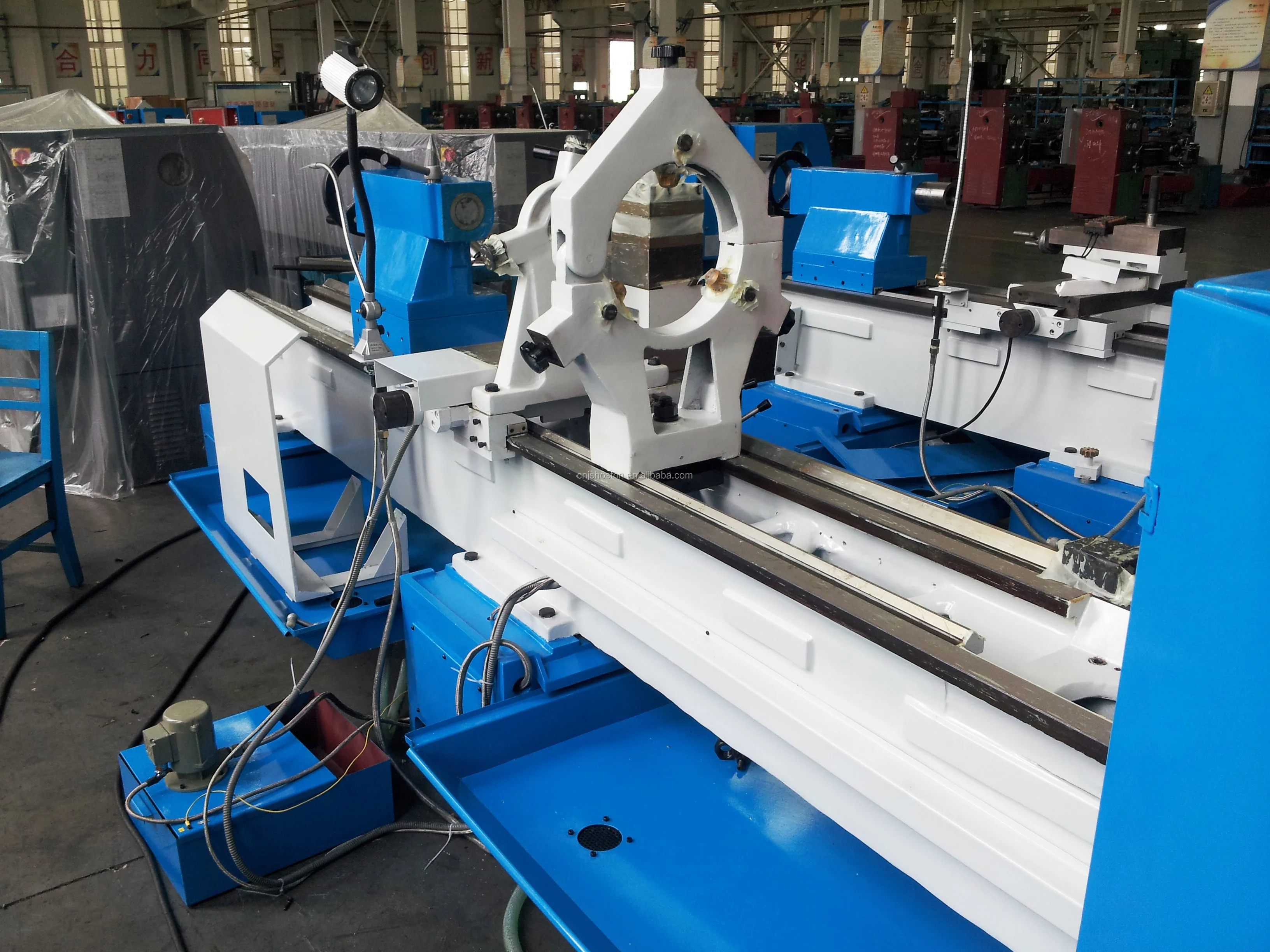

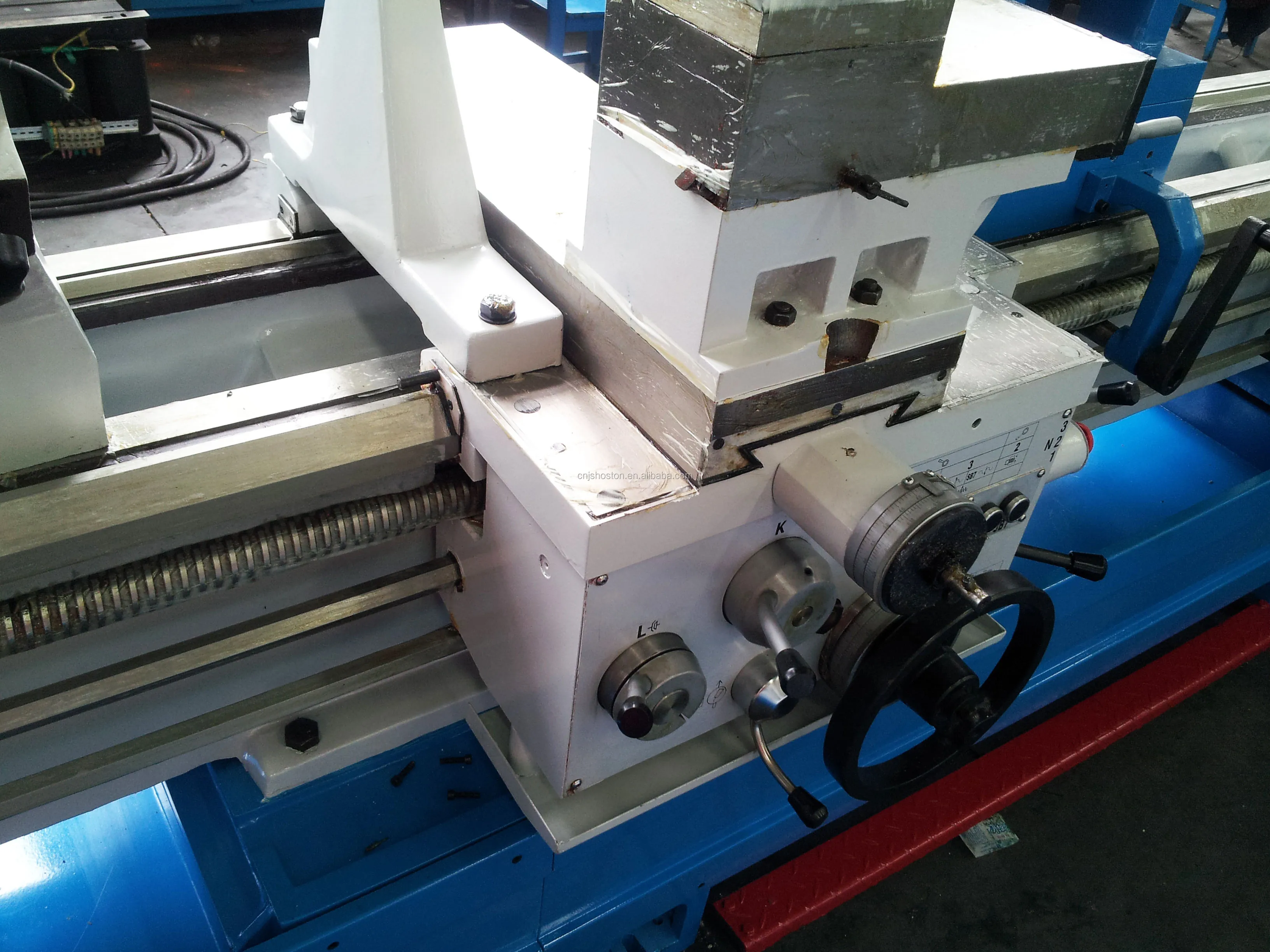

Product Pictures for Chinese Supplier Engine Lathe Machine In Uae Pakistan For Sale With Certificate
Packing and Delivery for Chinese Supplier Engine Lathe Machine In Uae Pakistan For Sale With Certificate
