Проводной плоский панельный детектор CSL размером кассеты 17*17 дюймов для медицинской/Ветеринарной Диагностики радиографии с программным
- Категории: Medical X-ray Equipments & Accessories >>>
- Поставщик: Shenzhen,Threestars,Kiosk,Co.,ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

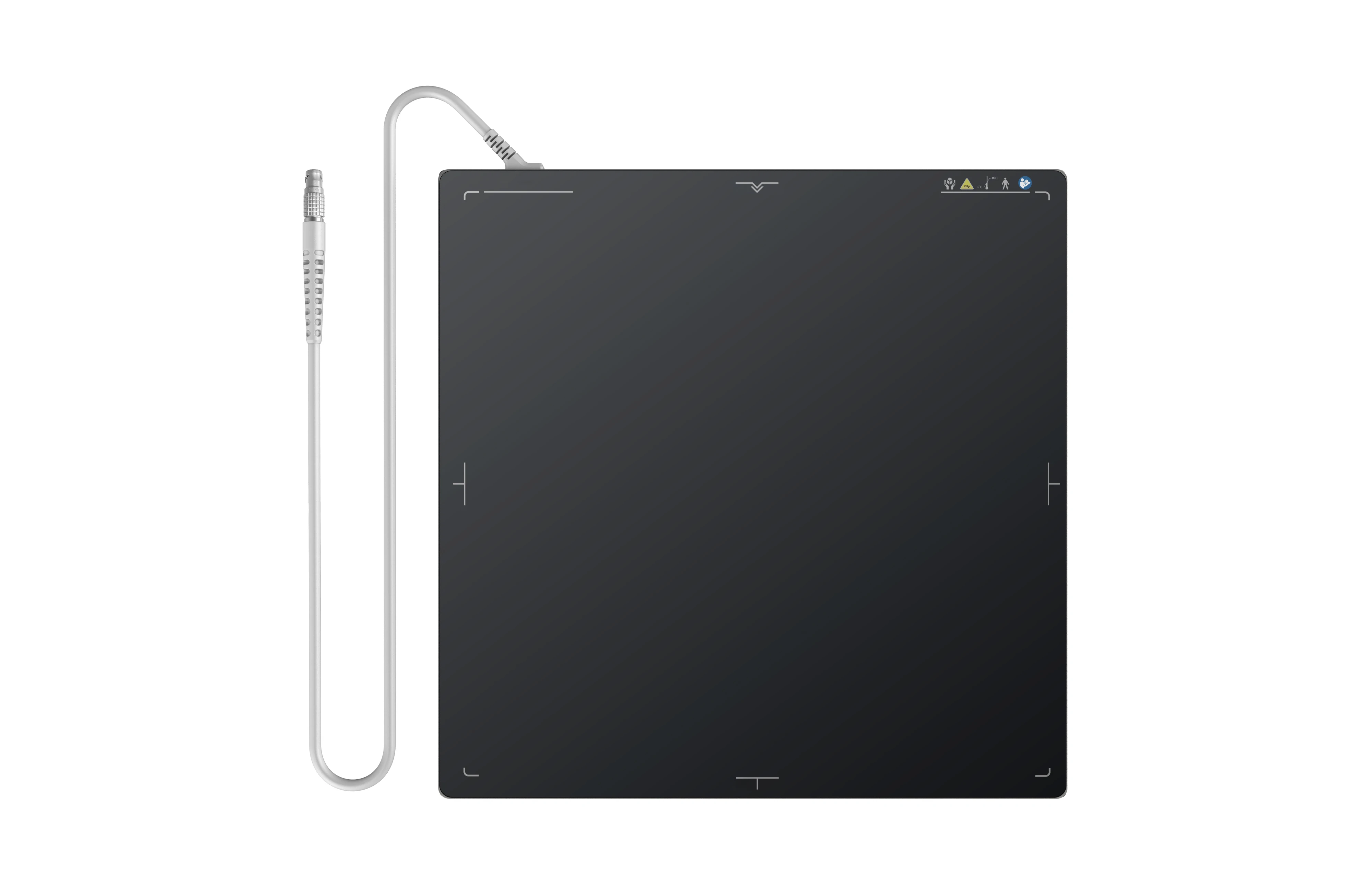

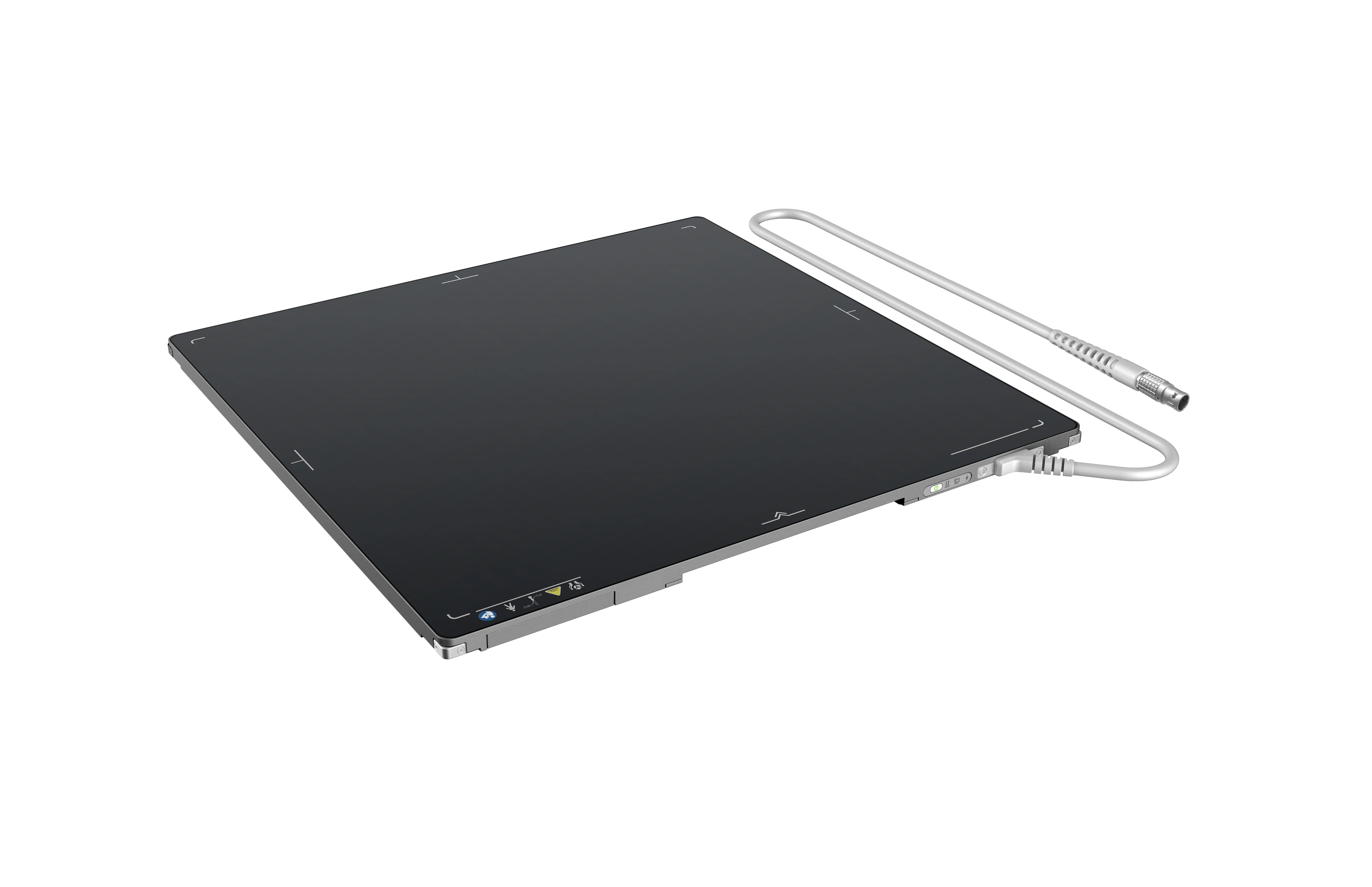

Wired 17x17 cassette-size DR flat panel detector for human/veterinary diagnostic radiography GLM1717iW
Features:

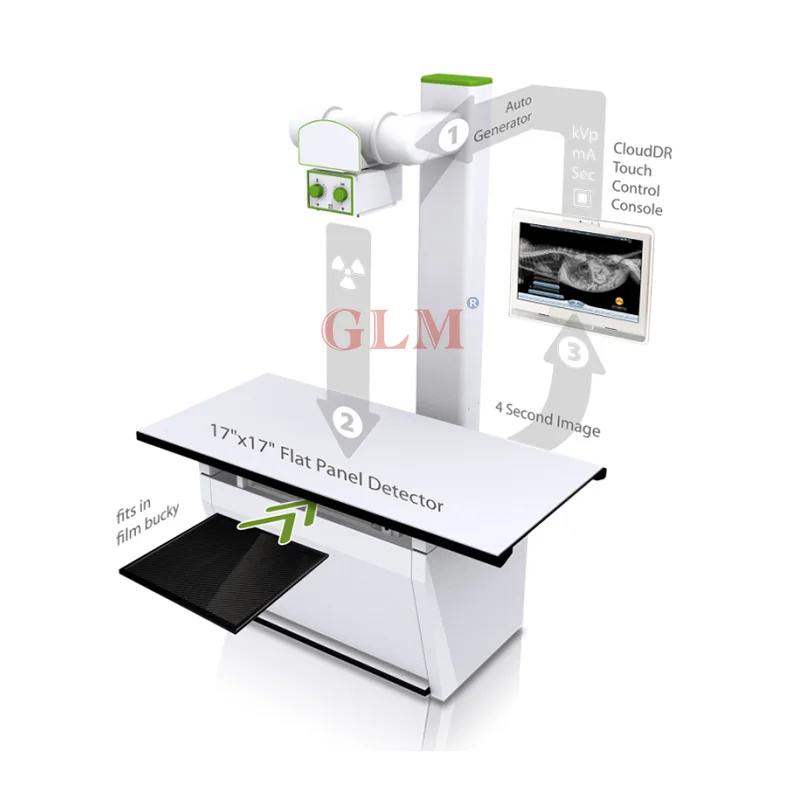

Fast workflow
More image details
Excellent image quality

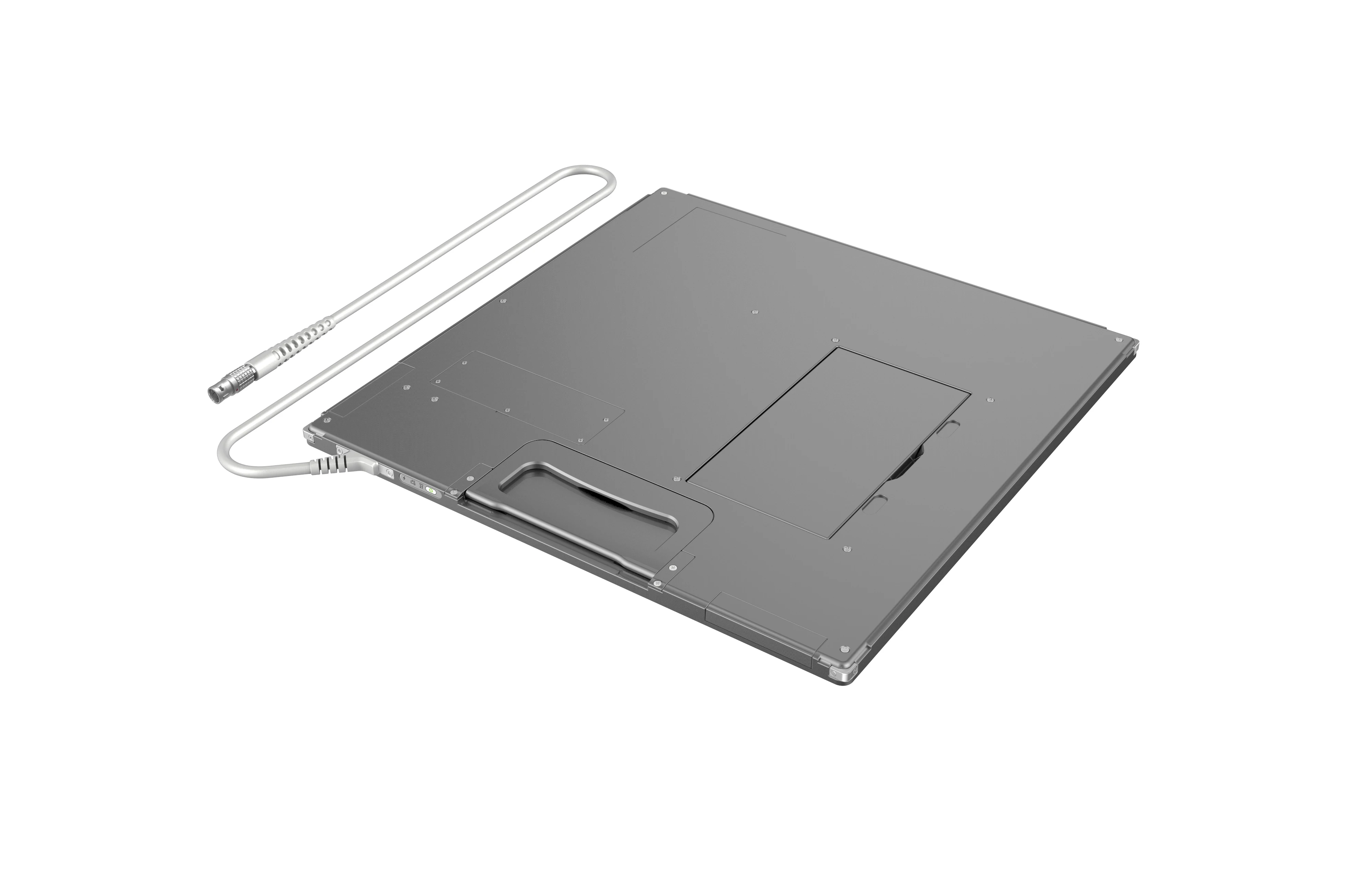

Cassette-size flat panel detector
More image details
Excellent image quality
Cassette-size flat panel detector

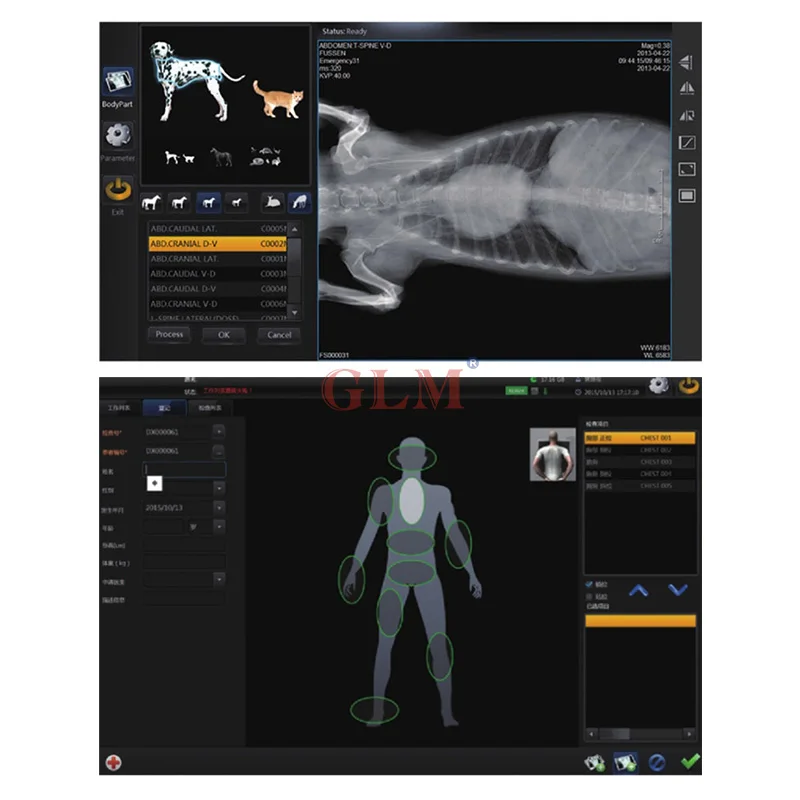

User-friendly software

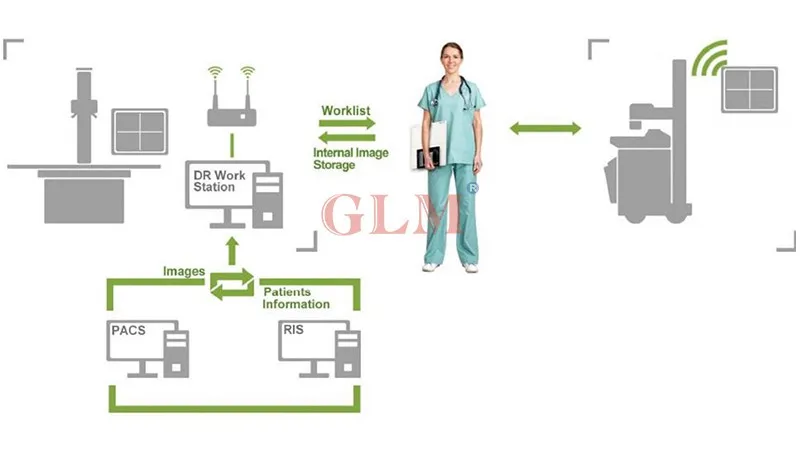

Remote installation guidance

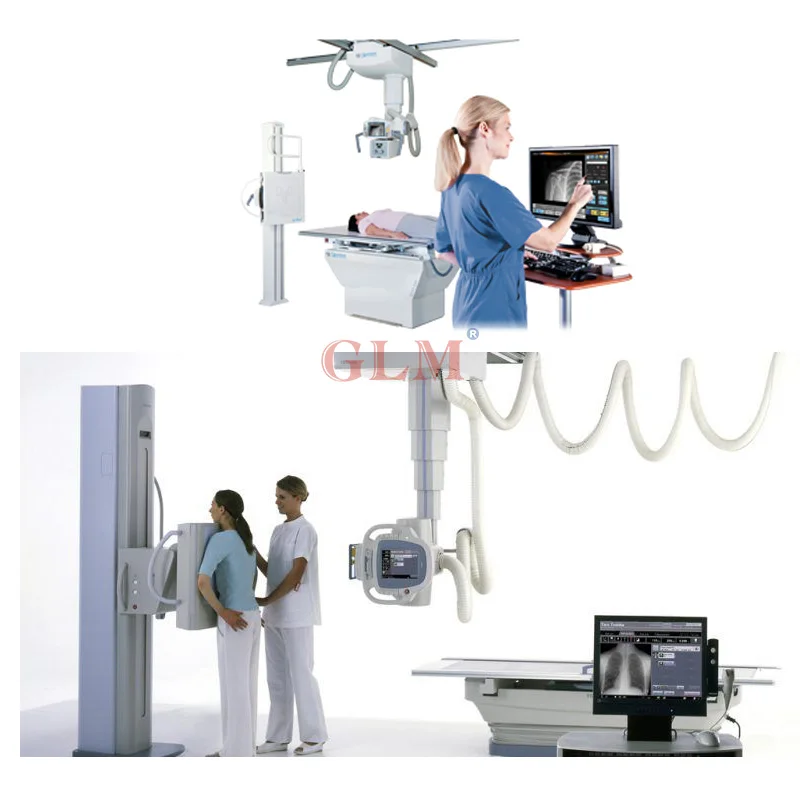

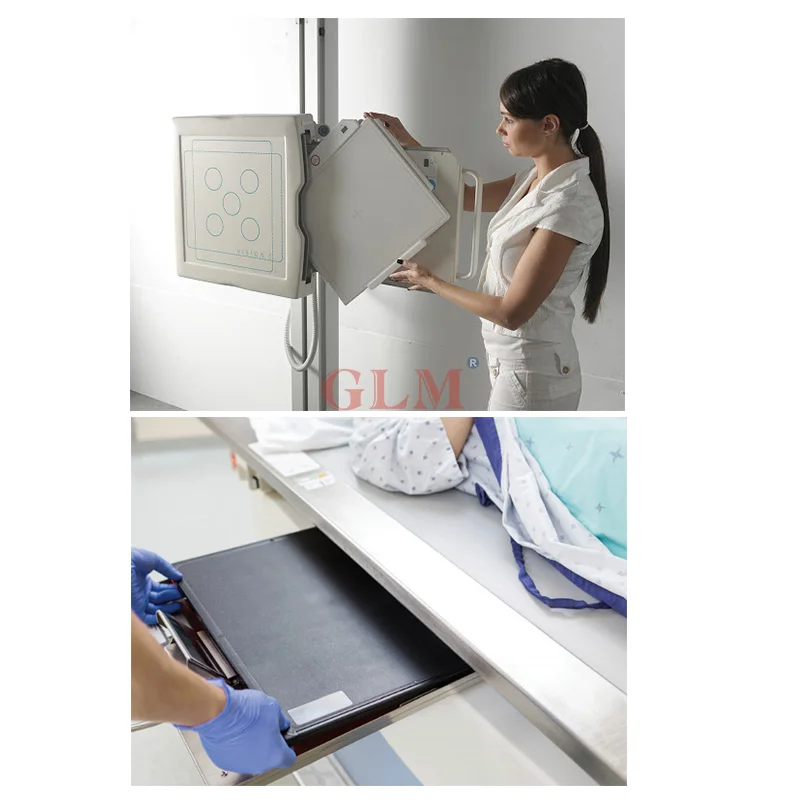

Working scene in the hospital

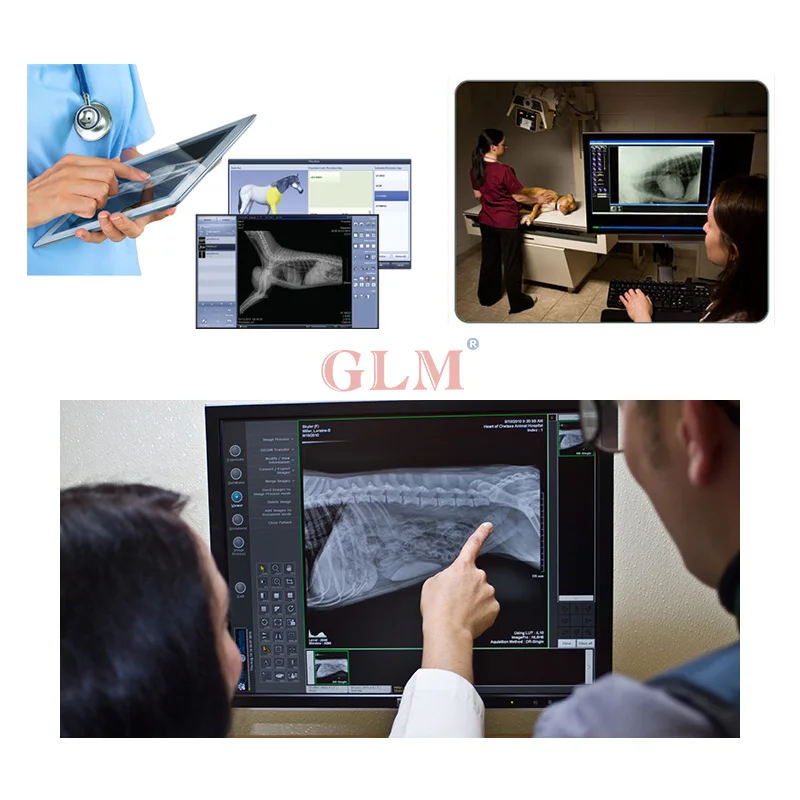

Simple operation interface
Specification
Basic Technical Specifications:
Detector Technology | Amorphous Silicon |
Scintillator | CsI |
Active Area | 427mm x 427mm |
Number of Pixels | 3072 x 3072 |
Pixel Pitch | 139 um |
AD Conversion | 16 bit |
Trigger Mode | AED（Optional）/Software/Prep |
Data Interface | Wired (Compound Cable) |
Dimension | 460mm*460mm*15mm |
Weight | 4.0 Kg(without cables) |
Cable | Compound Cable:6M\\15M |
Weight Capacity | 150 Kg uniformly |
Image Performance:
Sensitivity(LSB/uGy) | Typ.750 |
Maximum Linear Dose(uGy) | Typ.75 |
MTF @ 1.0 LP/mm (Typ.) | 70% |
MTF @ 2.0 LP/mm (Typ.) | 45% |
MTF @ 3.0 LP/mm (Typ.) | 26% |
DQE @ 0 LP/mm (2.5uGy@RQA5, Typ.) | 65% |
DQE @ 1.0 LP/mm (2.5uGy@RQA5, Typ.) | 47% |
DQE @ 2.0LP/mm (2.5uGy@RQA5, Typ.) | 35% |
Limiting Resolution (without phantom or grid) | 3.6 lp/mm |
Workflow:
Trigger Mode | AED（Optional）/Software/Prep |
Preview Acquisition Time | Typ.3s |
Full Image Time | Typ.5s |
Cycle Time | Typ.8s |
Environmental Requirement:
Operating Temperature | 5℃~35℃ |
Storage & Transport Temperature | -10℃~55℃ |
Operating Humidity (no condensing) | 30%~80% |
Storage & Transport Humidity (no condensing) | 10%~90% |
Operating Atmospheric Pressure | 700mbar~1060mbar |
Storage & Transport Atmospheric Pressure | 700mbar~1060mbar |
Packing & Delivery

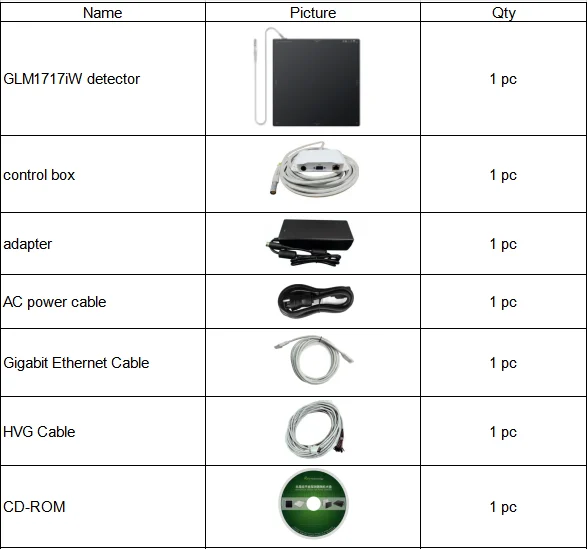

What's in the package?
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Packing details:
Protective foam + outer carton
1 unit per carton
G.W./carton: 10.6 Kg
Carton size: 64*64*23 cm
Company Profile
Founded in 2007, Threestars is a leading high-tech enterprise in Shenzhen, China, specializing in the
designing, manufacturing and marketing of Medical Consumables, Medical Self-service Systems and Medical Diagnostic solutions. Our main products include Medical X Ray Films (thermal x ray film, laser x ray film, darkroom x ray film, dental x ray film, etc.), Industrial X Ray Films, DR and Flat Panel Detector, Mobile Digital Radiography, Doppler Ultrasound Machine, Medical Self-service Printing Kiosk and so on.
We pride ourselves on our strong innovation ability and R & D capability, which enable us to obtain a number of product patents, computer software copyright, and relevant certificates.
With over 10 years’ experiences in the industry, we have established a strategic partnership with many hospitals in China, our Medical Self-service Systems have significantly improved the work efficiency for hospitals and have saved so much time and efforts for thousands of patients who have had to hover in hospitals a day long or even more time in the past. We have also developed long-term business relationships with buyers from over 50 countries and regions in Asia, Middle East, Africa, Europe and America.
We are dedicated to providing our customers with quality, innovative products at affordable cost as well as offering our customers professional and high-quality customer service.
designing, manufacturing and marketing of Medical Consumables, Medical Self-service Systems and Medical Diagnostic solutions. Our main products include Medical X Ray Films (thermal x ray film, laser x ray film, darkroom x ray film, dental x ray film, etc.), Industrial X Ray Films, DR and Flat Panel Detector, Mobile Digital Radiography, Doppler Ultrasound Machine, Medical Self-service Printing Kiosk and so on.
We pride ourselves on our strong innovation ability and R & D capability, which enable us to obtain a number of product patents, computer software copyright, and relevant certificates.
With over 10 years’ experiences in the industry, we have established a strategic partnership with many hospitals in China, our Medical Self-service Systems have significantly improved the work efficiency for hospitals and have saved so much time and efforts for thousands of patients who have had to hover in hospitals a day long or even more time in the past. We have also developed long-term business relationships with buyers from over 50 countries and regions in Asia, Middle East, Africa, Europe and America.
We are dedicated to providing our customers with quality, innovative products at affordable cost as well as offering our customers professional and high-quality customer service.
FAQ
1. Why choose 3stars?
Founded in 2007, we are a professional medical dry film manufacturer and trading company with over 10 years experiences, supplying quality products at affordable prices. Our product & service quality is always guaranteed and we have been trusted by customers from over 50 countries across the world. We strive to build a long term relationship with our customers.
2. Can I get a sample before mass production?
Founded in 2007, we are a professional medical dry film manufacturer and trading company with over 10 years experiences, supplying quality products at affordable prices. Our product & service quality is always guaranteed and we have been trusted by customers from over 50 countries across the world. We strive to build a long term relationship with our customers.
2. Can I get a sample before mass production?
Sure, we would be glad to provide a sample for your evaluation.
3. How's the delivery time?
Normally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends on what items and quantities you buy, pleases feel free to check with us when placing an order.
3. How's the delivery time?
Normally, it will take 3 to 15 days after receiving your advance payment. The specific delivery time depends on what items and quantities you buy, pleases feel free to check with us when placing an order.
4. What about the payment terms?
Normally, TT payment or pay via Alibaba are preferable, but we always try our best to provide flexible services, payment methods like Westunion, Paypal, L/C, Cash...etc. are also workable, please feel free to discuss with us when placing an order.
5. It is my 1st time purchase products overseas, how do I know it is safe to buy from you?
We have been listed at Alibaba for over 7 years and being verified by Alibaba every year, any bad record will damage our reputation in the industry. Besides, we attend many international trade shows, welcome to visit us at our booth or visit our company for further discussion.
