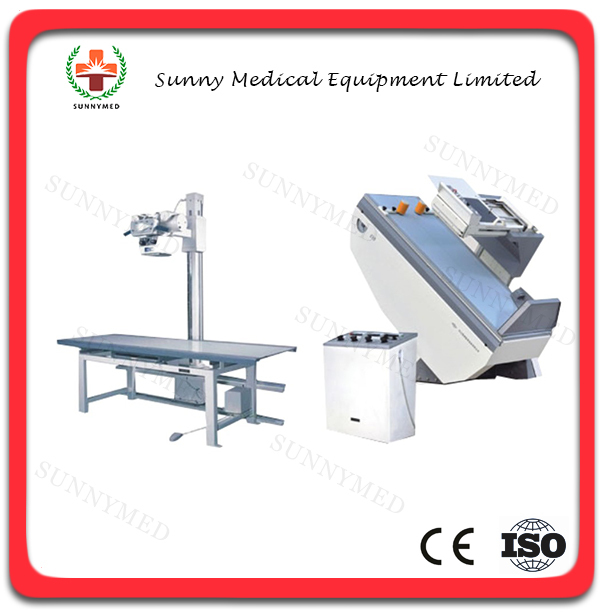

     SY-D015 medical device 400ma Medical

                x ray machine prices





Feature:

1)Equipped with single diagnostic table and x-ray rubes, single direct bridgefull-wave commutation, tube voltage is 125kV, tube currency is 400mA.



2)X-ray tube capacity protection, anode starting-up protection

and radiograph time-limit protection device semi-conduct controlled, fluoroscopy computed time device, x-ray tube over-hot protectorate provided,

ensure x-ray tube run safely long time, improve accuracy of kV mA S.



3)Bigger scope of rotation diagnostic table, movable table muli-item spot-film device, easy to operate, radiation –proof, ensure operate and the tested.



4)Radiography table can move lengthways and crossover, can loaded all kinds of radiography dark box, use conveniently and it is beautiful.



5)Applied in all kinds of hospital for radiography such as general body,beam filtration,and chest.







Department Technology parameters



High voltage generator control table and high voltage transform assemble

Fluoroscopy Tube currency 0.3-5mA continuous currency



Tube voltage 45-110KV continuous voltage



Radiography Tube currency 50-400mA shift



Tube voltage 45-125KV continuous voltage



Exposure time 0.03-5s,23 shift



Power Voltage 380V±10%



Frequency 50Hz±1Hz



Capacity ≥30KVA



Inner resistance ≤0.3Ω



X-ray assembly Type of x-ray XD51-20.40/125



Focus 1×1.2×2 double focal



Rated rotate speed of anode 2800r/min



CDGI Multi function radiography table Moving table Lengthways ±600mm Electromagnetism locking



Across ±120mm



Mobile beam filtration grid Grid density 28L/cm



Grid ratio 8:01



Focusing distance 100cm



Scope of moving ≥600mm



Radiography item 5″×7″,8″×10″,10″×12″,11″×14″,



12″×15″,14″×14″,14″×17″



Distance from surface to film 75mm



Height of bed 700mm



Moving pillar ±180°,per 90°orientation, moving lengthways ≥1500mm



Bulb tube Rotate the cross arm±180,ascend $ descend 1100mm



Option



LSJ pillar radiography frame The scope of ascend and descend 1450mm



The minimum distance from focal spot 380mm



Radiography item 8"×10" 10"×12" 11"×14" 12"×15"14"×14" 14"×17"







Fixed beam filtration role Grid density 40L/cm



Grid radio 10:01



Focal distance 180cm













Other similar products:

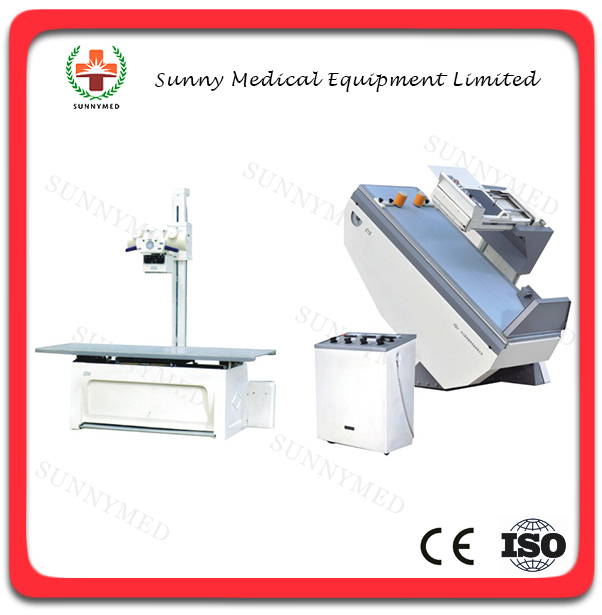

                        SY-D016  x ray machine prices
