AIR3-A легкая нагрузка промышленный робот выбор сборка обработка завинчивание и тестирование
- Категории: Манипулятор >>>
- Поставщик: Chongqing,Yingmaofu,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Overview

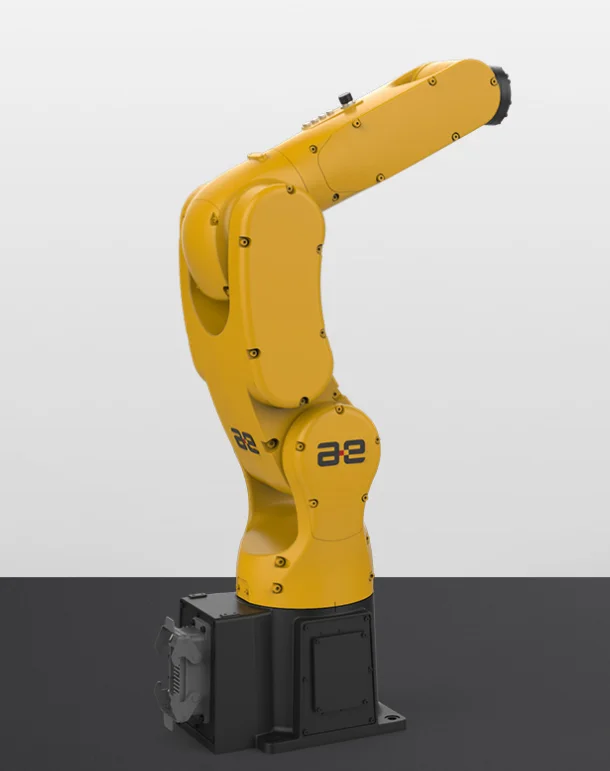

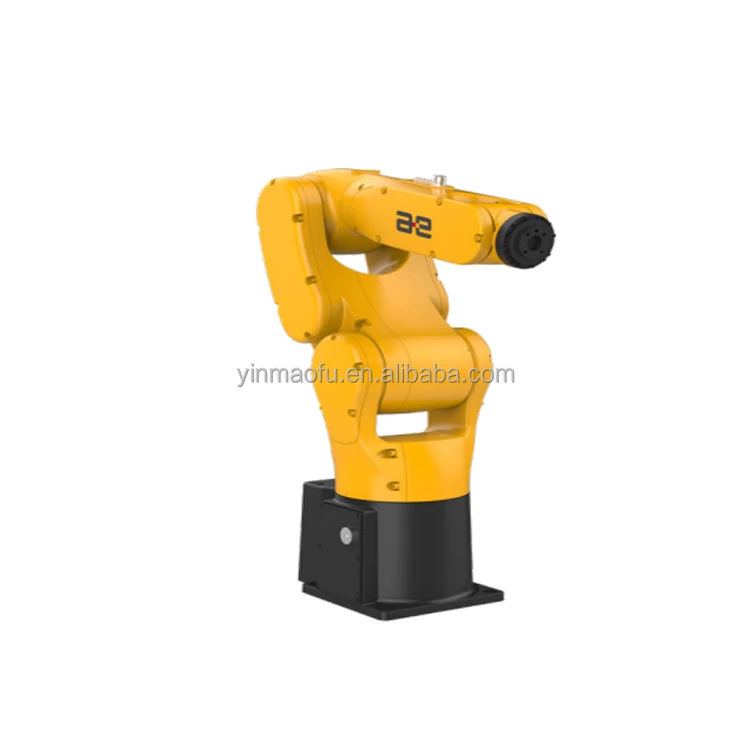

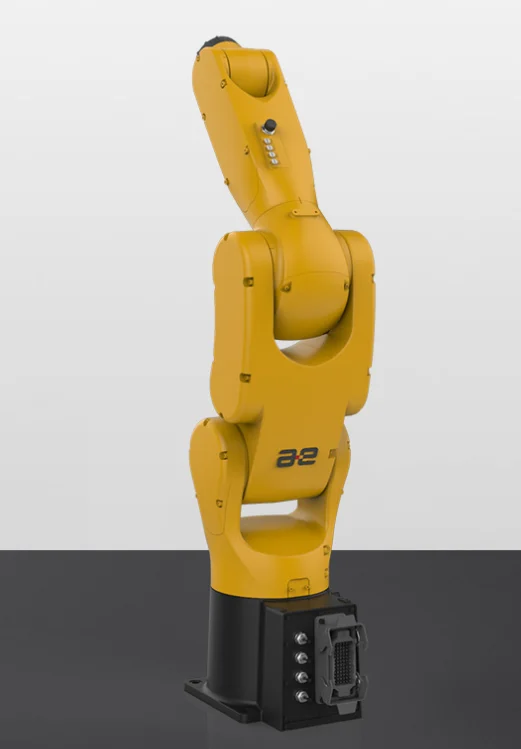

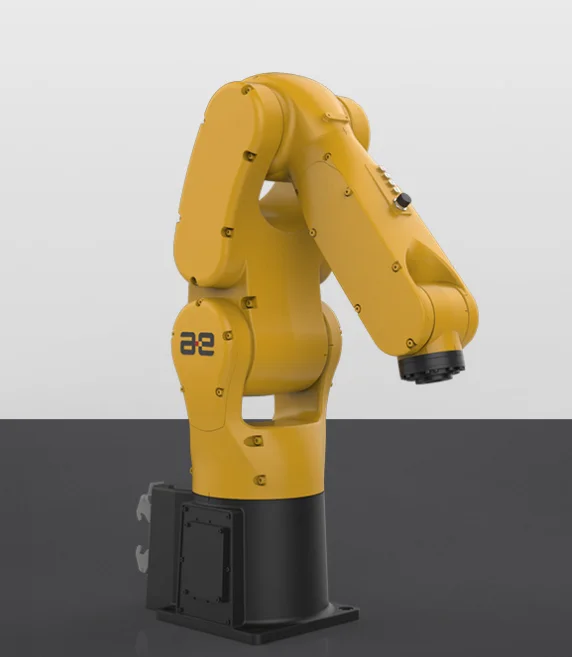

AIR3-A INDUSTRIAL ROBOT
AIR3-A is very ideal for narrow space operations,as well as highly precise operations in 3C field.Widely used in assembly,handling,screwing and testing.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
Product name | INDUSTRIAL ROBOT | ||
Model | AIR3-A | ||
Axes | 6 | ||
Payload | 3kg | ||
weight | 23kg | ||
Reach | 560mm | ||
Positioning accuracy | ±0.02mm | ||
Working range | Axis 1 rotation | -170°/+170° | |
Axis 2 arm | -110°/+120° | ||
Axis 3 arm | -108°/+152° | ||
Axis 4 wrist | -200°/+200° | ||
Axis 5 Bend | -118°/+118° | ||
Axis 6 Turn | -350°/+350° | ||
Rotation rate | Axis 1 rotation | 450°/s | |
Axis 2 arm | 450°/s | ||
Axis 3 arm | 525°/s | ||
Axis 4 wrist | 600°/s | ||
Axis 5 Bend | 600°/s | ||
Axis 6 Turn | 800°/s | ||
Controllers | inCube10/20 | ||
Product details

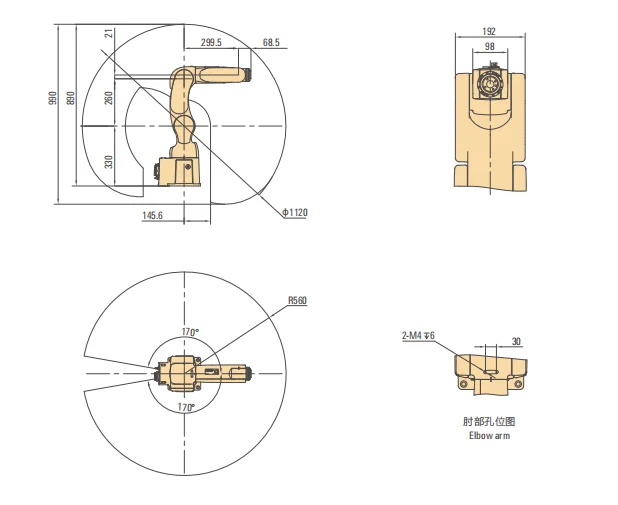

Outline dimension and working range
Flange drawing
Base installation drawing
Recommend Products

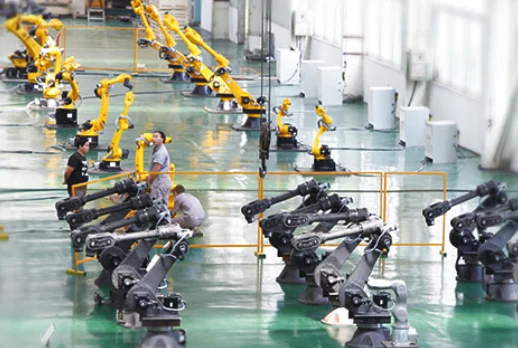

Factory
The company's business includes the production, sales, maintenance services, technical support and training of industrial robot bodies and core components (servo drives, servo motors, etc.), as well as robot control system solutions, complete sets of flexible manufacturing equipment and systems, and robot application industry automation solution.
Packaging & Shipping
