3000MM Ldpe Lldpe Lamination/Agriculture/Greenhouse Film ABC Three Layer PE Blown
- Категории: Blown Film Production Line >>>
- Поставщик: Wenzhou,Aoxiang,Packaging,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Application

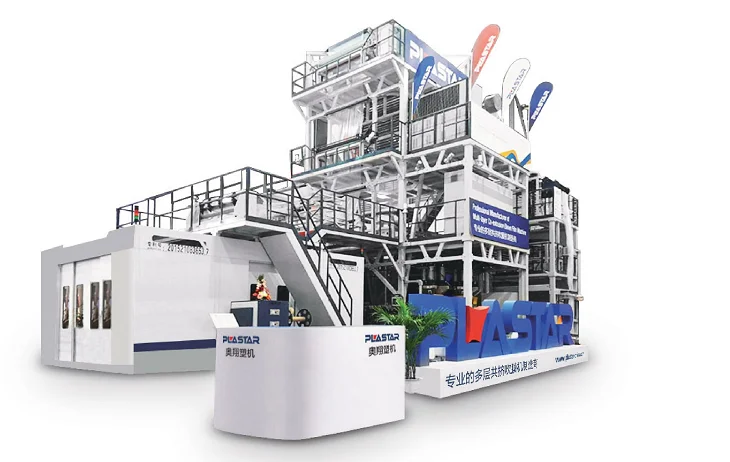

The production line of 3-layer co-extrusion blown film machines produced by our company can be used for the production of a wide range of general packaging films, and can be used to produce symmetrical film, including liquid packaging film, shrink/stretch film, electrostatic protection film, waterproof film in ponds, heavy packaging film, etc.
Model | SGII-3L1000 | SGII-3L1200 | SGII-3L1500 | SGII-3L2000 | |||
Suitable Material | HDPE / LDPE / LLDPE / EVA | ||||||
Film Width | 1000 mm | 1200 mm | 1500 mm | 2000 mm | |||
Film Thickness | 0.002 - 0.2 mm | 0.08 - 0.15 mm | 0.08 - 0.15 mm | 0.02 - 0.2 mm | |||
Max. Output | 180kg / h | 220kg / h | 280kg / h | 350kg / h | |||
Extruder | ||||||||
Screw Diameter | 50mm; 55mm | 55mm; 60mm | 60mm; 65mm | 65mm; 75mm | ||||
Screw L/D | 30:1 | |||||||
Barrel Cooling | Water Cooling | |||||||
Main Motor Power | 22kw *2 ; 30kw *1 | 30kw *2 ; 37kw *1 | 37kw *2 ; 45kw *1 | 37kw *2 ; 55kw *1 | ||||
Total Power | 105kw | 180kw | 190kw | 220kw | ||||
Die Head | ||||||||
Die Head Type | Three layers with inner cooling device | |||||||
Air Ring | Double lips air ring | |||||||
Traction Roller Width | Dia 165 * 1200 mm | 180 * 1400 mm | Dia 200 * 1700 mm | Dia 220 * 2200 mm | ||||
Effective Width | Dia 165 * 1000 mm | 180 * 1200 mm | Dia 200 * 1500 mm | Dia 220 * 2200 mm | ||||
Traction Speed | 5 - 70 m/min | 5 - 60 m/min | 5 - 50 m/min | 5 - 45 m/min | ||||
Winding Unit | ||||||||
Wingding Type | Friction type automatic single / double winder | SD-60 | SD-65 | SD-80 | ||||
Wingding Speed | 5 - 70 m/min | 5 - 60 m/min | 5 - 50 m/min | 5 - 45 m/min | ||||
Voltage | 380V, 50Hz | 0.08 - 0.15 mm | 0.08 - 0.15 mm | 0.02 - 0.2 mm | ||||
Dimension | About 7.0 * 1.5 * 7.5 m | About 8.5 * 5.5 * 8.5 m | About 9.0 * 6.0 * 10.5 m | About 10.0 * 6.5 * 12 m | ||||
Weight | About 9 T | About 12 T | About 13 T | About 15 T | ||||
Name:main motor/gear box/screw/screen changer/die head
Original: china
Original: china
plastify PE materials by main extruder,control maerials important parts.die head technology decide the film quality.
structure:circle type.
adjust type:by manual.
main winder motor:1.1kw
main winder motor inverter:1.1kw
main winder steel roller:1pcs
Specifications are subject to change without notice for improvement mini 600mm HDPE plastic bag film extruder are standard typeblown film machine, normally we have 2-3pcs machine in-stock, if you need a ready machine, please confirm with us at first.
Main Features
1) Simple structure with automatic device, easy installation, and maintenance.
1) Simple structure with automatic device, easy installation, and maintenance.
2) High output and stable running machine, maxoutput: 50kg/h.
3) use virgin material, the machine can make a thin film, the thickness: 0.006mm.
4) loss-in-weight gravimetricsystem, control extruding output, and thickness. gram/meter.
5) winding roller can handle a heavy film roller. the max film roller can be 1100mm in diameter.
6) easy change film roller design, when the film roller full, just move the arm to change the airshaft. and easy to cut.
Company Profile
Factory pictures
Certifications
Exhibition
Packing & Delivery
FAQ
Question 1. Why should buy from us not from other suppliers?
We are famous and professional blown film machines factory from China. we have very well experiences can ensure our machine is quality controlled and reliable. we also have our own CNC center for making die head for machine.
Question 2. What certificates do your blown film machines have?
Our factory fully implements the ISO9001:2015 quality management system and has passed the TUV certification, which covers the design, production, and delivery. We also have the Swiss SGS certification and EU safety CE certification, which can meet the safety requirements of most countries in the world.
Question 3. What are the main markets of your blown film machines?
As of December 2019, our blown film machines had been sold to 93 countries around the world, mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.
Question 4. What is the general delivery time of blown film machines?
The production of a blown film machine usually takes about 30 to 60 working days, depending on the size and configuration of the machine.
Question 5. How long is the warranty period of blown film machines?
All our blown film machines have a one-year warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.
Question 6. Can I visit the blown film machine production plant and watch the commissioning process?
Of course you can. we welcome you to visit us at any time. We will pick you up at Wenzhou Longwan Airport or Rui’an Railway Station.
Question 7. Where is the blown film machine factory?
Our factory is located in Wanquan Industrial Zone, No. 104 National Road, Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province, China. You can take a plane to Wenzhou Longwan Airport or take a train to Rui’an Station. Please make an appointment with us in advance, and our driver will pick you up when you arrive.
Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?
We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.
Question 9. What is the payment method for blown film machine orders?
We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
Question 2. What certificates do your blown film machines have?
Our factory fully implements the ISO9001:2015 quality management system and has passed the TUV certification, which covers the design, production, and delivery. We also have the Swiss SGS certification and EU safety CE certification, which can meet the safety requirements of most countries in the world.
Question 3. What are the main markets of your blown film machines?
As of December 2019, our blown film machines had been sold to 93 countries around the world, mainly including China, Europe, the Middle East, Southeast Asian, the United States, Canada and Latin American countries.
Question 4. What is the general delivery time of blown film machines?
The production of a blown film machine usually takes about 30 to 60 working days, depending on the size and configuration of the machine.
Question 5. How long is the warranty period of blown film machines?
All our blown film machines have a one-year warranty, starting from the date of machine arrives at customer's factory and finished commissioning. During this period, we will provide a fully free warranty for the whole machine, except consumables.
Question 6. Can I visit the blown film machine production plant and watch the commissioning process?
Of course you can. we welcome you to visit us at any time. We will pick you up at Wenzhou Longwan Airport or Rui’an Railway Station.
Question 7. Where is the blown film machine factory?
Our factory is located in Wanquan Industrial Zone, No. 104 National Road, Wanquan Town, Pingyang County, Wenzhou City, Zhejiang Province, China. You can take a plane to Wenzhou Longwan Airport or take a train to Rui’an Station. Please make an appointment with us in advance, and our driver will pick you up when you arrive.
Question 8. What kind of after-sales service do you provide if the blown film machines encounter technical problems or part damage?
We will remotely communicate with you via video to tell you how to solve technical problems of blown film machines. If the problem can't resolve, we will send engineer to your factory. If the damaged part (non-consumable part) is within the warranty period, we will provide you with another one free of charge, with the transportation charges paid by our factory.
Question 9. What is the payment method for blown film machine orders?
We will start production when we received the 30% deposit of the order. After we finished the production and received the last 70% payment, we will arrange shipment and send machine to customer.
