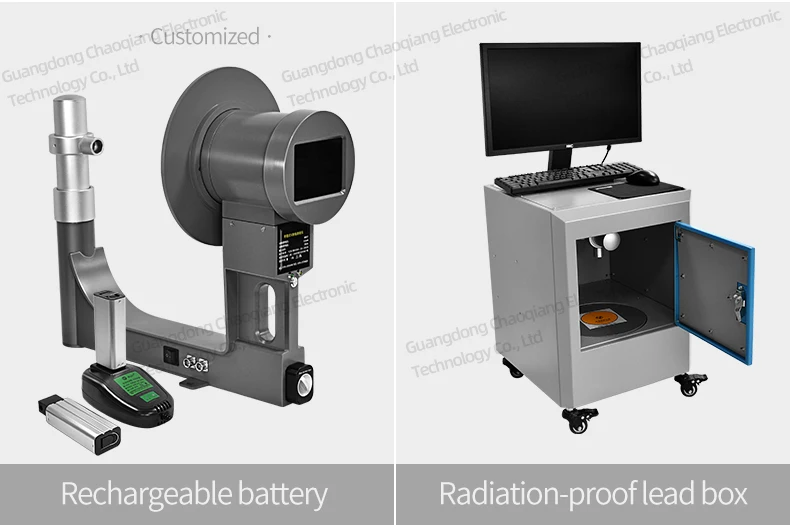

Завершить шт CQ-TR портативного рентгеновского аппарата рентгеноскопии

1.profile

The machine adopt 50 Plate-type imaging board for the imaging,adopt 0.3 Micro focus CRT sets constraints scattering line, use convenient safe and reliable.

2.instrument characteristics

1. Not need dark room, monitor displayer synchronously

2. High gain, high sensitivity, high spatial resolution, with a short response time

3. Simpled structure, small in size,light weight, can be used portably

4. Low dose radiation, safe and reliable , easy and simple to handle

3. Technical parameters

1,view field, 50mm

 2,resolution ratio ,36Lp/cm

3,output screen brightness,6cd/cm²

4,maximum separation distance 280mm

5,tube voltage,60kv

6,Tube target flow,0.3-0.5mA

7,contrast ratio,4%

8,Grey degrees,7

9,penetrated ray,<5mR/h

10,weight ,6kg

11,power,80W

12,elecricity,220VAC.

4. operation

1. Take out the machine from the case then insert the output plug into switch of the machine

2. Connect to the 220V electrical power, and the green indicator light will shine, then put the be observed product into the Detection interval (try to near to the imager) then turn on the shift knob

3.the machine will be cut off after about ten minute automatically , after few seconds , turn on the machine again , use , you can watch on the monitor display

4. Turn off the power switch after observing
