1000 кг ручной гидравлический роликовый подъемник и
- Категории: Forklifts >>>
- Поставщик: Foshan,Zhuoxing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1000kg Portable Manual Hydraulic Roll Lifter and Transporter
The Roll Lifter and Transporter is a wonderful addition to material handling and shipping facilities.
Roll Lifter and Transporters allow single users to maneuver heavy duty rolls onto the lifter
and then directly onto the printer feeder.

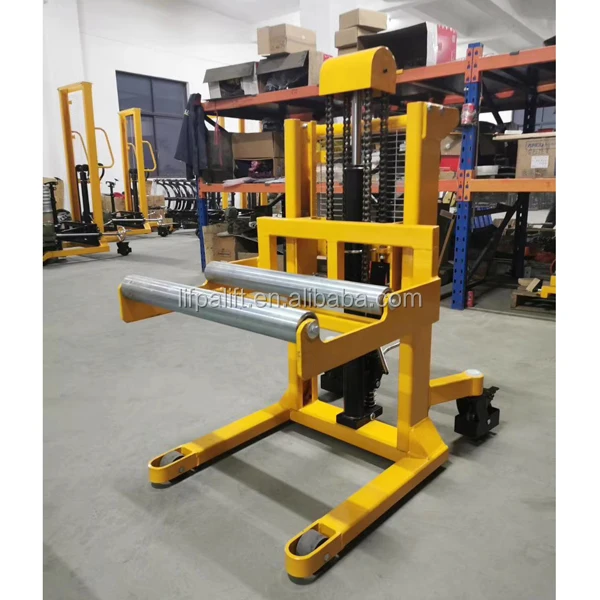

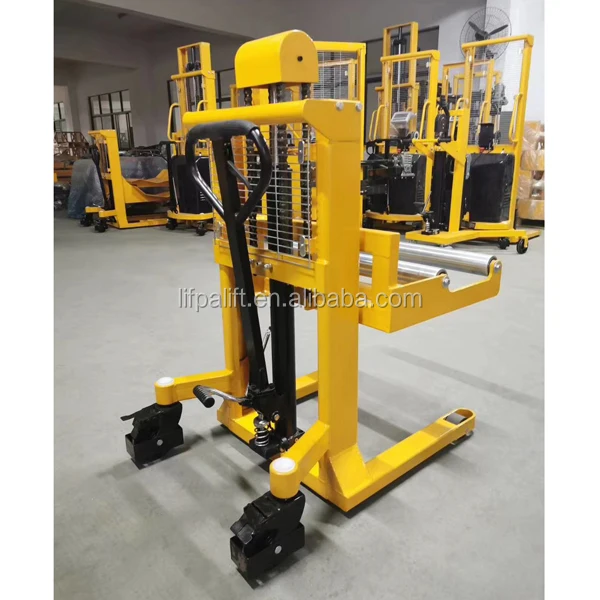

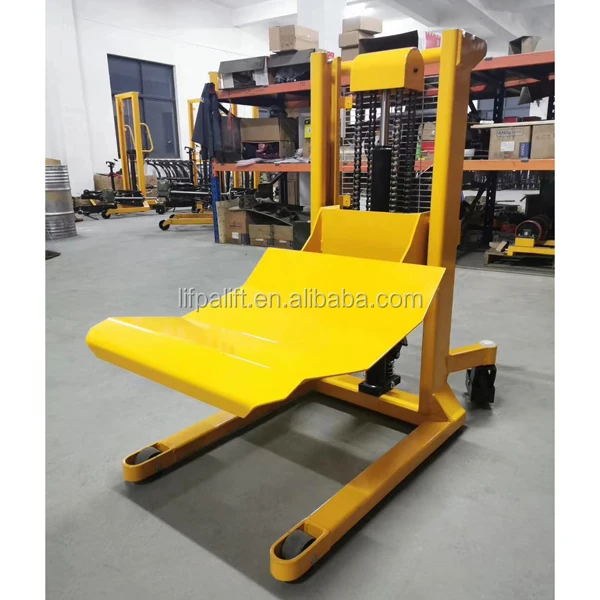

Real Pictures
Product Highlights
• User-friendly portable hydraulic lift provides reliable, powerful lifting when moving and positioning loads
• The simple cradle design of the platform prevents any movement during transporting
• Nonslip chain is used for accurate positioning
• Unit rolls easily on 2 rigid and 2 swivel polyurethane casters and includes a foot operated brake
• All welded steel construction with chrome platform and uprights
• Custom sizes and specs available
Main Parameters
| Model | TS-RA | TS-RB | |
| power | manual | manual | |
| operator type | pedestrian | pedestrian | |
| load capacity | kg | 1000 | 1000 |
| load center | mm | 450 | 450 |
| lift height | mm | 860 | 910 |
| lowered height | mm | 175 | 240 |
| max. roll size | mm | Ø800 | Ø1000 |
| max. roll length | mm | 5000 | 1500 |
| overall size - l/w/h | mm | 1150/1510/1210 | 1150/1510/1210 |
| weight | kg | 210 | 180 |

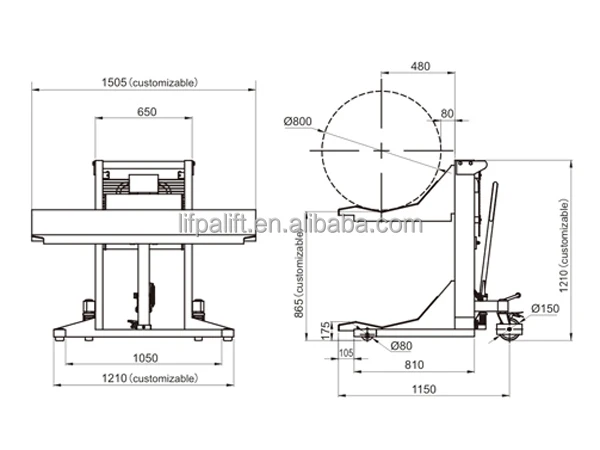

Measurements
Related Products
We offer a full line of portable lifters and other material handling equipment.
 | Standard fully electric pallet stacker, load is up to 2000kg. Model: ES-A |
 | Advanced pedestrian electric pallet stacker, lifting height is up to 5.00mts with Triple mast. Model: EW-A |
 | Regular Walkie type stacker Model: EW-B |
 | Counter-Balanced Electric Stacker Model: EC |
 | Semi Electric Pallet Stacker Model: EA |
SEND INQUIRY to get Brochures with full models now!
