Product Description
Trommel Screen Wash Plant, Mobile Screening Equipment
Drum screen/rolling cylinder drum sieve is designed for processing minerals, mainly for alluvial/placer gold ore washing & screening, it's consist of a half covered trommel screen, one diesel engine/ electric motor, water pump & water pipes, and other facilities such as the feeding hopper and the mobile system.
Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc

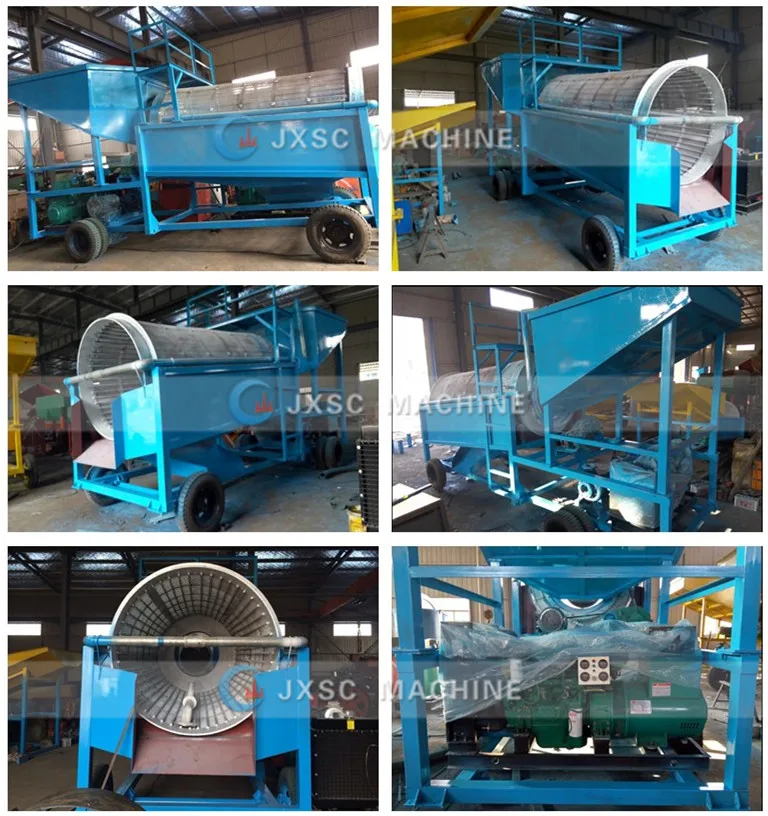

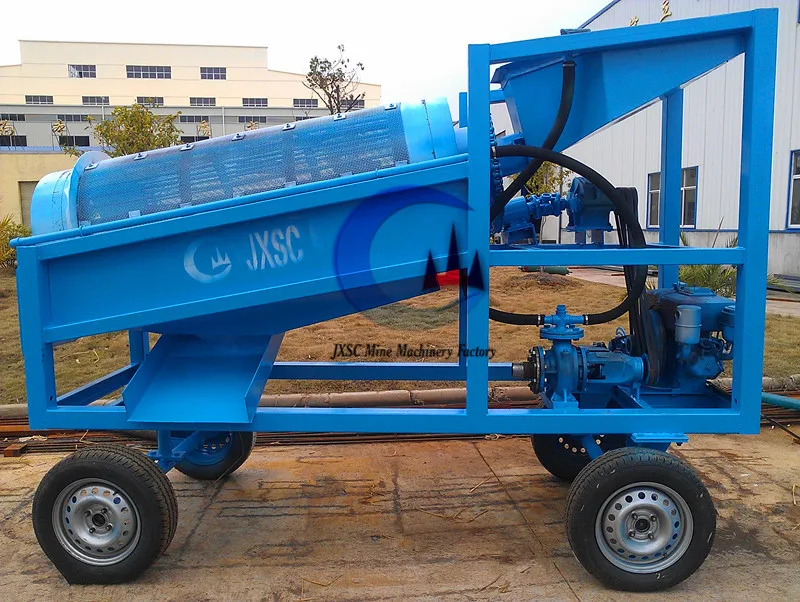

This portable trommel is a kind of gold washing and screening equipment which can be moved on land.
It has the characteristics of compact structure,
strong integrity, light weight, small-medium handling capacity, simple operation, reliable operation, easy maintenance and convenient
operation.
strong integrity, light weight, small-medium handling capacity, simple operation, reliable operation, easy maintenance and convenient
operation.

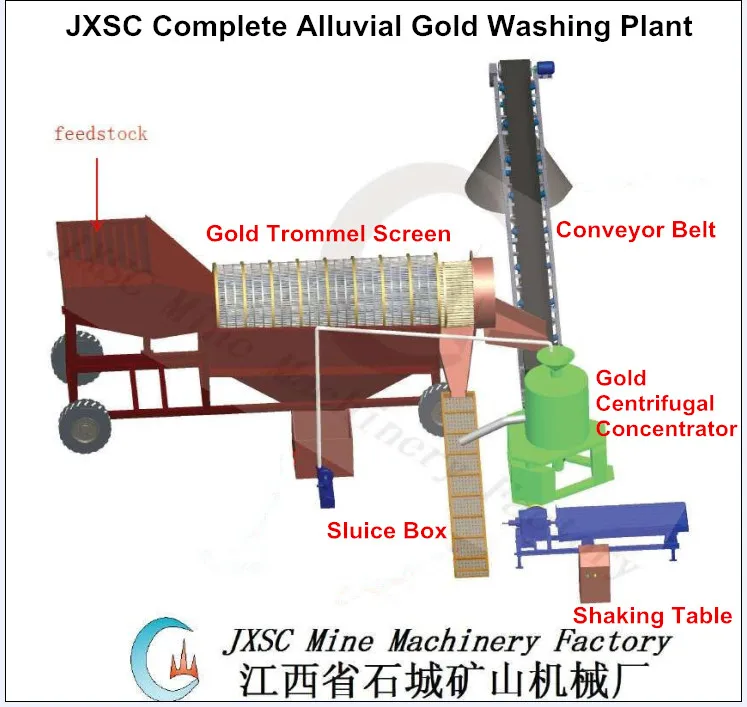

JXSC/Eastman mobile trommel machine normally works together with sluice box , gold centrifugal concentrator and shaking table to form a complete ore concentration plant.
Small Mobile trommel screen also has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore
concentration, ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc
It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.
Small Mobile trommel screen also has been widely used for alluvial gold, placer gold, tantalite, niobite, and tin ore
concentration, ferrous metals including hematite & magnetite And nonferrous metals including Lead, Zinc
It is very popular in Africa, Asia, South America due to its easy to move and easy operation, low cost.
Technical Data
Model | Capacity (t/hr) | Power | Sieve tube diameter | Sieve tube length | Under the screen size /mm | Dimensions | Weight /kg |
GT1015 | 50 | 4 | 1000 | 1500 | <3~10 | 3000*1400*2145 | 2200 |
GT1020 | 100 | 5.5 | 1000 | 2000 | 3460*1400*2145 | 2800 | |
GT1225 | 160 | 7.5 | 1200 | 2500 | 4146*1600*2680 | 4200 | |
GT1530 | 250 | 11 | 1500 | 3000 | 4460*1900*2820 | 5100 | |
GT1545 | 350 | 15 | 1500 | 4500 | 590*1900*3080 | 6000 | |
GT1848 | 450 | 22 | 1800 | 4800 | 6500*2300*4000 | 7500 | |
GT2055 | 600 | 30 | 2000 | 5500 | 7500*2500*4000 | 8600 |
Successful cases

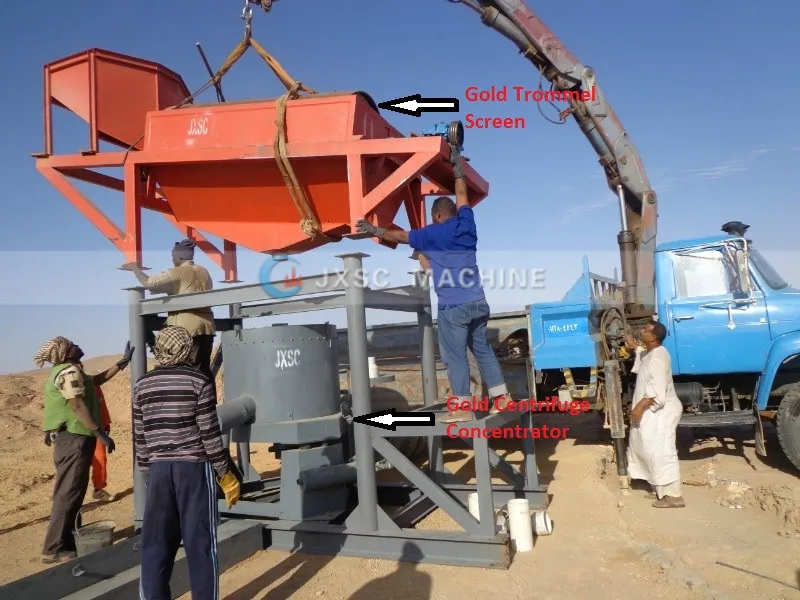

Sudan 25TPH Alluvial Gold Washing Mining Project
1. Project date: 2019
2. Ore : Alluvial Gold Ore without sticky clay.
3. Capacity: 25 Tons Per Hour.
4. Our factory supplied the complete line equipment for this project,including Trommel Screen> Centrifugal Concentrator> Shaking
Table> Sluice Box> Amalgamator> Gold Smelting Furnace.
5. Our engineer designed the professional flowchart for this project.
6. This whole plant suits for alluvial gold without sticky clay.
3. Capacity: 25 Tons Per Hour.
4. Our factory supplied the complete line equipment for this project,including Trommel Screen> Centrifugal Concentrator> Shaking
Table> Sluice Box> Amalgamator> Gold Smelting Furnace.
5. Our engineer designed the professional flowchart for this project.
6. This whole plant suits for alluvial gold without sticky clay.

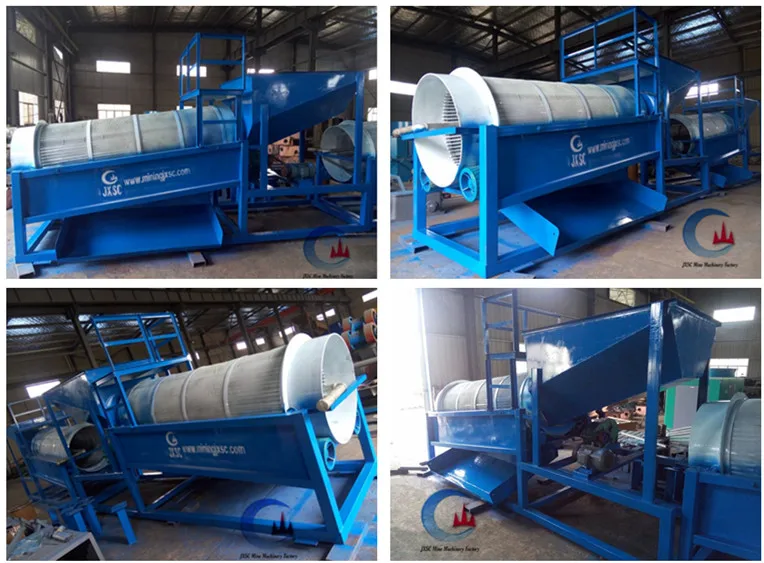

JXSC/Eastman also produce heavy duty trommel screen machine for large scale mineral process.
The machine can equip with feeding hopper, water spray system(water pump, water pipe, * high pressure spray gun etc.)
Normally with two screen layers, screen material is high manganese steel, the screen mesh size can be customized as per your ore conditions.
Product packaging
Packing & Loading
LCL Loading or Container Loading
Why Choose Us
7*24 hours online consulting service, we provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
Send technicians to the job site guiding the installation and adjustment, training operators and finishing the check and accept together with you.
FAQ
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 40% deposit, 60% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
●Sales service: Send technicians to the site to guide the installation and commissioning, train the operators, and complete the acceptance with you.
●After-sales service: To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How is the quality of your products?
Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every equipment before delivery.
●How about the Guaranteed?
Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as we
described or the promise before you place order, we promise 100% refund.
●How about price?
Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
●How about the service and payment terms?
Answer: We can accept T/T or other payment ways you request; 40% deposit, 60% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
