Product Overview

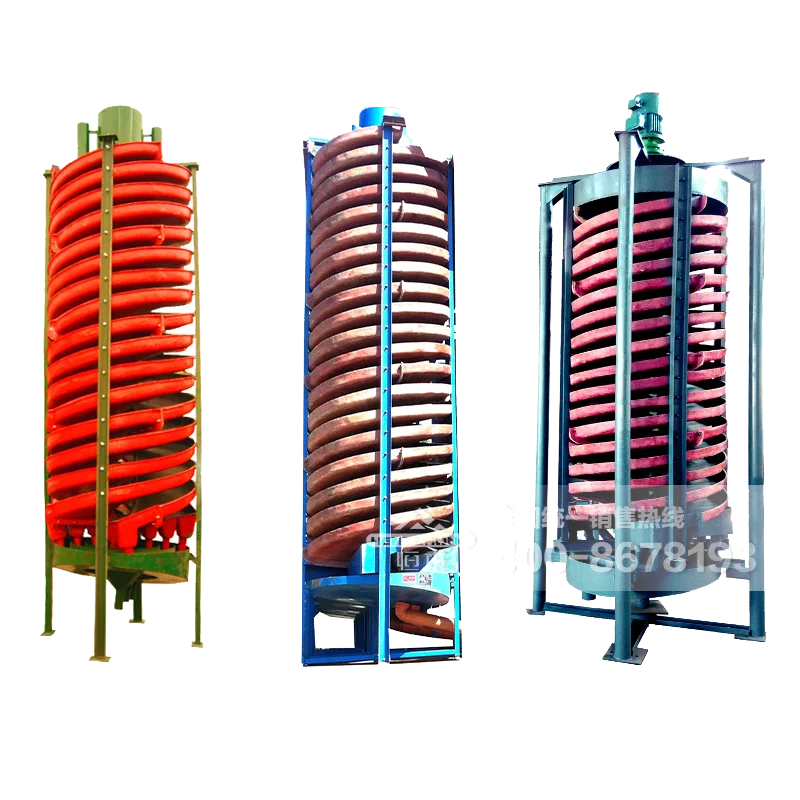

DESCRIPTION
Spiral separator (spiral chute) is one of the gravity concentrators, which separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. Spiral chute is widely applied to mineral separating of size 0.3 - 0.02 mm, such as ilmenite, chromite, pyrite, zircon, rutile, monazite, phosphate, tungsten ore, tin, tantalum, niobium ore and other non-ferrous metals, precious metals and non-metallic minerals.
PRODUCT SPECIFICATIONS
Working Principle
Spiral chute is working under the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of
the spiral, and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral, while particles with the greatest density migrate towards the inside of the spiral.
the spiral, and it enters a feed distributor that evenly distributes the feed to each spiral concentrator. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral, while particles with the greatest density migrate towards the inside of the spiral.
Features of Spiral Chute
1. Reasonable structure and small occupation area;
2. High recovery, high efficiency, and precise separation;
3. Light in weight, rust and corrosion resistant;
4. Simple installation and Minimal maintenance requirements;
5. Low operating cost and long operating life;
6. Reliable running with minimal operator attention;
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
2. High recovery, high efficiency, and precise separation;
3. Light in weight, rust and corrosion resistant;
4. Simple installation and Minimal maintenance requirements;
5. Low operating cost and long operating life;
6. Reliable running with minimal operator attention;
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
Model | Outside Diameter (mm) | Screw Picth (mm) | Heads Number | Feeding size (mm) | Capacity (t/h) | Weight (kg) | Dimension (mm) |
BLL-1500 | 1500 | 900,675 | 2-4 | 0.3-0.02 | 8-6 | 1100 | 1600*1600*4510 |
BLL-1200 | 1200 | 900,720,540 | 2-4 | 0.3-0.03 | 4-6 | 800 | 1360*1360*5230 |
BLL-900 | 900 | 675,540,405 | 2-4 | 0.2-0.02 | 2-3 | 400 | 1060*1060*4000 |
BLL-600 | 600 | 450,360,270 | 3 | 0.2-0.02 | 0.8-1.2 | 150 | 700*700*2600 |
BLL-400 | 400 | 240,18 | 2 | 0.2-0.02 | 0.15-0.2 | 50 | 460*460*1500 |

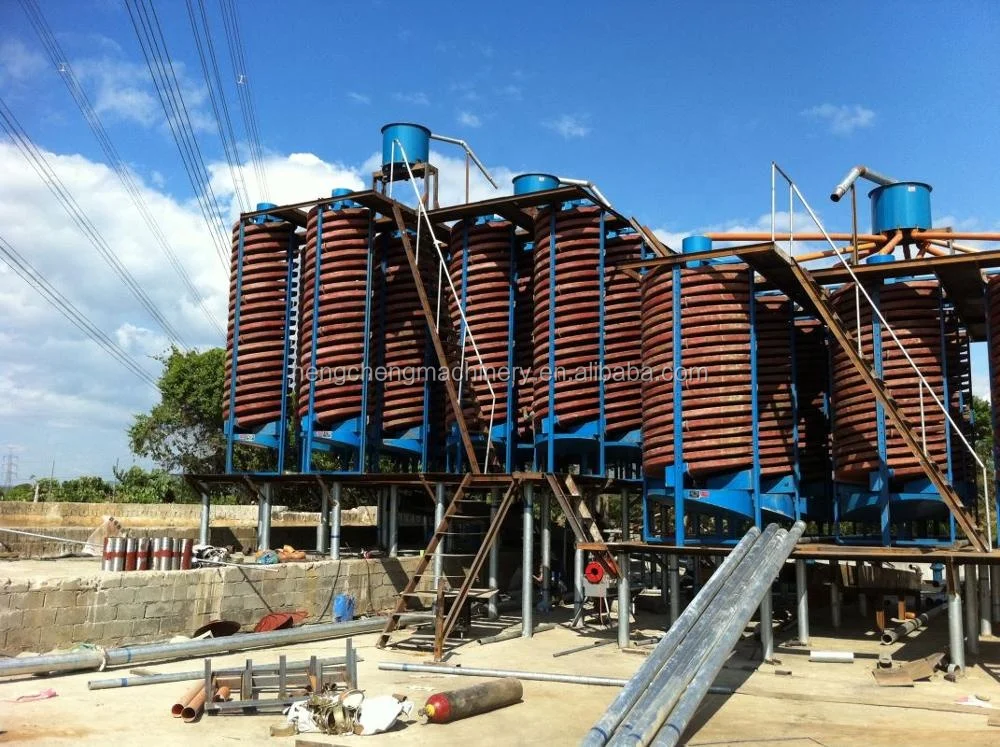

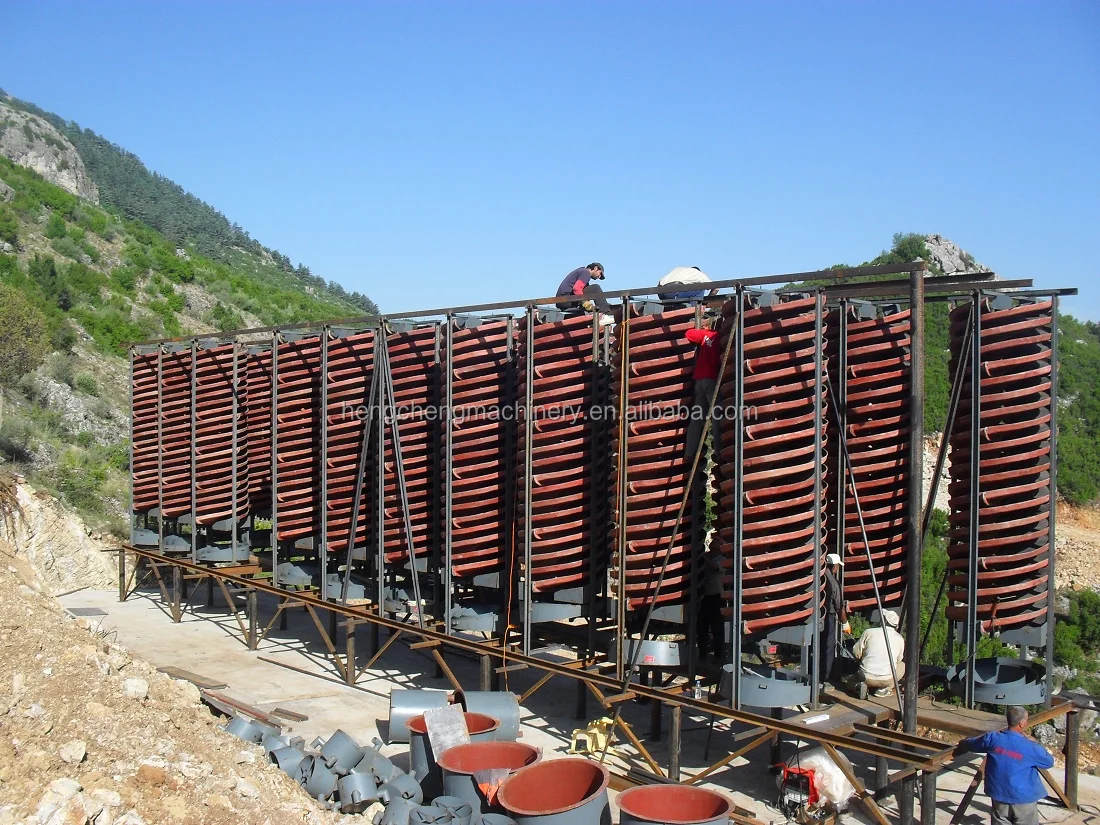

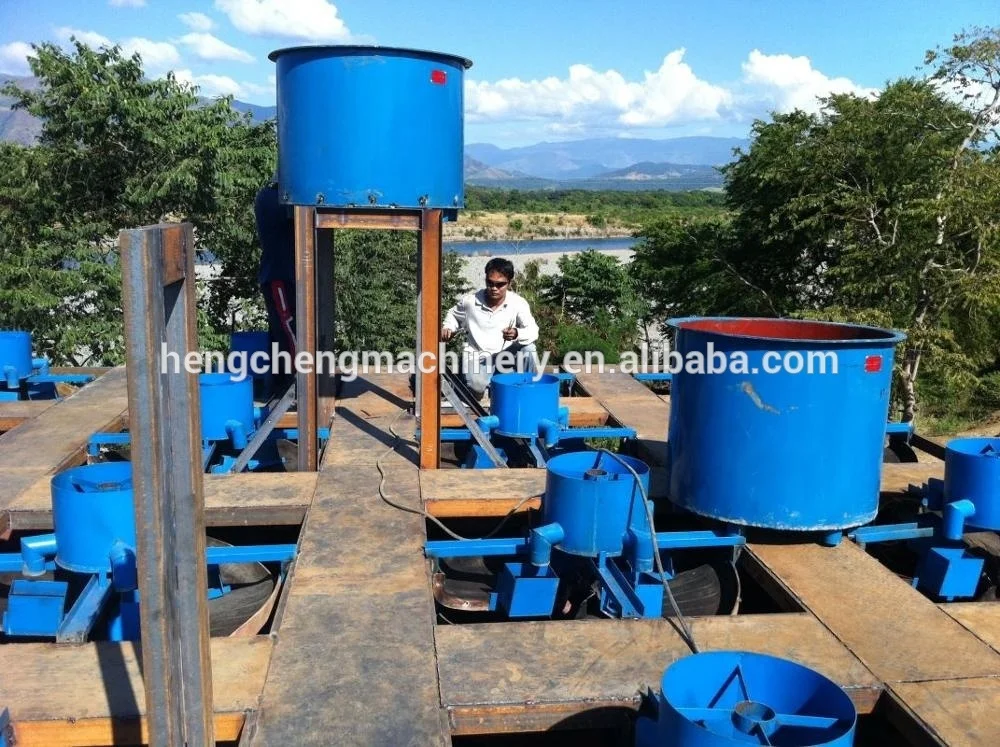

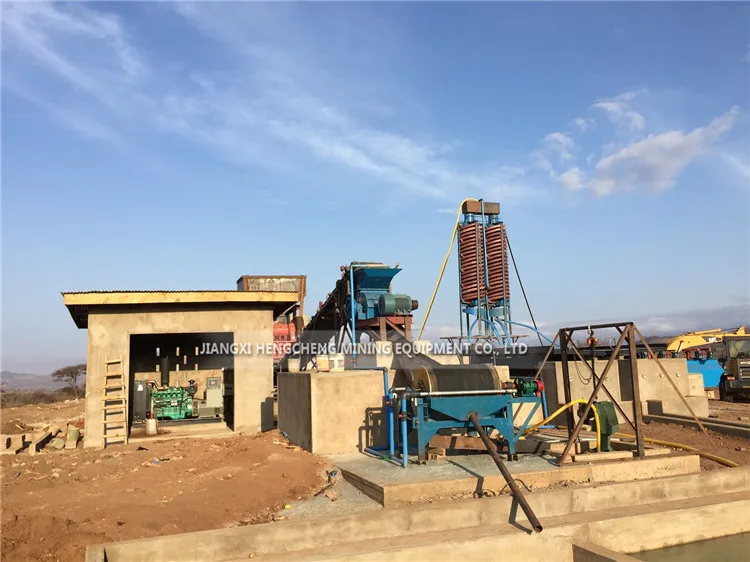

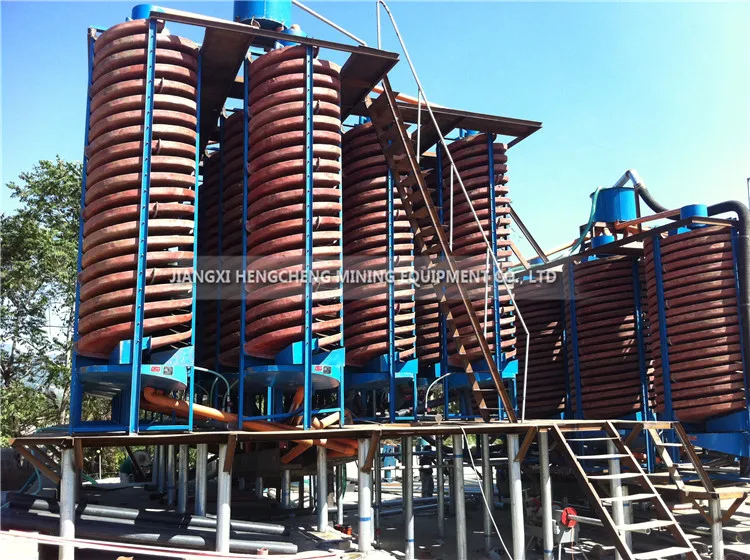

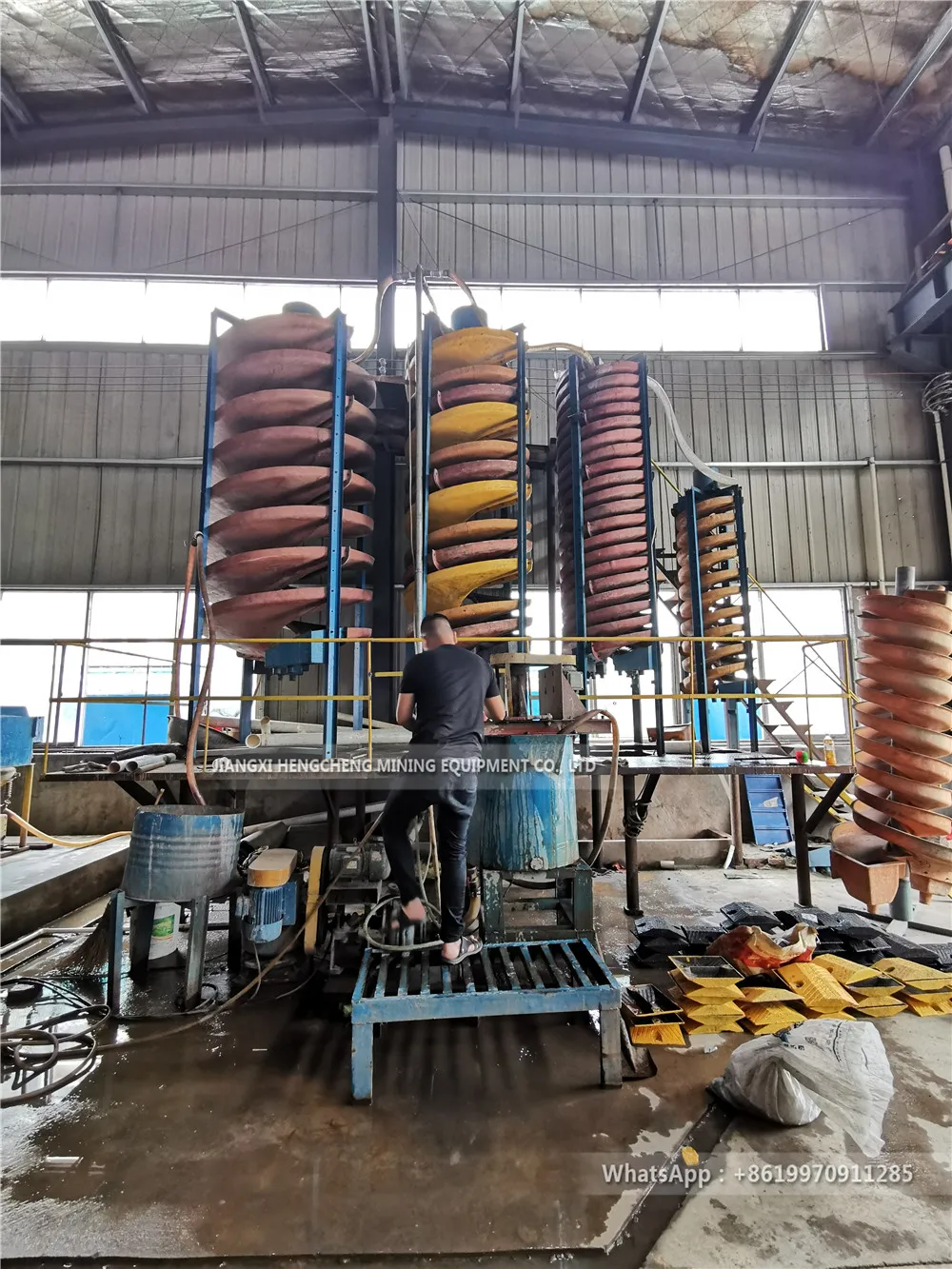

Successful Project
Company Profile
Jiangxi Hengcheng Mining Equipment Co.,ltd
Jiangxi Hengcheng Mining Equipment Co.,ltd is a well-known manufacturer and supplier of gravity separation equipment in Jiangxi Province, China. We has more than 20 years of equipment producing experience. Currently our factory owns an area of more than 30000m2, self-contained with modernized processing machines. Our machines have already been exported to more than 20 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippine, Bolivia, USA, Singapore, Mongolia, etc. Currently we are good at alluvial/deluvial gold ore, hard-rock gold ore, manganese ore, tin ore, copper ore, tantalum-niobium(coltan) ore processing, and we have gained lots of project running experiences till now.
Contact Us
You can reach us by:
If you are interested in our company or products, welcome to visit our company ; you can also get contact with us through online
consulting, demand table submission, e-mails and telephones. Our staff shall wholeheartedly provide product information,
application knowledge and good service for you.
consulting, demand table submission, e-mails and telephones. Our staff shall wholeheartedly provide product information,
application knowledge and good service for you.
