Product description

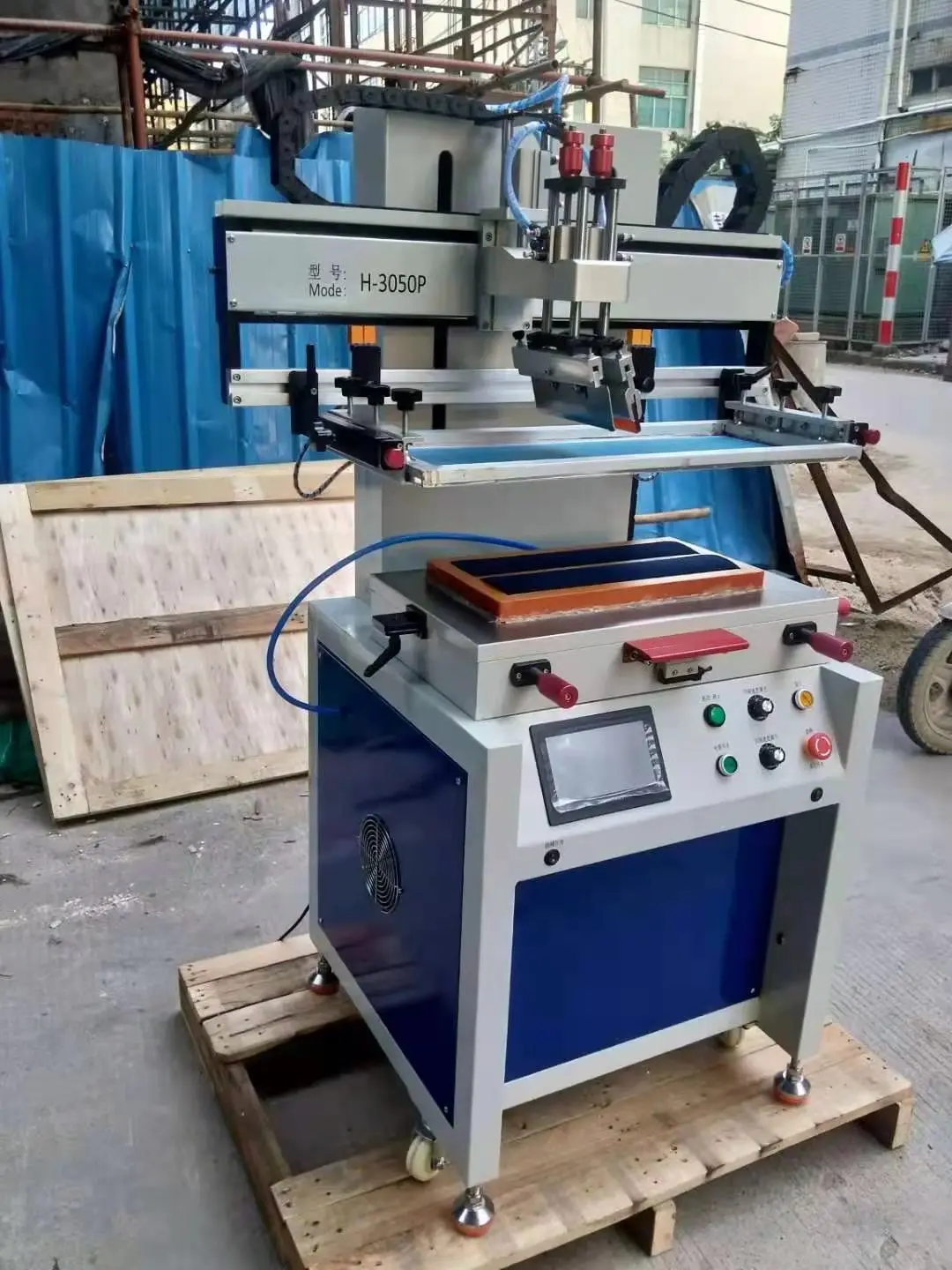

High precision flat screen printing machine semi-automatic silk screen printer
Application
· Widely used in Glass plate, Machine panel screen printing; With UV curing machine, Can finish many UV special printing process including UV Spot Varnish, UV frosting, UV glitter Powder ;
· Suitable for printing sheet-fed adhesive sticker;
· Suitable for printing water transfer label and heat transfer label through the different process;
· Widely used to print circuit aboard, Film switch panel, etc industrial field.
· Suitable for printing sheet-fed adhesive sticker;
· Suitable for printing water transfer label and heat transfer label through the different process;
· Widely used to print circuit aboard, Film switch panel, etc industrial field.
Specifications
Model No | LC-3050PTB | Squeegee stroke | Adjust the Limited switch |
Working table Size | 400*600mm | Squeegee and screen plate control | High precision linear guideway |
Actions | Up-down of screen plate | Max printing thickness | 150 mm |
To be printed | Plain objects | Air consumption | 80Litre/Min |
Dimension of working table | 400*600mm | Max printing areas | 300*500mm |
Max printing speed | 1000Pcs/H | Max frame dimension | 500*850mm |
Compress air | 5-7 bar | Stroke of cylinder up and down | 160mm |
Stroke of Squeegee | 500mm | Table Precision | 0.05mm |
Rang adjustment of table | 10mm | Machine size | 800*1130*1800mm |
Function
· Working table keep stillness but screen frame moving from up and down so that objects easy to put on and take off;
· High Precision liner guideway installed to control the movement of Rubber squeegee and screen frame. High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
· Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
· Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
· Screen forme Clamping device free to adjust to fit different sizes of the screen;
· Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
· Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
· Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
· Microcomputer program control operations;
· 4-Digit auto counter; to facilitate the measurement of production efficiency.
· High Precision liner guideway installed to control the movement of Rubber squeegee and screen frame. High-precision linear guideway control lifting and dropping of screen plate and rubber squeegee;
· Screen Forme up and down movement of contact with the table, suitable for hand-placed and remove the product;
· Distance of the screen and table to the flexibility to adjust for different heights of the product silk screen;
· Screen forme Clamping device free to adjust to fit different sizes of the screen;
· Screen Plate clamping device can be adjusted Front and back, left and right, up and down, the angle of the fine-tuning in order to fine-tune the exact location of the pattern in the product above;
· Stroke of the scraper can be flexibly adjusted the pattern to suit different size;
· Squeegee pressure can be individually adjusted to fit any high-precision screen printing;
· Microcomputer program control operations;
· 4-Digit auto counter; to facilitate the measurement of production efficiency.
