DJI Mavic Air 2S Fly More
- Категории: Drones >>>
- Поставщик: Shenzhen,Boway,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

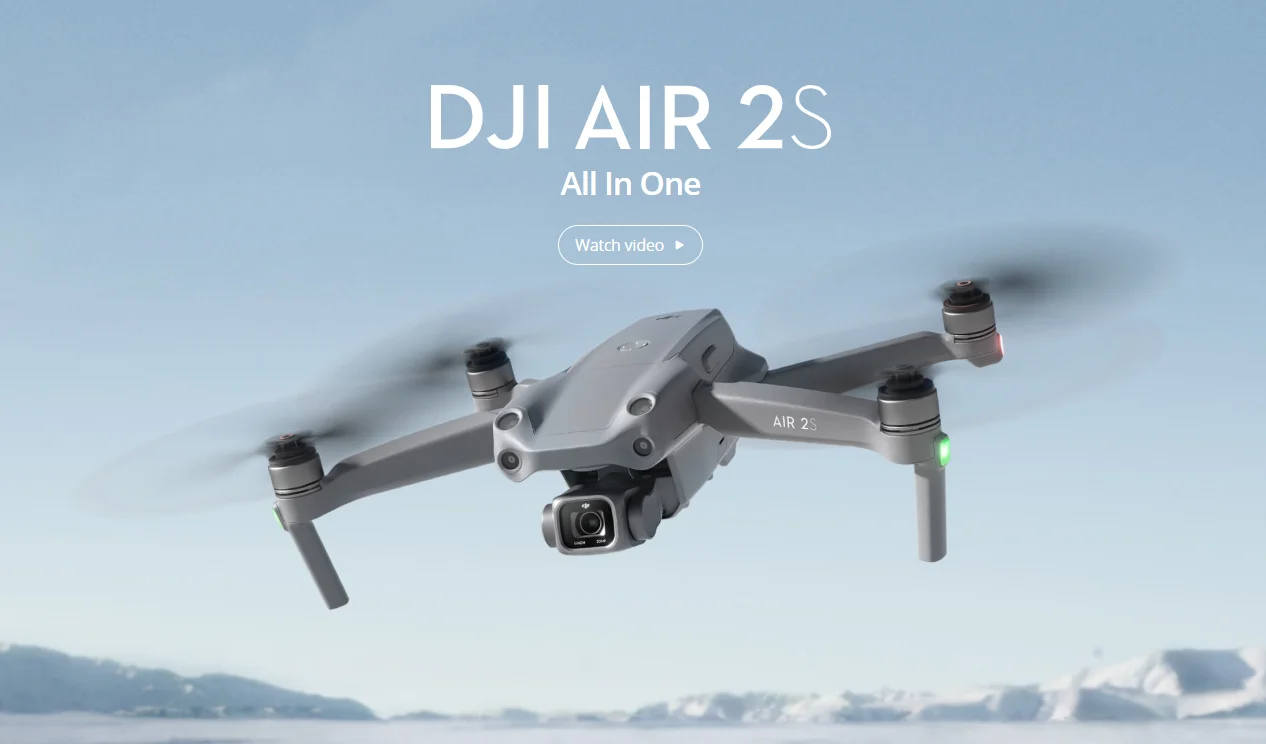

DJI Mavic Air 2S Fly More Combo DJI Air 2S Fly More Combo
AIR 2S SPECS
Aircraft
Takeoff Weight
- 595 g
Dimensions
- Folded:
180×97×77 mm (length×width×height)
Unfolded:
183×253×77 mm (length×width×height)
Diagonal Length
- 302 mm
Max Ascent Speed
- 6 m/s (S Mode)
6 m/s (N Mode)
Max Descent Speed
- 6 m/s (S Mode)
6 m/s (N Mode)
Max Service Ceiling Above Sea Level
- 5000 m
Max Flight Time (no wind)
- 31 minutes
Max Hovering Time (no wind)
- 30 minutes
Max Flight Distance (no wind)
- 18.5 km
Max Flight Speed (near sea level, no wind)
- 19 m/s (S Mode)
15 m/s (N Mode)
5 m/s (C Mode)
Max Wind Speed Resistance
- 10.7 m/s
Max Tilt Angle
- 35° (S Mode)
Front: 30°, Back: 20°, Left: 35°, Right: 35° (N Mode)
Max Angular Velocity
- 250°/s (S Mode)
90°/s (N Mode)
60°/s (C Mode)
Operating Temperature Range
- 0° to 40°C (32° to 104°F)
Operating Frequency
- 2.4 GHz
5.8 GHz
Transmission Power (EIRP)
- 2.4 GHz:
FCC: ≤30 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.8 GHz:
FCC: ≤30 dBm
CE: ≤14 dBm
SRRC: ≤29 dBm
Hovering Accuracy Range
- Vertical:
± 0.1 m (with vision positioning)
± 0.5 m (with GNSS positioning)
Horizontal:
± 0.1 m (with vision positioning)
± 1.5 m (with GNSS positioning)
Propellers
- Quick release, low noise, folding
Aircraft Arms
- Foldable
GNSS
- GPS+GLONASS+GALILEO
Compass
- Single Compass
IMU
- Single IMU
Internal Storage
- 8 GB
Intelligent Flight Battery
Capacity
- 3500 mAh
Voltage
- 11.55 V
Max Charging Voltage
- 13.2 V
Battery Type
- LiPo 3S
Energy
- 40.42 Wh
Weight
- 198 g
Charging Temperature Range
- 5° to 40°C (41° to 104°F)
Max Charging Power
- 38 W
Built-in Battery
- N/A
Camera

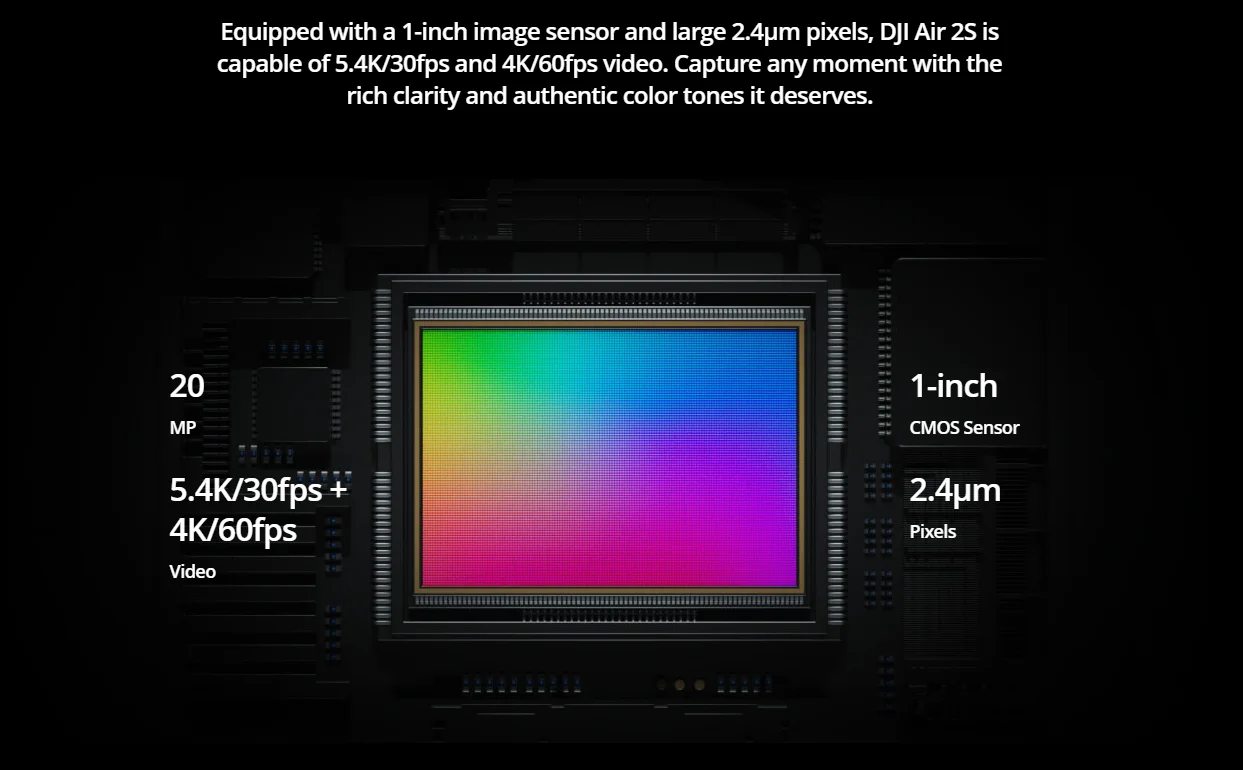

Sensor
- 1" CMOS
Effective Pixels: 20 MP; 2.4μm Pixel Size
Lens
- FOV: 88°
35 mm Format Equivalent: 22 mm
Aperture: f/2.8
Shooting Range: 0.6 m to ∞
ISO Range
- Video:
100-3200 (Auto)
100-6400 (Manual)
10-Bit Dlog-M Video:
100-800 (Auto)
100-1600 (Manual)
Photo:
100-3200 (Auto)
100-12800 (Manual)
Still Image Size
- 20 MP
5472×3648 (3:2)
5472×3078 (16:9)
Still Photography Modes
- Single shot: 20 MP
Burst shooting: 20 MP (continuous burst)
Auto Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV bias
Timed: 20 MP, 2/3/5/7/10/15/20/30/60s
SmartPhoto (including HDR and HyperLight): 20 MP
HDR Panorama:
Vertical (3×1): 3328×8000 (width×height)
Wide-angle (3×3): 8000×6144 (width×height)
180° (3×7): 8192×3500 (width×height)
Sphere (3×8+1): 8192×4096 (width×height)
JPEG/DNG (RAW)
Video Resolution
- 5.4K: 5472×3078 @ 24/25/30 fps
4K Ultra HD: 3840×2160 @ 24/25/30/48/50/60 fps
2.7K: 2688x1512 @ 24/25/30/48/50/60 fps
FHD: 1920×1080 @ 24/25/30/48/50/60/120 fps
MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)
Max Video Bitrate
- 150 Mbps
Supported File System
- FAT32/exFAT
Supports a microSD card with a capacity of up to 256 GB.
Digital Zoom
- Zoom recording is not available while recording 10-bit videos and 120fps videos.
4K/30fps:
4x;
2.7K/60fps:
4x;
2.7K/30fps:
6x;
1080p/60fps:
6x;
1080p/30fps:
8x
Gimbal
Stabilization
- 3-axis (tilt, roll, pan)
Mechanical Range
- Tilt: -135° to 45°
Roll: -45° to 45°
Pan: -100° to 100°
Pan Axis
- Not Controllable
Controllable Range
- Tilt: -90° to 0°(default); -90° to 24° (extended)
Max Controllable Speed (tilt)
- 100°/s
Angular Vibration Range
- ±0.01°
Sensing System
Forward
- Precision Measurement Range: 0.38-23.8 m
Effective Sensing Speed: ≤15 m/s
Field of View (FOV): 72° (horizontal), 58° (vertical)
Backward
- Precision Measurement Range: 0.37-23.4 m
Effective Sensing Speed: ≤12 m/s
Field of View (FOV): 57° (horizontal), 44° (vertical)
Downward
- ToF Measurement Range: 0.1-8 m
Hovering Range: 0.5-30 m
Vision Sensor Hovering Range: 0.5-60 m
Left/Right
- N/A
Upward
- Precision Measurement Range: 0.34-28.6 m
Field of View (FOV): 63° (horizontal), 78° (vertical)
Downward Auxiliary Light
- Single LED
Video Transmission
Transmission System
- O3
2.4 GHz/5.8 GHz Auto-Switching (compatible with OcuSync 2.0)
4-antenna 2T4R
Max Transmission Distance
- 12 km (FCC), 8 km (CE)
8 km (SRRC), 8 km (MIC)
Live View Quality/Latency
- Drone + Remote Controller: 1080p/30fps 12 Mbps 120 ms
Drone + DJI Smart Controller: 1080p/30fps 12Mbps 130 ms
Max Transmission Bitrate
- 44 Mbps (download bitrate)
16 Mbps (live video bitrate)
Operating Frequency
- 2.4 GHz
5.8 GHz
Remote Controller
Multiple Controllers
- N/A
DJI Smart Controller
- Supported
Remote Controller Transmission System
- OcuSync 2.0
Battery Life
- 6 hours (4 hours when charging a mobile device)
Supported Mobile Device Connectors
- Lightning, Micro USB, USB-C
Max Supported Mobile Device Size
- 180×86×10 mm (length×width×height)
Operating Temperature
- 0° to 40°C (14° to 104°F)
Transmitter Power (EIRP)
- 2.4 GHz:
FCC: ≤26 dBm
CE: ≤20 dBm
SRRC: ≤20 dBm
MIC: ≤20 dBm
5.8 GHz:
FCC: ≤26 dBm
CE: ≤14 dBm
SRRC: ≤26 dBm
Charger
Charging Input
- 100-240V, 50/60 Hz, 1.3 A
Charging Output
- Charging Port: 13.2 V-2.82 A
USB Port: 5 V-2 A
Voltage
- 13.2 V
Rated Power
- 38 W
Features:
- 1-Inch CMOS Sensor
- 5.4K Video
- MasterShots
- 12km 1080p Transmission
- Obstacle Sensing in 4 Directions

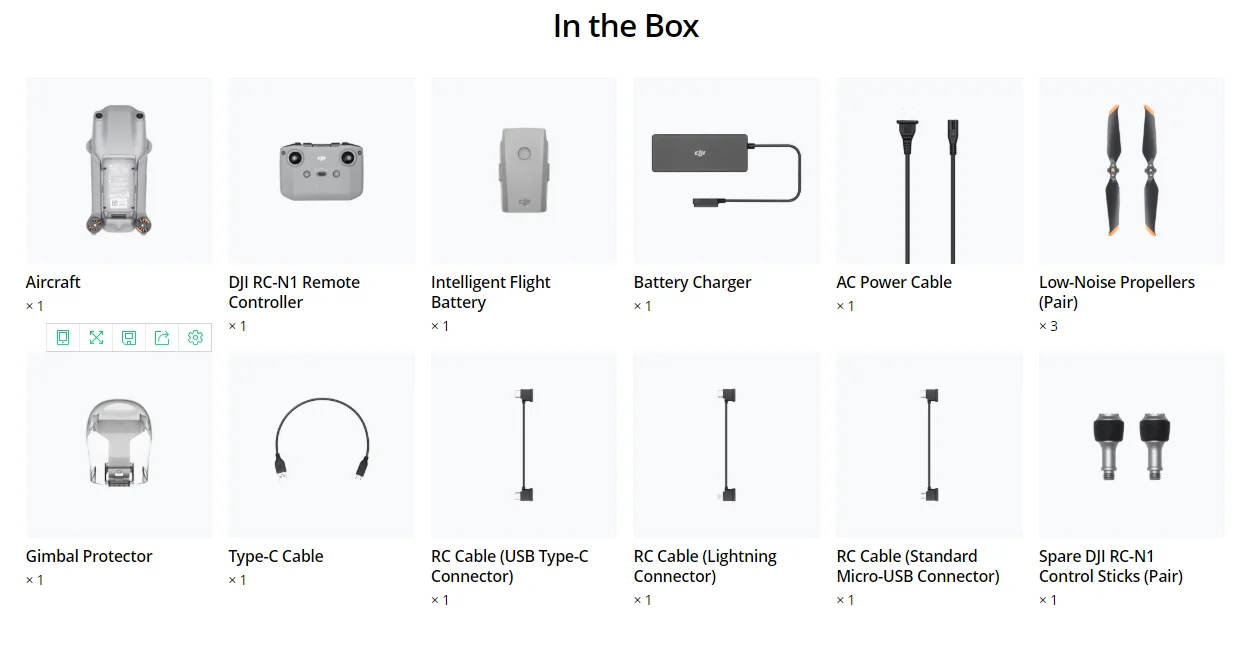

In the box:
Shipping:
We can send it by Express(DHL/FedEx/UPS/TNT), air transportation, sea and land transportation.
