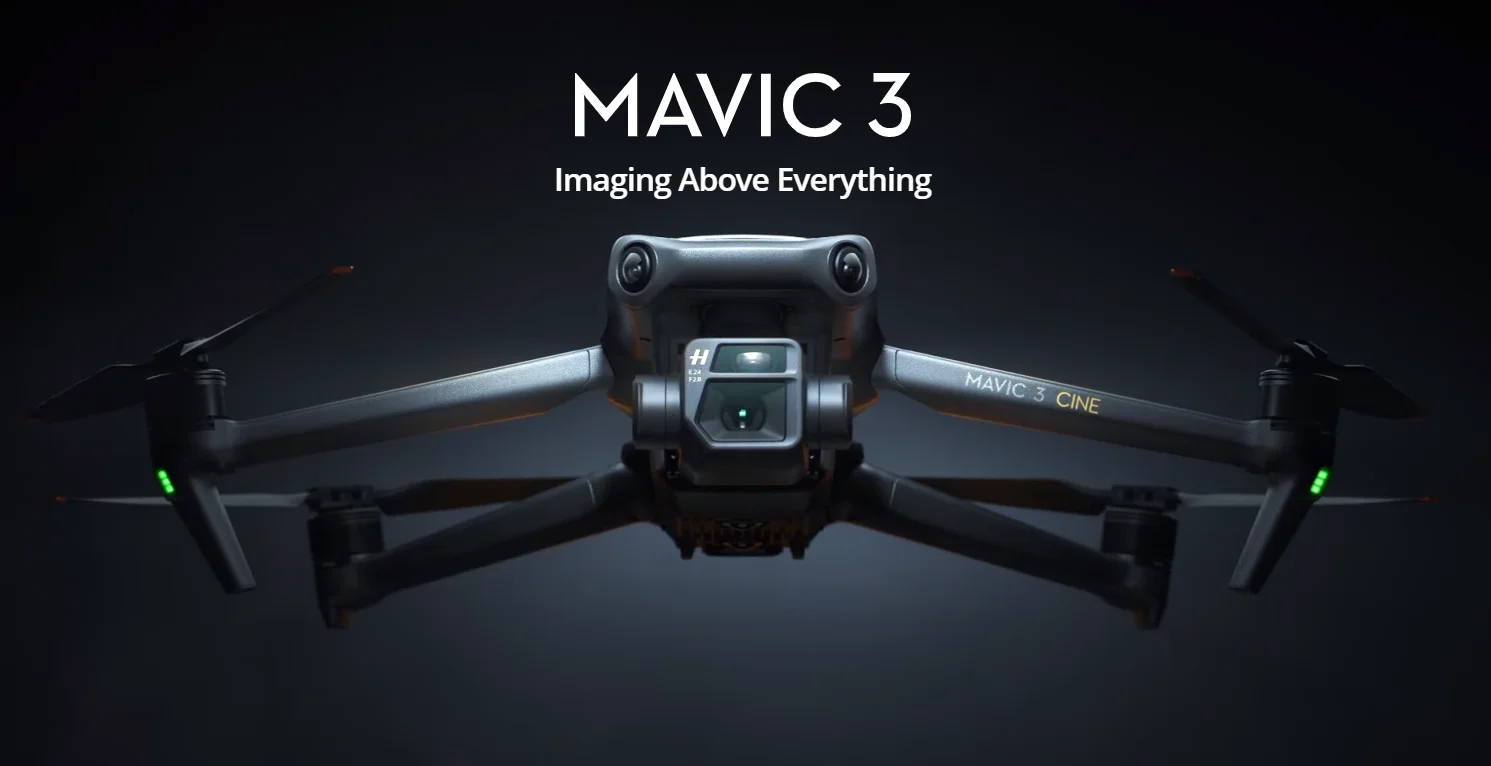

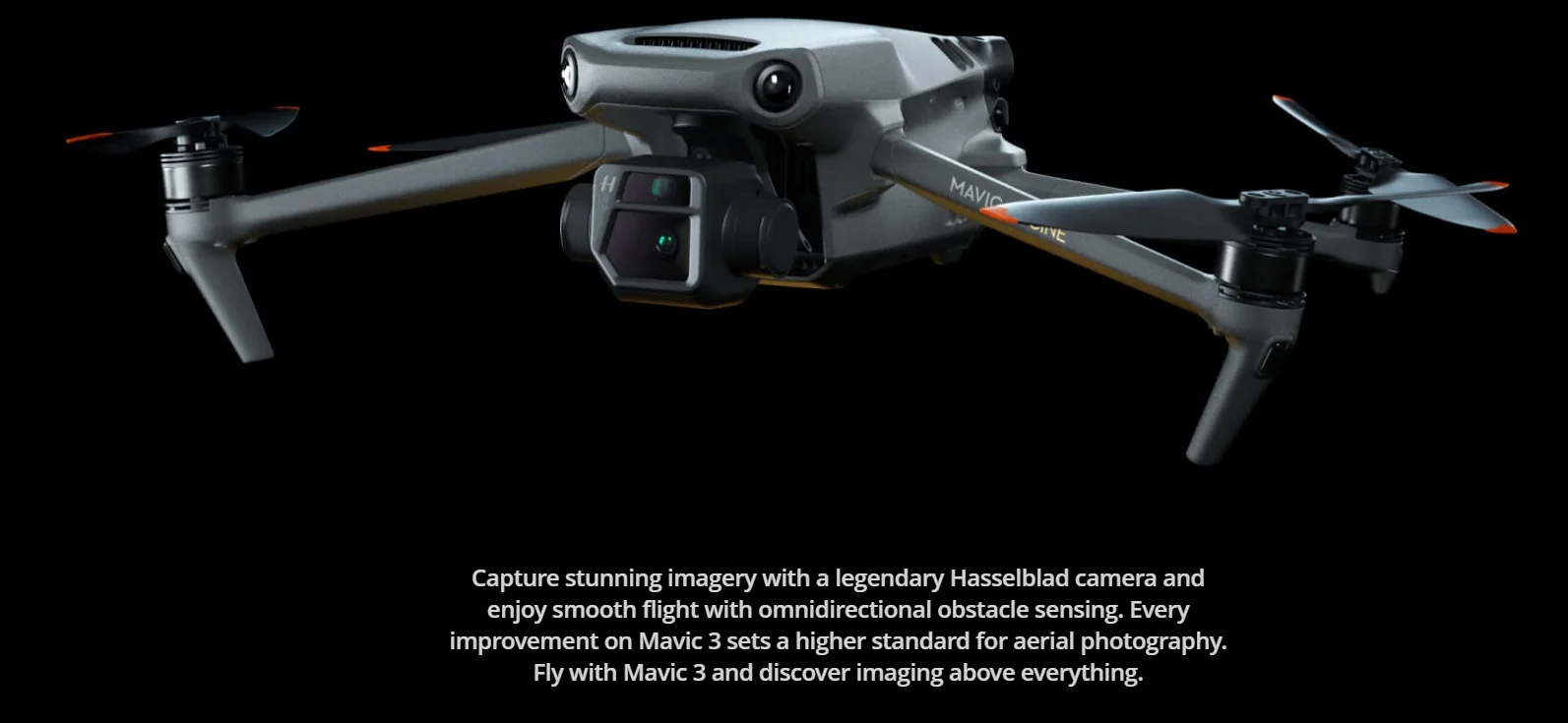

Дрон DJI Mavic 3 PRO с камерой 5 1 K 4/3 CMOS Hasselblad время полета 46 минут макс. передача 15
- Категории: Drones >>>
- Поставщик: Shenzhen,Boway,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
DJI Mavic 3 PRO Drone with 5.1K 4/3 CMOS Hasselblad Camera 46 Min Flight Time 15km Max Transmission
Specs:
Aircraft
Takeoff Weight
- Mavic 3: 895 g
Mavic 3 Cine: 899 g
Dimensions (Folded/Unfolded)
- Folded (without propellers) 221×96.3×90.3 mm
(Length×Width×Height)
Unfolded (without propellers) 347.5×283×107.7 mm
(Length×Width×Height)
Diagonal Length
- 380.1 mm
Max Ascent Speed
- 1 m/s (C mode)
6 m/s (N mode)
8 m/s (S mode)
Max Descent Speed
- 1 m/s (C mode)
6 m/s (N mode)
6 m/s (S mode)
Max Flight Speed (at sea level, no wind)
- 5 m/s (C mode)
15 m/s (N mode)
19 m/s (S mode)
Max Service Ceiling Above Sea Level
- 6000 m
Max Flight Time (no wind)
- 46 minutes
Max Hovering Time (no wind)
- 40 minutes
Max Flight Distance
- 30 km
Max Wind Speed Resistance
- 12 m/s
Max Tilt Angle
- 25° (C mode)
30° (N mode)
35° (S mode)
Max Angular Velocity
- 200°/s
Operating Temperature
- -10° to 40° C (14° to 104° F)
GNSS
- GPS + Galileo + BeiDou
Hovering Accuracy Range
- Vertical: ±0.1 m (with Vision Positioning); ±0.5 m
(with GNSS Positioning)
Horizontal: ±0.3 m (with Vision Positioning); ±0.5 m
(with High-Precision Positioning System)
Internal Storage
- Mavic 3: 8 GB (available space is approx. 7.2 GB)
Mavic 3 Cine: 1TB (available space is approx. 934.8 GB)

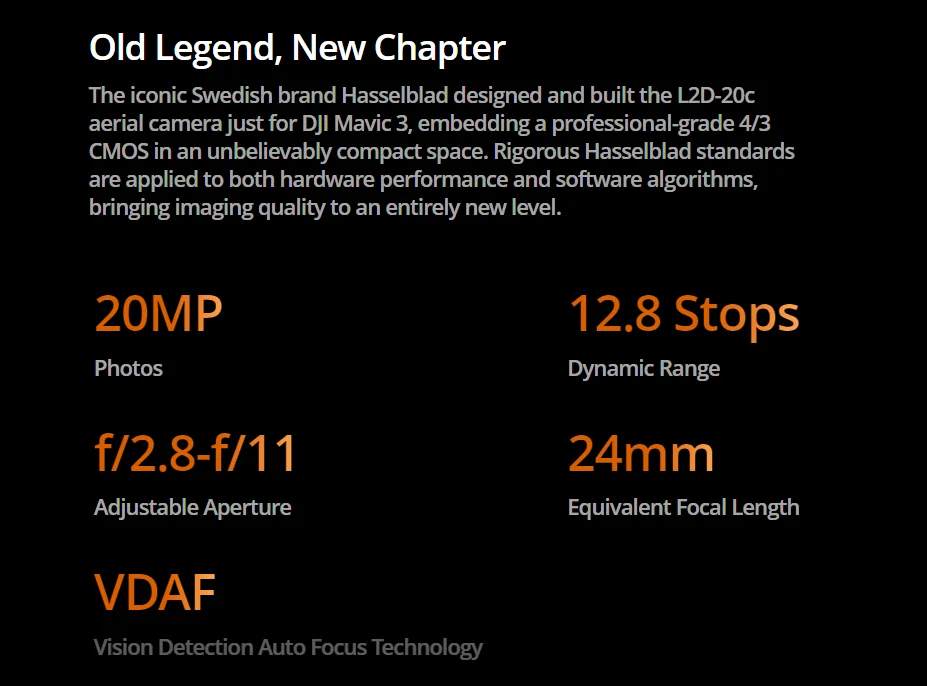

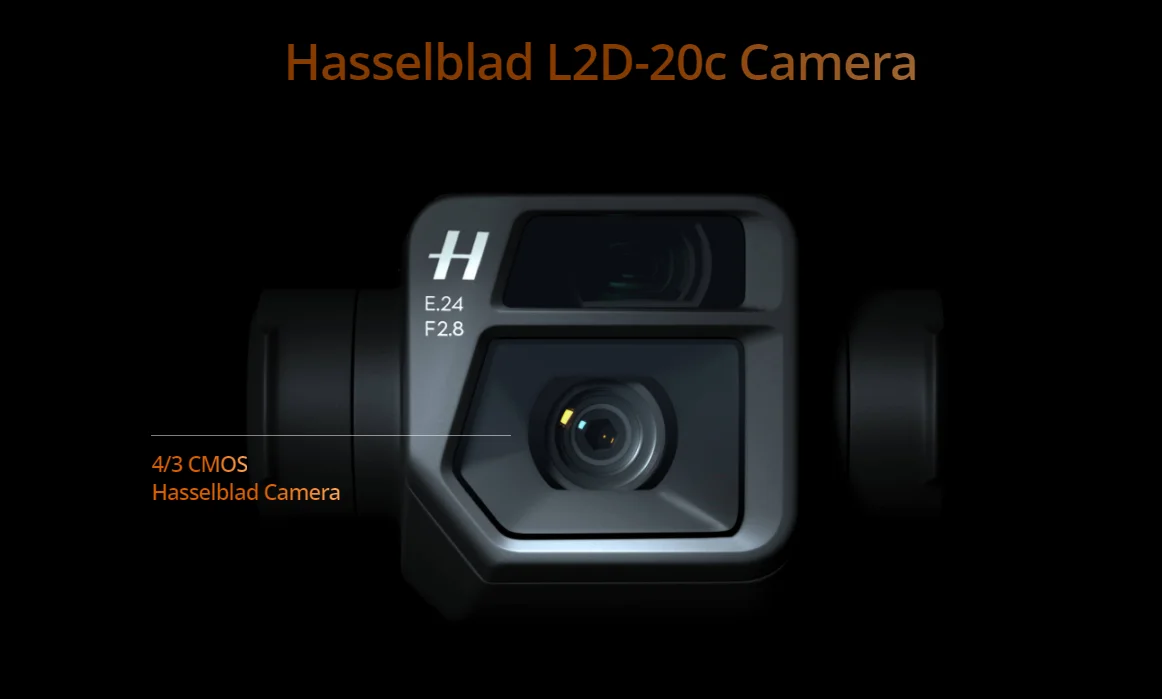

Hasselblad Camera
Sensor
- 4/3 CMOS, Effective pixels: 20 MP
Lens
- FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8 to f/11
Focus: 1 m to ∞ (with autofocus)
ISO Range
- Video: 100-6400
Still Image: 100-6400
Shutter Speed
- Electronic Shutter: 8-1/8000 s
Max Image Size
- Main Unit: 5280×3956
Still Photography Modes
- Single shot: 20MP Photos
Automatic Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV
Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s
Video Resolution
- Apple ProRes 422 HQ
5.1K: 5120×2700@24/25/30/48/50fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fps
H.264/H.265
5.1K: 5120×2700@24/25/30/48/50fps
DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
4K: 3840×2160@24/25/30/48/50/60/120*fps
FHD: 1920×1080p@24/25/30/48/50/60/120*/200*fps
* Framerates above are recording framerates. Videos will be played as slow-motion videos.
Max Video Bitrate
- H.264/H.265 Bitrate: 200 Mbps
Supported File Formats
- exFAT
Photo Format
- JPEG/DNG (RAW)
Video Formats
- Mavic 3:
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Mavic 3 Cine:
MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
MOV (Apple ProRes 422 HQ)

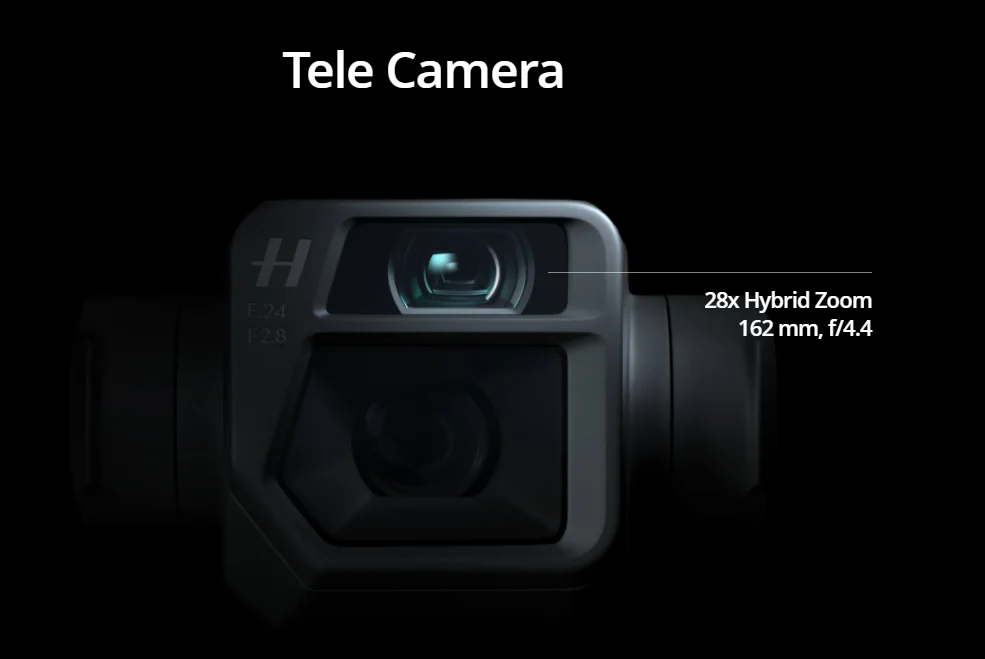

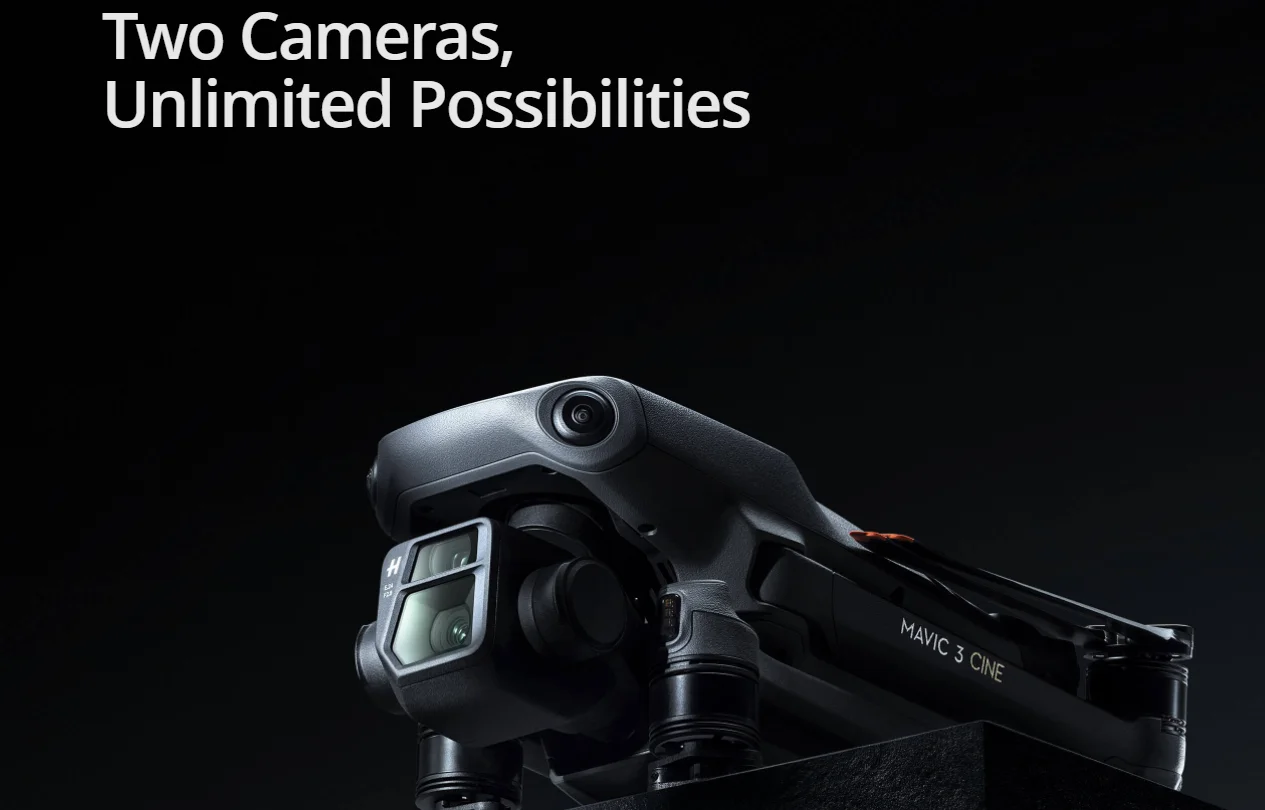

Tele Camera
Sensor
- 1/2-inch CMOS
Shutter Speed
- Electronic Shutter: 2-1/8000 s
Lens
- FOV: 15°
Format Equivalent: 162mm
Aperture: f/4.4
Focus: 3 m to ∞
ISO Range
- Video: 100-6400
Still Image: 100-6400
Max Image Size
- 4000×3000
Photo Format
- JPEG
Video Formats
- MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
Still Photography Modes
- Single shot: 12MP Photos
Video Resolution
- H264/H.265
4K: 3840×2160@30 fps
FHD: 1920×1080@30 fps
Digital Zoom
- 4x
Gimbal
Stabilization
- 3-axis motorized (tilt, roll, pan)
Mechanical Range
- Tilt: -135° to 100°
Roll: -45° to 45°
Pan: -27° to 27°
Controllable Range
- Tilt: -90° to 35°
Pan: -5° to 5°
Max Control Speed (tilt)
- 100°/s
Angular Vibration Range
- ±0.007°

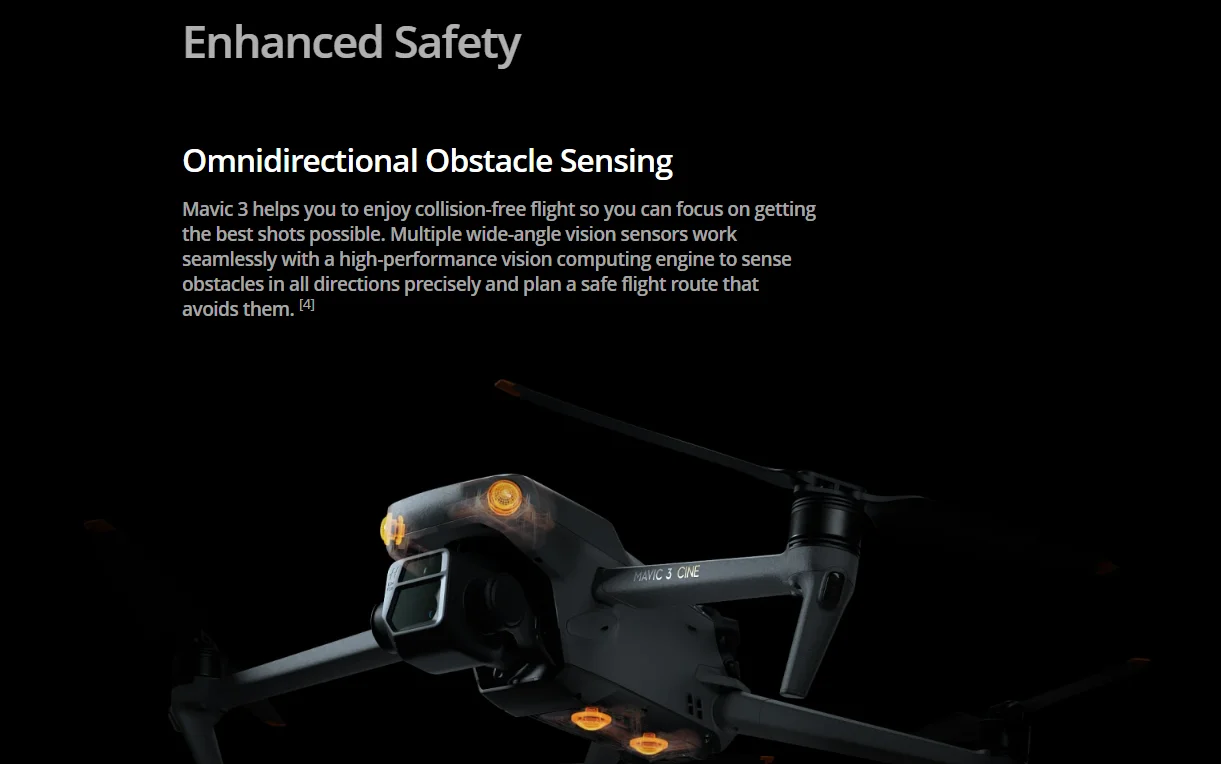

Sensing
Sensing System
- Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft
Forward
- Measurement Range: 0.5-20 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 15m/s
FOV: Horizontal 90°, Vertical 103°
Backward
- Measurement Range: 0.5-16 m
Effective Sensing Speed: Flight Speed ≤ 12m/s
FOV: Horizontal 90°, Vertical 103°
Lateral
- Measurement Range: 0.5-25 m
Effective Sensing Speed: Flight Speed ≤ 15m/s
FOV: Horizontal 90°, Vertical 85°
Upward
- Measurement Range: 0.2-10 m
Effective Sensing Speed: Flight Speed ≤ 6m/s
FOV: Front and Back 100°, Left and Right 90°
Downward
- Measurement Range: 0.3-18 m
Effective Sensing Speed: Flight Speed ≤ 6m/s
FOV: Front and Back 130°, Left and Right 160°
Operating Environment
- Forward, Backward, Left, Right, and Upward: Surface with a clear pattern and adequate lighting (lux>15)
Downward: Surface with a clear pattern and adequate lighting (lux >15). Diffuse reflective surface with diffuse reflectivity>20% (e.g. wall, tree, person)
