what's this pad printer machine use for?

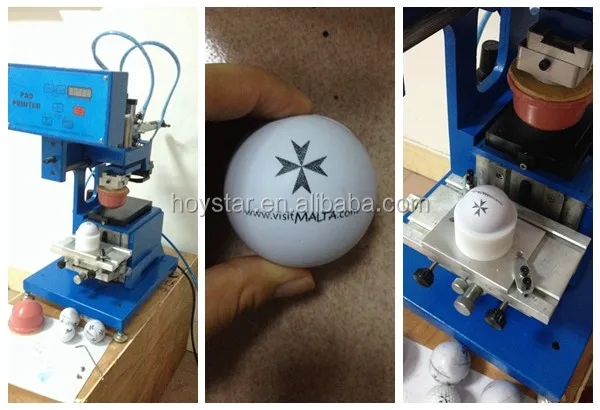

It is suitable for printing kinds of materials irregular surface promotional items such as pen,USB,golf ball,keyring,cup,bottle cap,heatphone,mouse,lighter,light cover,switch...etc
Steel plate size | 100*200mm |
Cloased ink cup diameter | 60mm |
Max.printing size | fai 60mm |
Front/back distance | 150mm |
Up/down distance | 75mm |
Air pressure | 5-7 bar |
Voltage | 220V Single phase |
Dimension | 650*400*650mm |
Net weight | 40kg |
Features
1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat.Airframe adopts coin alloy,and metal coating surface

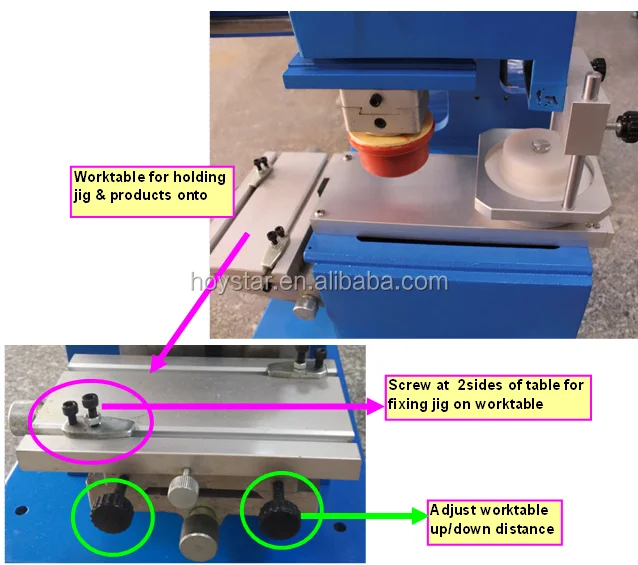

3. Worktable,plastic head can be adjusted X.Y.Z direction.
4. Sucking ink and printing pad's air pressure can be adjusted independently
6. Leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification

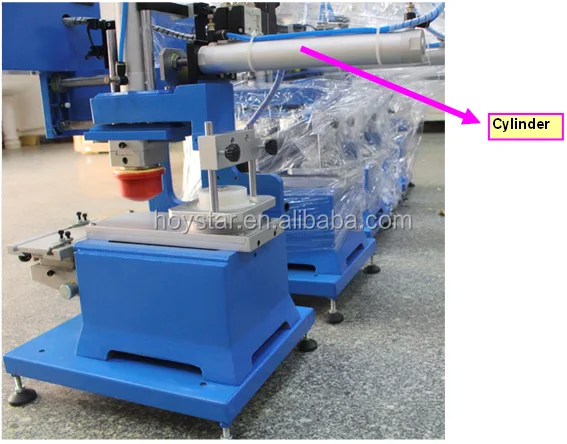

7. All cylinders speed have an independent regulator intortum
8. Front/back long distance,and it can print bigger size product
9. It adopts fully Taiwan pneumatic component
10. All the machine is running steadily,and high printing precision
11. All electric component of the machine are installed by open,it is convenient to maintain it.
12.This machine is installed with emergency stop button,it meets safety standard requirement
Accessories included

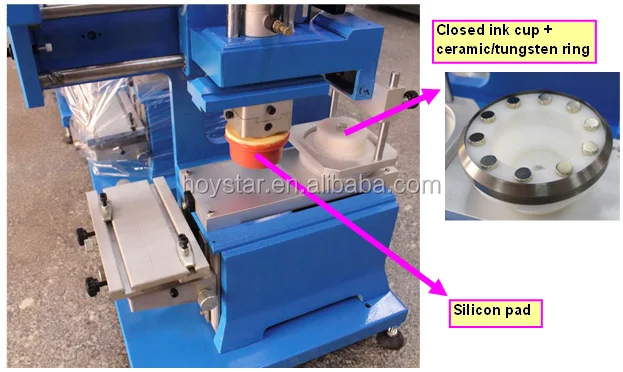

Silicon pad

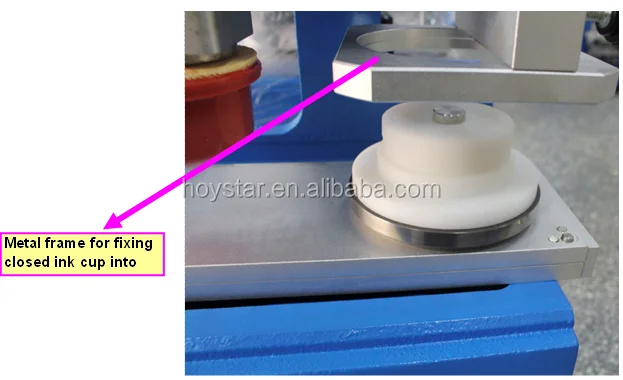

Closed ink cup
Steel plate
Air compressor
Pad printing ink
Jig for fixing products
Package by | wooden case |
Package dimension | 680*680*450mm |
Gross weight | 45kg |
Transport | by sea or by express directly |
Delivery time | 7 workdays |
