100 tph Золотой троммель моющаяся установка аллювиальная золотодобывающая для золота на
- Категории: >>>
- Поставщик: Jiangxi,Hengcheng,Mining,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
100 tph Gold trommel wash plant Alluvial gold mining washing plant trommel gold washing plant for sale
FEATURES AT A GLANCE

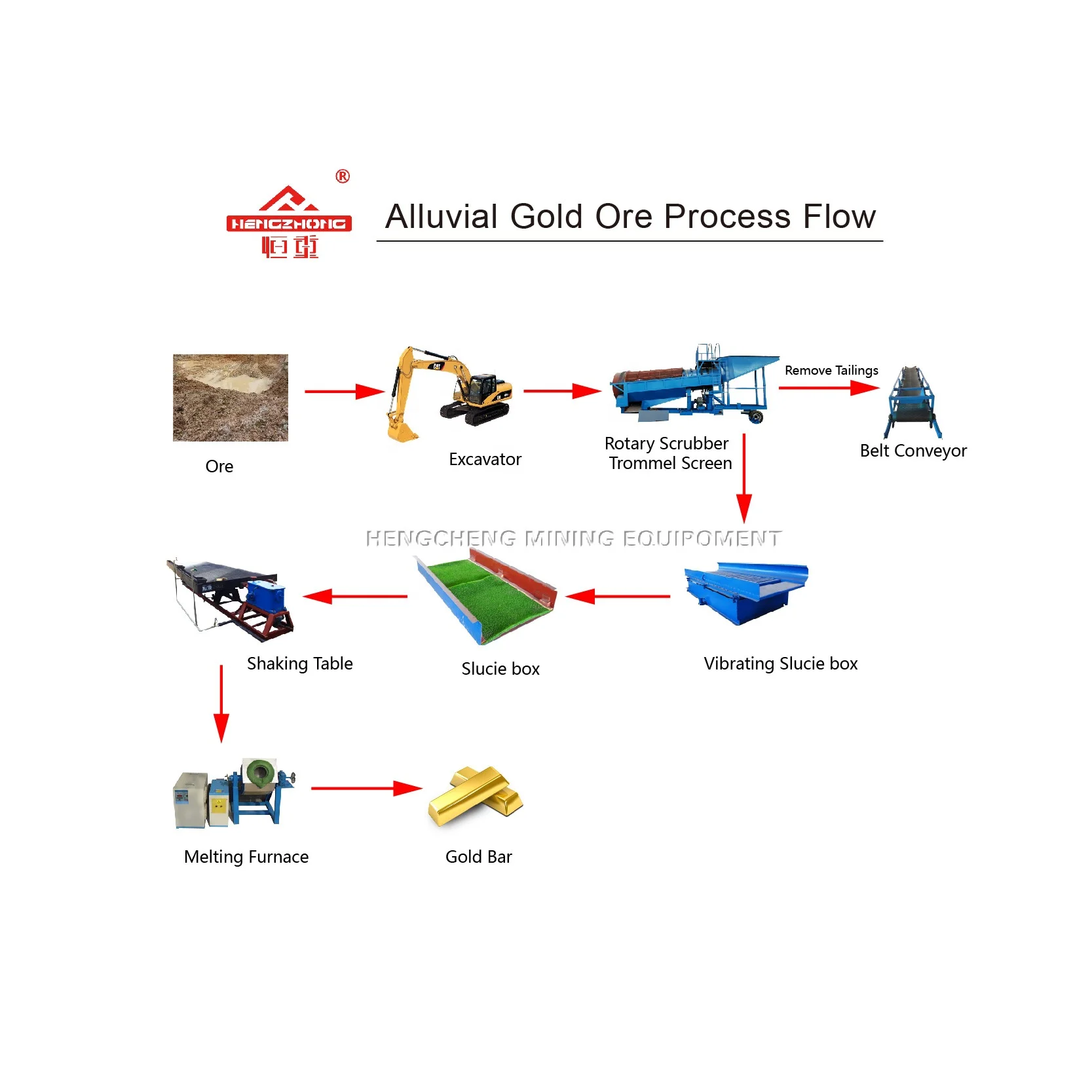

How to process alluvial gold?
Firstly, wash and screen out the large gravels or stones by trommel screen wash plant or rotary scrubber. The trommel screen is usually applied for low clay content gold ore, while the rotary scrubber is always applied for high clay content gold ore.
Secondly, separate the heavy minerals from fine sands by vibrating sluice , jig machine or gold concentrator.
At last, upgrade the gold concentrates by shaking table.
Secondly, separate the heavy minerals from fine sands by vibrating sluice , jig machine or gold concentrator.
At last, upgrade the gold concentrates by shaking table.
Trommel screen
Vibrating sluice
shaking table
Product Overview
PRODUCT SPECIFICATIONS
50-100 TPH GOLD WASHING PLANT | ||||||
Item | Model | Quantity | Power | |||
50TPH | GT1020 | 1 | 5.5 | |||
FGS-12 | 2 | 0.8+1.1 | ||||
6-S7.6 | 1 | 1.1 | ||||
100TPH | GT1545 | 1 | 15 | |||
FGS-15 | 2 | 0.8+2.2 | ||||
6-S7.6 | 1 | 1.1 | ||||
Successful project
Gold Washing Plant In The Republic of Guinea
Capacity: 50 Tons Per Hour
Related Equipment: Jig Machine
Export Country: The Republic of Guinea
Year Of Built: 2019.8
Application: gold and diamond washing
Related Equipment: Jig Machine
Export Country: The Republic of Guinea
Year Of Built: 2019.8
Application: gold and diamond washing
Gold Washing Plant In Zambia
Capacity: 80 Tons Per Hour
Related Equipment: Centrifugal concentrator, vibrating sluice box, shaking table
Export Country: Zambia
Year Of Built: 2017.4
Application: gold and diamond washing
Related Equipment: Centrifugal concentrator, vibrating sluice box, shaking table
Export Country: Zambia
Year Of Built: 2017.4
Application: gold and diamond washing
Alluvial Gold Washing Plant In Ghana
Capacity: 100 Tons Per Hour
Related Equipment: vibrating sluice box, shaking table
Export Country: Ghana
Year Of Built: 2016.10
Application: Placer gold washing
Related Equipment: vibrating sluice box, shaking table
Export Country: Ghana
Year Of Built: 2016.10
Application: Placer gold washing
PRODUCT CONFIGURATION

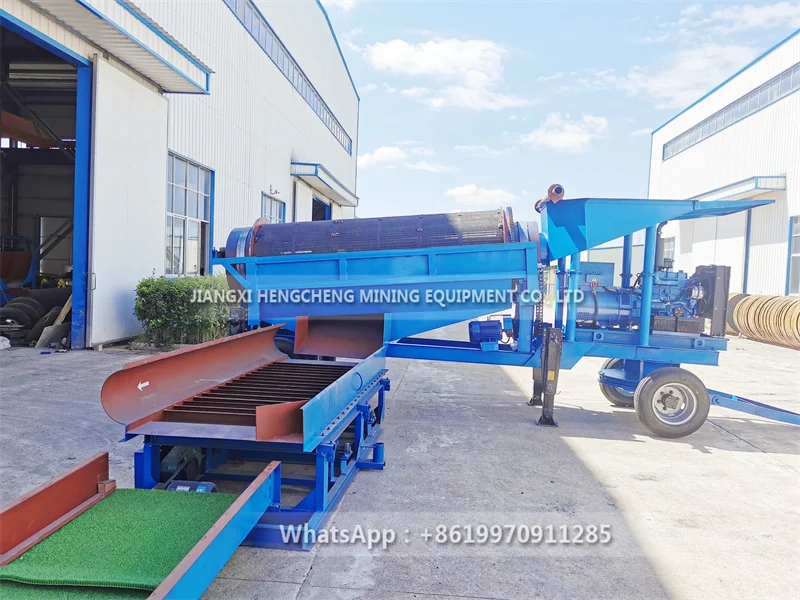

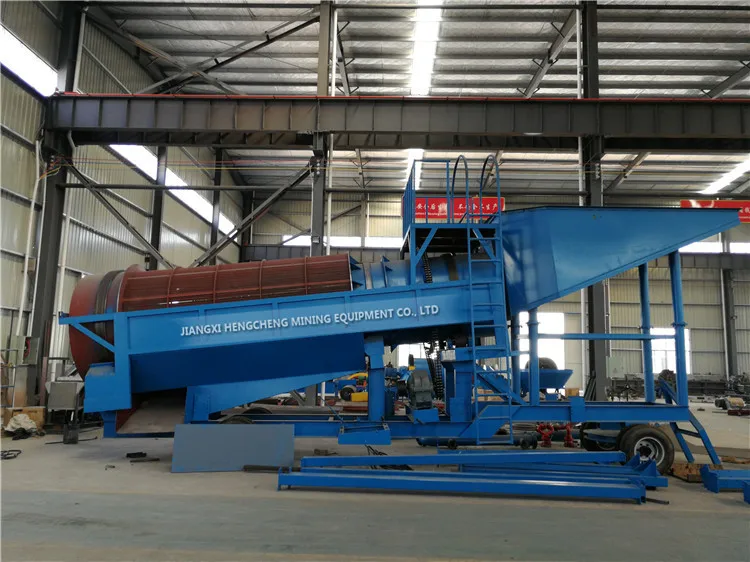

Trommel Screen
Trommel screen is a washing and screening equipment for classification according to the particle size of materials, can remove the
stone, gravel and impurities these non gold materials in advance
stone, gravel and impurities these non gold materials in advance

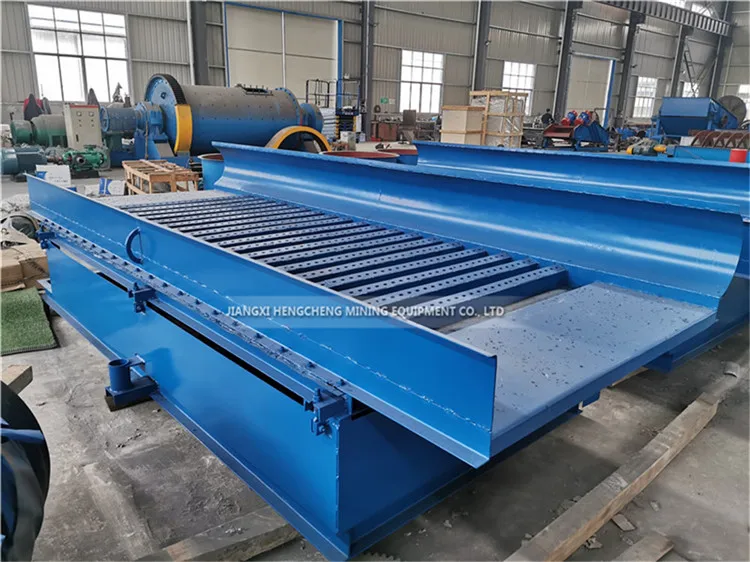

Vibrating sluice
Vibrating sluice perfectly combines the advantages of common gold sluice box and jig machine, but overcomes their disadvantages,
such as easy caking and silting-up on the common gold sluice and large water consumption on the jig machine.
such as easy caking and silting-up on the common gold sluice and large water consumption on the jig machine.

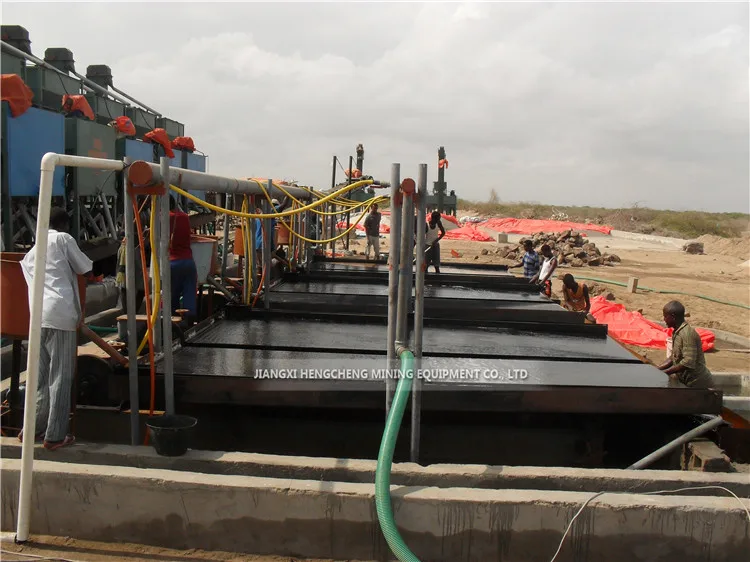

Shaking table
Shaking table uses mechanical shaking and water washing to separate mineral particles according to density. It has high enrichment
ratio and high separation accuracy. The gold can be obtained after one time separation.
ratio and high separation accuracy. The gold can be obtained after one time separation.
SIMILAR PRODUCTS
Company Profile
Jiangxi Hengcheng Mining Equipment Co., Ltd
Jiangxi Hengcheng Mining Equipment Co., Ltd is a well-known manufacturer and supplier of mineral ore mining equipment in Jiangxi Province, China. We have more than 20 years of equipment-producing experience.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment has already been exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippines, Bolivia, USA, Singapore, Mongolia, etc.
Currently, we are good at alluvial/soil gold ore, hard rock gold ore, manganese ore, chrome ore, tin ore, copper ore,
tantalum-niobium(coltan) ore processing, etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
Our factory owns an area of more than 30000m², self-contained with modernized processing machines. Our equipment has already been exported to more than 23 countries, like South Africa, Togo, Sudan, Zimbabwe, Tanzania, Kenya, Mali, Vietnam, Indonesia, Philippines, Bolivia, USA, Singapore, Mongolia, etc.
Currently, we are good at alluvial/soil gold ore, hard rock gold ore, manganese ore, chrome ore, tin ore, copper ore,
tantalum-niobium(coltan) ore processing, etc. Therefore, we have gained lots of knowledge of mining technology and project running experiences.
Exhibitions
Our company had attended international exhibitions two times in South Africa and Kenya. Both of them are for the mining industry. During the two exhibitions, we obtained a large number of customers and orders. At the same time, through such close communication with customers, we had a clearer understanding of customers' needs, and we also achieved significant improvement in production.
Contact US
All of our equipment can be customized according to your requirements. If you are interested in our products, please
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
don't hesitate to contact us. You can tell me the following questions so that we can send you an accurate quotation
soon, including extra discounts!
1. Which machine do you need like gold washing machine, spiral chute, vibrating screen, jig separator, Shaking table, stone crusher, jaw crusher, impact crusher, etc.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
2. What is your raw material plan to process like gold ore, diamond ore, copper ore or iron ore, etc.
3. The capacity you need is Like 100 tons per hour or 2000 tons per day.
4. Your contact information both email and phone number are essential, we can contact you easier.
Welcome to visit the website to know more mining equipment,, For More+
Send your inquiry details below, Click "Send" Now!
Send your inquiry details below, Click "Send" Now!
