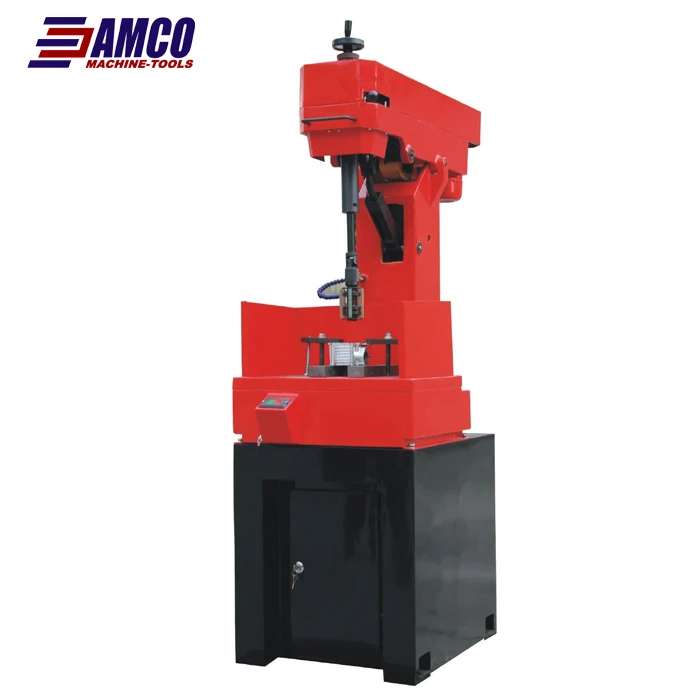

Cylinder Honing Machine 3MB9808



3MB9808 is mainly used for honing engine cylinder  40-80 - mm diameter of automobiles, motor cycles , cars and tractors , and also for making other machine tools. It has compact frame, small volume , can operate easily , have manual operator and motor operator. When the main spindle moving up and down, precision of switch direction less than 0.4mm . Good rigidity and amount of cutting.honing head has two levels of feed speed, high precision of the machine is suitable for small cylinder repair.



Model	3MB9817	3MB9808
Max. diameter of hole honed	25-170 mm	25-82mm
Max depth of hole honed	320 mm	200mm
Spindle speed	120, 160, 225, 290 rpm	200; 280rpm
Stroke	35, 44, 65 s/min	19;27 s/min
Power of main motor	1.5 kw	0.55kw
Power of cooling pump motor	0.125 kw	0.09kw
Machine working inside cavity dimensions	1400x870 mm	600x380mm
Overall dimensions mm	1640x1670x1920	600x850x195
Machine weight	1000 kg	500kg
