Колеса дизельный 9 кубических метров поворотный Бетономешалка с насосом от китайской

Колеса дизельный 9 кубических метров поворотный Бетономешалка с насосом от китайской

Категории: >>>
Поставщик: Acntruck,Automobile,Sales,(Shanghai),Co.,Ltd.

Цена:40 500,00 $ - 41 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Exhibition

ABOVE You can just click what you are interested.

Willow Shen
If you need any informaition, welcome to contact me.
Please leave a message at the bottom of the details page.

Products Description

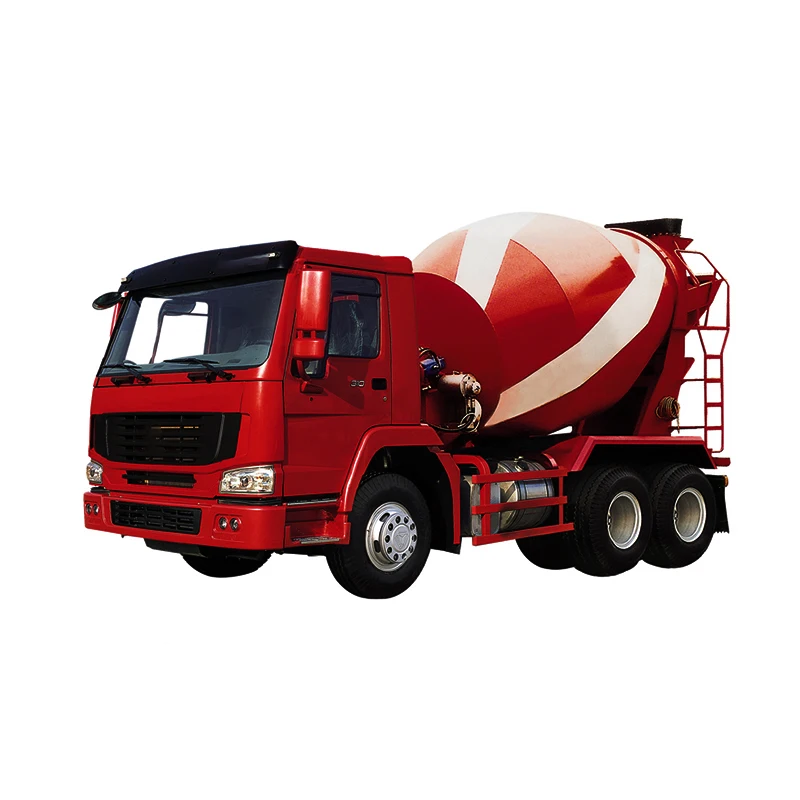

8 CBM China SHACMAN concrete mixer truck

China truck mixer SY306C-6 with 6 cubic meter mixing capacity is equipped with ultra-high strength integrated auxiliary frame, ensuring its stability and high strength. The 6 cubic meter truck mixer can adapt to varied harsh conditions and improves its service life.

Overall Parameters	Items	306C-6
		Gross Weight	kg	6500
		Full Load Weight	kg	11300
		Dimension(LWH)	mm	695023003200
		Wheel Base	mm	3600
		Min. Ground Clearance	mm	194
		Min. Turning Diameters	mm	14
		Fuel Consumption	L/100km	16.5
		Bore*Stroke	mm	ψ107×124
		Displacement	L	4.5
		Rated Power/Rev Speed	KW/rpm	103/2500
		Max. Torque/Rev Speed	N.m/rpm	450/1400
		Emission Standard		State Ⅲ

Drum	Geometric Capacity	m3	7.12
		Mixing Capacity	m3	2
		Drum Obliquity	°	15
		Feeding Speed	m3/min	≥1.5
		Discharge Speed	m3/min	≥1
		Discharge Residual Rate	%	0.95%
		Slump Scope	mm	50-210
		Water Tank Capacity	L	200
		Oil Pump		A4VTG090HW100/33MR

Chassis	Engine		ISDe140 30 103kw
		Gear Box		6DS50T
		Front Axle		2.7T
		Middle, Rare Alex		6.8T
		Cab		HW2MW
		Tyre		8.25R16 16PR
		Brake	mm	Frontψ320100, Frontψ320130
		Air Cylinder	L	2*40
		Fuel Tank	L	100
