Высококачественная Бетономешалка 10 куб. М транзитная


Поделиться:

Цена:18 000,00 $ - 18 500,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

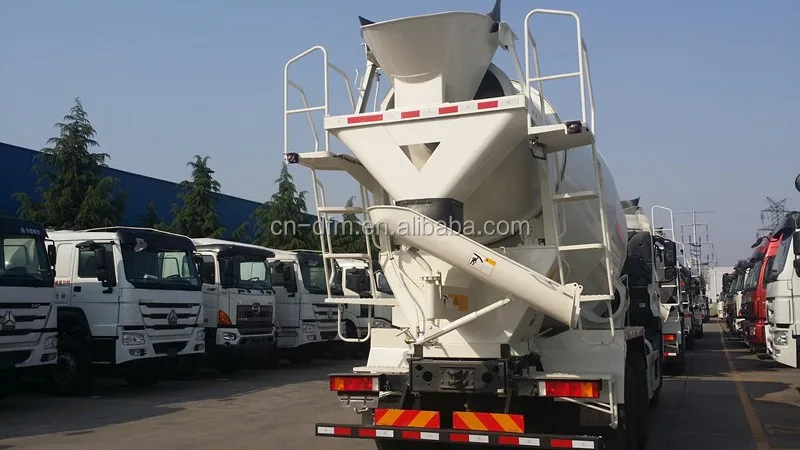

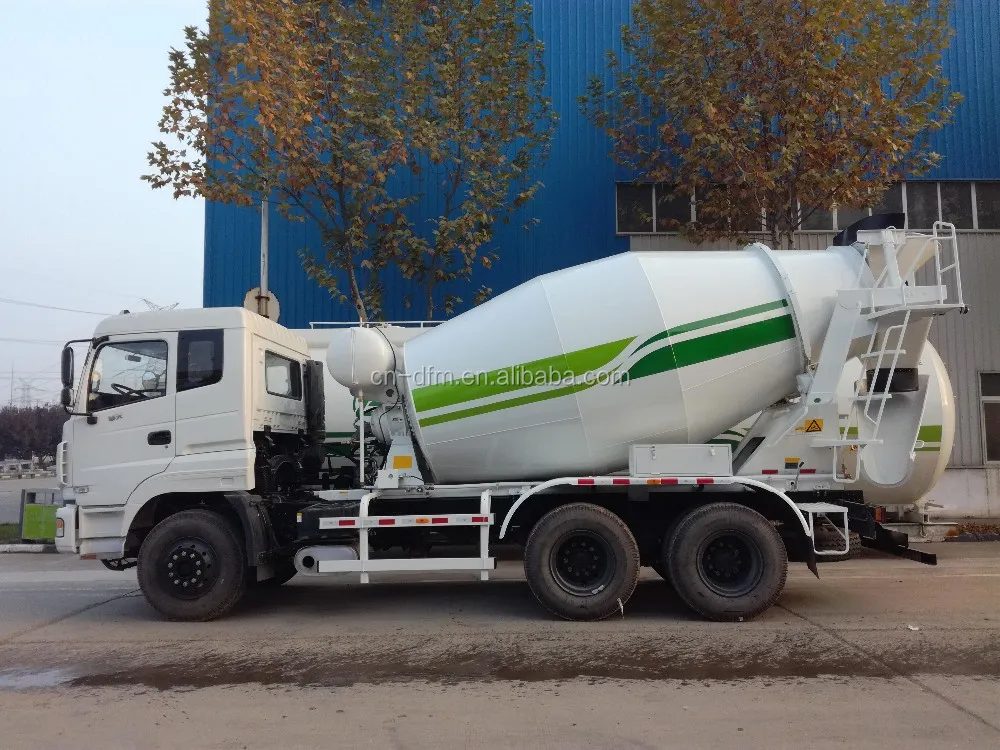

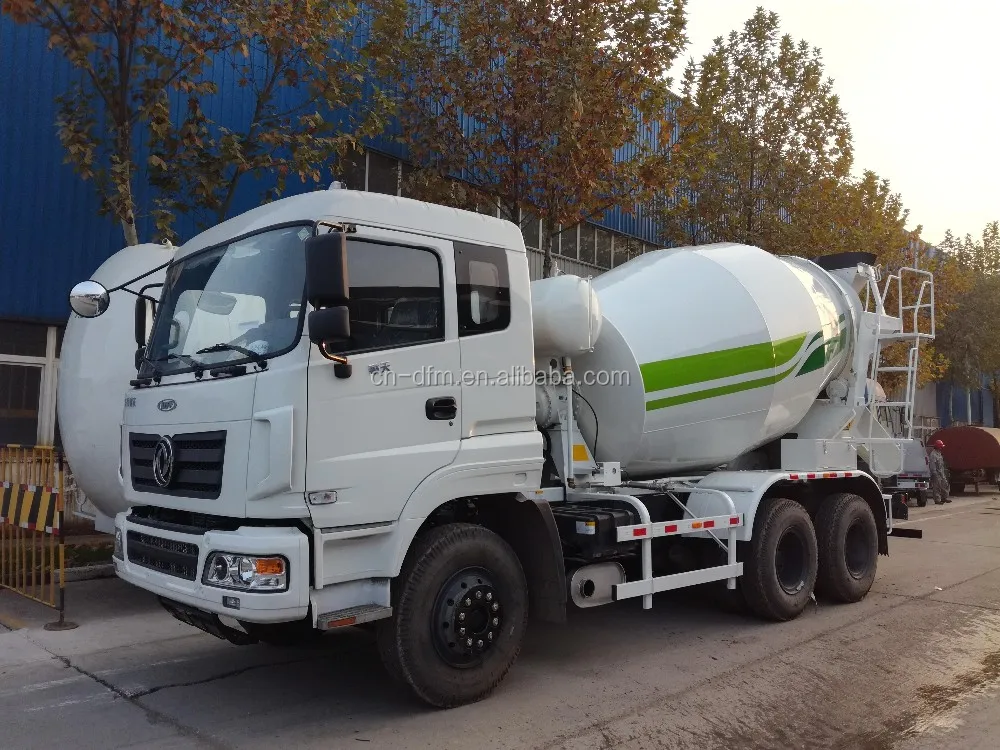

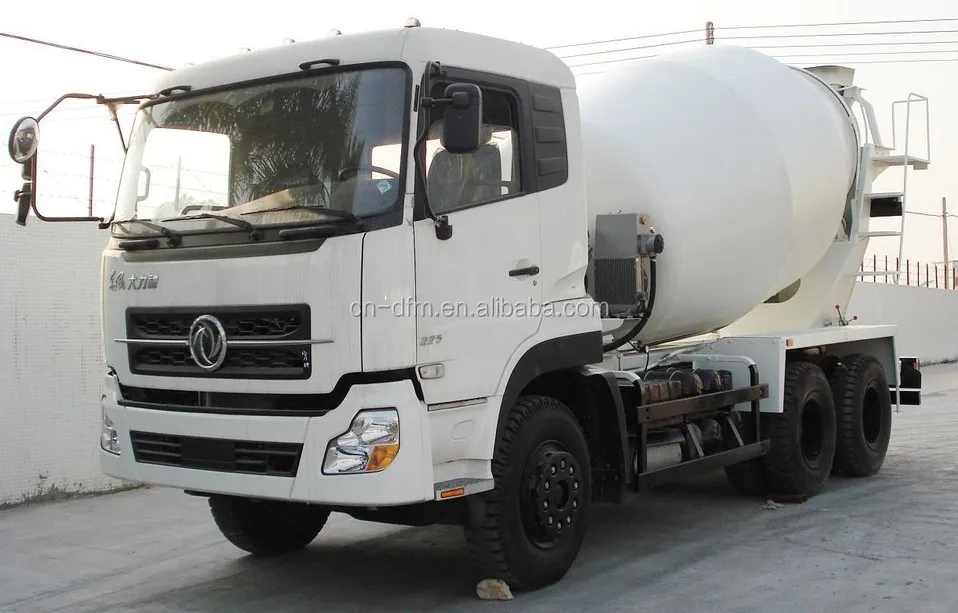

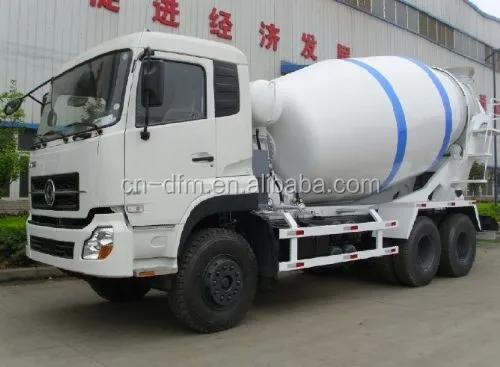

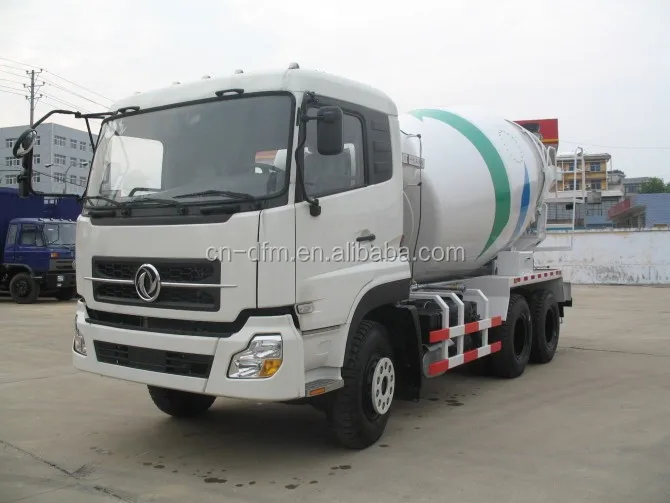

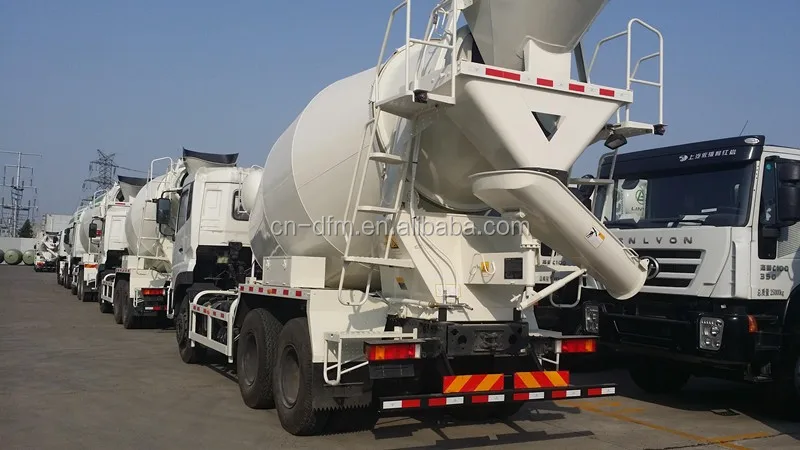

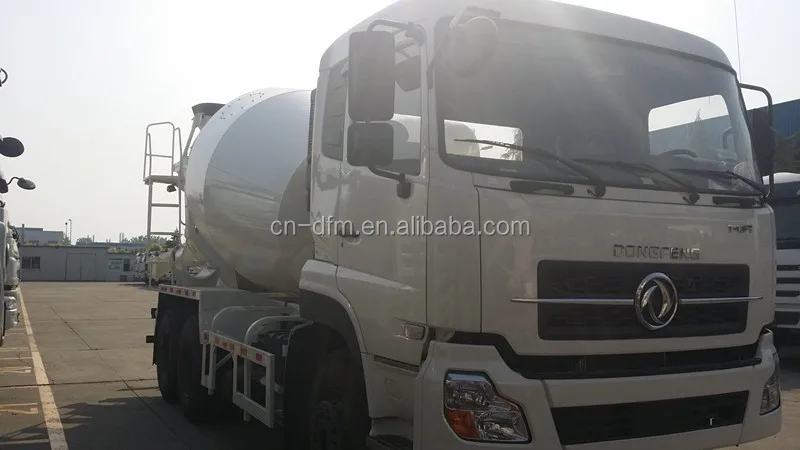

hIgh-qualty Dongfeng 10cbm Concrete mixer truck,transit mixer,concrete pump mixer truck











About Us:





 Dongfeng Mid-South Enterprise., Ltd, the subsidiary company of Dongfeng group. As one of the three major automobile manufacturing group in China, the group’s sales volume is USD57 billion in 2011 and ranked No143th among world’s top 500 enterprises. The sale of Dongfeng commercial vehicle ranked globally top by the reports of OICA and VDA and ranked No. 2 all over the world.





1.Truck: Dump truck, Cargo truck, Tractor truck, Military truck with varies specification, can satisfy many kinds of your need.
2.Special commercial vehicles: Concret mixer, Garbage truck, Sweeper truck, Water tanker truck, Sewage suction truck, Ambulance, Refrigerated truck, Fire truck, Crane truck and so on. Say any kind of you request.
3.Passenger vehicle: Bus, Coach, Pickup, SUV, MPV, sedan car and so on
4. Construction machinery: Concret mixer, Concrete delivery equipment, Road roller, Wheel loader, Excavator, Forklift, etc.
5. Auto parts: tyres, engine, lubricant etc.





Specification:































































































































Drive mode6×4
EngineModelL340 30
Type   6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm)250/2200
Max. torque(N.m/rpm)1350/1400
Displacement(ml)8900
Type of fuelDiesel
Compression ratio(16.6±0.5):1
CabD310-S1single berth
GearboxModel9JS150T-B
Max.torque(N.m)1500
ClutchΦ430mmdiaphragm spring clutch
Frame                            Height×Width× Thickness(mm)300×90×(8+6)
Frame width 940 (front ), Frame width 810 ( rear )
TyreSize11.00-20
Air conditionerA/C
DimensionsOverall dimension (mm)8840×2500×3930
Wheel base (mm)3650+1350
Front/Rear tread(mm)1986/1860
Appr./Depa. angel (°)30/18
Min. ground cleanrance(mm)250
MassPayload(Kg)11870
Curb weight(Kg)13000
G.V.W(Kg)25000
PerformanceMax. speed(Km/h)80
Max. gradeability(%)40
Min. turning diameter(m)23
Fuel consumption(L/100Km)36




2011122042116121


22549645


QQ20131011165733


20150428_162626_


20150428_162659_


20150428_162710_


IMG_20161108_164706


IMG_20161108_164726












Packaging & Shipping


Packing and Shipping.png





Our Services


01. Vehicle Production Base


We have several different factory to produce the different type truck, and the biggest vehicle test base to guarantee each truck with good performance when delivery.


02.  Completed Spare Parts Center


Set up the completed spare parts center to satisfy the clients and guarantee spare parts supply and delivery.


03.  Perfect After Sales Service





Company Information


1.Introduction





Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd was founded in China in 2003, Dongfeng Group, specializes in vehicles and machinery export business critical enterprise. Our main business covers Dongfeng commercial vehicle, passenger car products, automobile equipment and auto parts export. Our products are exported to Southeast Asia, Middle East, South America, Eastern Europe and many other countries.





We export commercial vehicles cover all series of Dongfeng Brand.





1. Tipper Truck  Series:
                                   6×4, 8×4 ---Heavy duty tipper Dongfeng T-Lift with loading capacity 20 to  55Ton


                                     6×4, 4×2--- Medium duty tipper Donfeng  Kingrun with loading capacity 15 to 20Ton
                                   4×2--- Light duty tipper truck Dongfeng Rituo with loading capacity from 3Ton to  14Ton


2. Tractor Truck  Series:


                                 4×2, 6×4 Dongfeng Kinland Tractor Head Special suit for middle  and long distance transport.





3. Cargo Truck  Series:


                                6×4, 8×4 ---Heavy duty cargo truck with 30-40 tons  capacity


                                6x4,  4x2 --- Medium duty cargo truck with 15-20 tons capacity


                                 4x2         ---  1-10 tons, mini truck with 0.5-1 tons  capacity


4. Special Purpose Vehicle  Series:


                                Concrete Mixer Trucks, Suction Sewage Trucks, Sweeper  Trucks, Fuel Tanker, Water Tanker, Bitumen  Truck, Refrigerated Trucks, High Platform Truck, Garbage Trucks, Fire  Fighting Trucks, Truck Crane and So on


5. Passenger  Vehicle:


                                Bus ---Coach Bus, Travel bus, City Bus, School  Bus


                                SUV,  MPV --- from 5 seats to 7 seats


                                Mini  Van --- from 2 seats to 11 setas


                                Pickup  car --- Gasoline and Diesel, 4x2 and 4x4


2.Feature





l The cab: Dongfeng tractor adopt luxurious cab with the comfortable shock-free driving seat, the electric controlled glass and the central lock device, this guarantee the driving comfortability; At the same time, the knee shield guard improve the security of the driver and the passengers. This cab also bring down the drag coefficient to reduce the fuel consumption.





l The engine: The tractors used Cummins engine which provide excellent gradeability, strong horsepower and bring down the oil consumption, reduce the operating cost for client.





l The chassis: The Dongfeng chassis make the tractors have big ground clearance and excellent trafficability and adaptability to various vile roads.





l The gearbox: The Fast Brand gearbox adopt serration processing technology to lower the noise and vibration and increase the reliability.
