frisbee clip mousepads pens rulers Pad Printing Machine for Safety Helmet Hard
- Категории: Pad Printers >>>
- Поставщик: Dongguan,Hoystar,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
plastic panel toy block lighter and insole logo pad printer machine 4 color
Function introduction
1. PLC program, kinds of printing model option
2. Auto 4-digit counter built-in, and stat. Printing quantity
3. Locating by servo, it is no necessary to use mechanical to adjust
4. Adopting Japanese THK linear guide and ball screw to construct linearity terrace
5. Every printing head lift up or fall separately, it isn' t limited with outside dimension of products
6. Airframe adopts coin alloy, and metal coating surface
7. Worktable, printing head and ink tray can be adjusted X. Y. Z direction
8. Sucking ink and the pressure of printing pad can be adjusted independently
9. Scrapper stroke can be adjusted
10. It has function of leveling ink by sliding automatically on front /back, this can avoid printing ink partial solidification
11. The speed of all the cylinders have an independent regulator intortum
12. Adopts original Japan SMC and Taiwan Airtic pneumatic component
13. Each adjustable location has scale logo
14. It has the function of forbidding the pad fallen when no air pressure enter into
15. The machine is running fast, it is steady and low voice.
1. PLC program, kinds of printing model option
2. Auto 4-digit counter built-in, and stat. Printing quantity
3. Locating by servo, it is no necessary to use mechanical to adjust
4. Adopting Japanese THK linear guide and ball screw to construct linearity terrace
5. Every printing head lift up or fall separately, it isn' t limited with outside dimension of products
6. Airframe adopts coin alloy, and metal coating surface
7. Worktable, printing head and ink tray can be adjusted X. Y. Z direction
8. Sucking ink and the pressure of printing pad can be adjusted independently
9. Scrapper stroke can be adjusted
10. It has function of leveling ink by sliding automatically on front /back, this can avoid printing ink partial solidification
11. The speed of all the cylinders have an independent regulator intortum
12. Adopts original Japan SMC and Taiwan Airtic pneumatic component
13. Each adjustable location has scale logo
14. It has the function of forbidding the pad fallen when no air pressure enter into
15. The machine is running fast, it is steady and low voice.
Technical Parameter
Steel plate size | 100*250mm |
Closed ink cup diameter | 90mm |
Maximum printing area | diameter 90mm |
Air pressure | 5-7 Bar |
Voltage | 220V or 110V single phase |
Dimension | 1140*900*1650mm |
Weight | 150kg |
Details Images

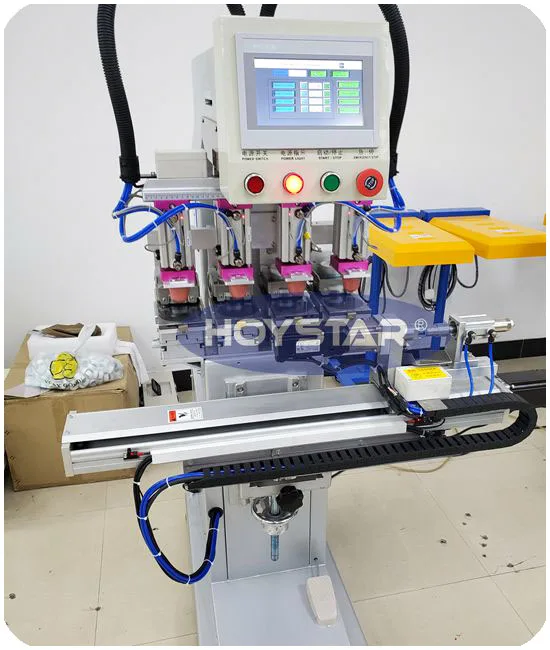

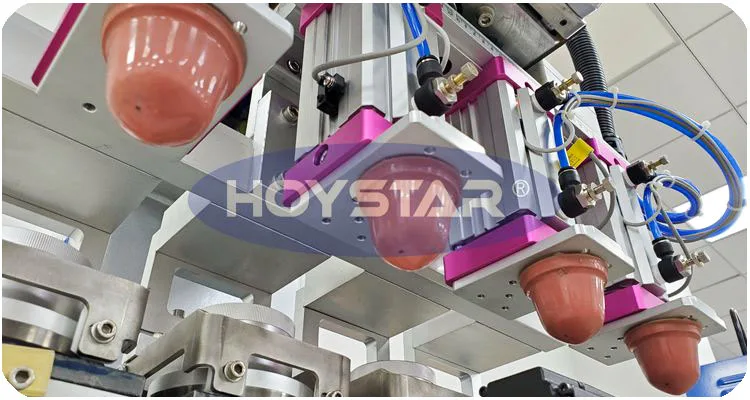

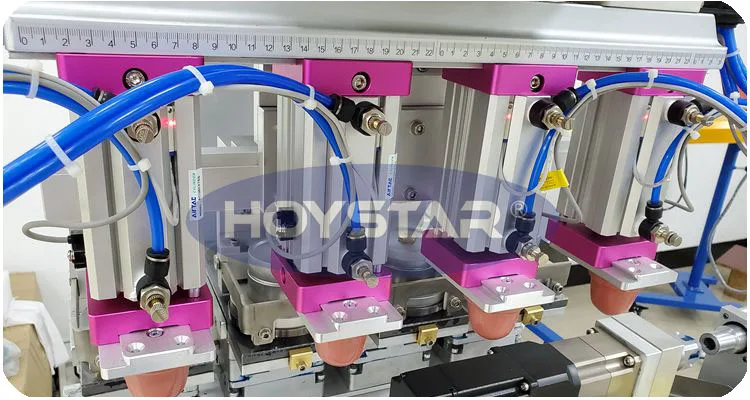

Independently printing head,
driving and printing separately control by pneumatic air cylinders

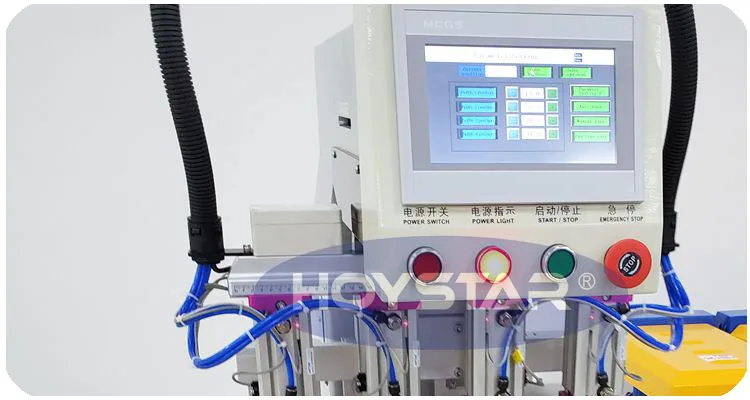

Adopt PLC program and Touch Screen Control Panel

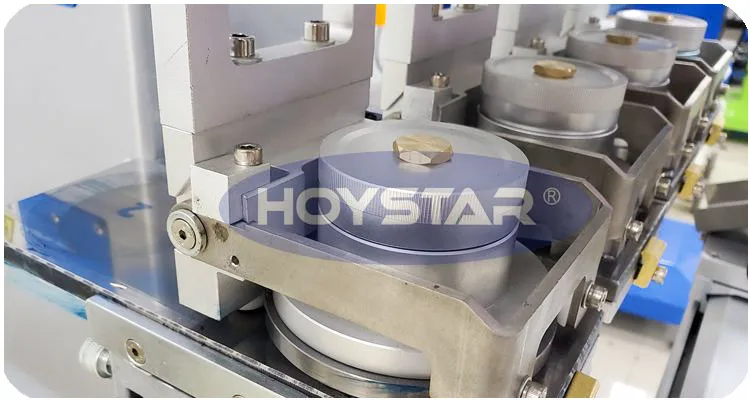

Closed ink cup system
with advantages save ink cost and environmental
Features
1. Action model option Fully automatic semi-automatic manual self-programming
2. (You can choose to print 1, 2, 3, 4 color Arbitrary rotating to print
3. Working style Arbitrary positioning for 1-4 workstation
4. Start-up method Panel foot switches
5. Fixing method of shuttle and rotary table Pulse positioning
6. Driving method of shuttle and rotary table Servo motor
7. Scraper working style Electronic switch
8. Scraper pressure controller By pressure regulating Valve
2. (You can choose to print 1, 2, 3, 4 color Arbitrary rotating to print
3. Working style Arbitrary positioning for 1-4 workstation
4. Start-up method Panel foot switches
5. Fixing method of shuttle and rotary table Pulse positioning
6. Driving method of shuttle and rotary table Servo motor
7. Scraper working style Electronic switch
8. Scraper pressure controller By pressure regulating Valve
Silicone Pad, adjustable front/back

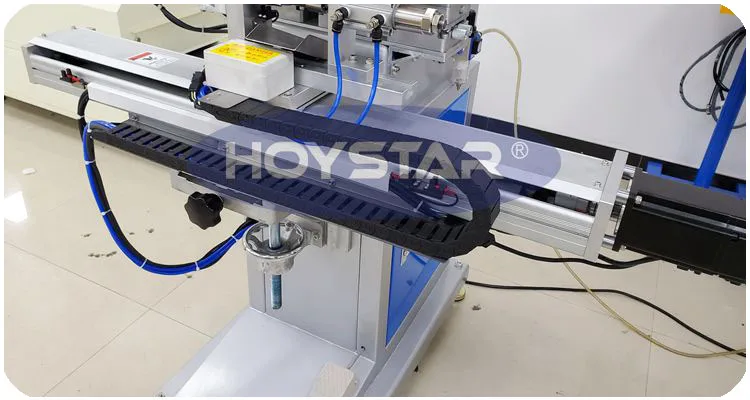

Shuttle worktable running/driving by servo motor and guide rail
Printed sample show

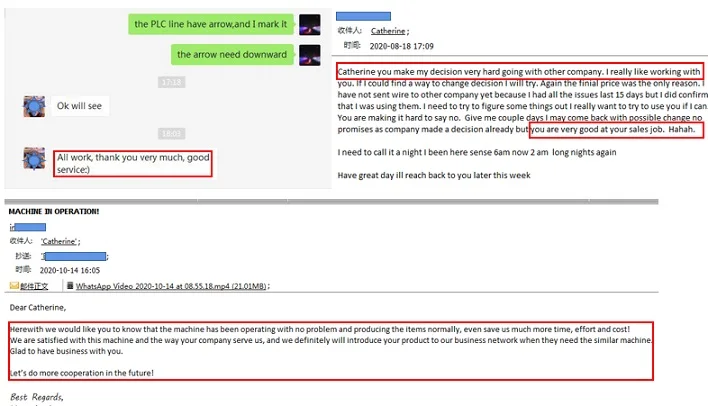

Customer Feedback
Our Company

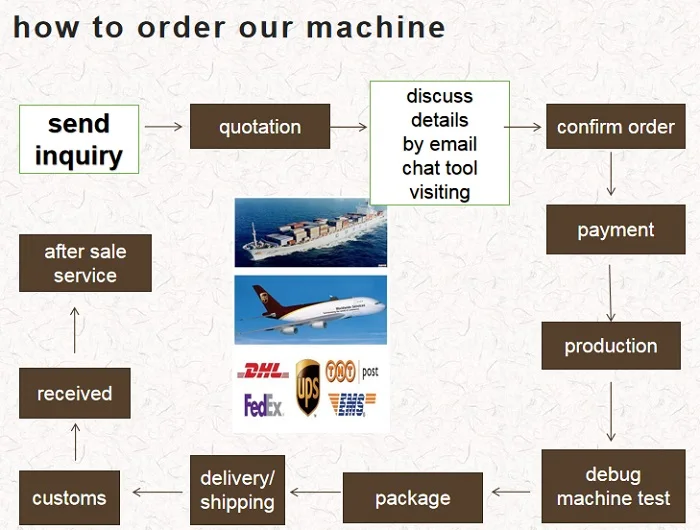

Order Process
