product information
Applications:
Suitable for metal, glass, ceramic, plastic, wood, leather, and other materials in the printing area is relatively small flat or curved and irregular surfaces precision printing. Such as cell phone buttons, golf balls, toys, pens, mice, electronic products, handicrafts, heels, and so on.

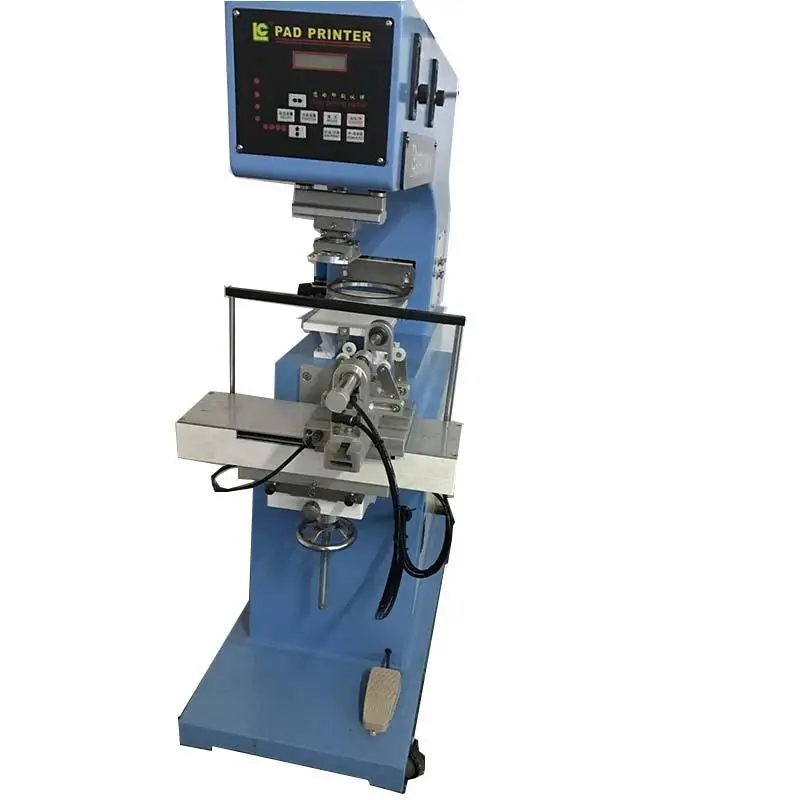

Rotatory pad printing machine
for cylindrical object
Advantages:
This model is based on the roller device on the printing machine and is suitable for printing cylindrical products such as bowling balls, golf balls, and table tennis balls.
The operation is simple, easy to maintain and repair, and the price is cheaper for most users. If the printable area of the product is large, upgrade the accessories.
1. Microcomputer control, convenient, accurate, and reliable operation.
2. Composed of four counters.
3. The body adopts a high-quality steel frame structure, the surface is resistant to high-temperature paint, the body is light and strong, beautiful and practical.
4. Assembling and disassembling the ink roller, easy to clean.
5. The up and down stroke and speed of the rubber head can be adjusted independently.
6. The scraper is automatically balanced, and the oil scraping is neat.
7. Each ink plate block can be independently tuned for X, Y, and angles, with accurate colors and improved efficiency.
8. Two inks can be glued to obtain larger inks.
9. Do not drop any empty lines before and after gluing to prevent pauses when the ink dries.
10. The pneumatic components adopt German FESTO pneumatic components, and the movement speed can be adjusted independently.
2. Composed of four counters.
3. The body adopts a high-quality steel frame structure, the surface is resistant to high-temperature paint, the body is light and strong, beautiful and practical.
4. Assembling and disassembling the ink roller, easy to clean.
5. The up and down stroke and speed of the rubber head can be adjusted independently.
6. The scraper is automatically balanced, and the oil scraping is neat.
7. Each ink plate block can be independently tuned for X, Y, and angles, with accurate colors and improved efficiency.
8. Two inks can be glued to obtain larger inks.
9. Do not drop any empty lines before and after gluing to prevent pauses when the ink dries.
10. The pneumatic components adopt German FESTO pneumatic components, and the movement speed can be adjusted independently.
Model No. | PM1-150GT |
Printing color | 1 |
Cylinder head up and down stroke | 75mm |
Glide around the cylinder stroke | 175mm |
Standard plate area | 150*300mm |
Maximum full circle diameter | 35mm |
The fastest speed | 800 Pcs/Hr |
Voltage | 110V/220V |
Power | 35W |
Pressure | 6 Bar |
Air consumption | 72L/Min |
Dimension | 860*460*1400mm |
Weight | 100kg |
Packing size | 116*68*153cm |
Package Weight | 193kg |
Controlled by microprocessor.
The oil cup is used to hold the ink. Its advantage is that the ink is not easy to volatilize, which achieves energy saving, environmental protection and harmless to the human body.
The steel sheet is also an important part of the oil cup machine. It is used to engrave the logo you need to print.
Jigs and inks are also important consumables of the oil cup machine. We will customize the jigs according to your products. The inks are ordinary solvent-based inks.
Printed products
Pad printer is suitable for printing small objects with irregular shapes.
