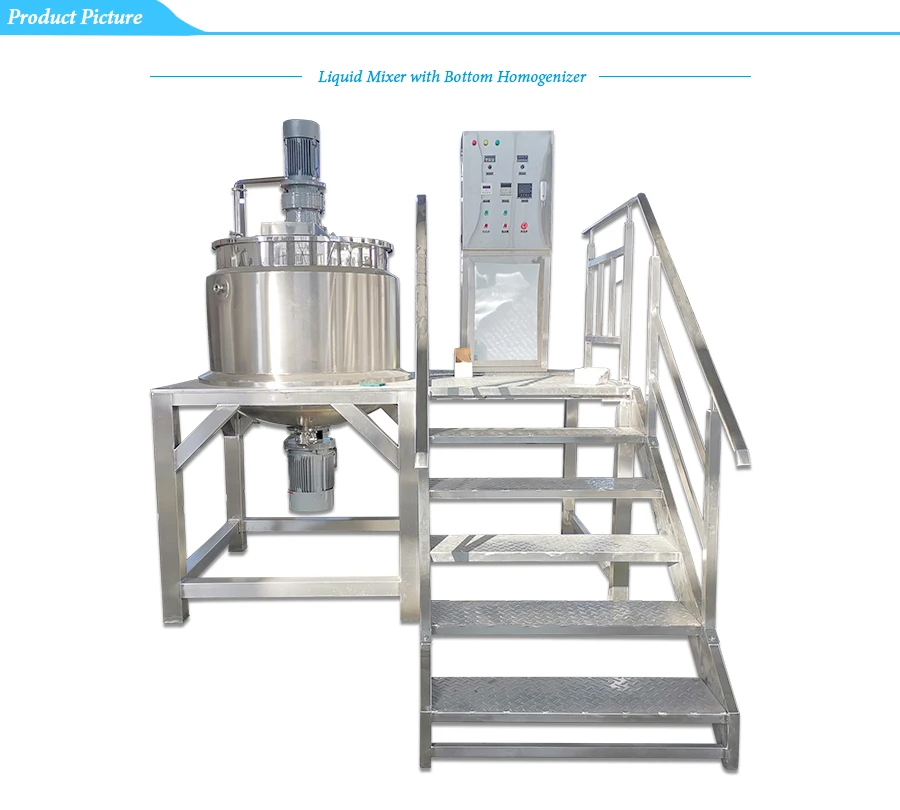

Шоколадная жидкость продукты соус GMP Стандартный
- Категории: Mixing Equipment >>>
- Поставщик: Guangzhou,Aerospace,Automation,&,Technology,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

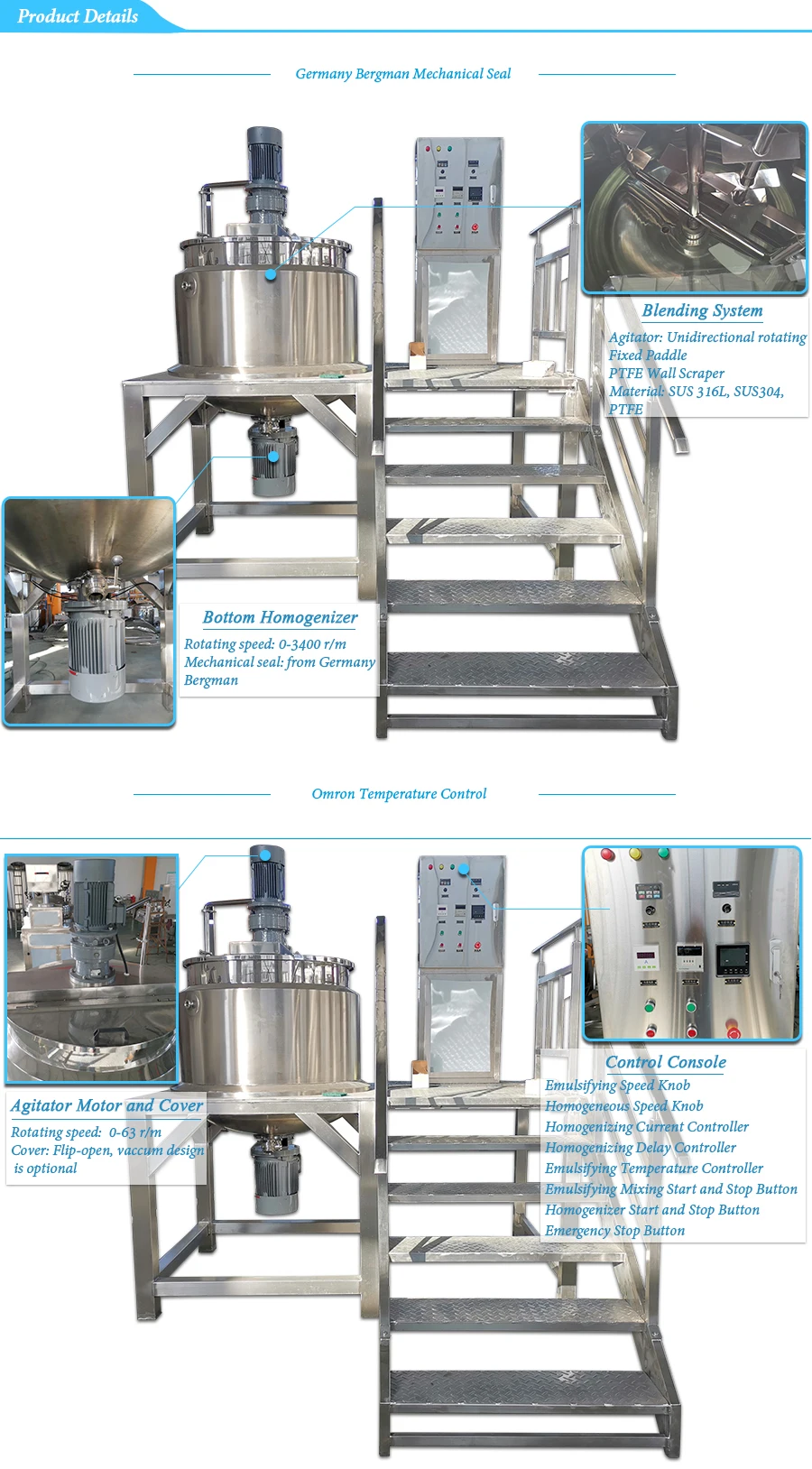

1. The blending system adopts single-direction or double direction s craping blending and frequency conversion speed adjustment,so as to satisfy product of different technological requirements
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.

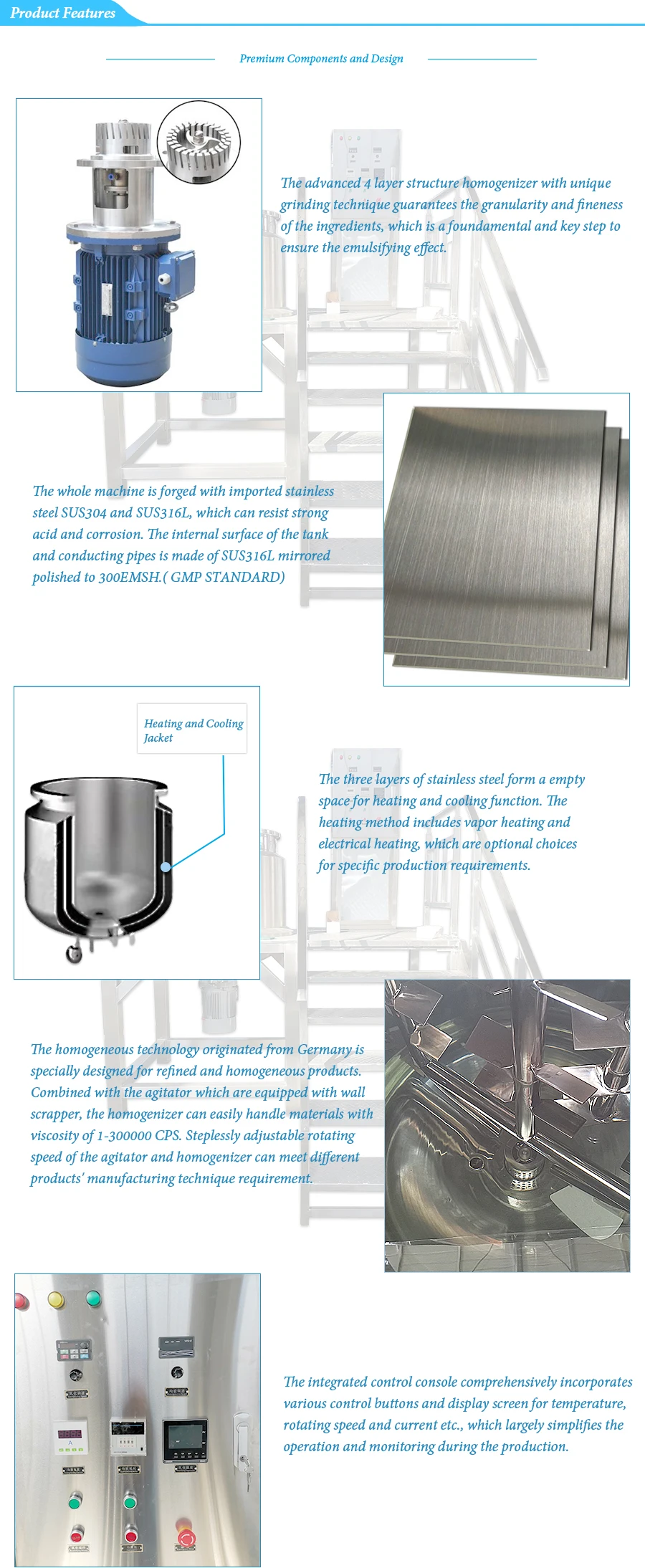

4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speedup dissolution and emulsification of materials.
6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such
temperature and blending rotation speed etc.
2. According to technological requirements, the materials can be heated or cooled. The heating method can be chosen steam or electric heating according to customer.
3. Various forms of blending vanes are suitable for production of different types of products.
4. Made of imported SUS304 or SUS306L stainless steel. The tank body and pipe are carried out mirror polishing.
5. Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speedup dissolution and emulsification of materials.
6. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such
temperature and blending rotation speed etc.
Model | YHYXG-300 | YHYXG-500 | YHYXG-1000 | YHYXG-2000 | YHYXG-3000 | ||||
Volume of Mixer | 300L | 500L | 1000L | 2000L | 3000L | ||||
Inside Material | SUS316L | SUS316L | SUS316L | SUS316L | SUS316L | ||||
Outside material | SUS304L | SUS304L | SUS304L | SUS304L | SUS304L | ||||
Paddle Material | SUS316L | SUS316L | SUS316L | SUS316L | SUS316L | ||||
Homogenizer speed | 0-3400r/min | 0-3400r/min | 0-3400r/min | 0-3400r/min | 0-3400r/min | ||||
Homogenizer Power | 7.5KW | 11KW | 15KW | 18KW | 20KW | ||||
Blender Speed | 0-63r/min | 0-63r/min | 0-63r/min | 0-63r/min | 0-63r/min | ||||
Blender power | 3KW | 4KW | 5.5KW | 7.5KW | 8.5KW | ||||
Motor | Siemens(Beide)/ABB motor | ||||||||
Voltage | 50-60Hz 380V±10%-15% | ||||||||
Temperature of Mixer | ≤100° | ||||||||
