Маосинь MX3-PP-1200 ABC вниз воды гасит пленки дуя
- Категории: Blown Film Production Line >>>
- Поставщик: Guangdong,Maoxin,Electrical,Machinery,Co.,ltd
Поделиться:
Описание и отзывы
Характеристики

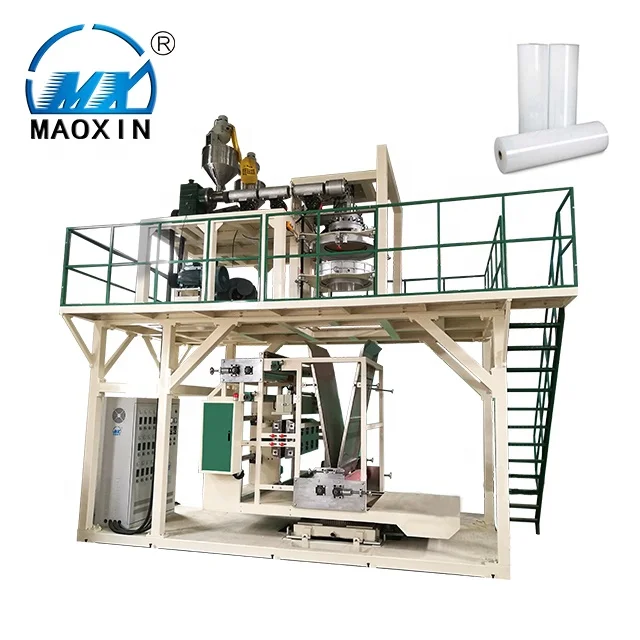

Maoxin ABC Downward Water Quench Film Blowing Machine
Model No. | MX3-PP-1000 | MX3-PP-1200 | MX3-PP-1400 |
Maximum film folded diameter(mm) | 800 | 1000 | 1200 |
Film thickness range | 0.03~0.10mm | 0.03~0.10mm | 0.03~0.10mm |
Applicable material | LDPE | LDPE | LDPE |
Screw (L/D) Ratio | 30:1 | 30:1 | 30:1 |
Screw diameter (mm) | Ф45*3 | Ф55*3 | Ф65*3 |
Main motor(kw) | 11*3 | 18.5*3 | 22*3 |
Designed maximum line speed(m/min) | 60 | 60 | 60 |
Maximum extrusion (kg/h) | 100 | 150 | 200 |
Total power (kw) | 100 | 160 |
Brief Introduction & Features
The ABC downward water quench film blowing machine is used for plastic film blowing, like PP,LDPE,MLLPE. The main motor adopts the servo motor,it can be more energy-saving and environmentally friendly.And die head has high precision to ensures the film thickness error is small.Water ring material is stainless steel,the function of downward blowing and water cooling ensure the excellent transparency of the film.And hot drying device enables the film surface to be dry enough,which is good for the conrona treatment.The extruder has a high output and good plastifying effect.It is widely used for producing the packing bags for foodstuff,clothing and etc.

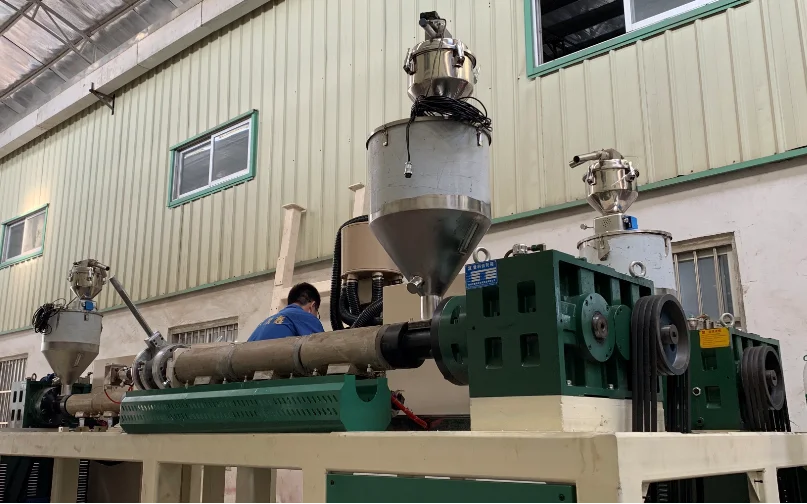

Barrel screw is customized in Zhoushan Screw Manufacturer. The design with functions of sections separation + high barrier + full
mixing.

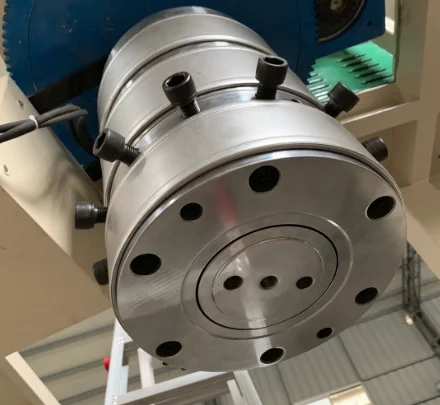

Self - made mandrel spiral flow upward blowing HDPE die head. Four axis CNC machining center by ourselves, high precision ,
interchangeability and ensures the film thickness error is small. The Die head 3 zones are controlled by automatic heating.
Special-making aluminum double vent air ring, high precision, low obstruction and ensure the air flow uniformity and stability,high output but also high transparency and low thickness tolerance.
Main fan power 2.2KW, with frequency speed control to improve its using life.

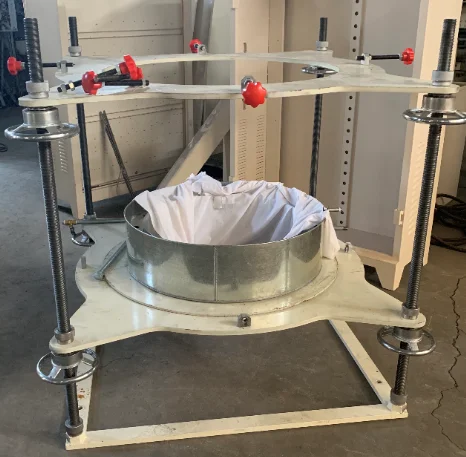

Water ring device
Water ring material：aluminum alloy.\t
with 3 set of water ring in random.
The specification as customer requestion.\t
Main fan power 2.2KW, with frequency speed control to improve its using life.
Water ring device
Water ring material：aluminum alloy.\t
with 3 set of water ring in random.
The specification as customer requestion.\t

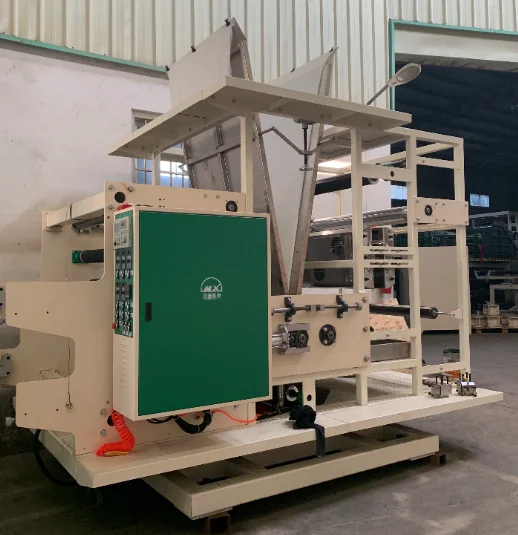

Collapsing plate adopts stainless steel plate, manual adjustment.

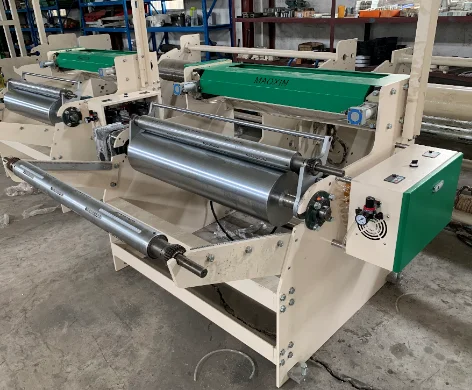

With 2 piece of Mechanical paper core tube rewind shaft.\t
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
ABout our company
Guangdong Maoxin electromechanical Co., Ltd.
Guangdong Maoxin Electrical Machinery Co.,Ltd was set up since 2001 in a tax protected zone of Shantou,China.
Maoxin is a integrated enterprise with independent research, design, manufacturing and marketing. Our product included film blowing machine series, intelligent glove making machine, kinds of bag making production lines, laminated&cast film production and printing machine series ect for soft packaging. The final products are widely used in food packaging, medicine packaging, industrial packaging, agricultural industrial and construction industry ect. We offer professional equipment and service to many countries all over the world and was widely-admired.
Our company adopts the ISO9001 international quality management system, and the products have CE certification. Our superior performance of each one set of MAOXIN machine is contributed by our professional engineer&design team and our technicians with craftsman?spirit.
Maoxin will strengthen a perfect supply chain in the shortly future, to Integrate excellent social resources and cooperate with the enterprise who have the common developmental concept in order to offer the machine with intelligent, high precision, high performance, energy-saving and total production solution to customers in the world in the model of majorization,complementation and innovation.
In the meanwhile, we warmly welcome all customers join in us for a developed and bright future!
Maoxin is a integrated enterprise with independent research, design, manufacturing and marketing. Our product included film blowing machine series, intelligent glove making machine, kinds of bag making production lines, laminated&cast film production and printing machine series ect for soft packaging. The final products are widely used in food packaging, medicine packaging, industrial packaging, agricultural industrial and construction industry ect. We offer professional equipment and service to many countries all over the world and was widely-admired.
Our company adopts the ISO9001 international quality management system, and the products have CE certification. Our superior performance of each one set of MAOXIN machine is contributed by our professional engineer&design team and our technicians with craftsman?spirit.
Maoxin will strengthen a perfect supply chain in the shortly future, to Integrate excellent social resources and cooperate with the enterprise who have the common developmental concept in order to offer the machine with intelligent, high precision, high performance, energy-saving and total production solution to customers in the world in the model of majorization,complementation and innovation.
In the meanwhile, we warmly welcome all customers join in us for a developed and bright future!
Our quality
We have a long history of 20 years. The machinery is manufactured by our own professional masters.We can answer most of your questions, demands, and satisfy your requests.Our factory has passed ISO and CE certification,and committed to producing cost-effective products, you can trust our quality and production speed.
Independent design group
We have a professional design team.If you have special requirements, you can also customize the production according to the samples you provide. We welcome and accept your customization.We have a number of patents, such as "a double-layer co-extrusion device" and so on, you can go to our company overview to view.

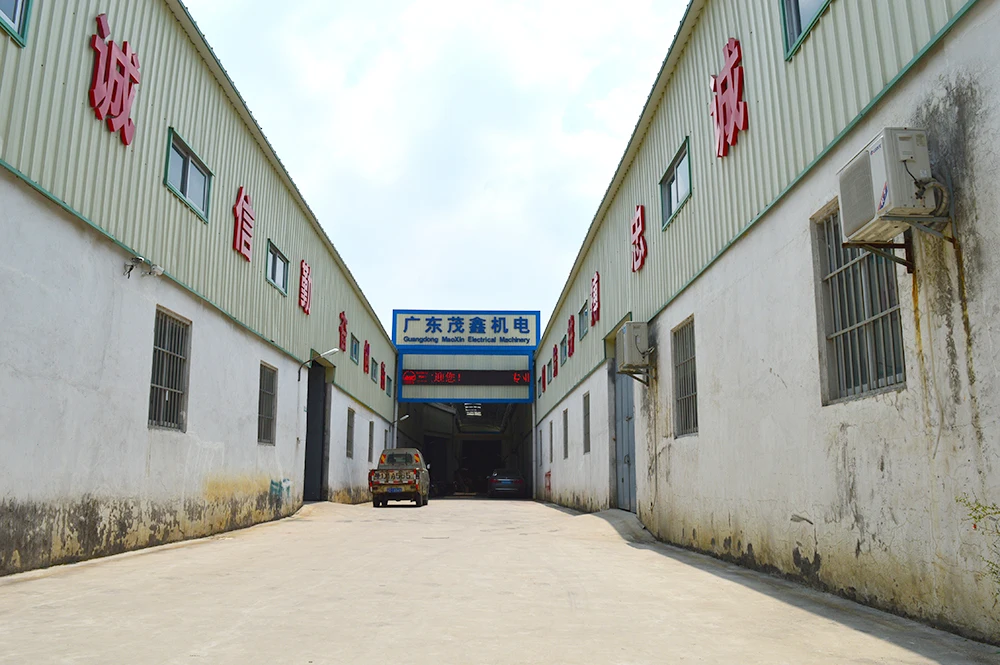

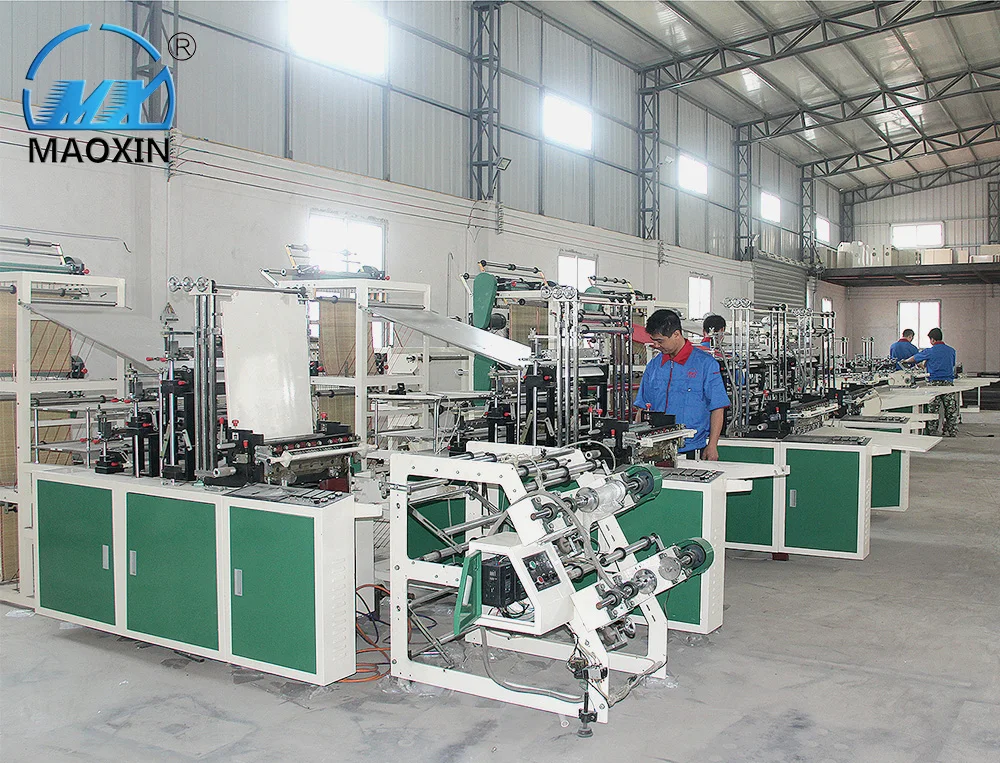

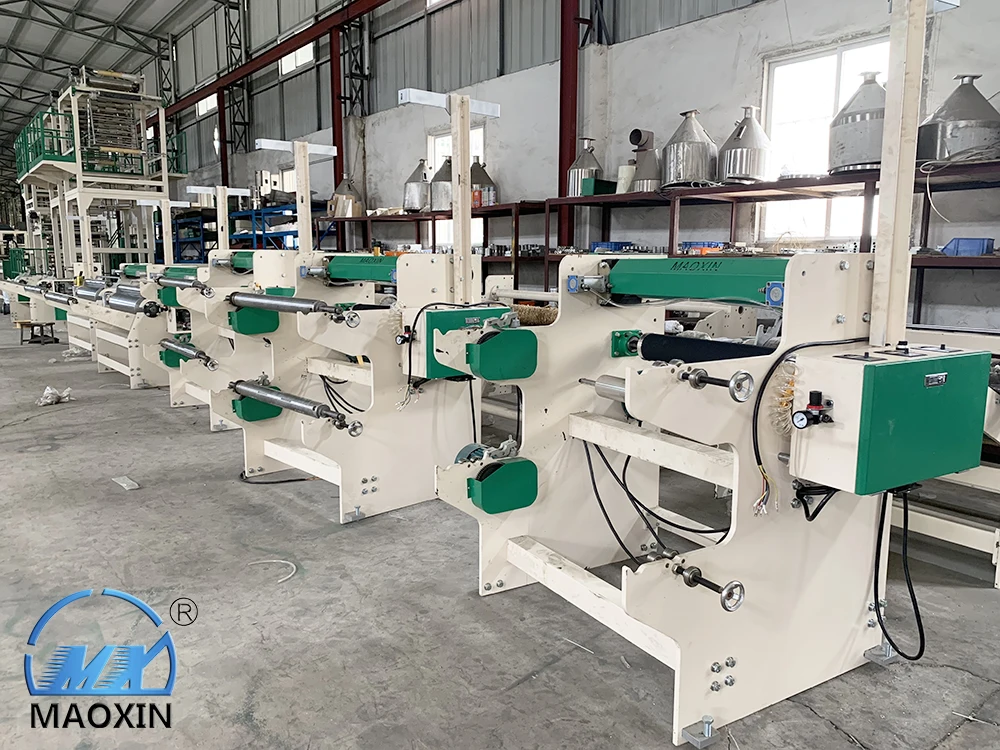

Our factory
Our factory was founded in 2001.Machinery accessories come from our Chinese brand equipment,but the most important parts are made by ourselves to ensure the delivery time and quality and to ensure the after-sale service. We strive to ensure the maximum return on investment for our clients.
Our exhibition
We will participate in foreign exhibitions,in order to have in-depth communication with you,in order to solve your machine operation problems.And we have been to many places to hold exhibitions, such as Vietnam, Myanmar, India, Malaysia.And win good reaction in the market and welcomed by vast customers no matter new or old from home and abroad.
Our Transport Method
*We most of machines are shipped by sea or by truck.
*If for small spare part or sample, we support by DHL or other couriers.
*If you have your own ship in China, or your own freight forwarding, please contact our customer service.
Certifications & Patents
FAQ
Q1: Are you a factory or trading company?
A1: We are not only a factory but also a trading company, we are a self-produced and self-sold enterprise.We are an actual manufacturer with a history of about 20 years in the field of film blowing machine,bag making machine and disposable glove making machine.In 2001, we owned two large-scale production sites in Shantou, Guangdong, China, one is in the Jinyuan Industrial Park and the another one is in the Haojiang tax protected zone.Warmly welcome to visit our company while visiting China.
Q2: What is your hot selling product?
A2: Currently there are 4 series of items, they are film blowing machine series, Disposable glove making machine series, bag making machine series and cast film production line. We will provide the configuration which is the most suitable one for customers according to demand, each machine has its own advantages . Welcome to contact us for more details.
Q3: How about the delivery time?
A3: In General, there are machinery that has been produced in the warehouse and meets your requirements. We will deliver it to you within 3 days. If there is no equipment that meets your requirements, we will upgrade the machinery according to your configuration requirements. Our delivery time will be about 20-30 working days for normal small size machine. But if for big machine or customized configuration requirements, please contact us for more information.
Q4: Do you have a minimum order requirement for machinery?
A4: We accept orders for at least 1 set of machine for each series of equipment. For other accessories, please contact our customer service.
Q5: What payment term do you accept?
A5: For new customer, we support you to pay from the Alibaba International Station platform, which is more secure and guaranteed for new customers. Our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. For big amount, we support L/C at sight with reliable issue bank. If your country does not have these payment methods or you need other payment methods, please contact us.
Q6: What about warranty and do the engineers available to overseas?
A6: Each equipment has One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you(reliable period)or do video teaching .
Q7: What about the after-sales service?
A7: Once you have bought our machine, if there is a problem with the mechanical equipment due to improper operation during use, you can feel free to let us know the machine problems or questions about the machines by mail or cell. We will reply to you within 48 hours and help you to solve the problem. We have Whatsapp, Wechat, Line, Skype, Viber and telephone. (If the warranty period expires, we support to offer spare pare but with charge.) Hope your kindly understanding)
A1: We are not only a factory but also a trading company, we are a self-produced and self-sold enterprise.We are an actual manufacturer with a history of about 20 years in the field of film blowing machine,bag making machine and disposable glove making machine.In 2001, we owned two large-scale production sites in Shantou, Guangdong, China, one is in the Jinyuan Industrial Park and the another one is in the Haojiang tax protected zone.Warmly welcome to visit our company while visiting China.
Q2: What is your hot selling product?
A2: Currently there are 4 series of items, they are film blowing machine series, Disposable glove making machine series, bag making machine series and cast film production line. We will provide the configuration which is the most suitable one for customers according to demand, each machine has its own advantages . Welcome to contact us for more details.
Q3: How about the delivery time?
A3: In General, there are machinery that has been produced in the warehouse and meets your requirements. We will deliver it to you within 3 days. If there is no equipment that meets your requirements, we will upgrade the machinery according to your configuration requirements. Our delivery time will be about 20-30 working days for normal small size machine. But if for big machine or customized configuration requirements, please contact us for more information.
Q4: Do you have a minimum order requirement for machinery?
A4: We accept orders for at least 1 set of machine for each series of equipment. For other accessories, please contact our customer service.
Q5: What payment term do you accept?
A5: For new customer, we support you to pay from the Alibaba International Station platform, which is more secure and guaranteed for new customers. Our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery. For big amount, we support L/C at sight with reliable issue bank. If your country does not have these payment methods or you need other payment methods, please contact us.
Q6: What about warranty and do the engineers available to overseas?
A6: Each equipment has One year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you(reliable period)or do video teaching .
Q7: What about the after-sales service?
A7: Once you have bought our machine, if there is a problem with the mechanical equipment due to improper operation during use, you can feel free to let us know the machine problems or questions about the machines by mail or cell. We will reply to you within 48 hours and help you to solve the problem. We have Whatsapp, Wechat, Line, Skype, Viber and telephone. (If the warranty period expires, we support to offer spare pare but with charge.) Hope your kindly understanding)
