Машина для резки пены PU CNC режущая проволока двухмерная машина быстрой плоской

Описание и отзывы

Характеристики

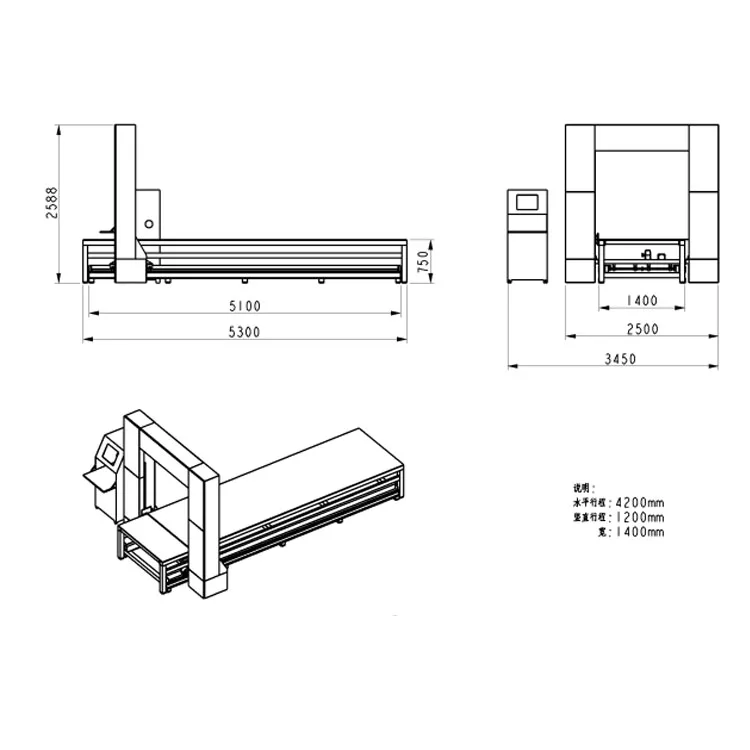

I. Space occupied by machine:

Two. Cutting processing scope:

Effective working horizontal stroke :4200mm,

Effective working vertical stroke :1200mm,

Effective working table width :1500mm.

Three. Processing mode:

1. CNC machining.

Cutting control: input cutting length/thickness/quantity/cutting wire compensation. Automatic processing

Section cutting control: input cutting length/height/quantity/cutting wire compensation. Automatic processing

2. Movement mode: the workpiece is fixed; The tool rest (five-wheel working mode) moves in two dimensions and cuts the bubble body into sheets through a line knife.

3. Reliability design of transmission mechanism:

Y axis is driven by high-speed linear guide rail (diameter 40mm hard chrome plated/Ningbo Constant force), imported ball screw (diameter 32mm/ Taiwan HIwin or PMI) and dust cover, and double stepping motor (110A/ Changzhou Songyang). Effectively reduce the power load, prolong the service life of machinery; Dust proof; Ensure the smoothness of the workpiece surface.

X axis adopts high-speed linear guide rail (diameter 30mm with aluminum bracket/Ningbo constant force) and double rack and pinion, and is driven by stepping motor (110B/ Changzhou Songyang) acceleration and reduction machine.

4. Machining accuracy: Y-axis ± 1.0mm; X + / - 1.0 mm

5. The machine can be adjusted, the effective working speed range :0.3~3m/min.

Maximum movement speed: 5m/min

6. Suction port: Moving suction outlet diameter :120mm

Fixed dust suction port: collect dust on the table.

7. Wire motor: 1.5KW/ 2 pole with 1 inverter

4. Function: tablet slice.

Five. Electricity: 380V ac three-phase power supply; The power is 4000 watts.

Six. Spare parts: wire knife: 10, wire reel: 5, operation manual: 1

Seven. Cutting effective density 28-200 kg/m3

Introduction to custom Specifications

Custom width is the widest	2m
Custom height maximum	1m
Custom maximum length	4m
Install dust remover	6000RMB

Platform can be changed for the customized conveyor belt, convenient goods, price negotiation
