Обновленный электрический терминал 6A или 15A
- Категории: Toggle Switches >>>
- Поставщик: Yueqing,Renew,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
post
Product Description

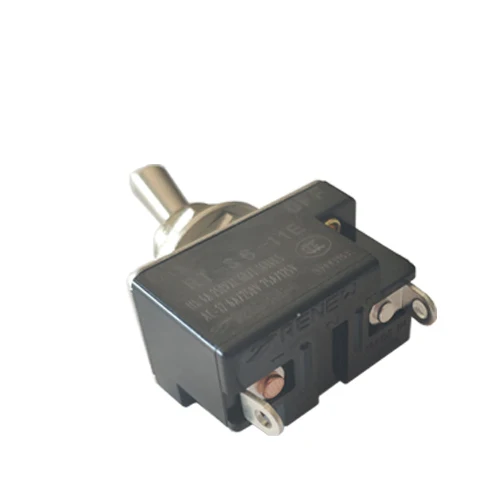

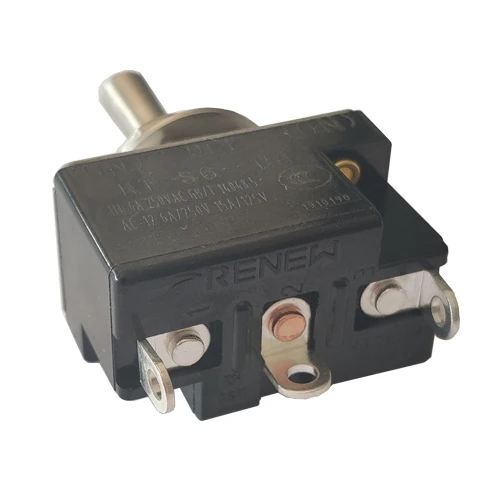

RENEW E terminal Toggle Switch

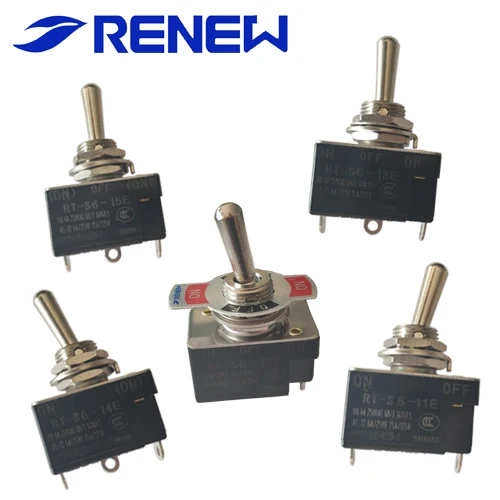

Model No.: RT-S6-11E RT-S6-13E RT-S6-14E RT-S6-15E
Rated data and performance
Rated working current | 15A,10A,6A,3A/125V,250VA(resistive load) 12VDC 30A | ||
Contact type | Contact resistance (initial value ) | Less tan 15mΩ | |
Contact material | Sliver cadmium oxide contact (if no need cadmium,[according with ROSH certificate ] can customize | ||
Electrical | Insulation resistance(initial value ) | Above 100 mΩ(use the DC500V insulation resistance test) | |
Dielectric strength | Between Non-connect terminal(initial value):1000V 50/60HZ 1 min Between non voltage metal parts and each terminal:2000V 50/60HZ 1min Between grounding and each terminal: 2000V 50HZ 1 min
| ||
Mechanical | Shock resistance | In the free position | Less than 98m/s2(10G) |
In the full operating position | Less than 500m/s2(30G) | ||
Vibration resistance | 1.5mm double amplitude 10-55HZ (contact gap is under 1ms ) | ||
Capacity | Mechanical | 50,000times above (on/off frequency 20times/min) | |
Electrical (resistor load) | 25,000times above (rated load, 7times/min) | ||
Using condition | Ambient temperature/ humidity | -20~+70(with no icing ), under the 85%RH (+5~20) | |
The max on/off frequency | 30times/min | ||
Packaging & Shipping
400 PCS /CARTON
Our Services
Warranty period: 12 months.
Company Information
Our company was founded in 1996, We are specialized in developing and producing micro-switch, limit switch, travel switch, toggle switch
All kinds of test machine:
Workshop:
Certifications
WHY CHOOSE US?
1. More than 26 years experience on producing and developing micro switch, limit switch, toggle switch. Have our own brand "RENEW".
2. High quality raw materials, long life and secure switches.
3. Dust-free plant, strict quality control, provide you satisfactory switches.
4. CE, CCC, UL. ROHS Certificates.
5. Plentiful stocks, solve your urgent needs.
FAQ
1.Q:What are your payment terms? Do you accept paypal?
A: 100% T/T in advance. We do not have a paypal account at present.
2. Q: Do you have a price list?
A: We do not have a published list, however you can contact customer service and they can supply you with the pricing that you need.
3. Q: What are your warranties?
A: 12 months from the date of invoice. Renew offer the free maintenance or replacement of malfuctioning products.
4. Q: Can you accept OEM?
A: Yes, need your trademark authorization letter.
5. Q: What about the package?
A: All use thickening export carton with "RENEW" mark, your specified mark or none.
6. Q: Do you provide sample?
A: Yes, free sample can provide to you, express freight collect.
7. Q: Do you accept small order quantity?
A: Yes, order quantity without limited.
8. Q: How about the delivery mothod?
A: In small quantity, we suggest by express DHL, TNT, FEDEX, UPS...... If not by sea or by air transport.
9.Q: Do you bear the freight charge?
A: We can offer you EXW, FOB or CIF price.
For more information, please contact us. Email: cnrenew at renew-cn.com
