Product Description
Summarization
Product Name | MTS-102 3 Pin 2 Way Single micro Brass Toggle Switch |
| Rating | 6A 125VAC/3A 250VAC |
| Function | ON-OFF |
| Torque | Max.5kg·cm(70ounce·inch) |
| Contact Resistance | 50mΩ max |
| Electrical Life | ≥ 10,000 Cycles |
| Mechanical Life | ≥ 100,000 Cycles |
| Dielectric strength | 1500VAC 1 minute |
| Operating Temperature | -25℃~+85℃ |
| Insulation Resistance | 1000mΩ min (500VDC) |
MTS-102 small toggle switch related product

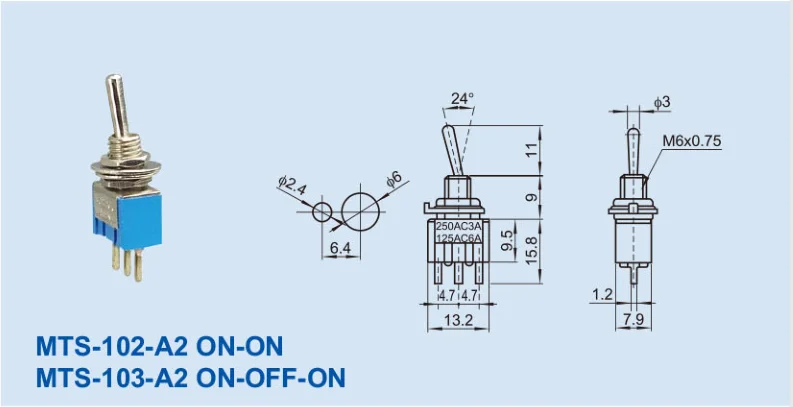

| MTS-102 | 3Pin, ON-ON, solder terminal | MTS-102-A2 | 3Pin, ON-ON, PCB terminal |
| MTS-103 | 3Pin, ON-OFF-ON, solder terminal | MTS-103-A2 | 3Pin, ON-OFF-ON, PCB terminal |
| MTS-112 | 3Pin, ON- momentary ON, solder terminal | MTS-112-A2 | 3Pin, ON- momentary ON, PCB terminal |
| MTS-113 | 3Pin, ON-OFF- momentary ON, solder terminal | MTS-113-A2 | 3Pin, ON-OFF- momentary ON, PCB terminal |
| MTS-123 | 3Pin, momentary ON-OFF- momentary ON, solder terminal | MTS-123-A2 | 3Pin, momentary ON-OFF- momentary ON, PCB terminal |

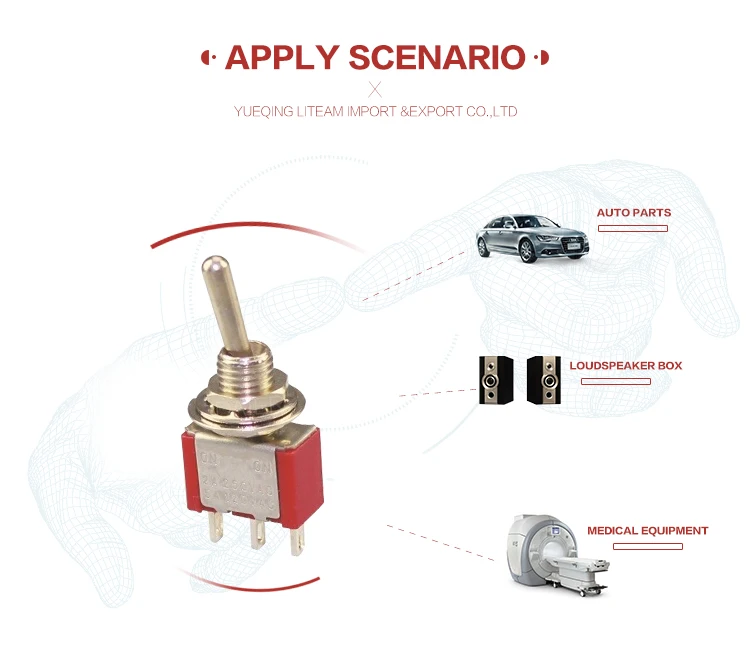

Application
