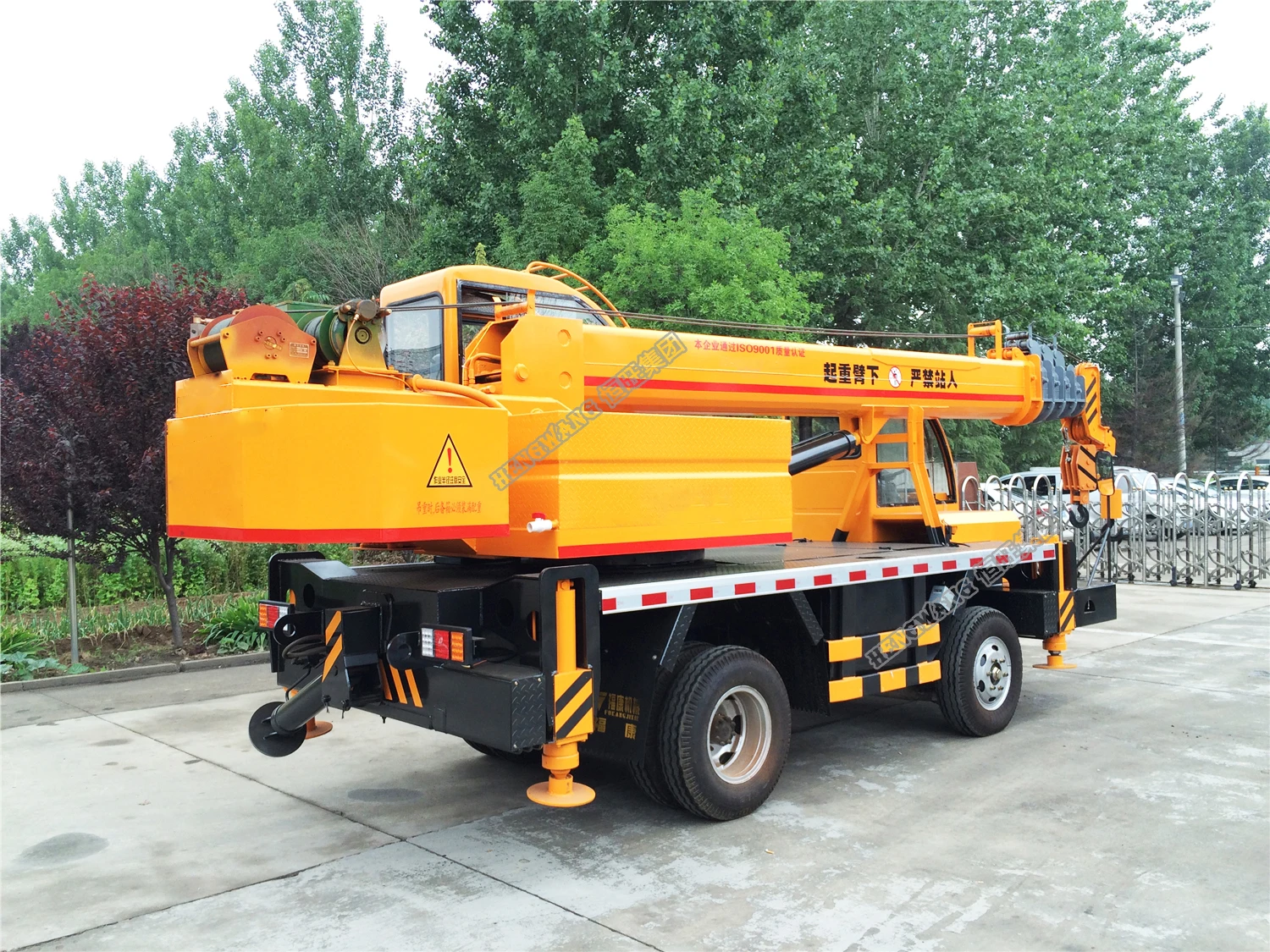

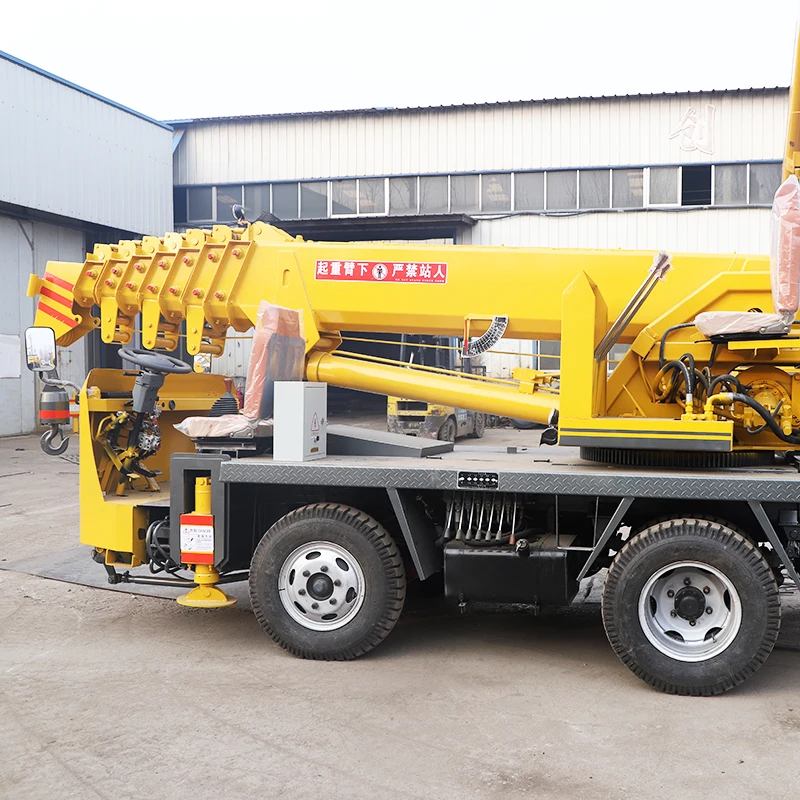

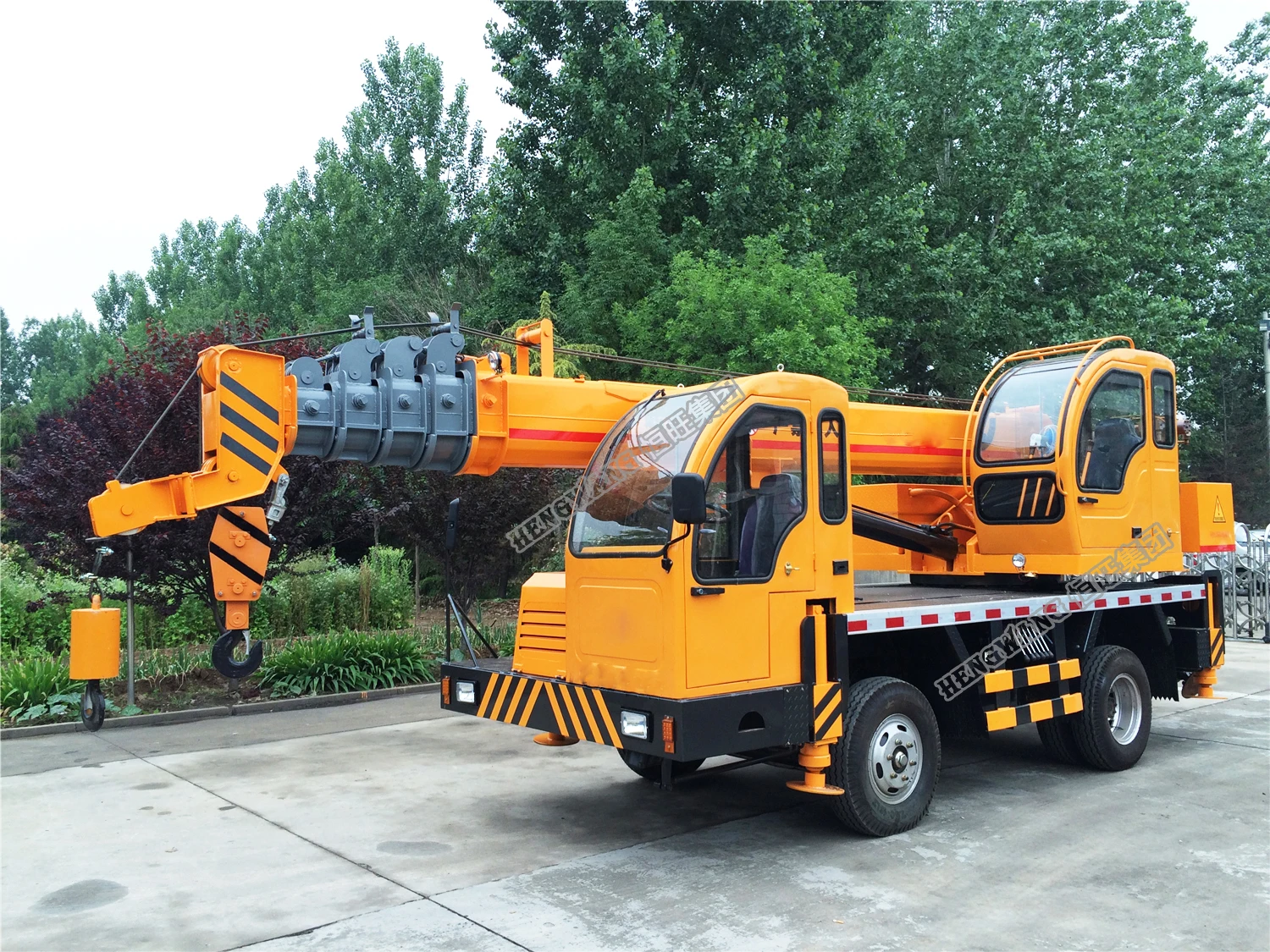

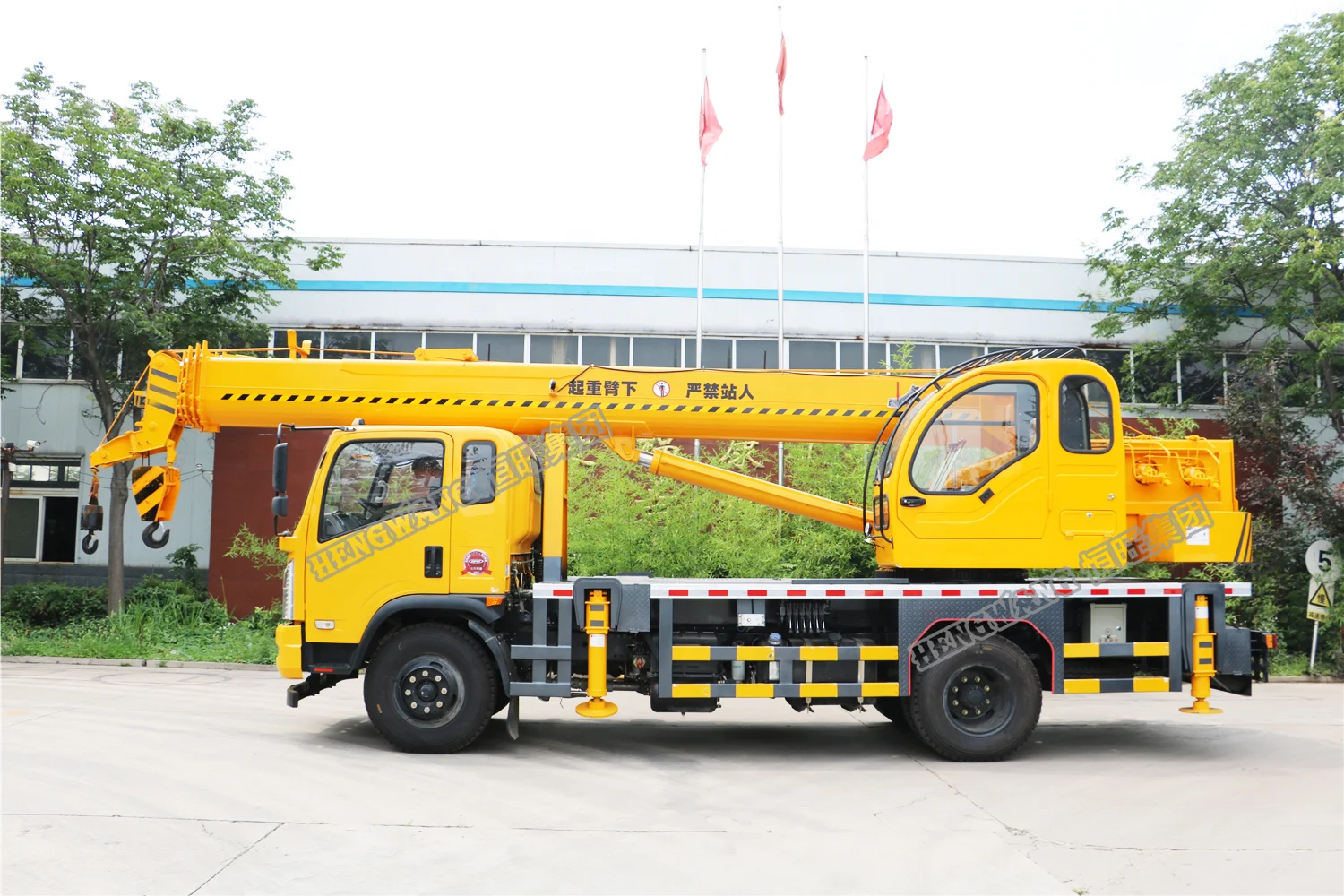

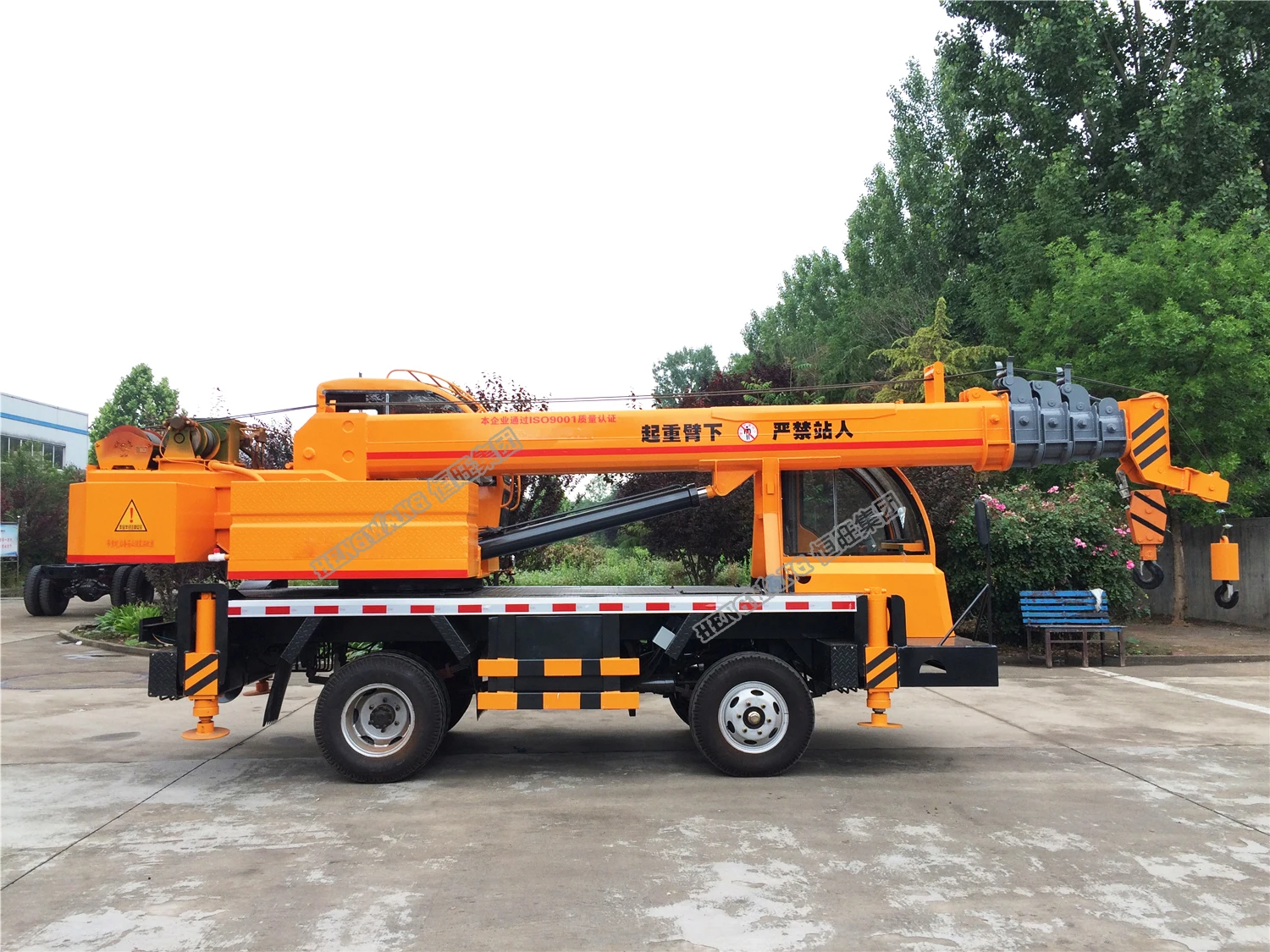

Product Display

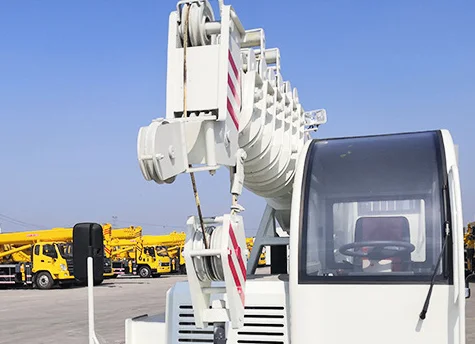

1.The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
2.The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.3.The control system is optimized by 8 patents; lifting, rotation, and luffing are easy andreliable.
4.The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.

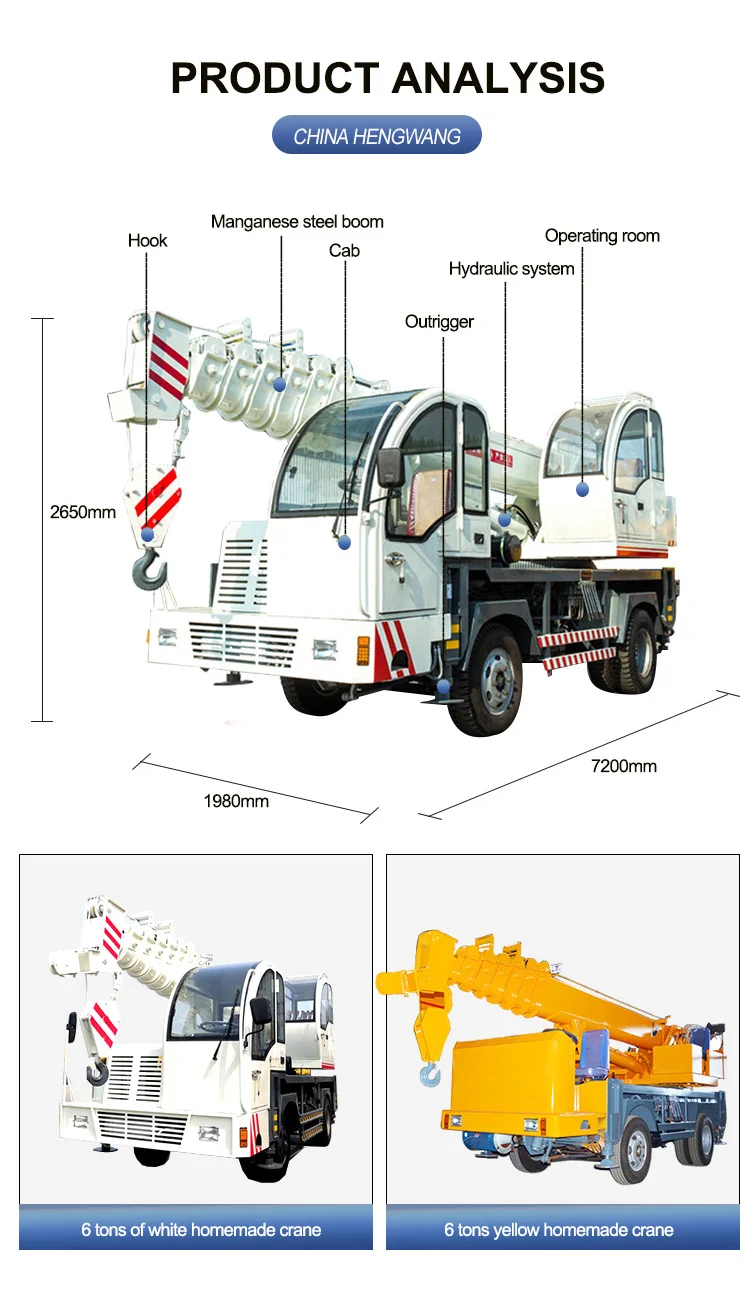

Product Description
Chassis model | Self-made 8 ton chassis | |||||||
Engine model | Weichai 4100 engine | |||||||
Maximum lifting weight | 8T | |||||||
Arm length | 6 meters 6 knots | |||||||
Weight | 9T | |||||||
Driving speed | 70km/h | |||||||
Tire specifications | 825-16 | |||||||
Turntable | 1.2m inner tooth | |||||||
Winch | Main winch 8 tons, auxiliary winch 6 tons | |||||||
Hydraulic outrigger | 5 hydraulic outriggers single leg | |||||||
Brake system | Hydraulic assist in the direction of the air brake | |||||||
Gearbox | Dongfeng 145 gearbox | |||||||
Chassis model | Self-made 10 ton chassis | Self-made 20 ton chassis | ||
Engine model | Weichai 4102 engine | 6108 engine（Optional） | ||
Maximum lifting weight | 10T | 20T | ||
Arm length | 6 meters 6 knots or 5 meters 8knots | 8 meters 5knots (Optional） | ||
Weight | 11.8T | 25T | ||
Driving speed | 60km/h | 70km/h | ||
Tire specifications | 825-20 | 900-20.1000-20 (Optional） | ||
Turntable | 1.2m inner tooth | 2.5R/min | ||
Winch | Main winch 10 tons, auxiliary winch 6 tons | 70m/min | ||
Hydraulic outrigger | 5 hydraulic outriggers single leg | 4 hydraulic outriggers | ||
Brake system | Hydraulic assist in the direction of the air brake | Hydraulic assist in the direction of the air brake | ||
Gearbox | Dongfeng 145 gearbox | Wanliyang Transmission | ||
Hengwang provides 8 tons truck crane with high quality truck crane accessories, 100% new brand crane. From 6 tons truck crane, 8tons truck crane, 10 tons truck crane, 12 tons truck crane, 16 tons truck crane, 20 tons truck crane, 25 tons truck crane and so on...

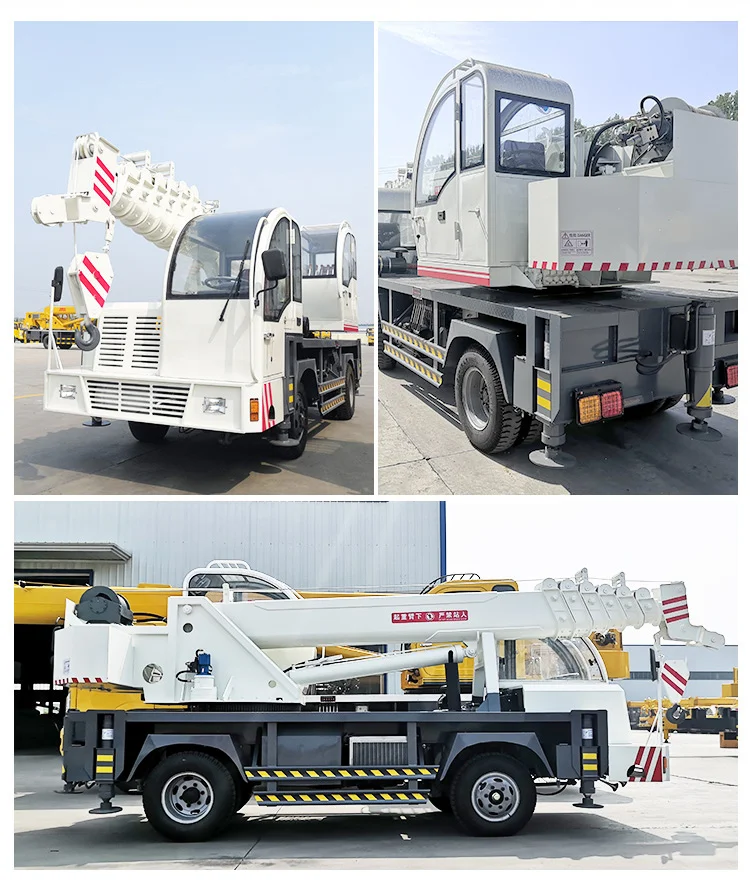

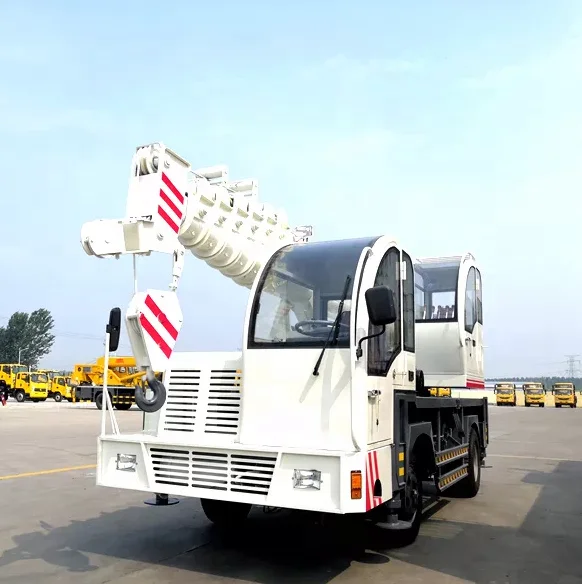

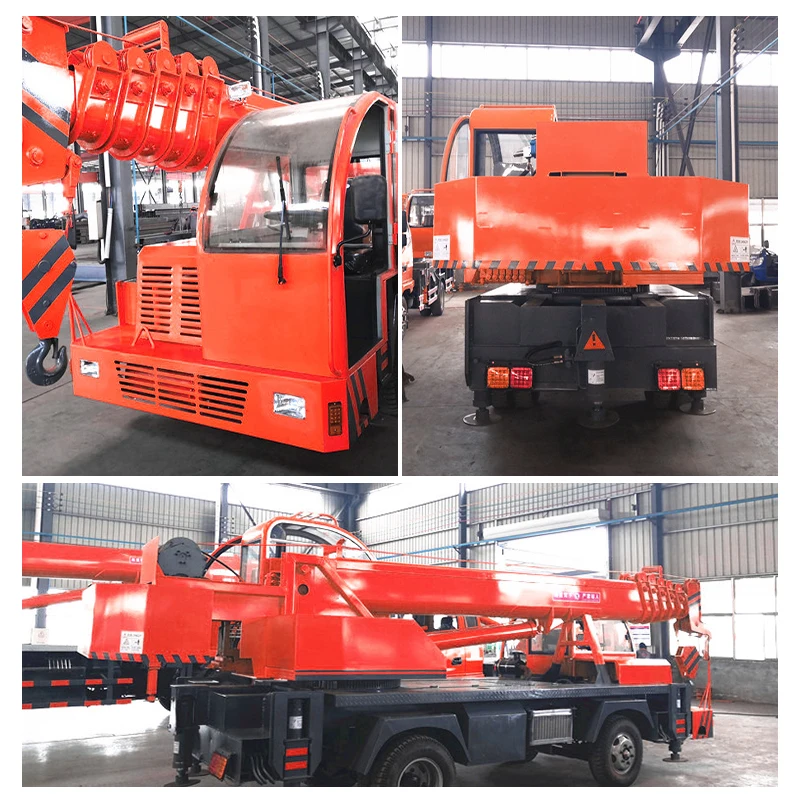

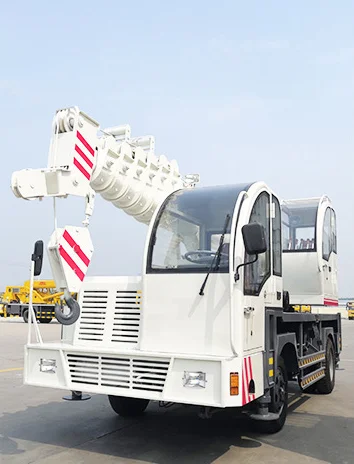

Car customization
The whole vehicle is welded with a large steel frame, which has good toughness and does not deform under heavy pressure. It can be equipped with flatbed or dump trucks.
The whole vehicle is welded with a large steel frame, which has good toughness and does not deform under heavy pressure. It can be equipped with flatbed or dump trucks.

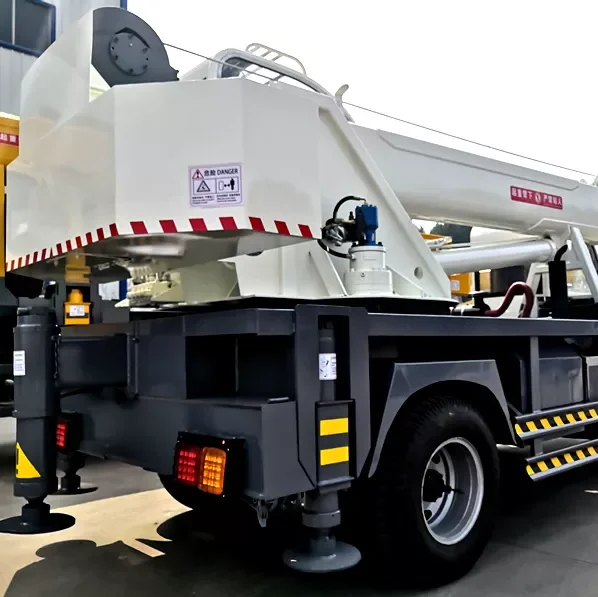

Hydraulic outrigger
The whole machine has good hidden qualitative, and the compound action is smooth and smooth.
manganese steel plate of the boom is light and heavy.
The slewing bearing is made of 50 manganese forging material, equipped with high and low speed neutral gears and brakes.
If you need a crane certificate, we will also provide you!
1.Luxury full cab and control cab with modern streamline style;
2.High power, low fuel consumption and noise meet the requirements of standard;
3.The walking board is fully covered, which is easy to work and repair on the vehicle;
4. The outrigger system adopts double-sided operation, which is convenient and practical;
4. The outrigger system adopts double-sided operation, which is convenient and practical;

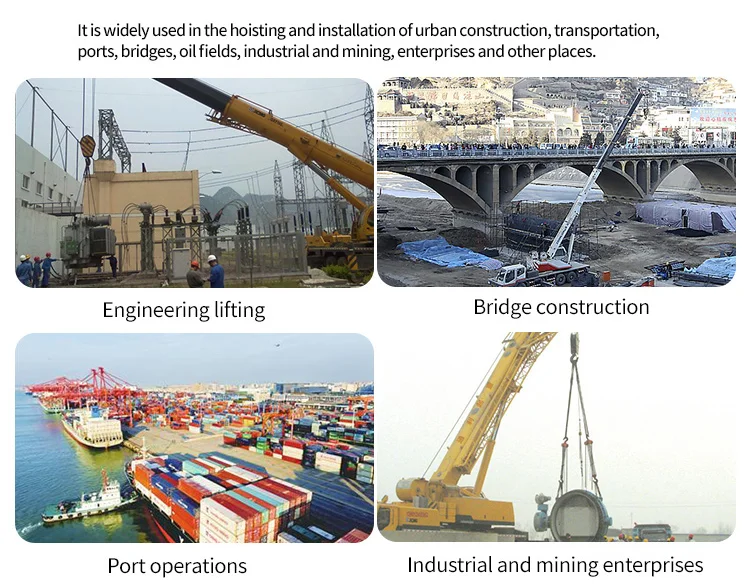

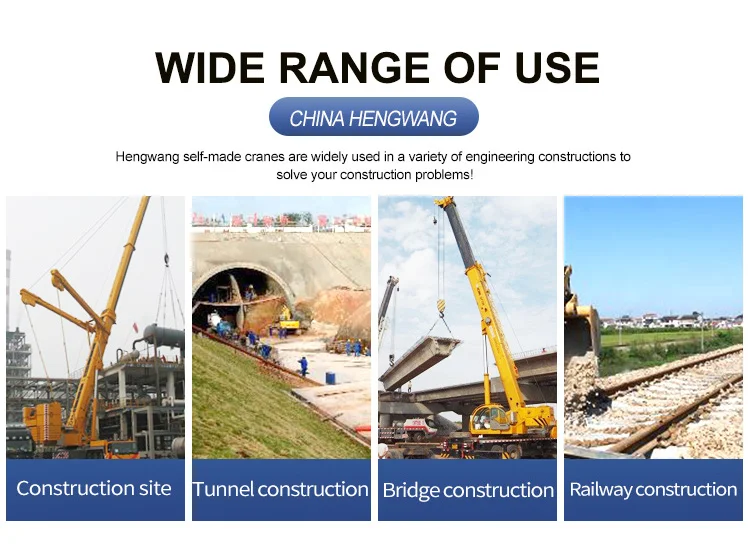

Product Application
Recommend Products

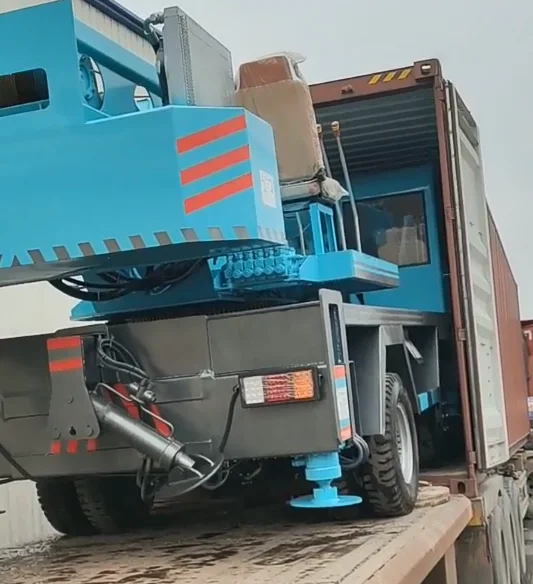

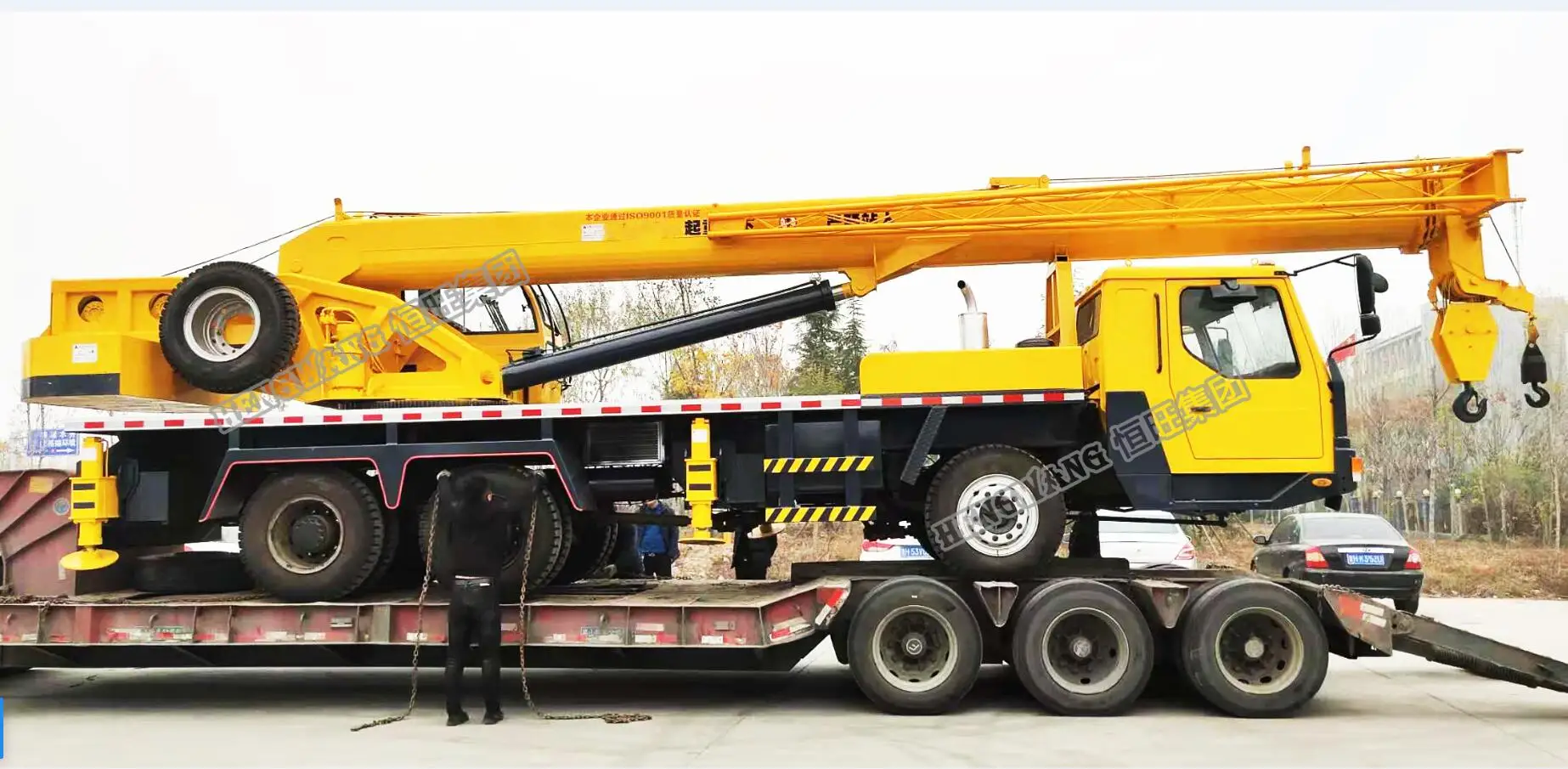

Packing & Delivery
1.Adopt container transportation, and take reinforcement measures to prevent the machine from being damaged, so that customers receive the machine in good condition.
2.We have close ties with the top ten shipping companies in the world and can provide you with the best shipping quotations and the most timely follow-up information.

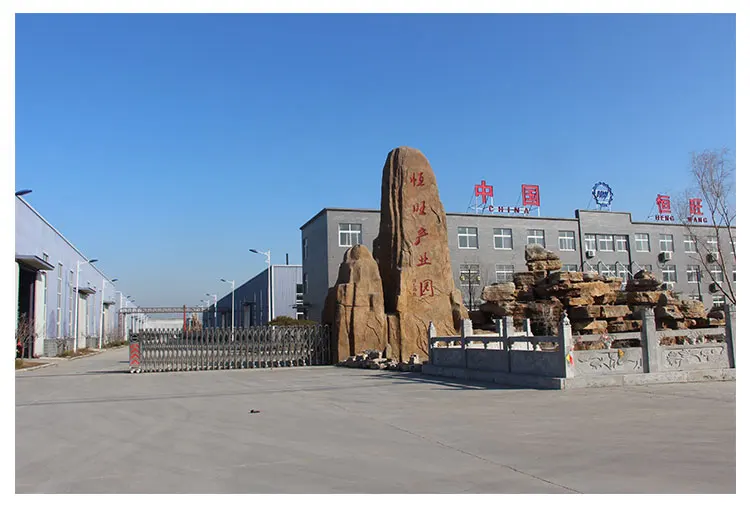

Company/ Factory
Jining Hengwang Construction Machinery Co., Ltd. is located in Jining City, Shandong Province. We are specialized in manufacturing road roller and excavator. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially in the Middle East, Africa and South America. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Exhibition
*The company will participate in exhibitions in many countries every year, the exhibition will have professional sales and technical personnel explain the machine structure and use methods, and will actively answer your questions, can really do face to face communication, let you feel our professional in all aspects.
In addition, foreign customers are also welcome to visit our factories and machines.
FAQ
Q:Are you manufacture?
A: Yes, we are factory with more than 20 years of manufacturing experience.
Q:What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for anew one.And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE, IS09001.
