Shanghai Oriemac Machinery 50 Ton Truck Crane QY50KD with Euro V Emission


Specification







QY50KD the new power steering mechanism adopts hydraulic power design, which makes the steering light, flexible, and precise, and ensures the safety of the truck.


Description
Unit
Parameter value
Overall length
/
mm
13930
Overall width
/
mm
2780
Overall Height
/
mm
3630
Axle base
1st ,2nd axle
mm
1470
2nd ,3rd axle
4300
3rd ,4th axle
1350
Wheel Base
/
mm
2304+2075
Front overhang/rear overhang
/
mm
2389/2064or 2376/2064
Front extension/rear extension
/
mm
2131/226 or 2144/226
Total vehicle mass in travel configuration
/
kg
42200
Axle load
Front axle
kg
16200
Rear axle
26000
Engine Model
/
/
WD615.338
Engine rated power
/
kw/(r/min)
276/2200
Engine rated torque
/
N.m/(r/min)
1500/1300-1600
Max. travel speed
/
km/h
85
Min. steady travel speed
/
km/h
2~3
Min. turning diameter
/
m
24
Min. ground clearance
/
mm
327
Max. grade ability
/
%
42
Approach angle
/
°
19
Departure angle
/
°
15
Braking distance (at 30 km/h, full load )
/
m
≤10
Oil consumption per 100km
/
L
40
Exterior noise level during acceleration traveling
/
dB (A)
≤88
Noise level at seated position
/
dB (A)
≤90
Max. total rated lifting capacity
/
t
50
Min. rated working radius
/
m
3
Turning radius at turntable tail
/
mm
3800
Max. load moment
Base boom
KN.m
2009
Fully-extended boom
1129
Outrigger span
Longitudinal
m
6.1
Lateral
7.1
Hoist height
Base boom
11.9
Fully-extended boom
44
Fully-extended boom + Jib
58.1
Boom length
Base boom
11.4
Fully-extended boom
43.5
Fully-extended boom + Jib
59.5
Jib offset angle
/
°
0, 15, 30
Time for boom raising
/
s
≤40
Time for boom extending fully
/
s
≤90
Max. slewing speed
/
r/min
≥2.0
Exterior noise level
/
dB (A)
≤118
Noise level at seated position
/
dB (A)
≤9

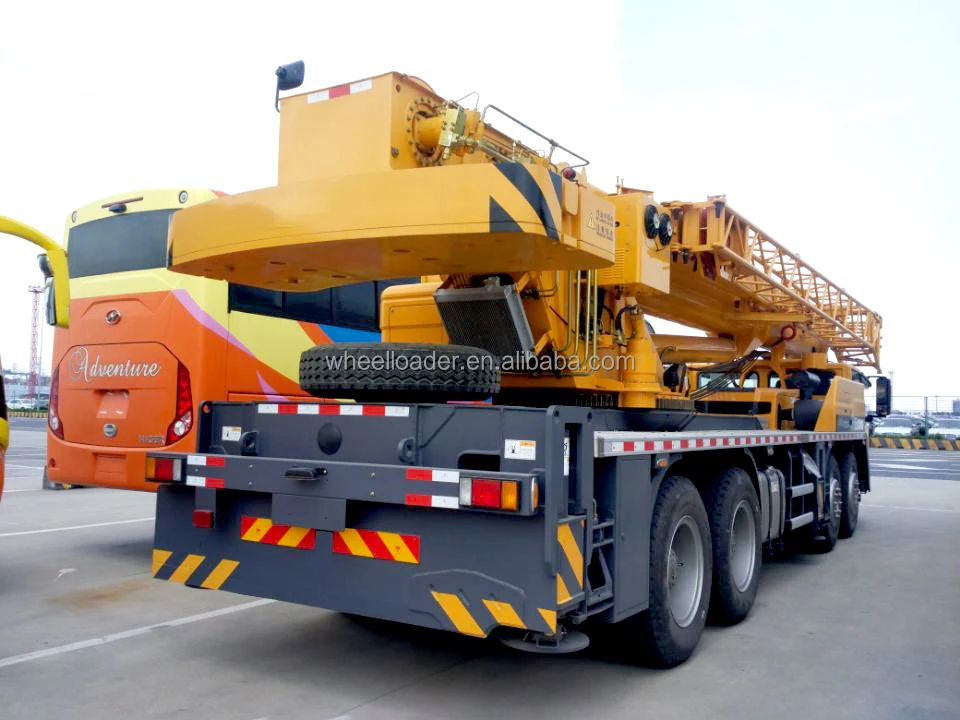

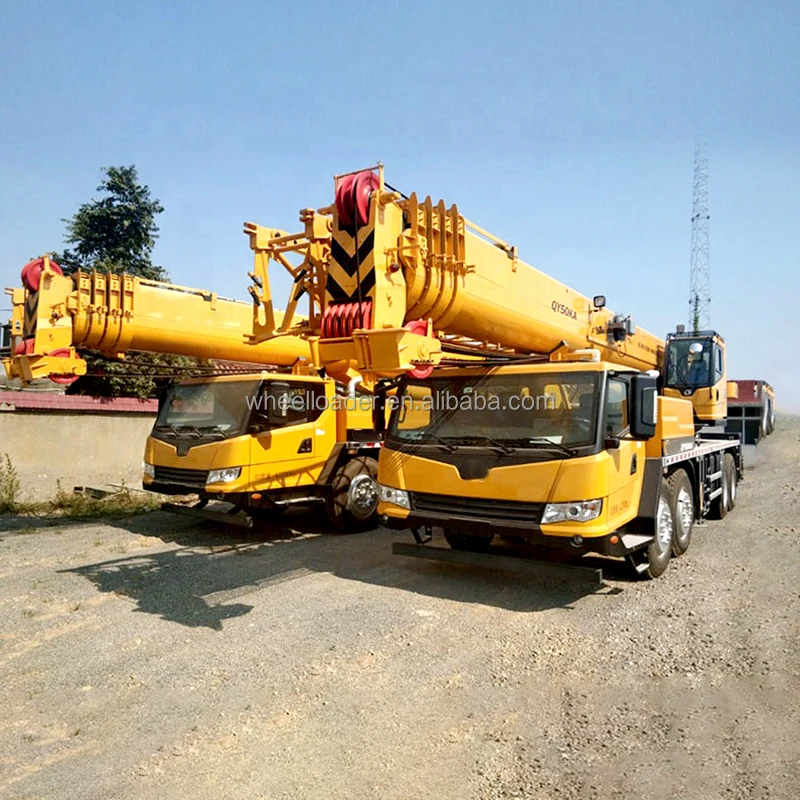

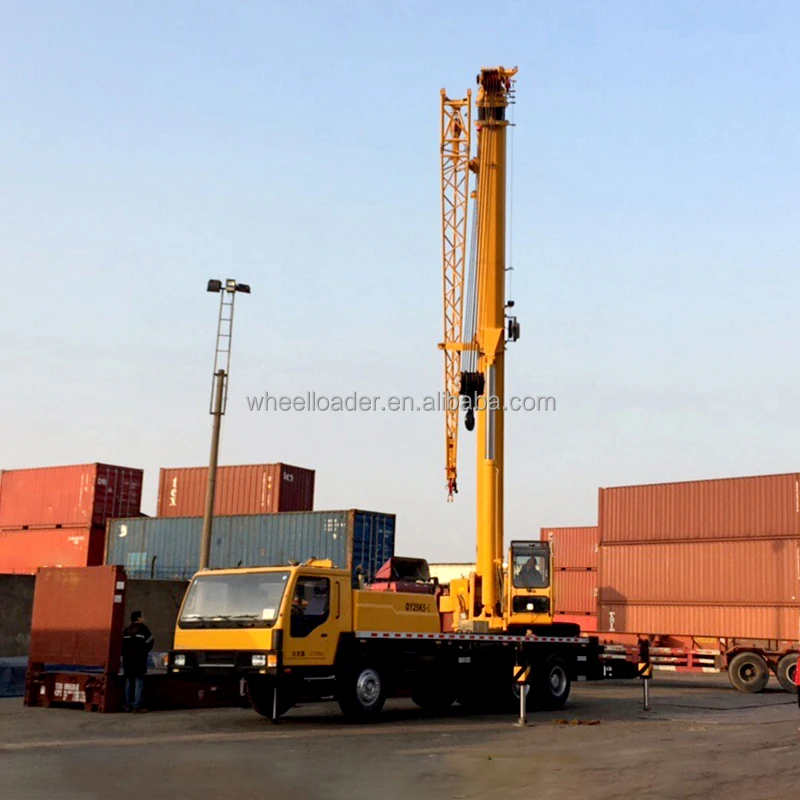

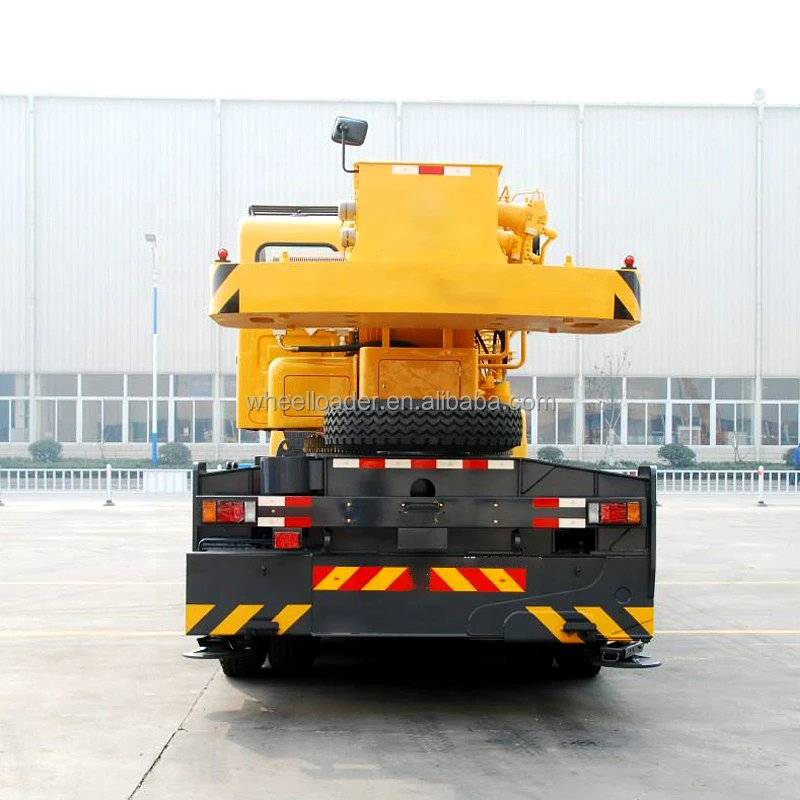

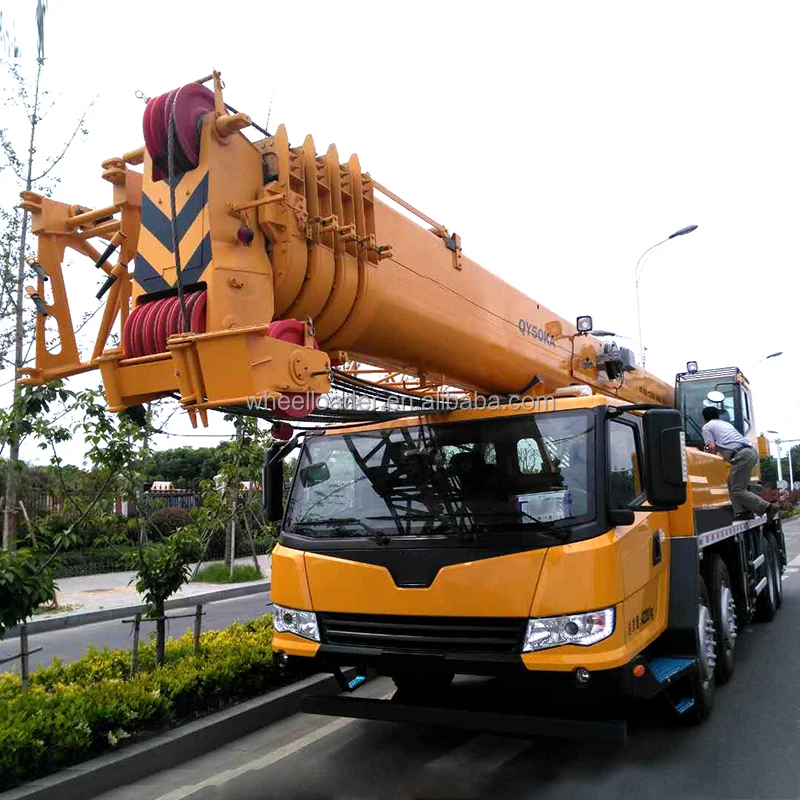

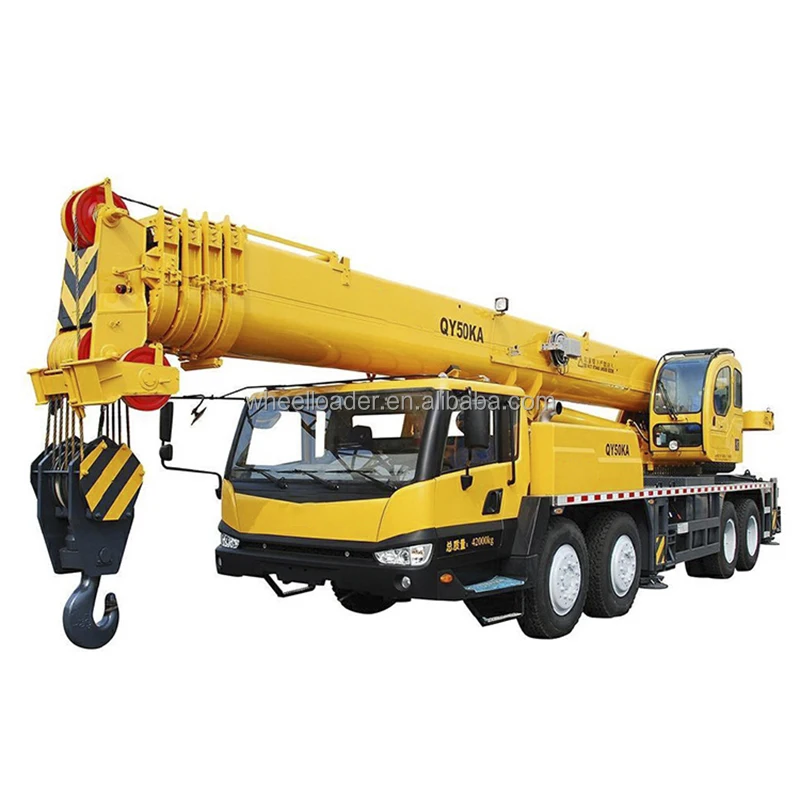

Product Show








Buying Guide






Oriemac information


Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Oriemac brings you a wide range of construction machionery series as follows:
-- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and Truck-mounted Crane
-- Earthmoving Machinery, such as Wheel loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
-- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump and Concrete Mixer
-- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig and Roadheader
-- Logistics Machinery, such as Telescopic Handler and Forklift
-- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Form, and Fire Truck

Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.
