China Brand Hot Selling 55 Ton Truck Crane Model QY55V in Kazakhstan


Specification


Title goes here.
1. Max. rated lifting capacity: 25,000kg at 3m radius

2. Max. load moment of basic boom: 960 kN.m

3. Max. load moment of Max. length main boom: 598 kN.m at 9m radius

4. Max. lifting height of basic boom: 11.8m

5. Max. lifting height of main boom: 44m

6. Max. lifting height of jib: 60m


Item
Unit
Value
Working performance
Max. rated lifting capacity
kg
55000
Max. load moment of basic boom
kN.m
2009
Max. load moment of main boom(fully extended)
kN.m
1050
Max. load moment of basic boom
m
12.6
Max. lifting height of main boom
m
43.6
Max. lifting height of jib
m
59.5
Working speeds
Max. hoist rope speed(Main winch)
m/min
120
Max. hoist rope speed(Auxiliary winch)
m/min
120
Boom demrricking up time
s
50
Boom demrricking up time
s
95
Slewing speed
r/min
0-2.2
Driving
Max. driving speed
km/h
76
Max. gradeability
%
40
Turning diameter
m
≤24
Min. ground clearance
mm
260
Oil consumption per hundred kilometers
L
43
Mass
Deadweight in driving condition
kg
42000
Complete vehicle kerb mass
kg
41870
Front axle load
kg
16000
Rear axle load
kg
26000
Dimension
Overall dimensions(L×W×H)
mm
13700×2800×3650
Longitudinal distance between outriggers
m
5.92
Transversal distance between outriggers
m
Fully extended:7.1,
Intermediately extended:4.8
Tail slewing radius
mm
3900
Main boom length
m
11.4 - 43.0
Main boom angle
°
-2 - 80
jib length
m
9.5,16.0
Offset
°
0,30

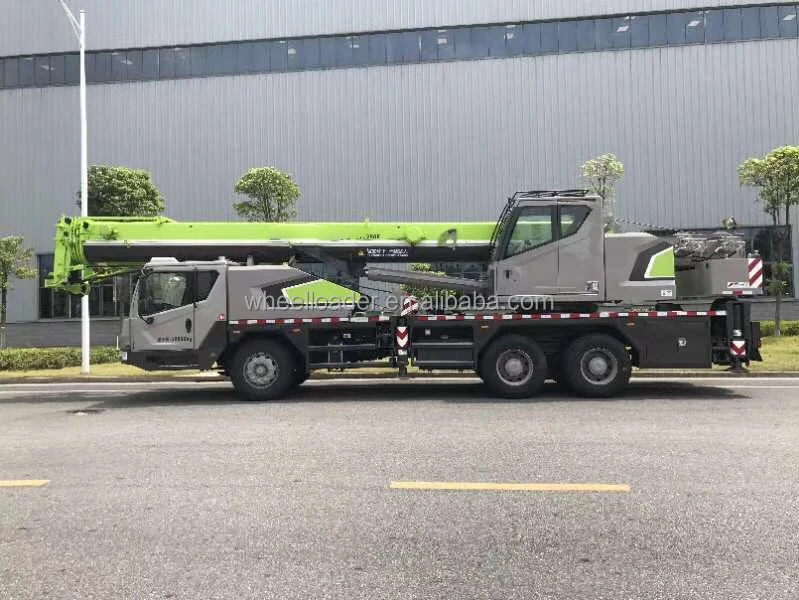

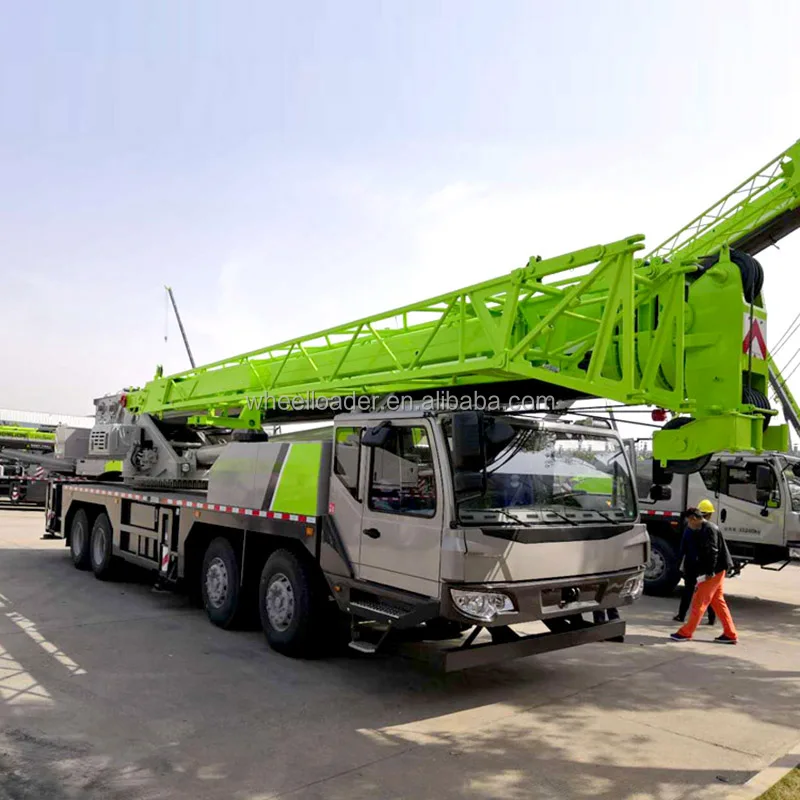

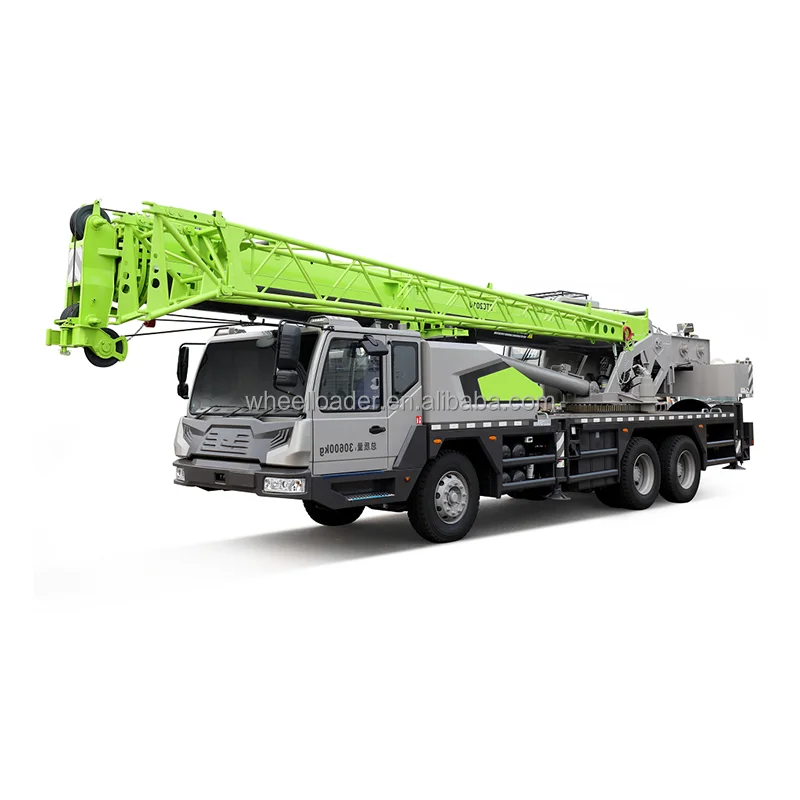

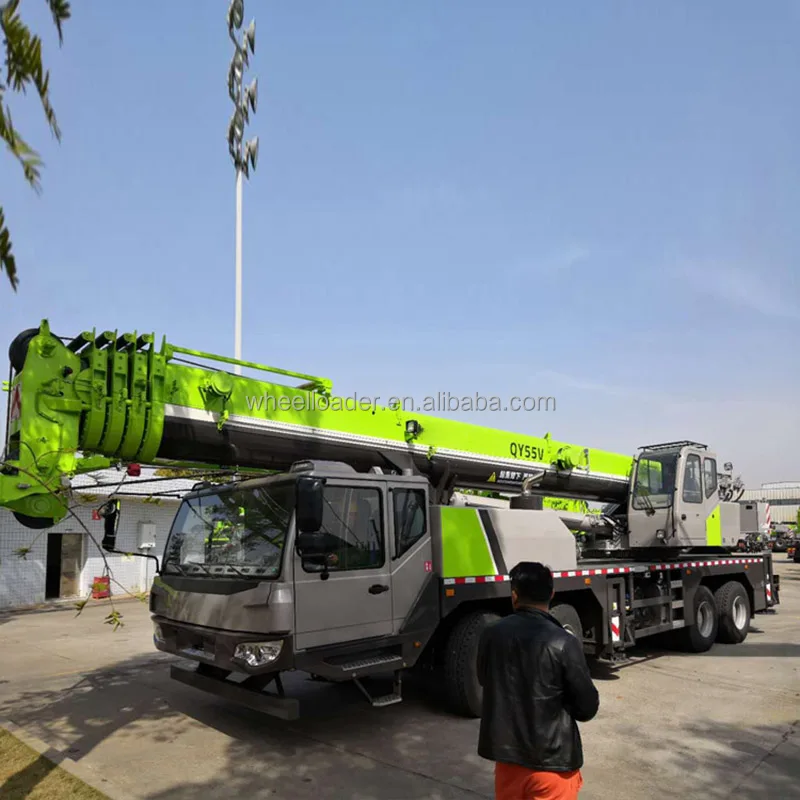

Product Show






Buying Guide






Oriemac information


Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
Oriemac brings you a wide range of construction machionery series as follows:
-- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and Truck-mounted Crane
-- Earthmoving Machinery, such as Wheel loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
-- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump and Concrete Mixer
-- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig and Roadheader
-- Logistics Machinery, such as Telescopic Handler and Forklift
-- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Form, and Fire Truck

Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.
