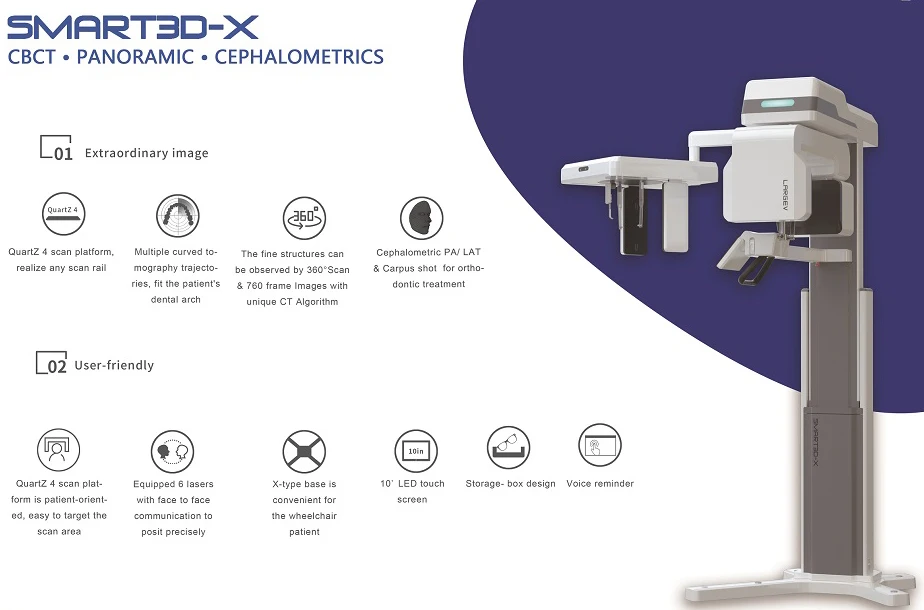

Smart3D-X(12*10) 3-в-1 интеллигентая (ый) Стоматологическая клкт стоматологический 3d сканер рентгеновский
- Категории: Medical X-ray Equipments & Accessories >>>
- Поставщик: LargeV,Instrument,Corp.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Profile

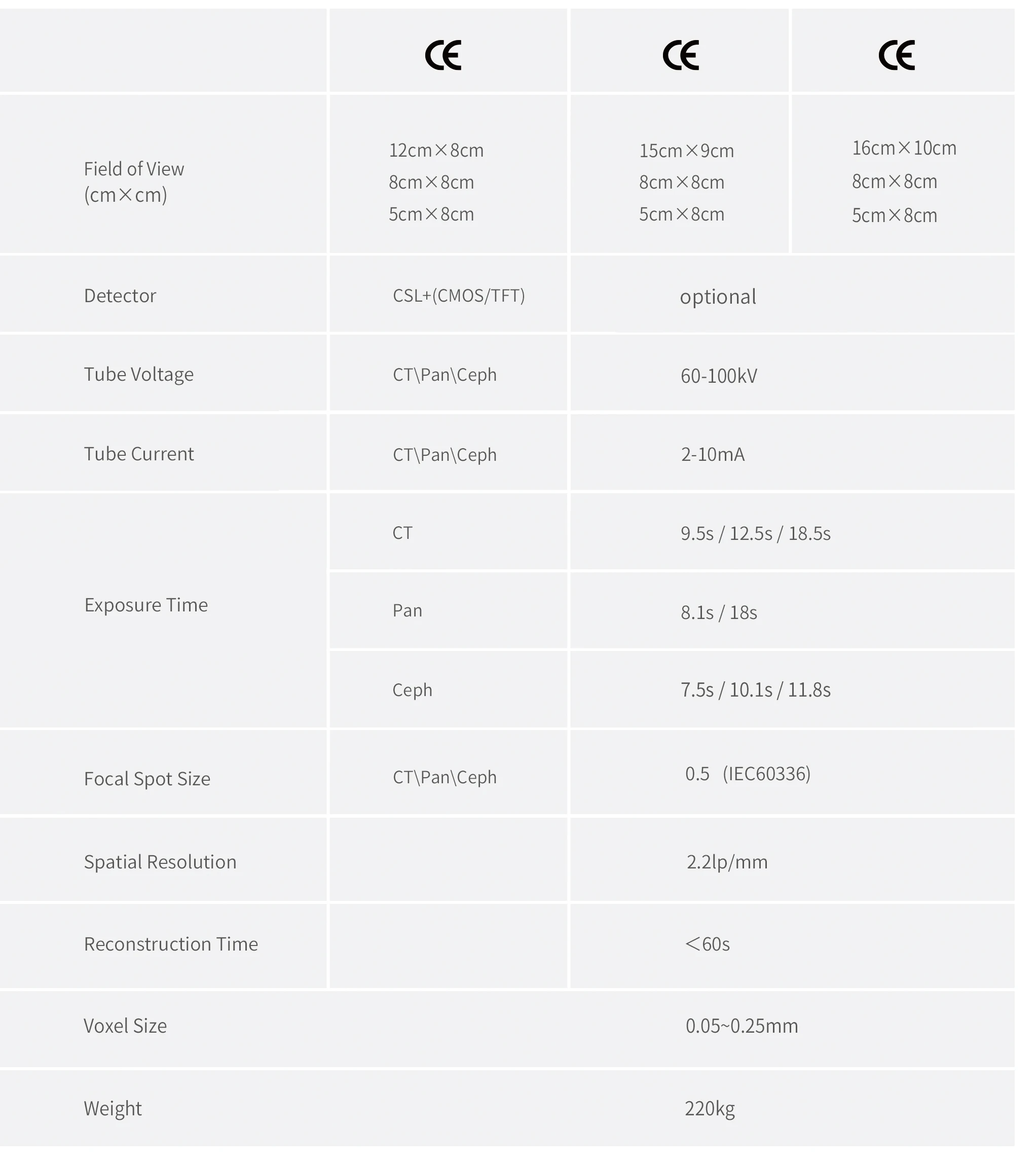

Technical Specifications
Products Description
High-Definition Image - Helps Accurate Diagnosis and Treatment
0.5mm small focus tube ensures outstanding image quality.
Resolution up to 2.2lp/mm, voxel size of 0.05~0.25mm optional.

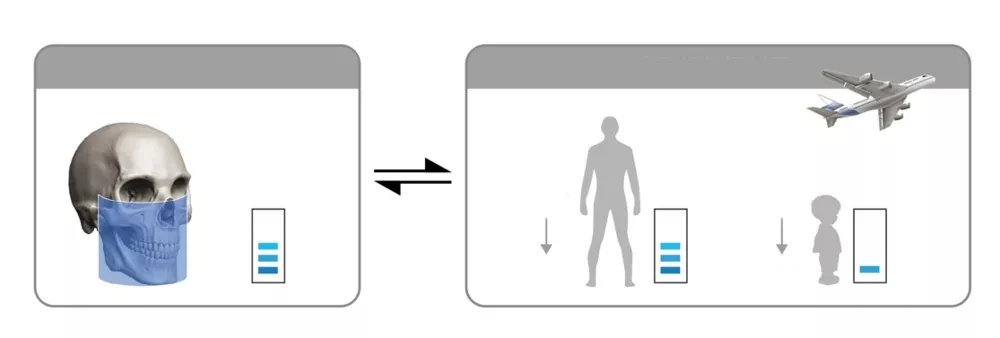

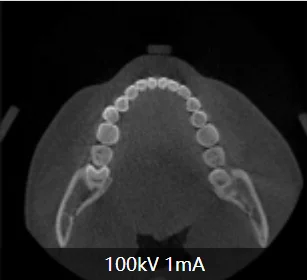

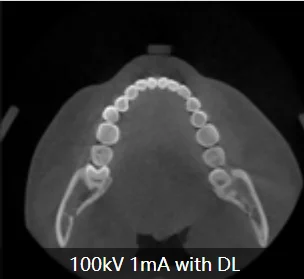

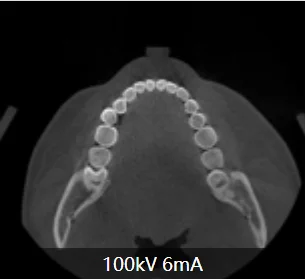

Low Dose
Boosted by the deep-learning based CT reconstruction algorithm, the Smart3D is now able to obtain the more defined tomography while further reducing the radiation dose by 83%, once again topping the industrious standard in respect of low dose control.
Metal Artifact Reduction
With the new TrueMAR correction module for metal artifact removal, the system can intelligently correct metal artifact, avoid over modifying and save the original clinical data.
AI Introduction
AI + CBCT
With the new deep-learning based CT reconstruction algorithm, even though we reduce 75% radiation dose, system still can obtain a good clear CBCT image.
AI + Panorama
Together with new intelligent auto-focus technology, and multi-layer panoramic hardware, the system can automatically fit the best panoramic curves and reconstruct a better image.
Together with new intelligent auto-focus technology, and multi-layer panoramic hardware, the system can automatically fit the best panoramic curves and reconstruct a better image.
Before optimization
After optimization

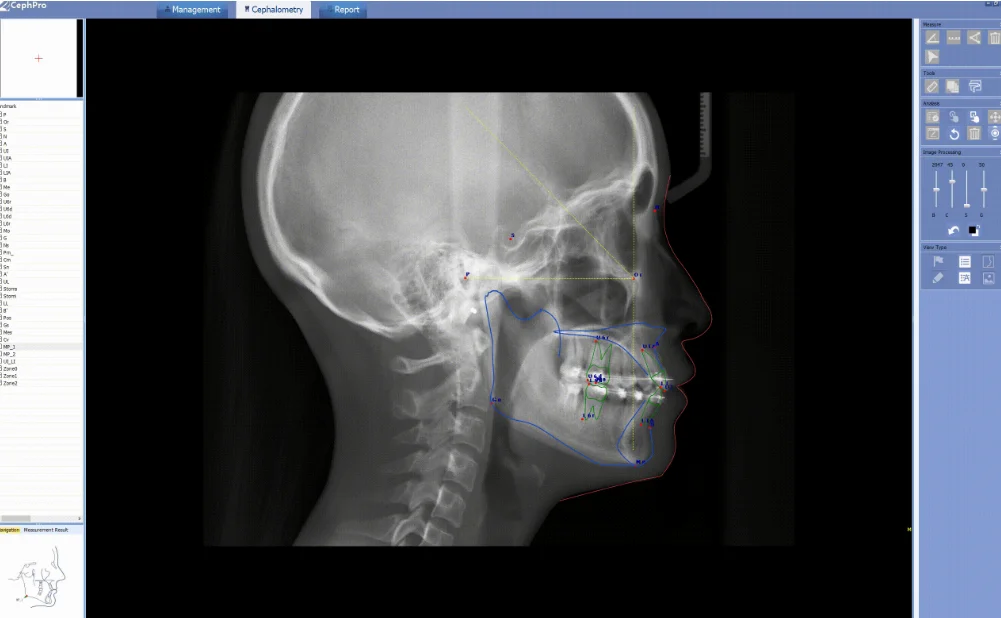

AI + Ceph measurement
The neural network, trained by big data, can automatically identify orthodontic anatomical landmark points, draw anatomical structures and output measurement reports according to the selected measurement methods.

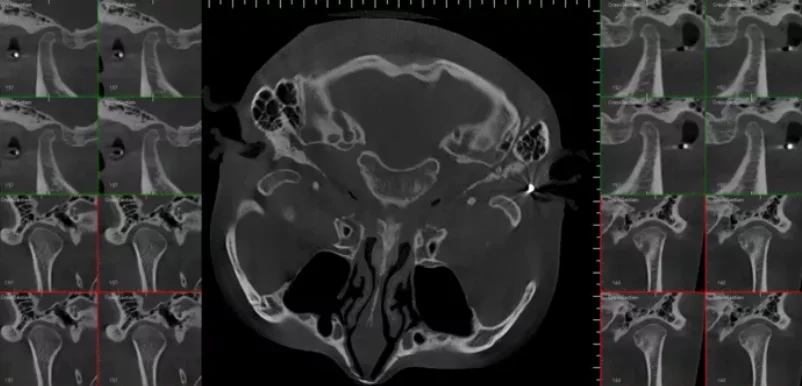

Introduction To Metal Artifact Reduction
With the new TrueMAR correction module for metal artifact removal, the system can intelligently correct metal artifact, avoid over modifying and save the original clinical data.
Ergonomic Positioning
The electric chin-rest, which can be adjusted to your exposure requirements, is ideal for avoiding physical discomfort and obtaining convenient positioning.
Touch-Screen Operation

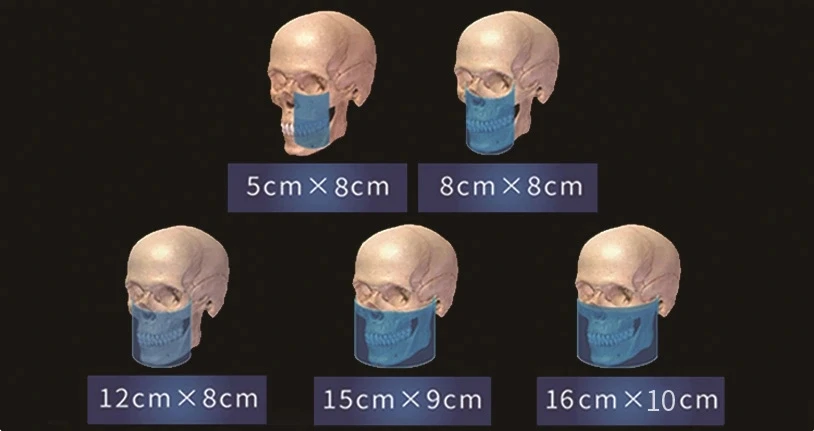

Via the clear touch-screen user interface, operating efficiency is maximized and practitioners will experience a new level of convenience. Various pre-programed scan modes allow for precise selection of the exposure area, as well as dosage optimization.
Clinical Applications

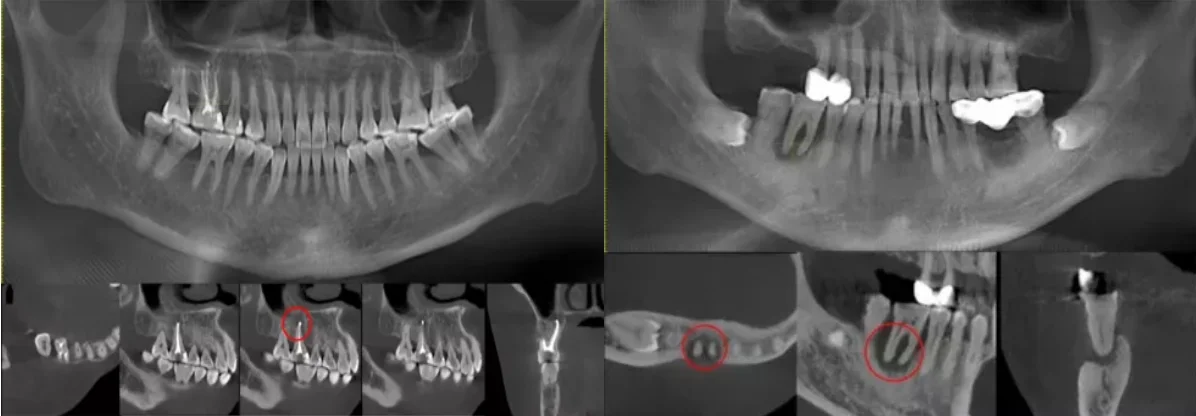

1) Endodontic and Periodontal Examinations
The Smart3D, with an image resolution up to 2.6 lp/mm, provides rich and accurate information for the examination of endodontic and periodontal diseases. Compared with common radiographs and other CBCTs, the outstanding images from the Smart3D can help dentists avoid the overlapping of teeth and jaw images, show the anatomical structure of root canal location and degree, andeasily detect periapical bone condition and alveolar bone defects.

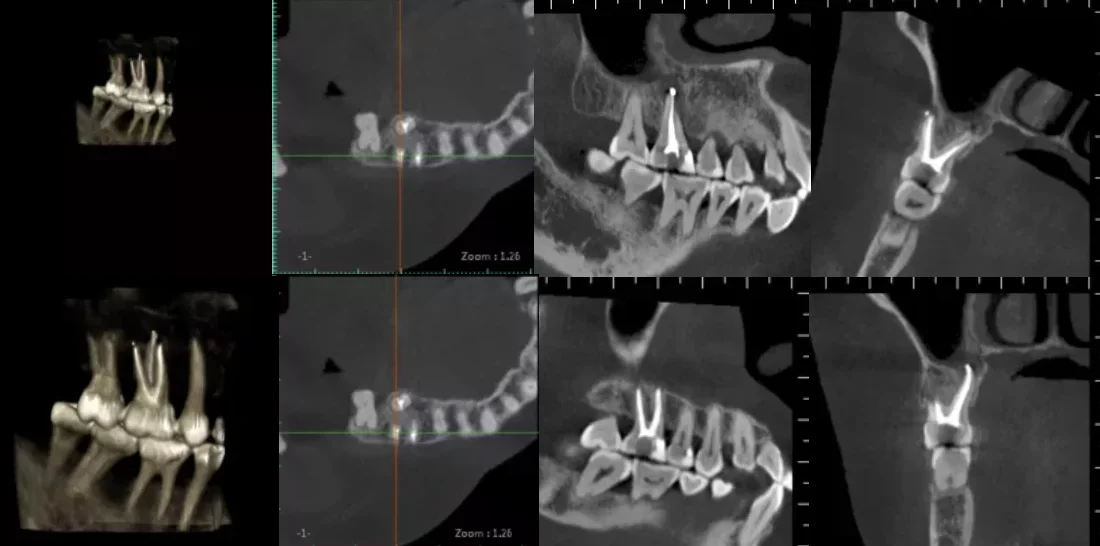

2) Root Canal Filling Examinations
With a professional color map and filter, the Smart3D can clearly identify the orientation, shape and size of a root canal. Multiple and complex root canal treatments can be easily and accurately observed in 3D.

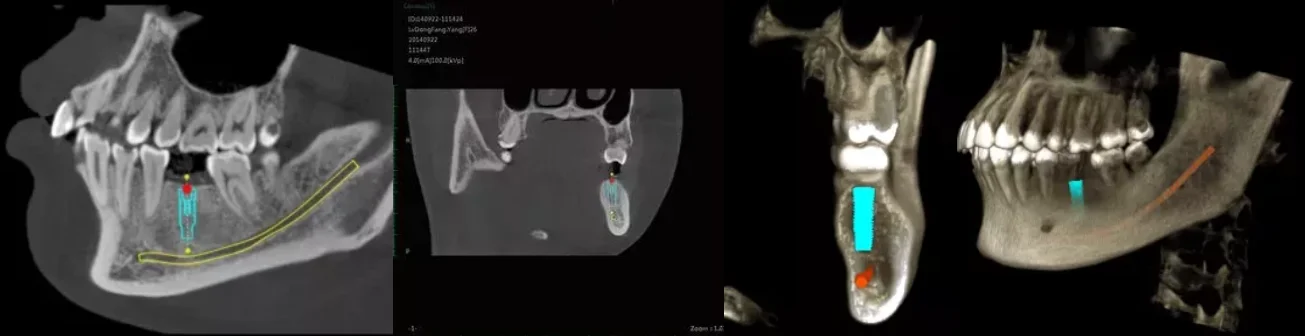

3) Implant Applications
By using the full oral 3D image generated by Smart3D, we can evaluate the bone density of the implant
area, determine the relationship between the implant position and adjacent anatomical structure, finalize the placement, optimize the length and diameter of the implant, improve implant success rate, and avoid possible neurovascular damage.
area, determine the relationship between the implant position and adjacent anatomical structure, finalize the placement, optimize the length and diameter of the implant, improve implant success rate, and avoid possible neurovascular damage.
4) Post-Implant Assessment
As the metal artifact correction function is optimized with artificial intelligence, the Smart3D canmore accurately judge the estimation and status of implant position, angle and jaw for the dentist to assess post-implant planting.

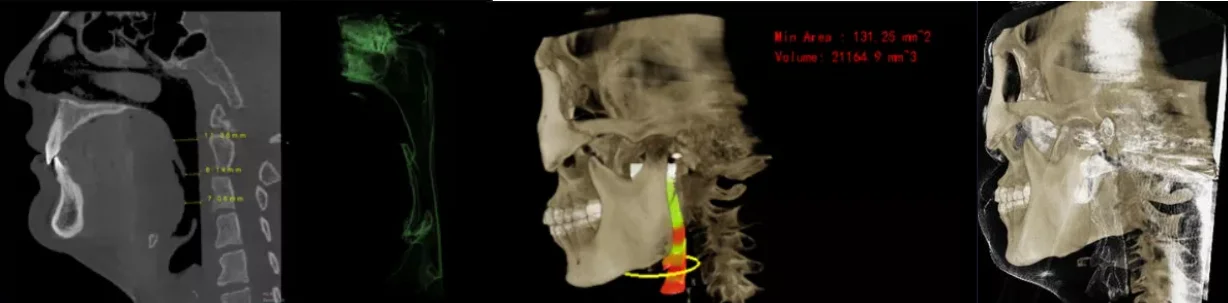

5) Airway Observation
With auto-trace function and gradient color display, the HiRes3D can automatically trace the airway, calculate the volume, highlight the narrow area with different color, and calculate the size of the narrowest area for optimal treatment of patients suffering from sleep disorders, sleep apnea, and sinus complications

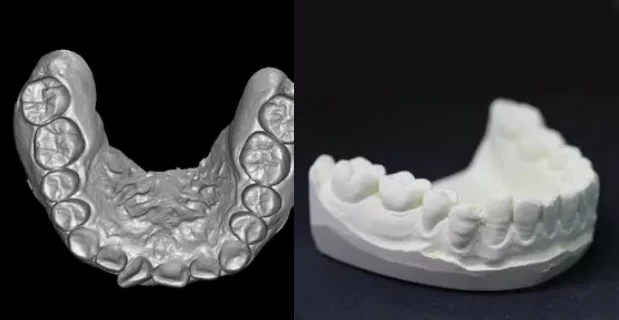

6) Model Scan (optional)
The Smart3D has a model scan function for scanning impressions and plaster models. Scanning accuracy is up to 100μm. The system can easily export STL 3D digital model files for third-party surgical guides and printing.

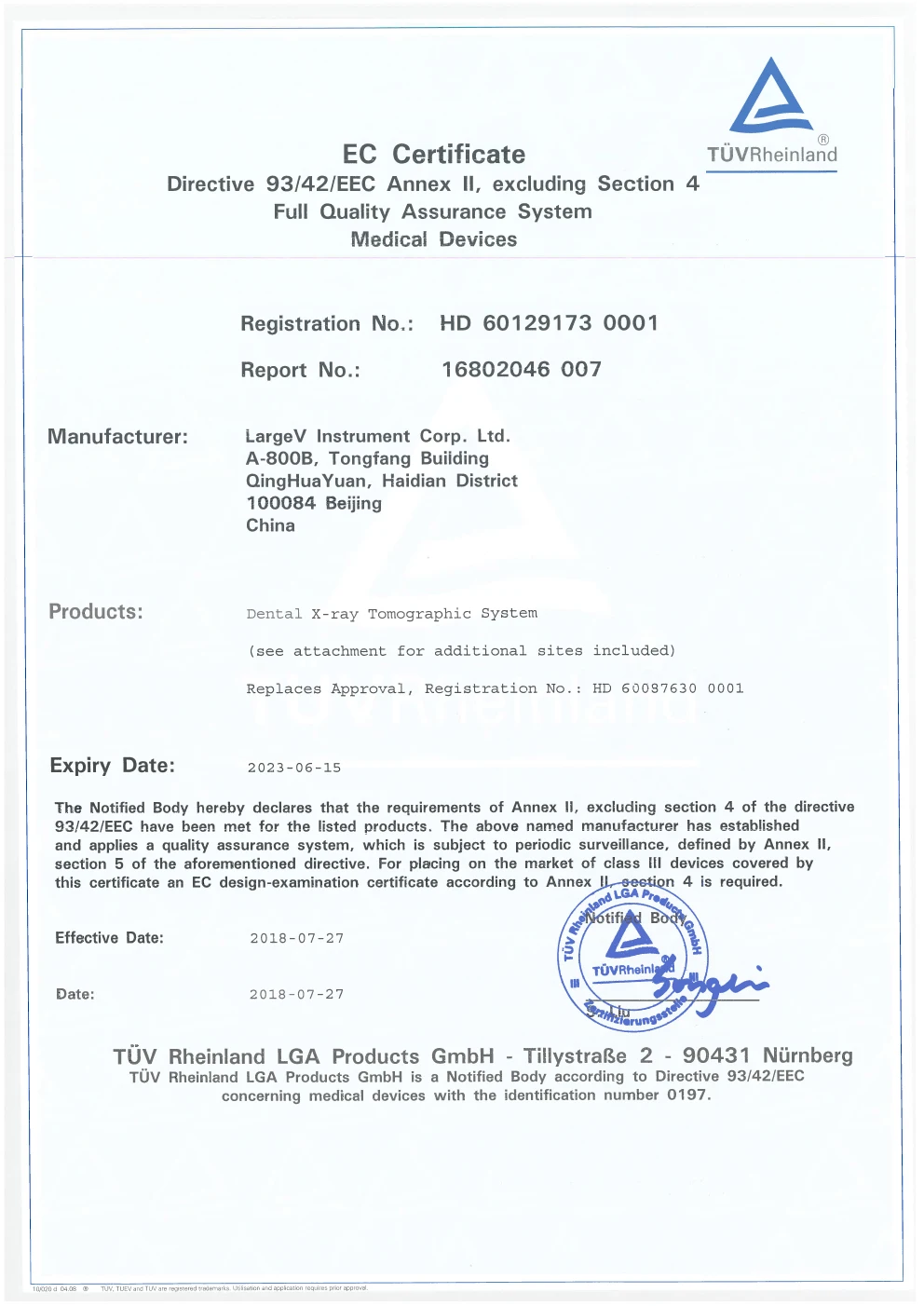

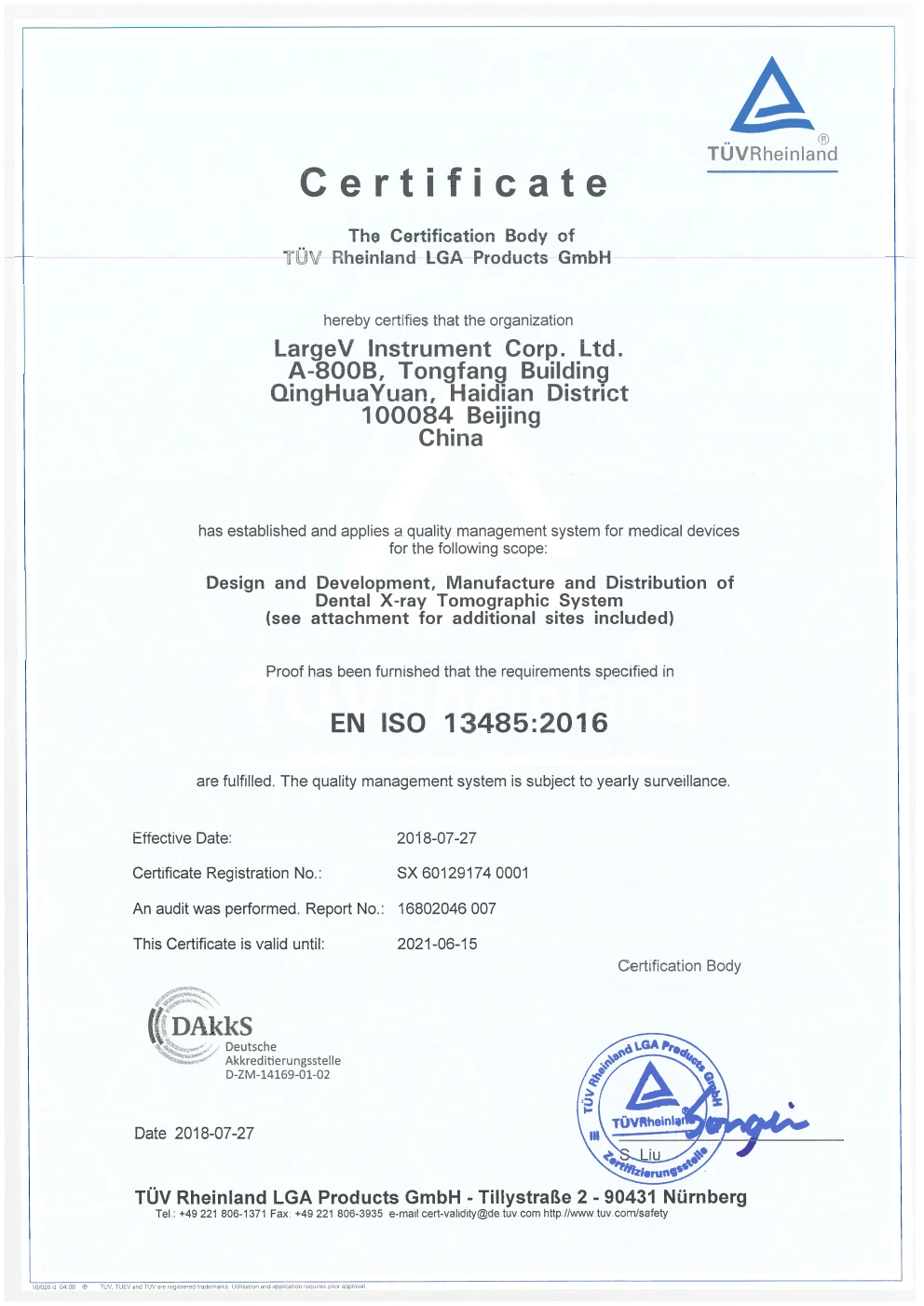

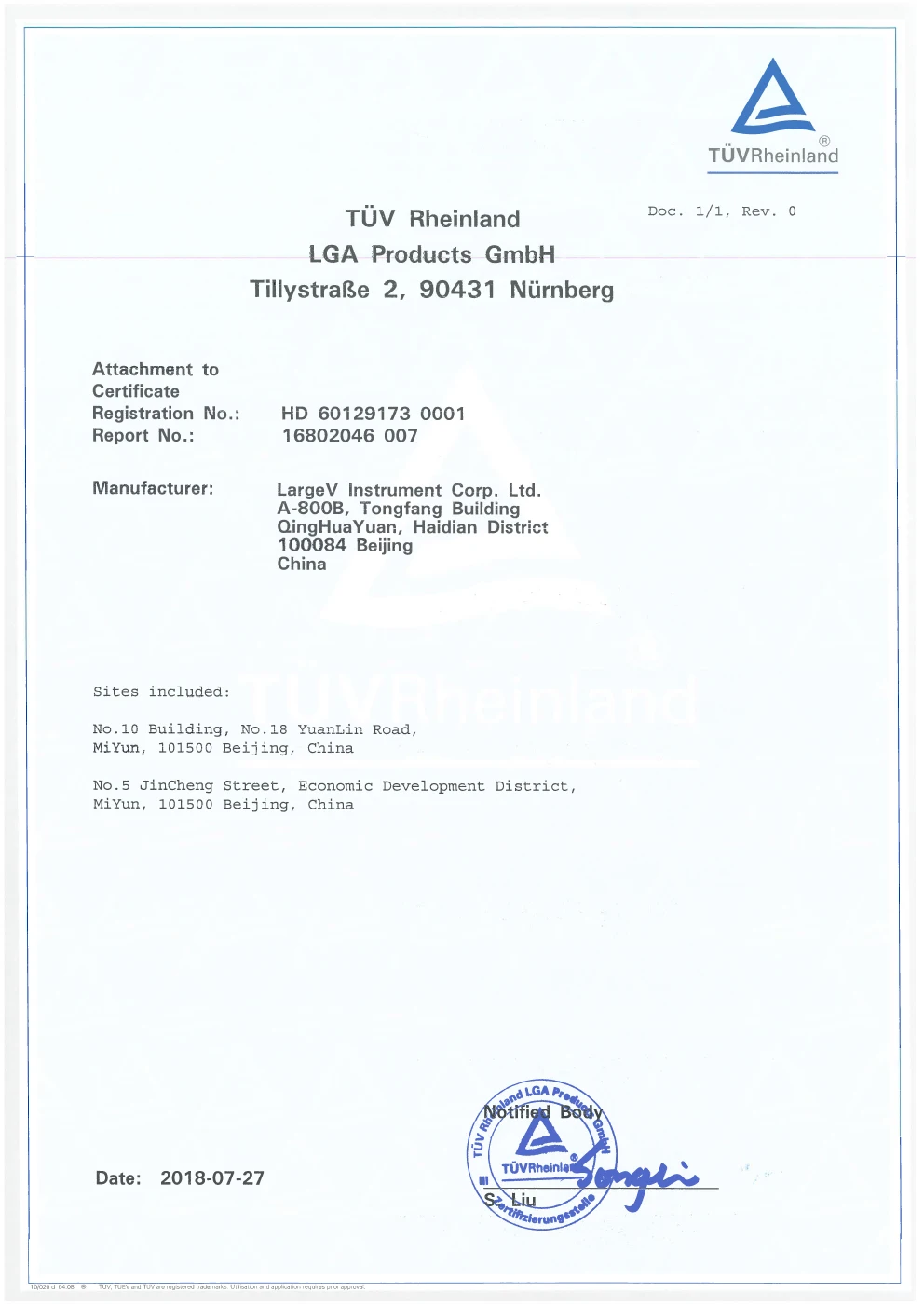

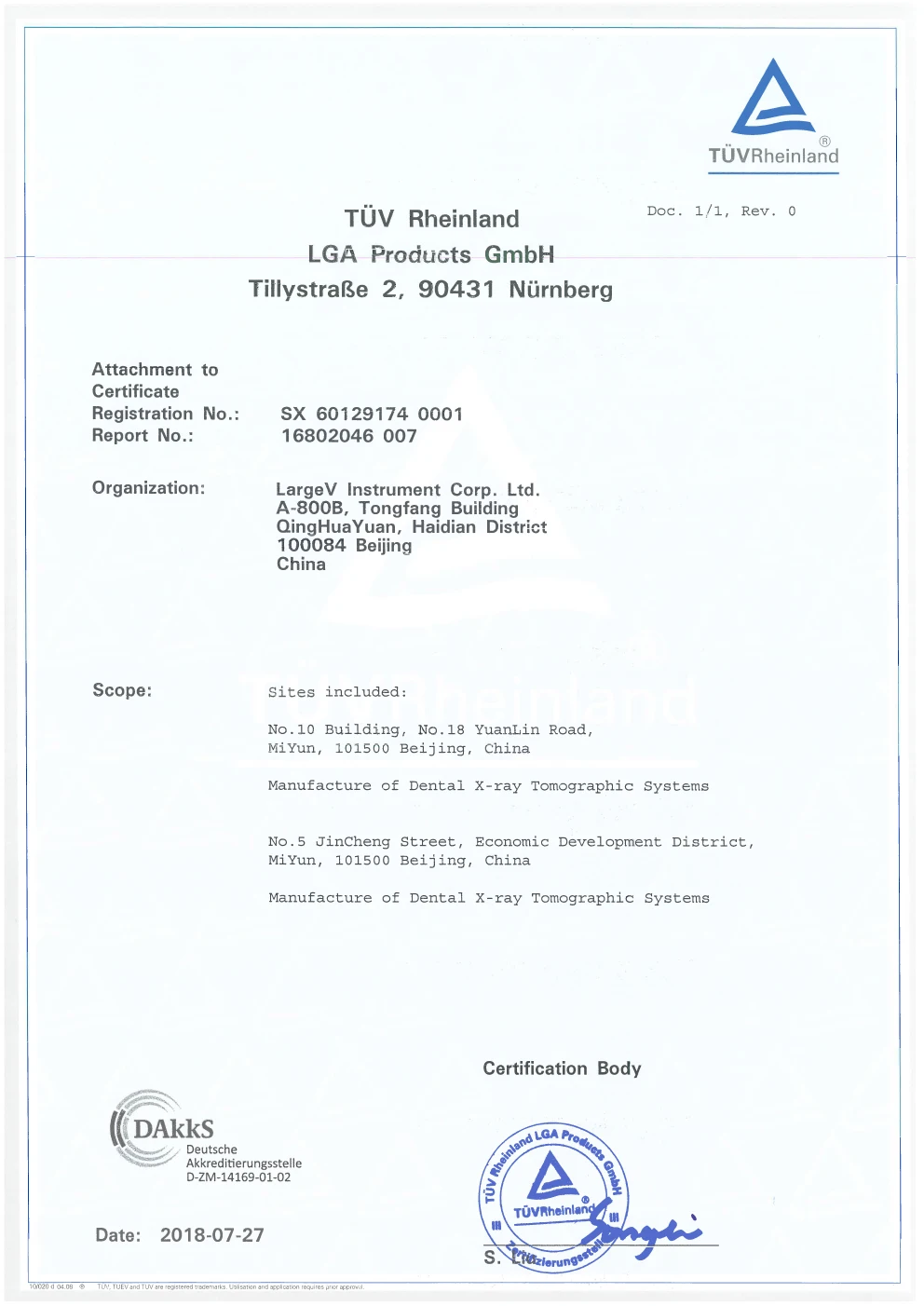

Certifications
Customer Photos
