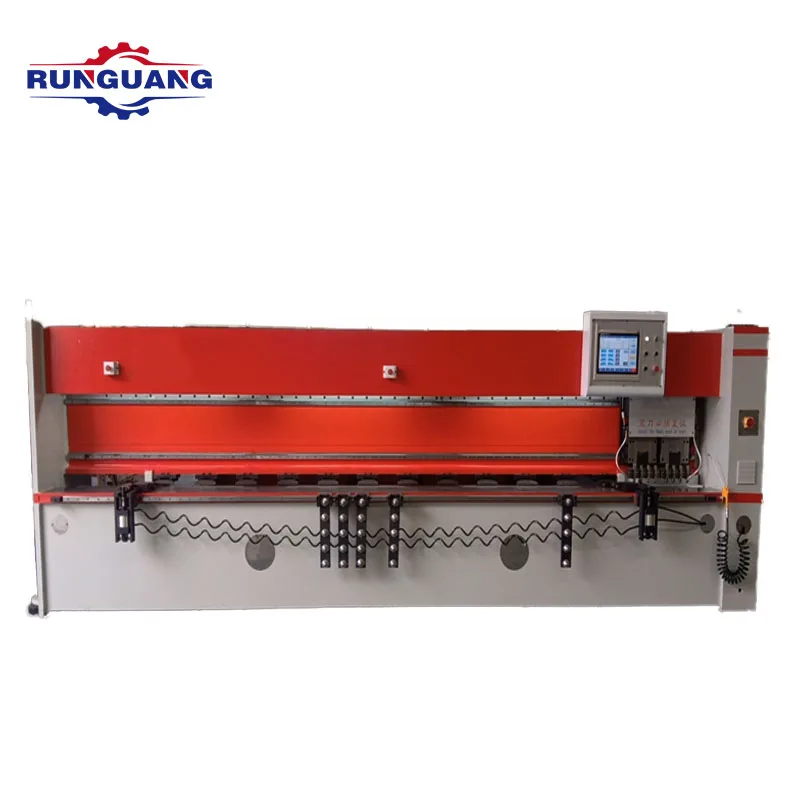

Vertical high speed CNC V groover machine for stainless steel
Products Description
Vertical high speed CNC V groover machine for stainless steel
1：Vertical V groover machine is mainly characterized by heavy load, high speed and high efficiency.
2:This machine adopts frame structure design, high strength bolt connection, the whole rigidity is good, the deformation is small.
3:The equipment beam fixed, the work by the feeding mechanism into the work table can be replaced.Ensure that the flatness of the working surface is within ±0.03mm.
4:This equipment adopts carbon tool steel worktable, after quenching the strength of HRC55 above.So the table wear is very small and can be changed, prolong the service life of the equipment.
5:The equipment has a 5.6KW high-power servo motor, and 4 cutting knives are installed on the tool rest body at the same time. The maximum cutting depth is 1mm, with higher efficiency and faster return speed.

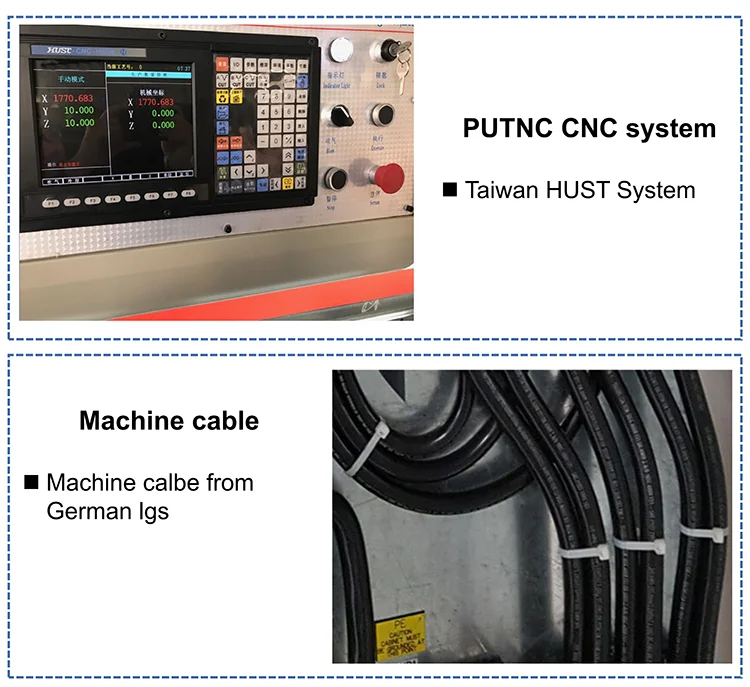

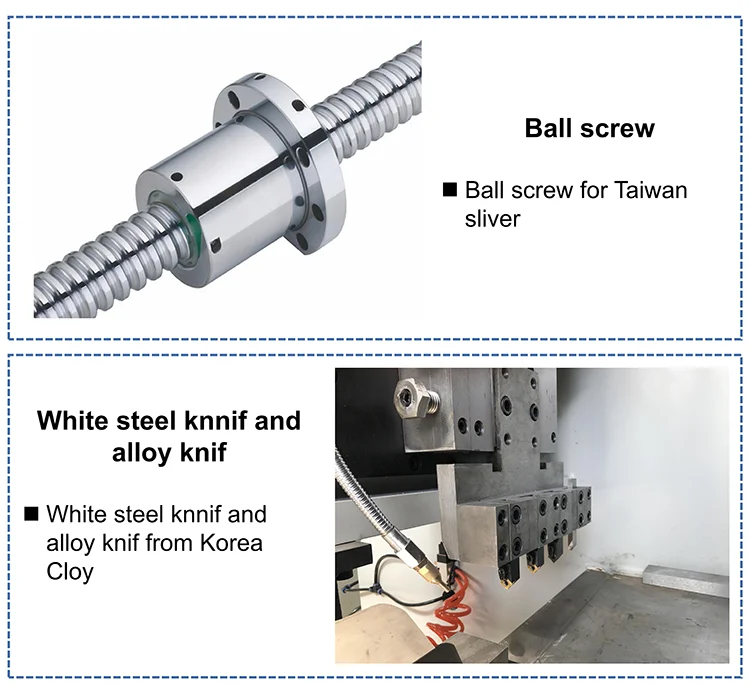

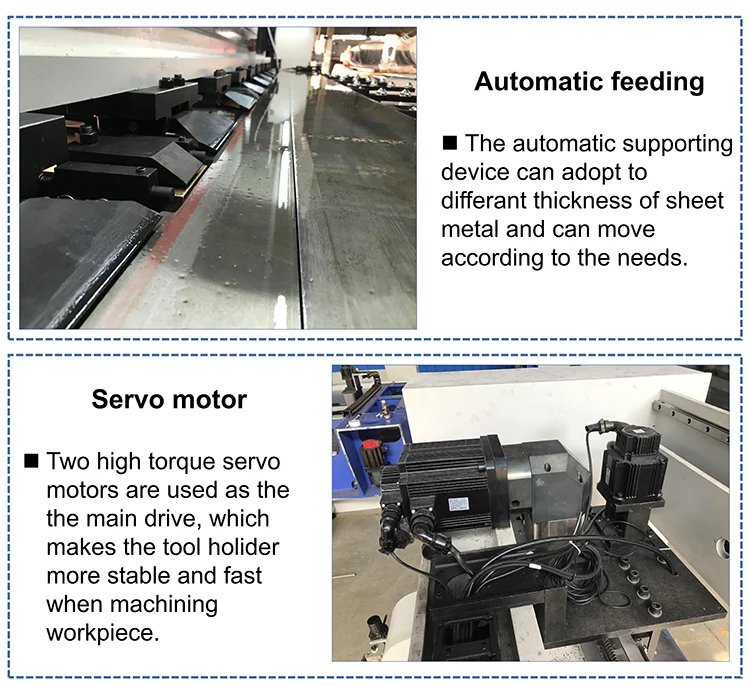

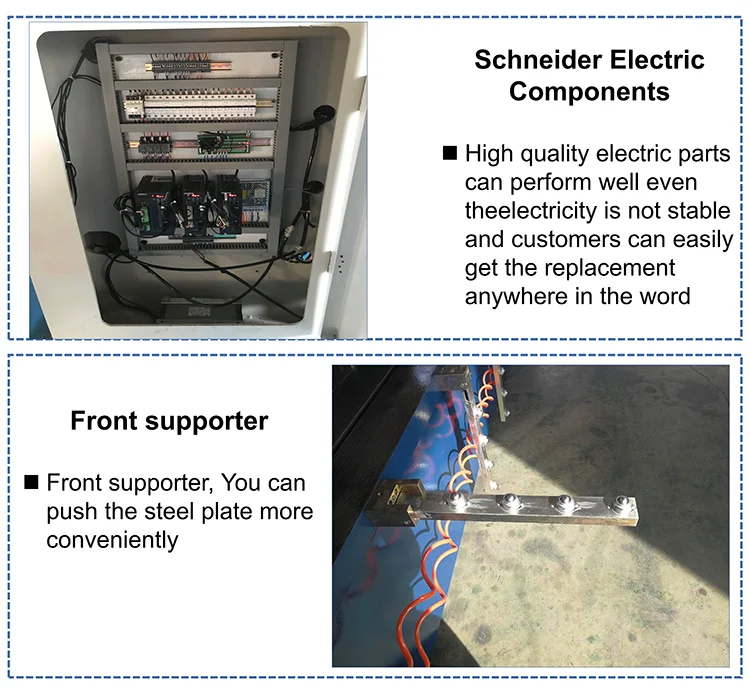

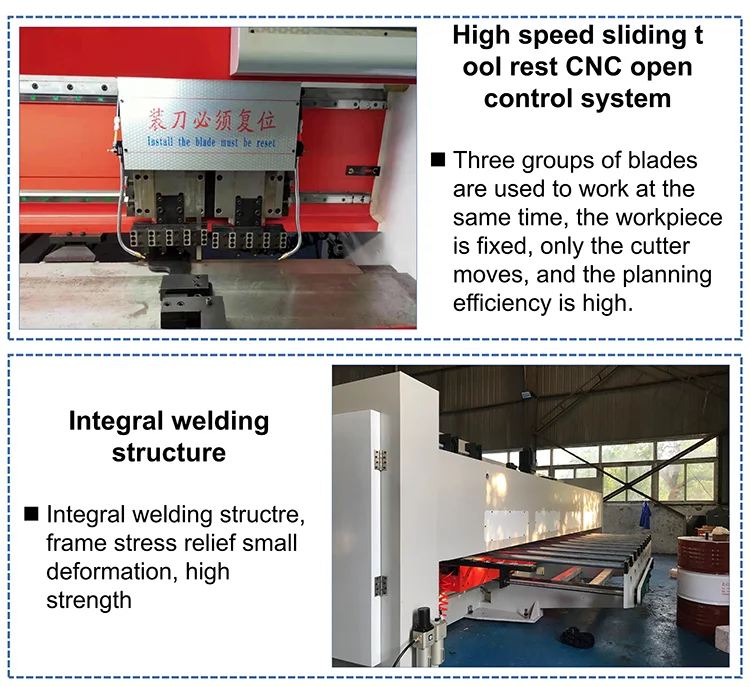

Details Images
Product Paramenters
1 | model | 1250*4000 | ||
2 | Plate thickness（mm） | 0.6~4 | ||
3 | Processing length（mm） | 4000 | ||
4 | Processing width（mm） | 1250 | ||
5 | Cutting speed（m/mim） | 0~120 | ||
6 | Plate feeding speed（m/mim） | 0~20 | ||
7 | The Y axis minimum setting unit(mm) | 0.01 | ||
8 | The Y axis minimum setting accuracy(mm) | ±0.05 | ||
9 | The Z axis minimum setting unit(mm) | 0.01 | ||
10 | The Z axis minimum setting accuracy(mm) | ±0.05 | ||
11 | X axis motor power(KW) | 4.5 | ||
12 | Y axis motor power(KW) | 2 | ||
13 | Z axis motor power(KW) | 1 | ||
14 | Dimensions(L*W*H)(mm） | 5100*2300*1780 | ||
15 | The power of the hydraulic system(KW) | 1.5 | ||
16 | Table flatness(mm) | ±0.03 | ||
The data listed in this document is for reference. If it is not consistent with the actual parameters of the machine tool, the actual data of the machine tool shall prevail. The company reserves the right of final interpretation of this document | ||||
Why Choose Us

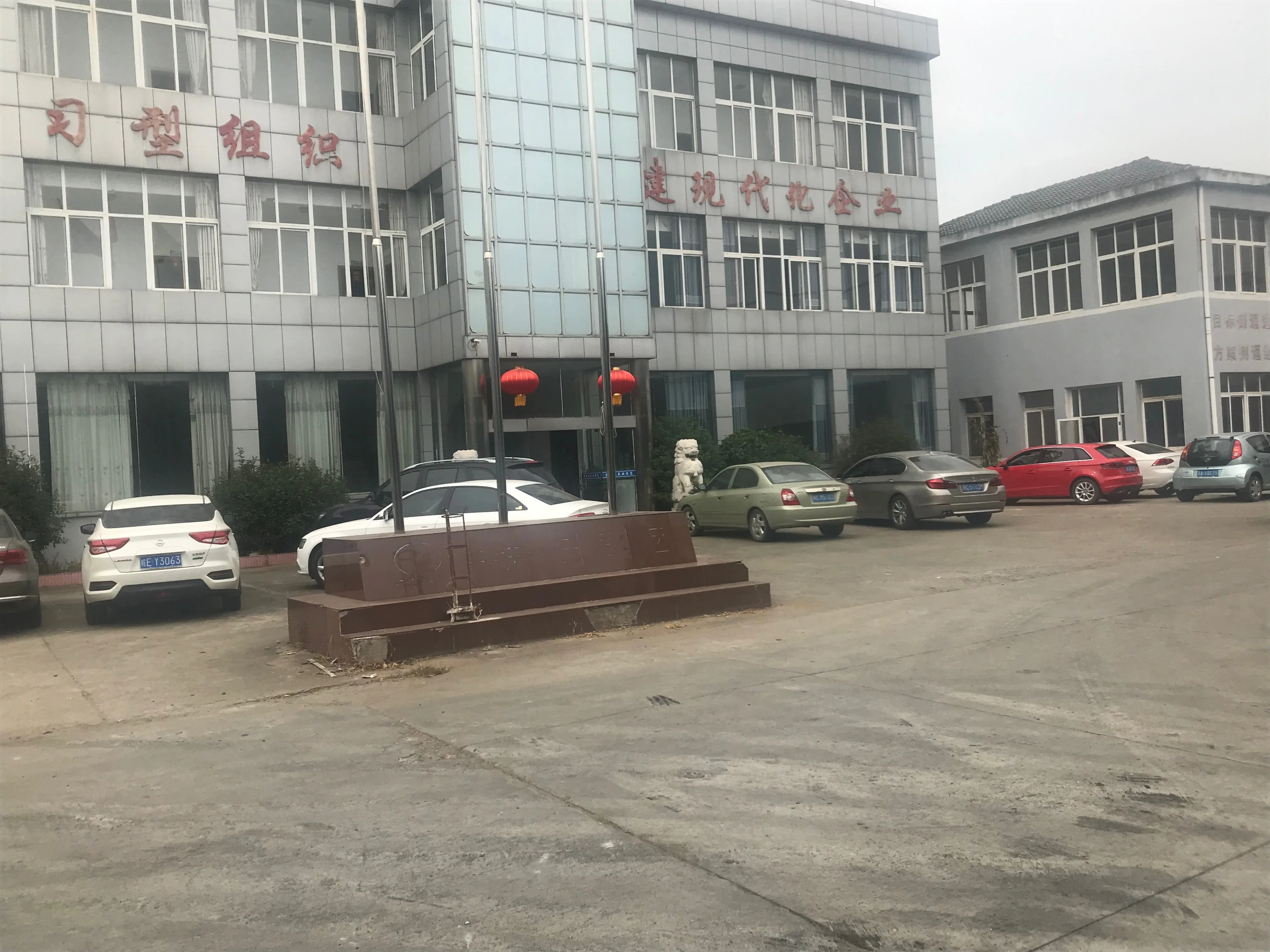

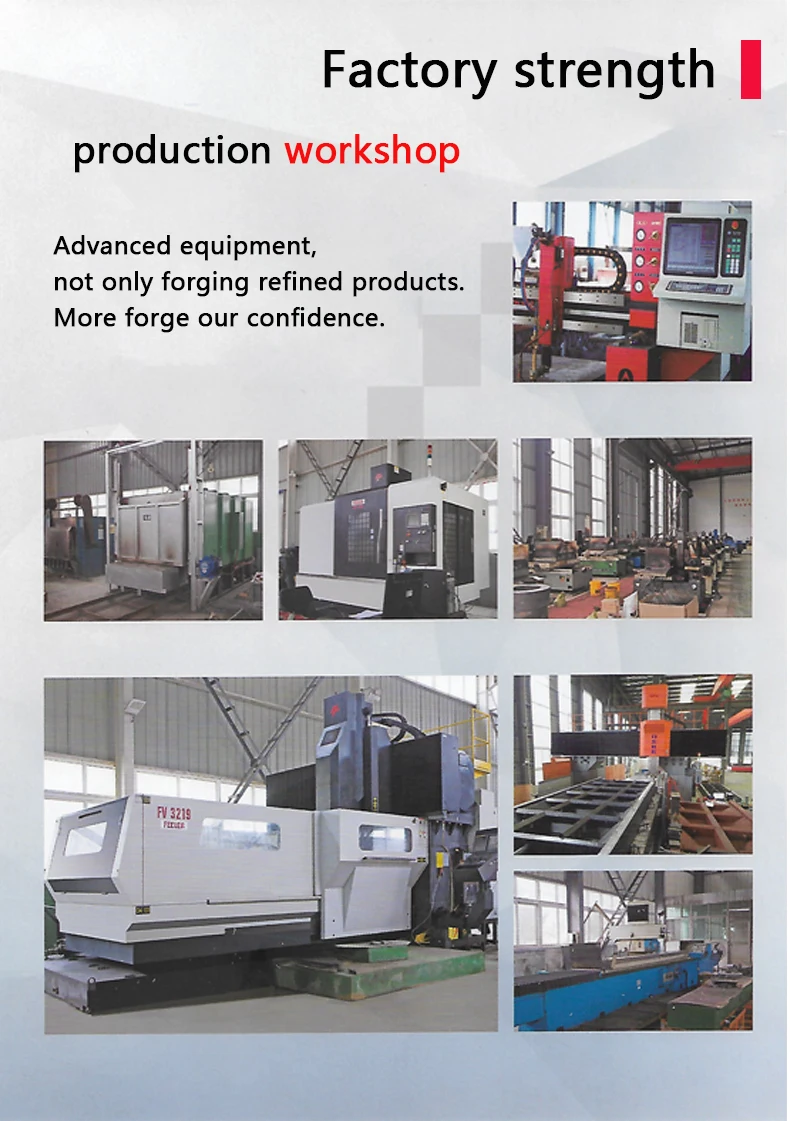

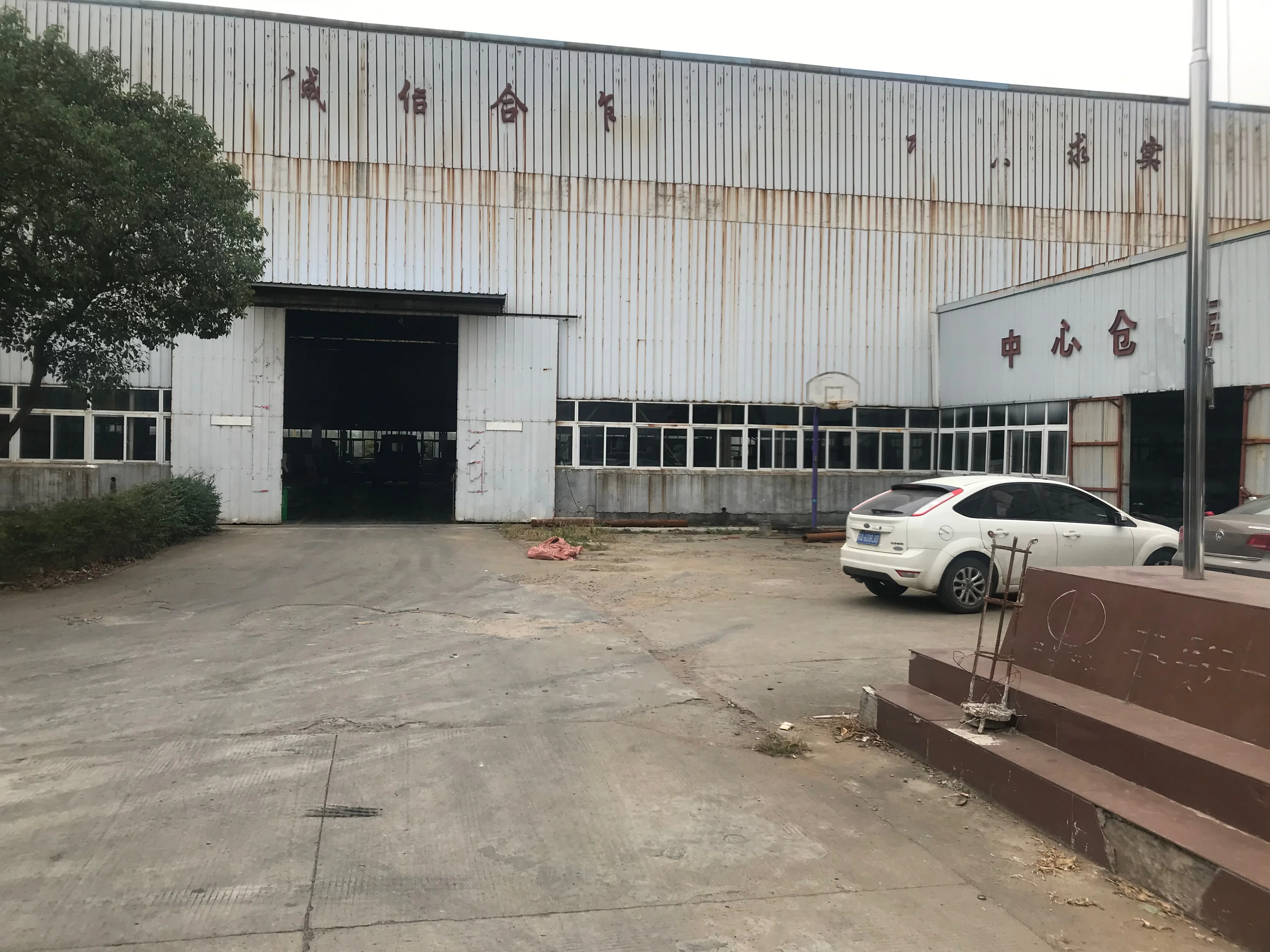

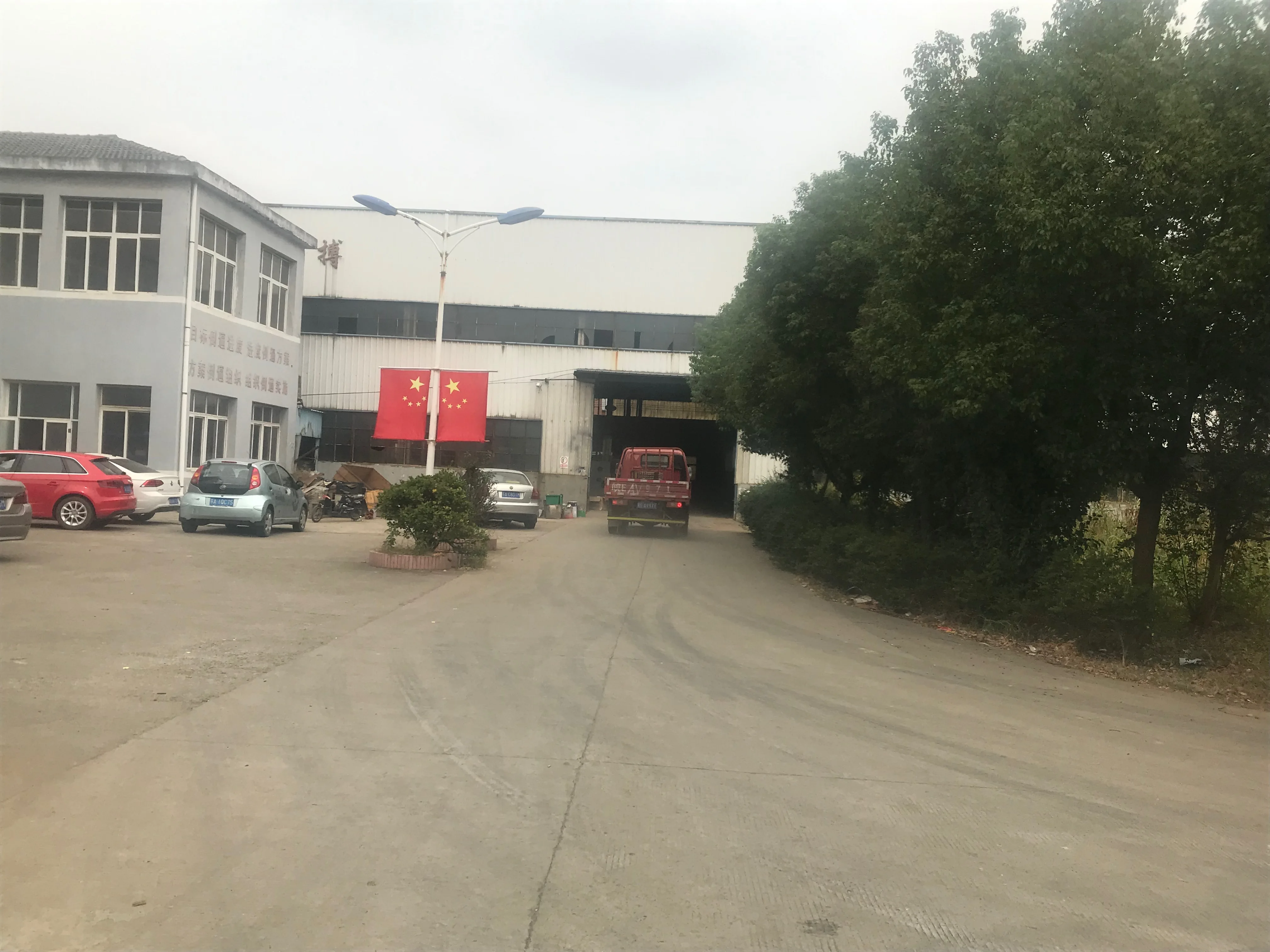

Company Profile
Product packaging
Customer Photos

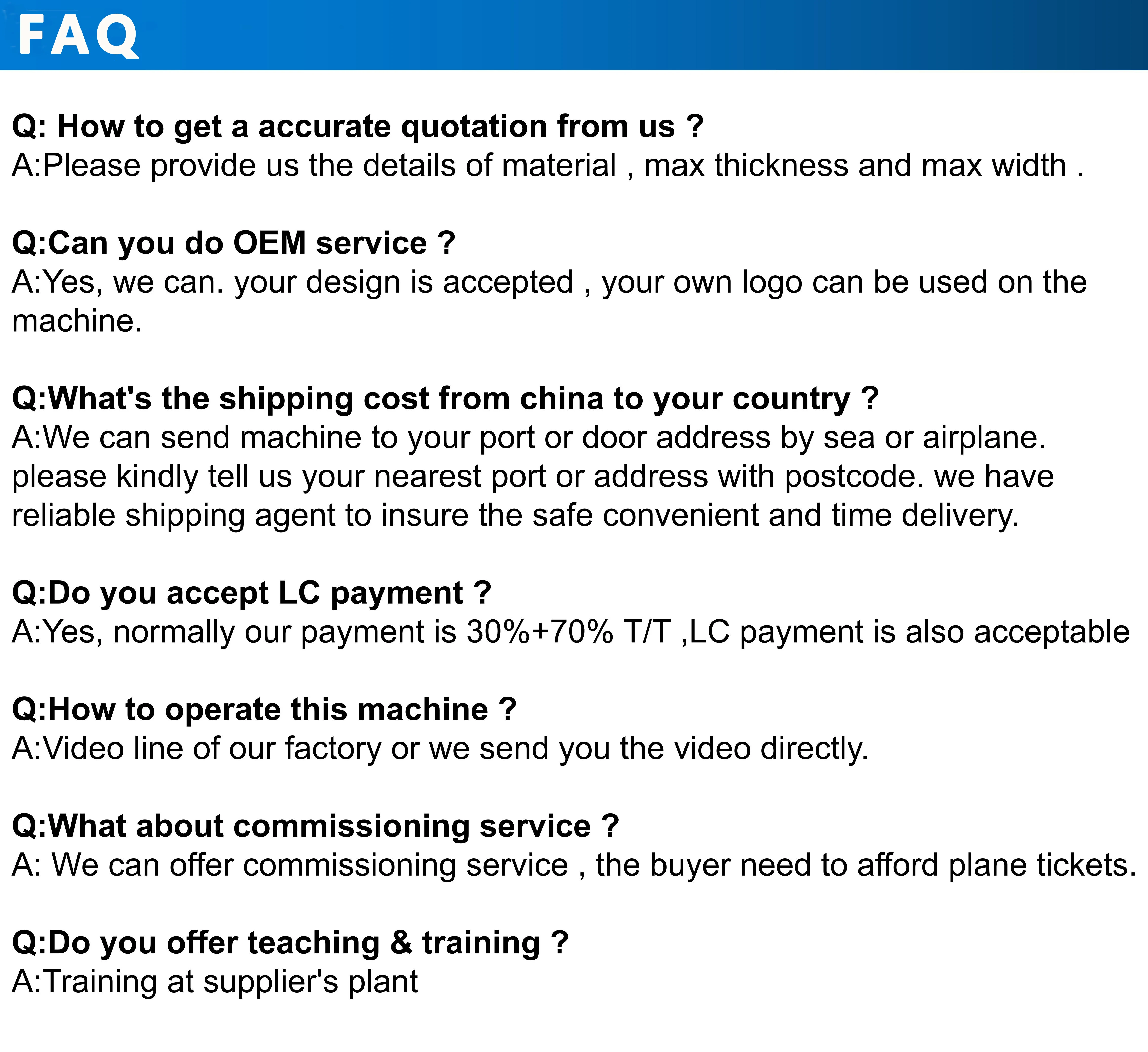

FAQ
