Product Description

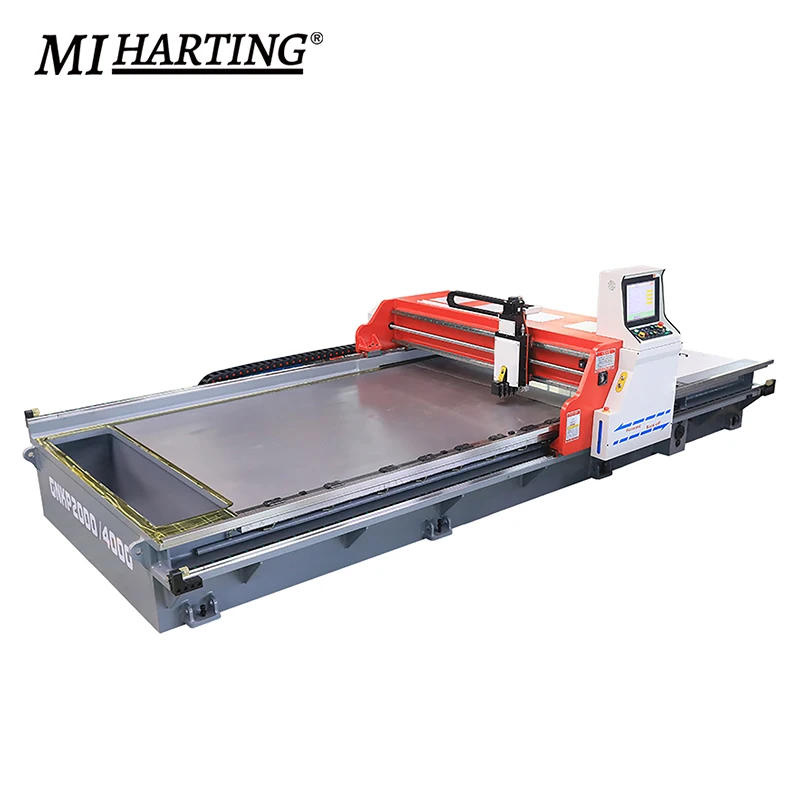

This equipment is a CNC gantry planer. This machine adopts advanced CNC system and novel design. It has the characteristics of high processing precision, simple operation, no noise, no vibration and so on. The machine tool is used to process V-shaped grooves, U-shaped grooves and other irregular grooves on sheet metal parts (stainless steel, aluminum, aluminum-plastic, copper, iron, bakelite, acrylic and other special plates).

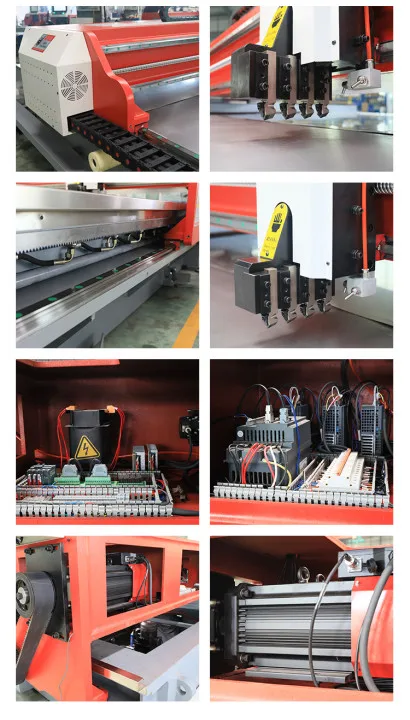

Details Images




Specification


Model
Max. groove thickness(mm)
Min. groove thickness
(mm)
Groove speed
(m/min)
Knife L-R resolution
(mm)
Knife U-D resolution
(mm)
Position accrracy
(mm)
Penumatic pressure
(MPA)
Dimension
(LxWxH)
(mm)
1220x2500
6
0.5
65
±0.001
±0.001
±0.01
6-8
4650x2300x1680
1220x3200
6
0.5
65
±0.001
±0.001
±0.01
6-8
5500x2300x1680
1220x4000
6
0.5
65
±0.001
±0.001
±0.01
6-8
6000x2300x1680
1220x5000
6
0.5
65
±0.001
±0.001
±0.01
6-8
7500x2300x1680
1220x6000
6
0.5
65
±0.001
±0.001
±0.01
6-8
8500x2300x1680
1500x4000
6
0.5
45
±0.001
±0.001
±0.01
6-8
6000x2550x1700
1500x6000
6
0.5
45
±0.001
±0.001
±0.01
6-8
8500x2550x1700




Company Profile


Anhui Harting Machinery Technology Co.,Ltd is a modern management enterprise which mainly produce ordinary and numerical control bending machine, shearing machine, punch machine, three or four rolling machine, combined punching and shearing machine, cutting edge mold accessories. We have all kinds of mechanical engineer and serves the production and after-sales lines of the company. We are a professional manufacturer and exporter of air duct equipment, shear plasma laser cutting, punching and shearing machines and other machine tools in China, with more than 10 years of experience.
We serve customers from all countries in the world, Europe, America, Central and South Asia, the Middle East and other continents.
Our products are widely used in professional production fields such as decoration, metallurgy, shipbuilding, automobiles,
machinery, aviation, etc.


Certifications

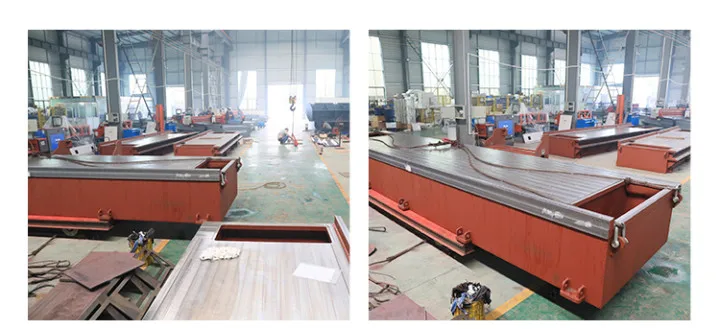

Our Workshop




Customer Photos






FAQ


1. who are we?
We are based in Anhui, China, start from 2012,sell to Mid East(25.00%),Western Europe(18.00%),Eastern Europe(17.50%), North America(15.30%),Southern Europe(12.30%),Africa(10.80%),South America(7.50%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Auto duct line,Press Brake,Laser Cutting Machine,Shear machine,Punch machine

4. why should you buy from us not from other suppliers?
We are manufacturer and trading company of metal sheet cutting, bending, shearing, punching, rolling machine tools with
professional technician team and complete factory fabrication solution.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union;
Language Spoken:English,Spanish,Japanese,Russian
