Product Description
Model | RFE565 | RFE565C | RFE565JC | RFE565JCFH |
Panel length | ≥150mm | ≥150mm | ≥150mm | ≥150mm |
Panel width | ≥60mm | ≥60mm | ≥60mm | ≥60mm |
Panel thickness | 10-60mm | 10-60mm | 10-60mm | 10-60mm |
Edgeband thickness | 0.4-3mm | 0.4-3mm | 0.4-3mm | 0.4-3mm |
Feeding speed | 15-23m/min | 15-23m/min | 15-23m/min | 15-23m/min |
Total power | 10.8KW | 12.6KW | 17.6kw | 20.6kw |
Required air pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Overall dimensions(L*W*H)mm | 4500*900*1600 | 5600*900*1600 | 6600*900*1600 | 7600*900*1600 |
Weight | 1600kg | 1900kg | 2300kg | 2400kg |
SAMACH edge banding machines can be OEM and ODM.
RFE565C: Gluing, Edge cutting, Press, End trim, Rough Trim, Fine trim, Corner Trim,Scraping, Buffing
(Optional functions: pre-milling, corner trim, flat scrapping, hogging, etc)
RFE465:Gluing, Edge cutting, Press, End trim, Fine trim, Scraping,Buffing
(Optional functions: Pre-milling, Rought rim,Corner trim, Flat scrapping, Hogging, etc)

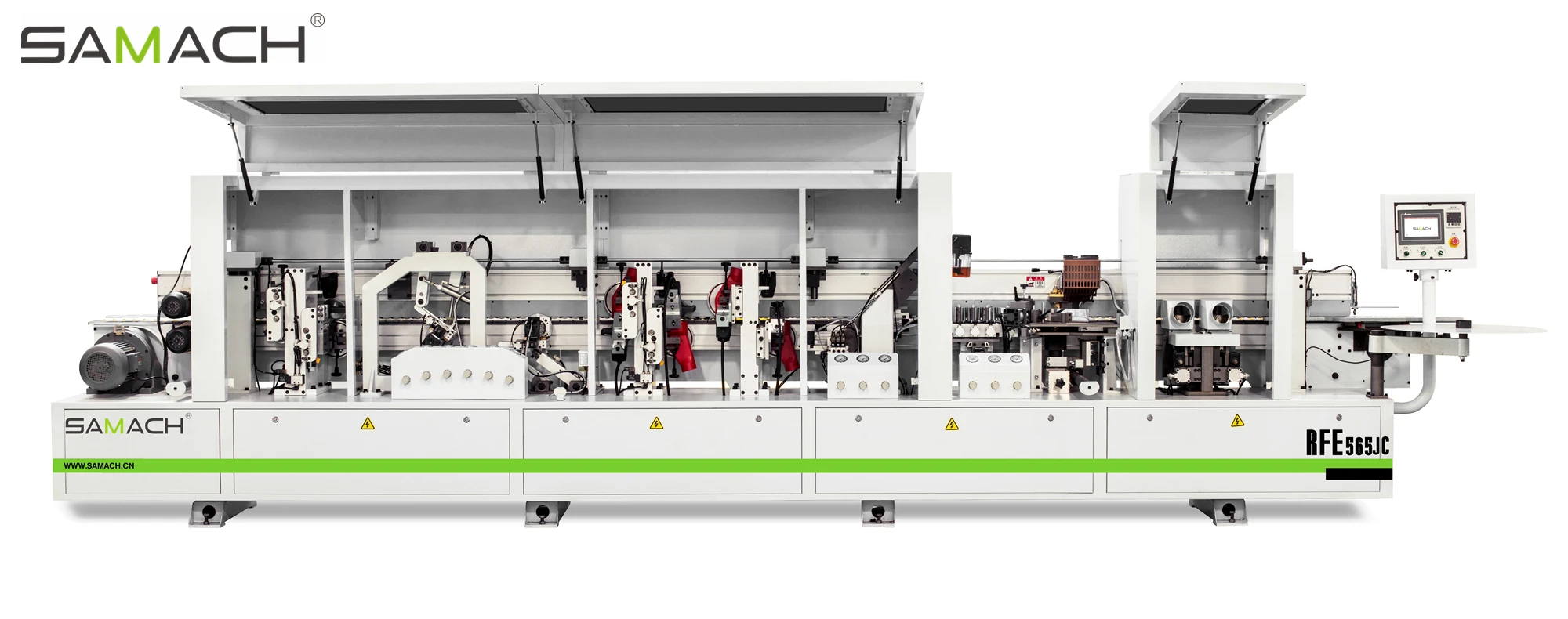

RFE565C SAMACH Woodworking Edgebander for PVC Tape and Wood Strip Tape Popur in Euro International Markets Edge banding Machine

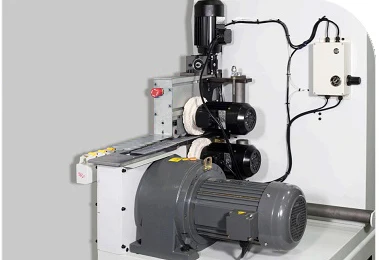

1. Pre-milling system

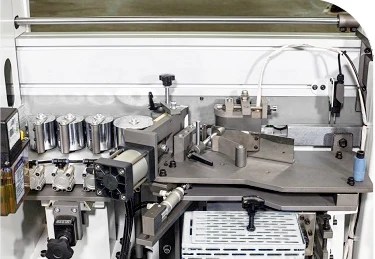

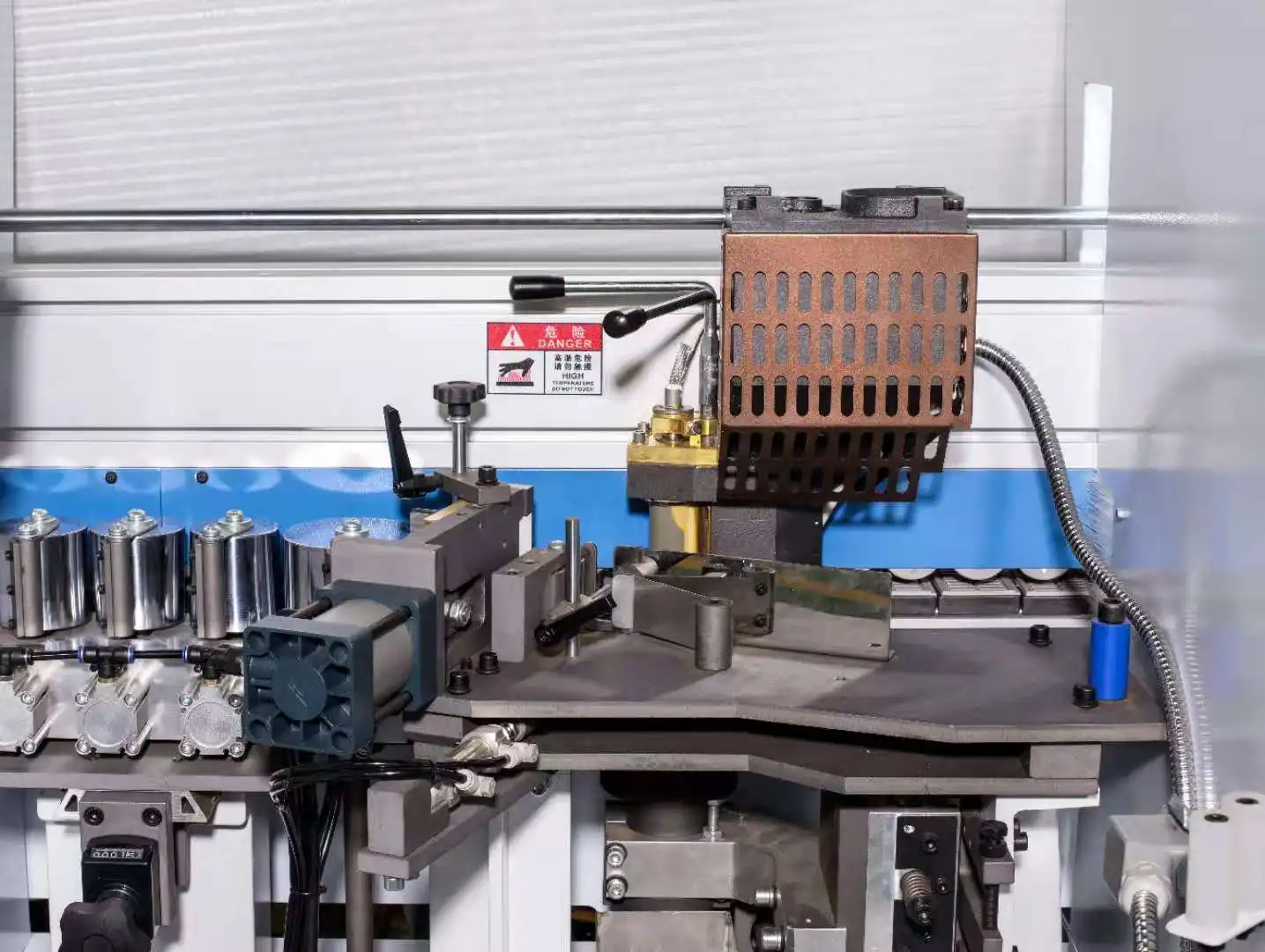

2. Gluing system, Feeding and edge cutting system,Press system
RFE565C SAMACH Woodworking Edgebander for PVC Tape and Wood Strip Tape Popur in Euro International Markets Edge banding Machine
3.End trimming system
4. Rough trimming system &Fine trimming system
5. Corner trimming system
6. Scrapping system
7. Buffing system

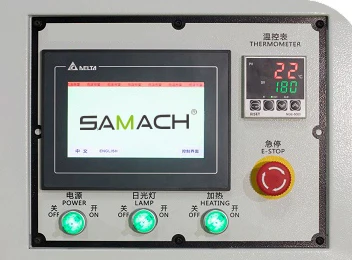

8.Control panel
Optional:
1. Pneumatic fine trim
2. Pneumatic scraping
3. Mist before pre-milling and buffing
Parts
Item | Parts | Brand |
1 | PLC,Frequency converter,Screen | Delta |
2 | Cylinder,air pressure adjust | Easun,Taiwan/AirTAC |
3 | Thermostat,proximity switch | Yatai,Korea AutoNice |
4 | Limit switch | Honeywell |
5 | High frequency motor | Tianyang |
6 | Thermal relay,AC contactor | Siemens |
