300 кг Заводская распродажа подвижный мобильный Электрический вакуумный подъемник Стекло Робот подъемная машина
- Категории: >>>
- Поставщик: Shandong,Aolai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
high automatic high quality big heavy glass Vacuum Lifter robot
Glass installation robot

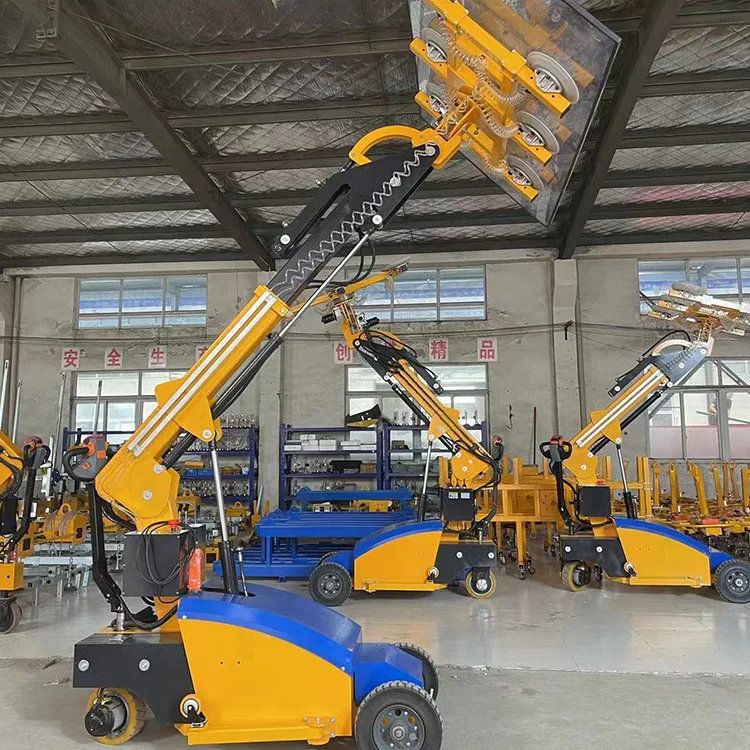

Product Show
Glass installation robot
Main features of glass installation manipulator
It adopts negative pressure vacuum circuit and negative pressure digital display. Compared with the traditional instrument
display, the sensitivity is improved. The display is more accurate and more intuitive, which guarantees the glass suction to a
certain extent.
It is equipped with an alarm for insufficient pressure, automatic supplement of negative pressure, digital display of vacuum
pressure and battery power gauge, so that you can more clearly monitor the operation of the equipment
Ultra-high sensitivity, including a pinhole 1/10 of the size of the air leakage can be visually displayed on the digital display.
The digital display is built into the operating electrical cabinet to better protect the equipment from the harsh engineering
environment and accidental damage. Suitable for on-site construction and installation of outdoor engineering glass
It adopts negative pressure vacuum circuit and negative pressure digital display. Compared with the traditional instrument
display, the sensitivity is improved. The display is more accurate and more intuitive, which guarantees the glass suction to a
certain extent.
It is equipped with an alarm for insufficient pressure, automatic supplement of negative pressure, digital display of vacuum
pressure and battery power gauge, so that you can more clearly monitor the operation of the equipment
Ultra-high sensitivity, including a pinhole 1/10 of the size of the air leakage can be visually displayed on the digital display.
The digital display is built into the operating electrical cabinet to better protect the equipment from the harsh engineering
environment and accidental damage. Suitable for on-site construction and installation of outdoor engineering glass
Product details
Glass installation robot
Product Specification
Glass Installation Robot | / | RYGCPD | ||||||||
Rated load capacity | kg | 300 | 350 | 400 | 500 | 600 | ||||
Manual rotating | . | 360 | 360 | 360 | 360 | 360 | ||||
lifting height | mm | 3500 | 3500 | 3500 | 3500 | 3500 | ||||
Manipulation | / | Walkie Type | ||||||||
Battery | V/A | 2x12/80 | 2x12/90 | 2x12/100 | 2x12/120 | 2x12/120 | ||||
Charger | V/A | 24/12 | 24/12 | 24/15 | 24/18 | 24/18 | ||||
Drive motor | V/W | 24/1200 | 24/1200 | 24/1200 | 24/1500 | 24/1500 | ||||
Lift motor | V/W | 24/2000 | 24/2000 | 24/2000 | 24/2200 | 24/2200 | ||||
Overall Width | mm | 810 | 810 | 810 | 810 | 810 | ||||
Overall Length | mm | 2660 | 2660 | 2660 | 2800 | 2800 | ||||
Driving wheel dimension | mm | 250*80 | 250*80 | 250*80 | 300*100 | 300*100 | ||||
Pads diameter | mm | 300 | 300 | 300 | 300 | 300 | ||||
Glass size | mm | 3660*2440 | 3660*2440 | 3660*2440 | 3660*244 | 3660*2440 | ||||

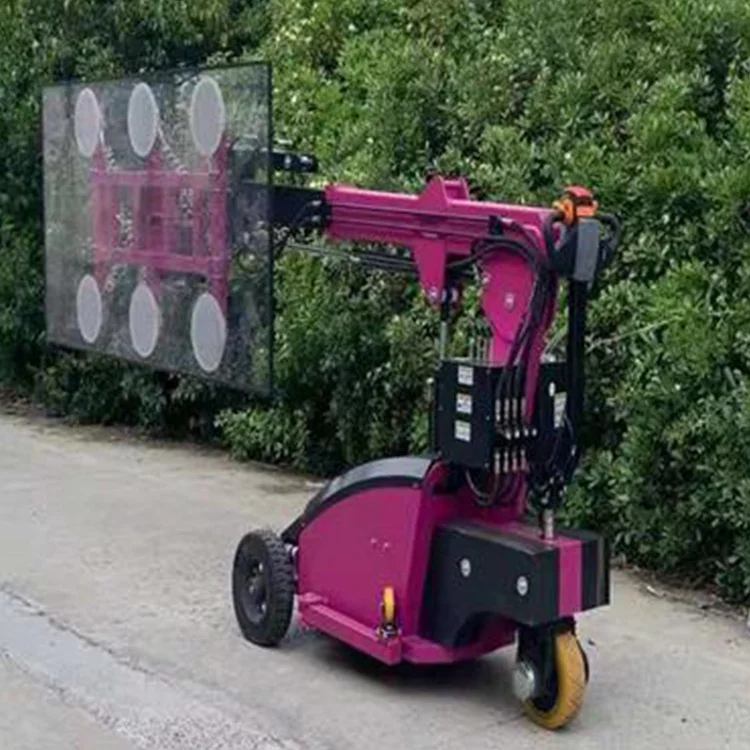

Applicable scene
Our Company
Glass installation robot

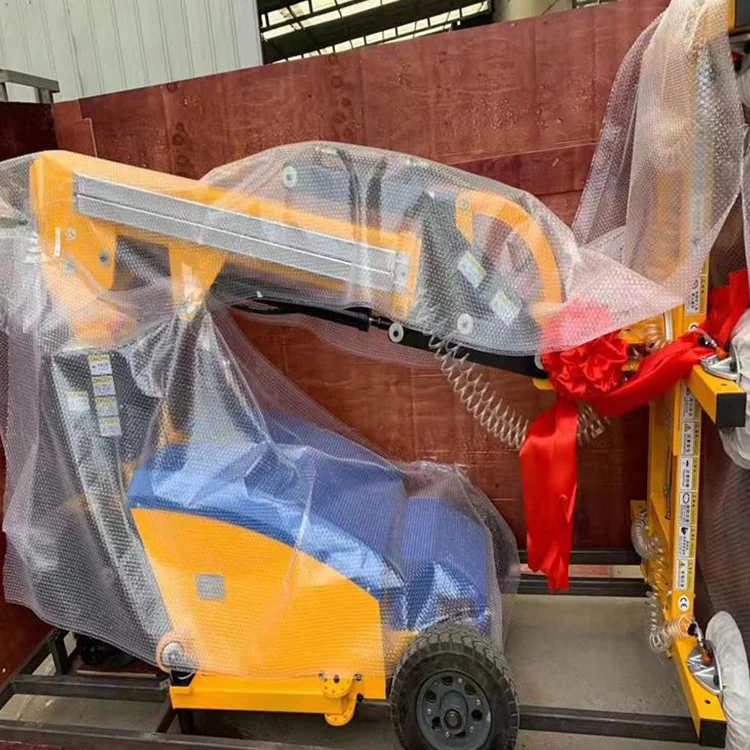

Packaging And Shipping
Common Problem
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO,EPA(USA),CCC
3: What about the delivery
time?
time?
A: 7-20 days after receiving the deposit. 4: What about the warranty time?
A: 12 months after shipment or 2000 working
hours, whichever occuts first. 5. What about the Minimum Order Quantity?
hours, whichever occuts first. 5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs 6.What about the service? 1). Quick
response to every inquiry.
response to every inquiry.
2). Professtional and detailed answer to any of customer's questions.
3). Strict QC and in time delivery.
4). Offer all relative material for customer to know and better use the machine.
5). Periodically after service followup, offer any necessary support if needed.
6).For the new machine, within determined limits, the manufacture guarantees warranty
for a period of 12 months after bought or 20 00 working hours(whichever comes first).
for a period of 12 months after bought or 20 00 working hours(whichever comes first).
7).The warranty includes repairation or replace the parts for free which were proved to be defective in origin by the technical department of the manufacture.
8).The repairation or replacement for the parts should not exceed the warranty period.
9).The warranty is valid on the condition of all the terms listed in the contract was observed.
Contact Us
Leonardo
Director of SalesMarketing | Shandong Aolai Machinery Co., Ltd
Call:+86 13176189701
E-Mail:a13176189701@hotmail.com
https://chinaaolai.en.alibaba.com/
Jining City, Shandong Province, China
E-Mail:a13176189701@hotmail.com
https://chinaaolai.en.alibaba.com/
Jining City, Shandong Province, China
