Первый в мире Сокол V-образной формы двойной ротор диапазон 50 минут управление 7 км трехосевых механических gimbal беспилотных летательных аппаратов
- Категории: Drones >>>
- Поставщик: Shenzhen,Zhenhuashang,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Description:

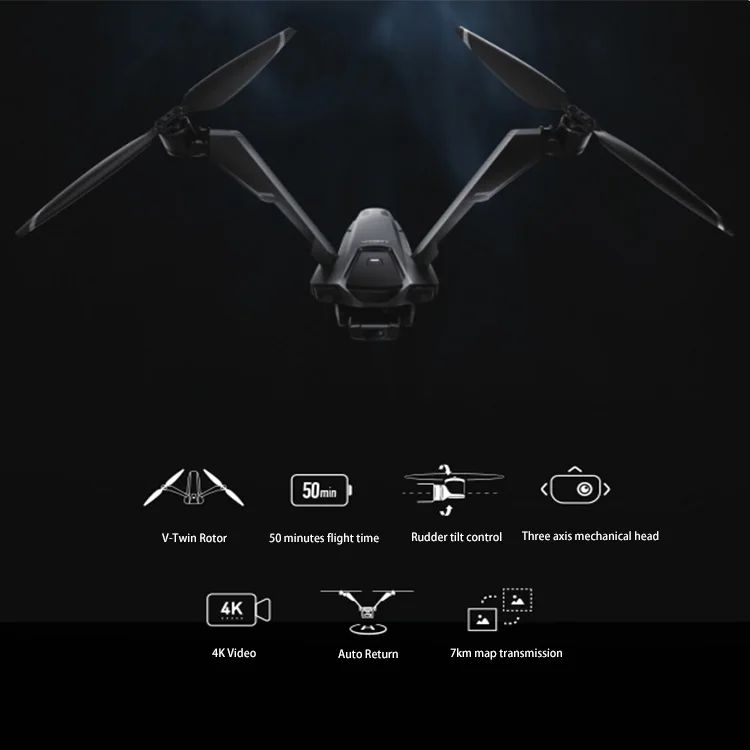

The world's first dual-rotor professional-grade drone--Vcoptr
Number: Vcoptr
Frequency: 2.4G
Quadrocopter battery: 15.4V 4500mAh lithium battery (included)
Flight time: 50 minutes
Remote control distance: 7000m
Color: black
Camera: 4K 3840×2160@ 30fps;
Image Sensor: 1/2.3-inch CMOS; 12 million effective pixels
Lens:Viewing angle 77°±3°;Equivalent focal length 28mm;Aperture f/2.2
The size of the quadrilateral: Folded size: 220.6*148.2*72.3 mm
Wind Resistance Rating: Class 5 wind
Maximum Ascent Speed:4m/s (normal gear), 5m/s (sports gear)
Maximum Descent Speed:2m/s
Maximum horizontal flight speed:8m/s(normal gear), 12m/s(sports gear)
Max. following speed:6m/s (following people), 30km/h (following cars)
Maximum flight height:500m
Hovering time:50 minutes
GNSS:GPS+GLONASS
Obstacle Avoidance:Maximum obstacle avoidance speed 4m/s
Map transmission distance:7000m
ISO：100-6400
photo size：4000*3000
Feature:

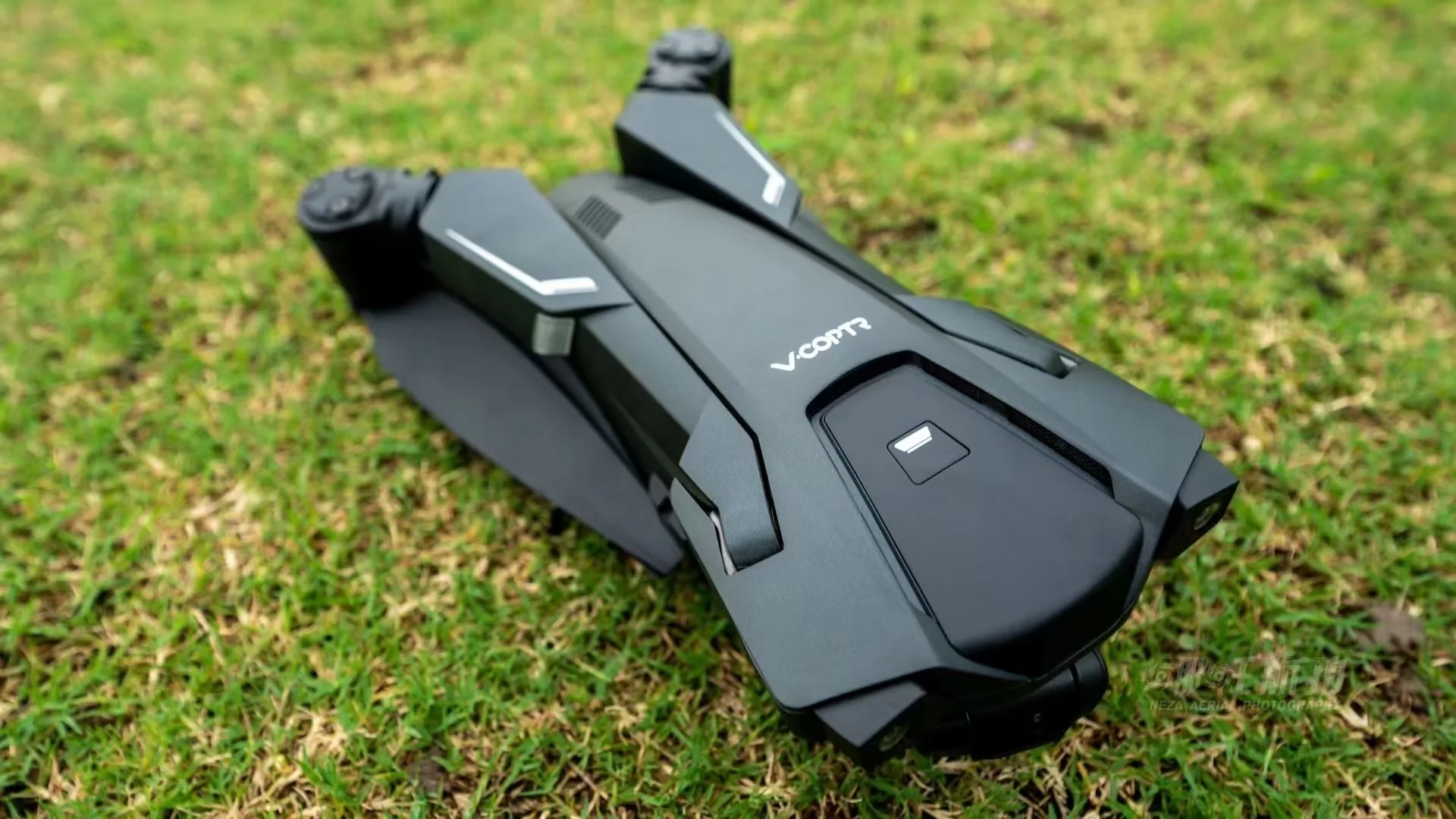

-With foldable arms, it is compact and easy to carry.
-Height hold mode function can provide stable flight.
-With wifi function, you can connect to APP, APK system to take pictures and videos, and transmit images in real time through the phone camera.
-Use 4K wide-angle camera to provide a wide range of high-definition pictures and videos.
-Using the headless mode, there is no need to adjust the position of the aircraft before flying.
-With a key return function, you can easily find the way home.
-Ballistic flight. Draw a flight path on the screen, and the drone will fly autonomously along the designated direction.
-Anti-interference adopts 2.4GHz technology.
-4 channels, can go up, down, forward, backward, fly on the left, fly on the right and 360° rolling.
-Three axis mechanical head + EIS, controlled rotation range (tilt): -90 ° to 20 °
-It has 2 levels of flight speed switching, which can make flying more interesting.
-The quad-rotor fuselage is made of high-strength and engineering plastics, which is light and durable.
Functions: Folding 2.4G brushless GPS drone with optical flow positioning, electric adjustment WIFI professional aerial photography machine: the front lens placed 4K HD WIFI accurate positioning, ultra-long battery life 15.4V large battery, low battery / out of control / ultra-distance can return, intelligent follow, around the point of flight, double folding (wind blade, wings), APP mobile control, custom route, One key return, rise and fall, forward and backward, left and right side flight, headless mode, automatic switching optical flow / GPS
The world's first dual-rotor professional-grade drone--Vcoptr
Number: Vcoptr
Frequency: 2.4G
Quadrocopter battery: 15.4V 4500mAh lithium battery (included)
Flight time: 50 minutes
Remote control distance: 7000m
Color: black
Camera: 4K 3840×2160@ 30fps;
Image Sensor: 1/2.3-inch CMOS; 12 million effective pixels
Lens:Viewing angle 77°±3°;Equivalent focal length 28mm;Aperture f/2.2
The size of the quadrilateral: Folded size: 220.6*148.2*72.3 mm
Wind Resistance Rating: Class 5 wind
Maximum Ascent Speed:4m/s (normal gear), 5m/s (sports gear)
Maximum Descent Speed:2m/s
Maximum horizontal flight speed:8m/s(normal gear), 12m/s(sports gear)
Max. following speed:6m/s (following people), 30km/h (following cars)
Maximum flight height:500m
Hovering time:50 minutes
GNSS:GPS+GLONASS
Obstacle Avoidance:Maximum obstacle avoidance speed 4m/s
Map transmission distance:7000m
ISO：100-6400
photo size：4000*3000
Feature:
-With foldable arms, it is compact and easy to carry.
-Height hold mode function can provide stable flight.
-With wifi function, you can connect to APP, APK system to take pictures and videos, and transmit images in real time through the phone camera.
-Use 4K wide-angle camera to provide a wide range of high-definition pictures and videos.
-Using the headless mode, there is no need to adjust the position of the aircraft before flying.
-With a key return function, you can easily find the way home.
-Ballistic flight. Draw a flight path on the screen, and the drone will fly autonomously along the designated direction.
-Anti-interference adopts 2.4GHz technology.
-4 channels, can go up, down, forward, backward, fly on the left, fly on the right and 360° rolling.
-Three axis mechanical head + EIS, controlled rotation range (tilt): -90 ° to 20 °
-It has 2 levels of flight speed switching, which can make flying more interesting.
-The quad-rotor fuselage is made of high-strength and engineering plastics, which is light and durable.
Functions: Folding 2.4G brushless GPS drone with optical flow positioning, electric adjustment WIFI professional aerial photography machine: the front lens placed 4K HD WIFI accurate positioning, ultra-long battery life 15.4V large battery, low battery / out of control / ultra-distance can return, intelligent follow, around the point of flight, double folding (wind blade, wings), APP mobile control, custom route, One key return, rise and fall, forward and backward, left and right side flight, headless mode, automatic switching optical flow / GPS
Lens parameters | ||
Image Sensor | 1/2.3-inch CMOS; 12 million effective pixels | |
Lens | Viewing angle 77°±3°;Equivalent focal length 28mm;Aperture f/2.2 | |
ISO | 100-6400 | |
Photo size | 4000*3000 | |
Photo Shooting Modes | Single shot / countdown shot | |
Video Resolution | 4K: 3840×2160@ 30fps; 2.7K:2720*1530@ 30/60fps 1080P: 1920*1080@ 30/60fps; 720P: 1280*720@ 30/60fps; | |
Image storage format | JPEG | |
Video Storage Format | MP4 | |
Product Description
Product function display
Products Show
Company Profile
Why Choose Us?
1. All our members have 5-10 years of foreign trade work experience, and can quickly solve the trade problems arising from the cooperation process; | ||||||||
2. We strictly control the criteria for selecting suppliers. Different suppliers are responsible for different teams. Each factory has our members to check key departments such as R&D, production, quality, and production cycle; | ||||||||
3. Our business philosophy is "customer first, win-win cooperation". Our love for the industry outweighs the desire to make money.What we hope is to grow together with customers, not to earn more money from customers. | ||||||||
FAQ
Q: Why choose us ?
A: We have 4 years' experience in the drone business and one-stop solutions of drones, especially on security.
Q: What is the Minimum Order Quantity(MOQ)?
A:No quantity limited, Sample order, or small order is acceptable, but the customers have to pay the sample cost and the courier cost .
Q: How long is your delivery time?
A: Generally 5-10 days if goods are in stock. If not in stock, we need possible 3 working days to prepare goods.
Q: How will you deliver my goods to me?
A: Normally, we will ship the goods by air, by sea, and by express.
Q: Can you print my own logo on the products?
A: Yes, of course. Not only the logo but also the packing design and other OEM services are available.
Q: What is your product quality?
A: Our raw materials are all purchased from qualified suppliers. And we have very strict QC standards to assure our final products meet your requirements.
Q. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
Q: What is your warranty?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service.
Q: What method do you support to make payment?
A: We support many ways, including L/C or TT.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, both OEM and ODM. We have our own development team, sales team, and factory.
A: We have 4 years' experience in the drone business and one-stop solutions of drones, especially on security.
Q: What is the Minimum Order Quantity(MOQ)?
A:No quantity limited, Sample order, or small order is acceptable, but the customers have to pay the sample cost and the courier cost .
Q: How long is your delivery time?
A: Generally 5-10 days if goods are in stock. If not in stock, we need possible 3 working days to prepare goods.
Q: How will you deliver my goods to me?
A: Normally, we will ship the goods by air, by sea, and by express.
Q: Can you print my own logo on the products?
A: Yes, of course. Not only the logo but also the packing design and other OEM services are available.
Q: What is your product quality?
A: Our raw materials are all purchased from qualified suppliers. And we have very strict QC standards to assure our final products meet your requirements.
Q. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
Q: What is your warranty?
A: Our warranty is 12 months after you received the goods. We will pay high attention to after-sales service.
Q: What method do you support to make payment?
A: We support many ways, including L/C or TT.
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, both OEM and ODM. We have our own development team, sales team, and factory.
