Performance Parameter:

DIAMETER	FEEDER	GAUGE
26"-44"	52F-122F	18G-50G

Diameters	26"-44"/2 feeders per inch 26"-44"/2.1 feeders per inch 26"-44"/2.5 feeders per inch 26"-44"/2.8feeders per inch
Gauge	18G-50G
Feeders	52F-88F 56F-94F 64F-110F 72F-122F
RPM	15-30R.P.M

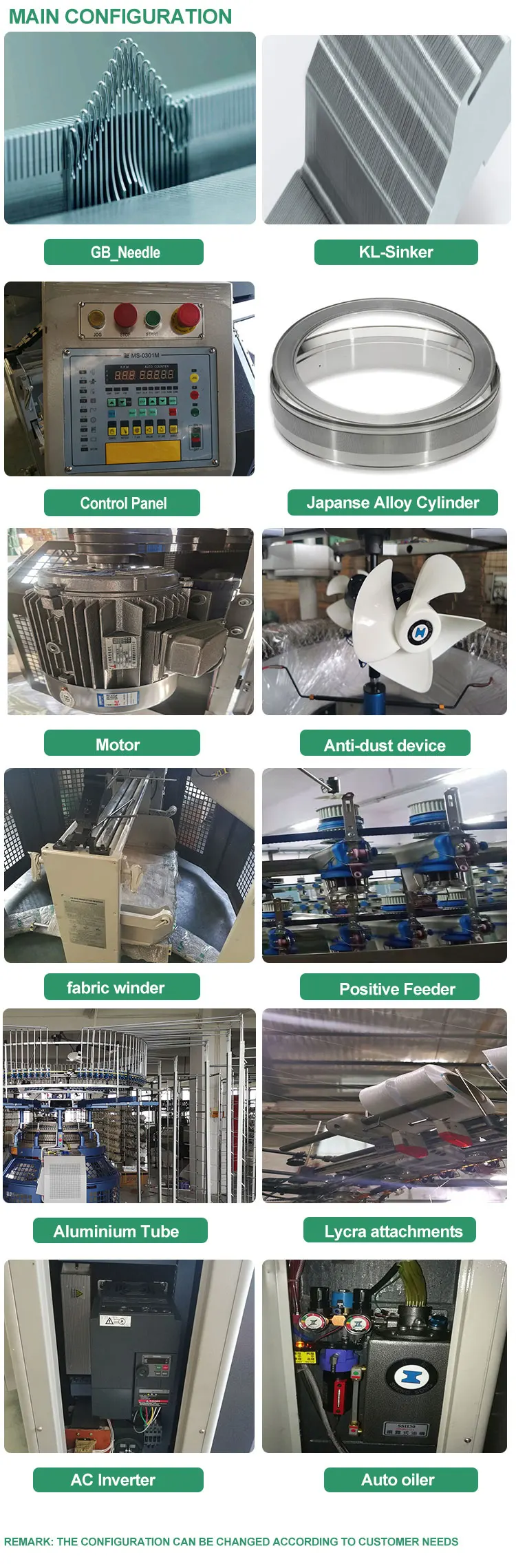

Standard Equipment	Positive feeding uits Automatic lubrication device Yarn feed stop motion,needle break detectors  Take down system  Automatic cleaning device  Yarn creel system
Optional Equipment	Lycra kit Lycra feeding units lapping device  Yarn input measuring device  Open with frame  Circular knitting machine networking system

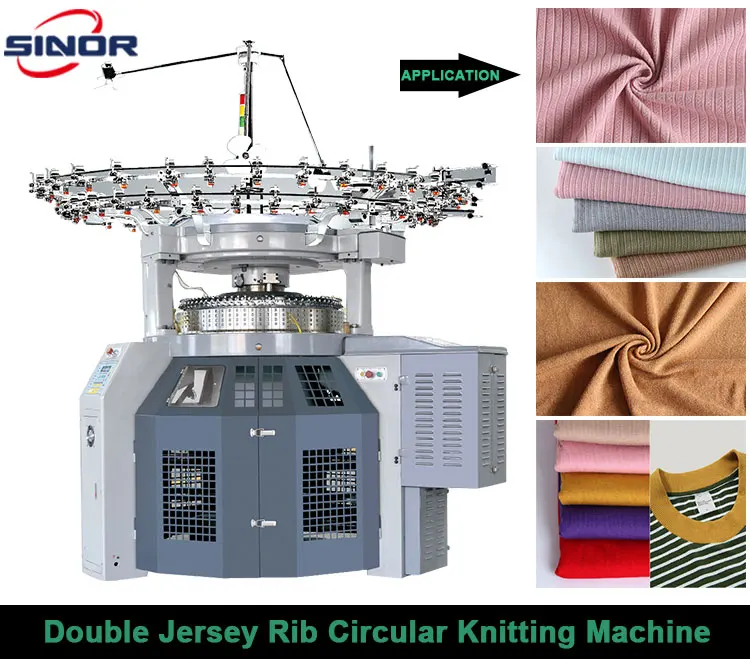

1  High speed double jersey kniting machine with superior performance ,high output ,high presion of the structure to ensure the

quality of fabric.

2 This model interlock knitting machine is designed with dial two knitting track,cylinder four knitting track or dial four track ,cylinder six track.And it is capable of switch various

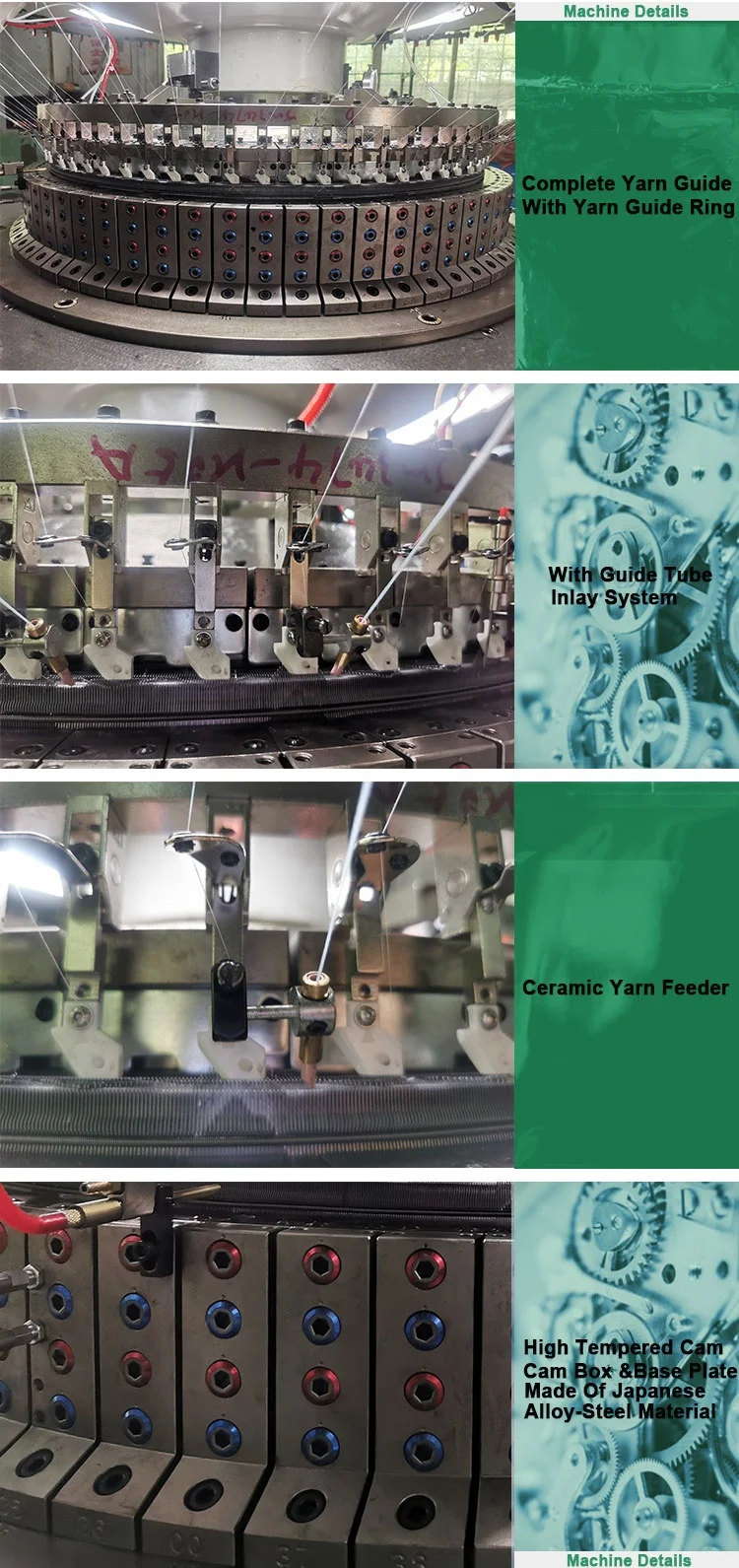

knitting structure and patterns ,knitting heart and cams adopts automatic CAD intergrated carving process to ensure  the precision  of the cams .

3Cylinder orgin is Japan made of special alloy steel .superior material steel metal with high frequency temperature treatment. more easy to knit texture clear fabric.Using Germany steel wire ball bearing system to ensure the high precision synchonous operaton.You can run the machine in high speed with stability.

4 AC  inverter and control panel equipped with imported brands,which is easy  to understand and operate.By arranging the knitting needles and cams to knit  various fashionalbe structure fabric ,such ad soimple jacquard fabric ,seesucker knit ,spacer knitwear interloc fabric.

5  lycra attachments optional to knit stretch knitwear.





QUANZHOU SINOR MACHINEY MANUFACTURING CO.,Ltd have Four branches in China. QUANZHOU SINOR MACHINEY MANUFACTURING CO.,Ltd is focus on Tissue Paper Production line, Food Packing Machine, Circular Knitting Machine. We are professional in designing, producing and selling. Upon more than 20 years’ experience in this field, QUANZHOU SINOR already go aboard and open Foreign Market in different countries.

We constantly improve and innovate our technology, combine advanced technical and experience of the industry from domestic and overseas, equipped with advanced mechanical device and large-scale plant. With high-tech, reasonable structure, stable operation, energy efficient, safe & excellent performance, we gained a very high reputation from our clients.

Our mission is to provide a More Cost Efficient Solution for our customers. Suitable is the Best Way, Best for customers, for local market and even for our future. We treat it as our responsibility in every business. Customer’s Satisfactory is our Ultimate Goal.
