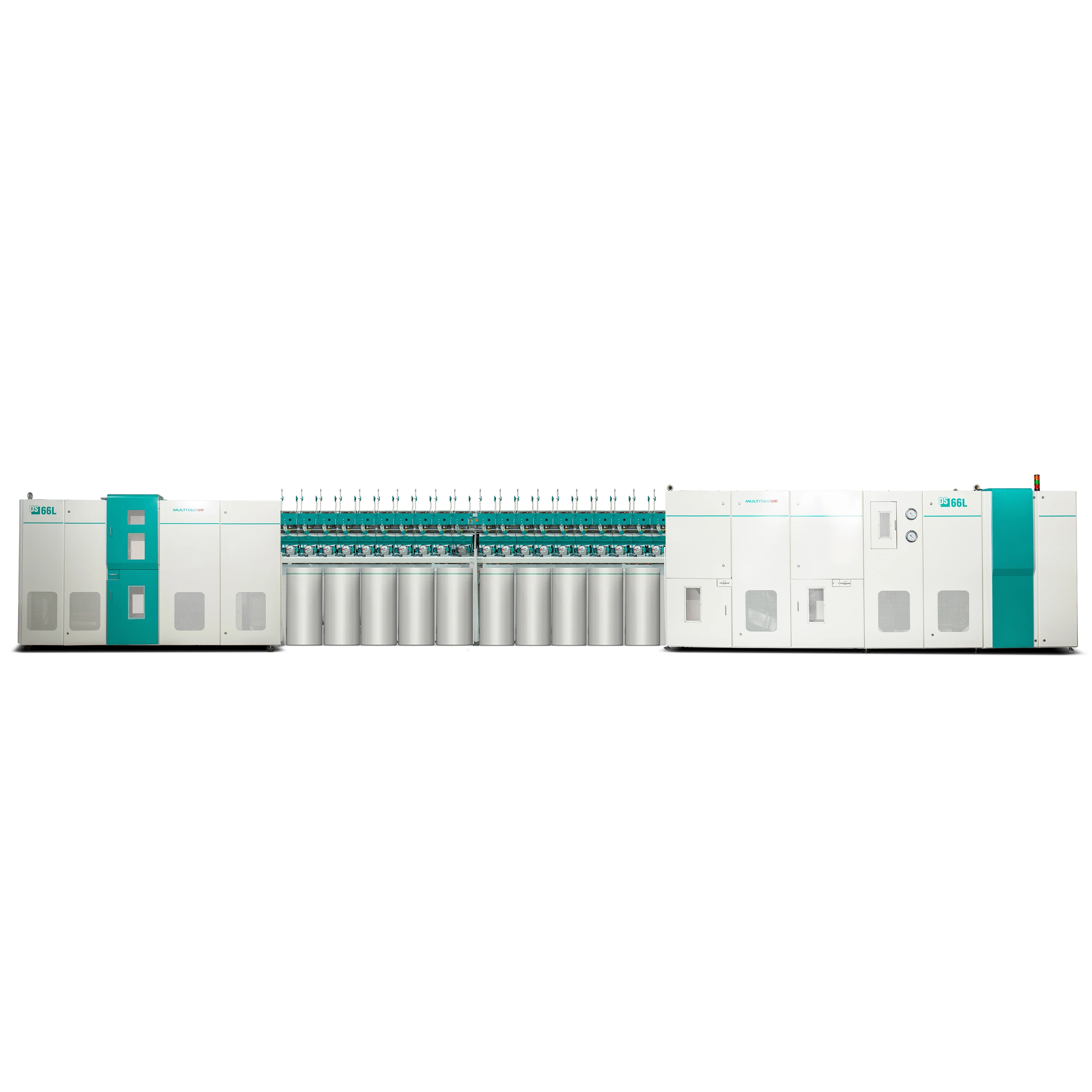

Высокоскоростная используемая машина для прядения с открытым концом

Цена:58 000,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Products Description

Tech specifications

Item	unit	Specifications
Rotor speed	r/min	40000~110000
Opening roller speed	r/min	5500~10000
Speed of guiding yarn	m/min	40~180
Rotor gauge	mm	230
No. of rotors	-	100 rotors, 20 rotors per section
Can dimension	mm	Φ400×900、Φ350×900
Dimension of bobbin	mm	Cylindrical Φ42/54×170；Conic Φ44/65×170
Package Specifications	mm	Φ300×150
Weight of per yarn	kg	≤4.5
Installed capacity of machine	kw	170 (based on number of rotors)

Technological Parameter

Item	Specifications
Raw materials	<60mm Natural and synthetic fibers
Sliver count range	6000tex~2500tex(30~12.5g/5m)
Draft range	20~280
Suitable No.	116tex~15tex(Ne6s~40s)
Winding angle	29~42°, Control panel infinite adjustment
Weight of per yarn	≤4.5kg
Type of rotor	33mm 34mm 36mm 42mm 50mm 54mm
Type of opening roller	Φ64mm
Type of Navel	Types of steel & ceramics naveal

Production Advantages

Company Profile

ABOUT US

Technical Advantages and Patents

Our Patent Certificate
