Product Overview
AB double Layer Blown Film Machine
-- 30% Stronger Film, 50% Cost Saving, 100% Recycled Material Used
ABA blown film machine, has a unique advantage in the production of HDPE, LDPE and LLDPE material. The physical strength of the film is improved by co-extrusion. Its two hosts supply three-layer extrusion, one to blow internal and extemal coating layer, and the other supplies middle filling layer. It can decrease one of the hosts configuration for
the purpose of reducing the cost,and saving energy. At the same time, the middle filling layer can add recycle material and calcium carbonate, which accounts for more than 80% of the total output. It can greatly reduce raw material cost in the process of production and provide customers with stronger market competitiveness.
the purpose of reducing the cost,and saving energy. At the same time, the middle filling layer can add recycle material and calcium carbonate, which accounts for more than 80% of the total output. It can greatly reduce raw material cost in the process of production and provide customers with stronger market competitiveness.
Flexible packaging bags, T-shirt bag, garbage bag, shopping bag
Product Uses

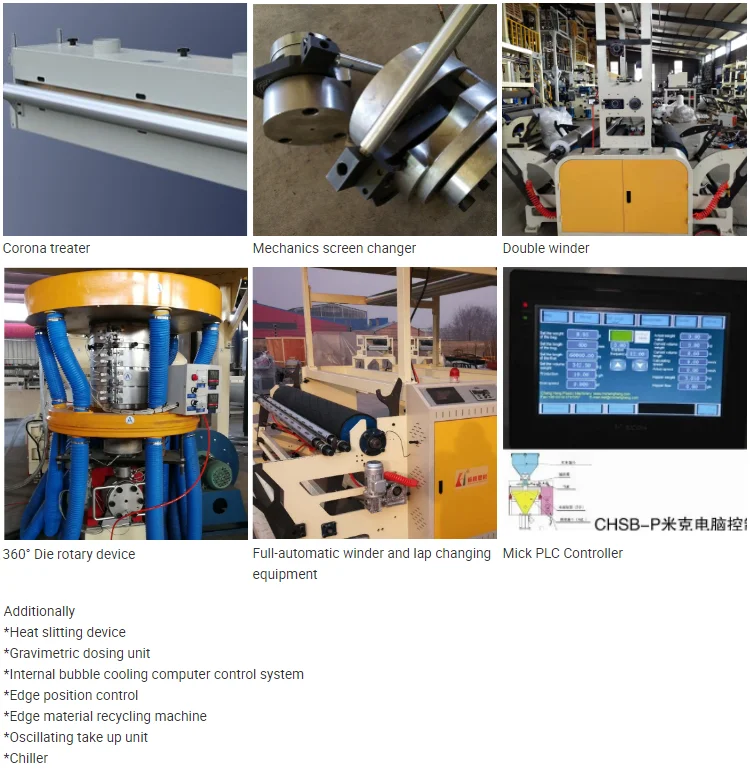

Details Images
PRODUCT SPECIFICATIONS
Model | ML-ABA/45-45/900 | ML-ABA/50-50/1200 | ML-ABA/55-55/1400 | ML-ABA/65-65/1600 | ML-ABA/75-75/2000 | ||||||
Film width | T-shirt bag | 200-620mm | 250-600mm | 300-1000mm | 500-1200mm | 1200-1600mm | |||||
Flat bag | 200-800mm | 250-1000mm | 500-1300mm | 500-1500mm | 1200-1800mm | ||||||
Film thickness | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | 0.006-0.15mm | ||||||
max output | 80-90kg/h | 90- 125kg/h | 100- 150kg/h | 120- 175kg/h | 120-200kg/h | ||||||
According to different width,thickness of film, die size and raw material characteristics to change | |||||||||||
Raw material | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | HDPE/LDPE/LLDPE | ||||||
Diameter of screw | Φ45/45,30/1 | Φ50/50,30/1 | Φ55/55,30/1 | Φ65/65,30/1 | Φ75/75,30/1 | ||||||
SACM 645 ,bimetallic ，five years guarantee | |||||||||||
Main motor | 15kw ,15kw | 18.5kw ,18.5kw | 30kw ,30kw | 37kw,37kw | 37kw,37kw | ||||||
100% Original three-phase variable frequency motor Equipped with inverter control | |||||||||||
Take up roller(mm) | 700/900mm | 1200mm | 1400mm | 1600mm | 1800mm | ||||||
Weight | 2800kg | 3200kg | 3800kg | 4200kg | 4800kg | ||||||
Machine size | 6.5*2.7*5 | 6.5*3*5.8 | 6.5*3.8*6.2 | 6.8*4*6.8 | 6.8*4*7.2 | ||||||
Certificates
CE
SGS
.
SALES AND SERVICE NETWORK
FAQ
Q1:Are you a factory or trading company?
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Xingtai city, Hebei Province, China, about one hour by high train from Beijing. All our clients,
from home or abroad, are warmly welcome to visit us!
Q3: How about the payment term?
A3: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q4: What about your main market?
A4: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas
market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q5:What about warranty and do the engineers available to overseas?
A5:5 year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q6:What about the service after sale?
A6: when you have bought our machine, you can call us or email us telling us the machine problems and any questions about the
machines. We will reply to you with 12hours and help you to slove the problem.
A1: We are established in 1995, a actual factory and manufacturer in the line of printing&package machine for 20 years.
Q2:Where is your factory located? How can I visit there?
A2: Our factory is located in Xingtai city, Hebei Province, China, about one hour by high train from Beijing. All our clients,
from home or abroad, are warmly welcome to visit us!
Q3: How about the payment term?
A3: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q4: What about your main market?
A4: Ourproducts be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas
market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
Q5:What about warranty and do the engineers available to overseas?
A5:5 year warranty. During this period, if the machine has some problems, our engineers can go abroad to fix for you.
Q6:What about the service after sale?
A6: when you have bought our machine, you can call us or email us telling us the machine problems and any questions about the
machines. We will reply to you with 12hours and help you to slove the problem.

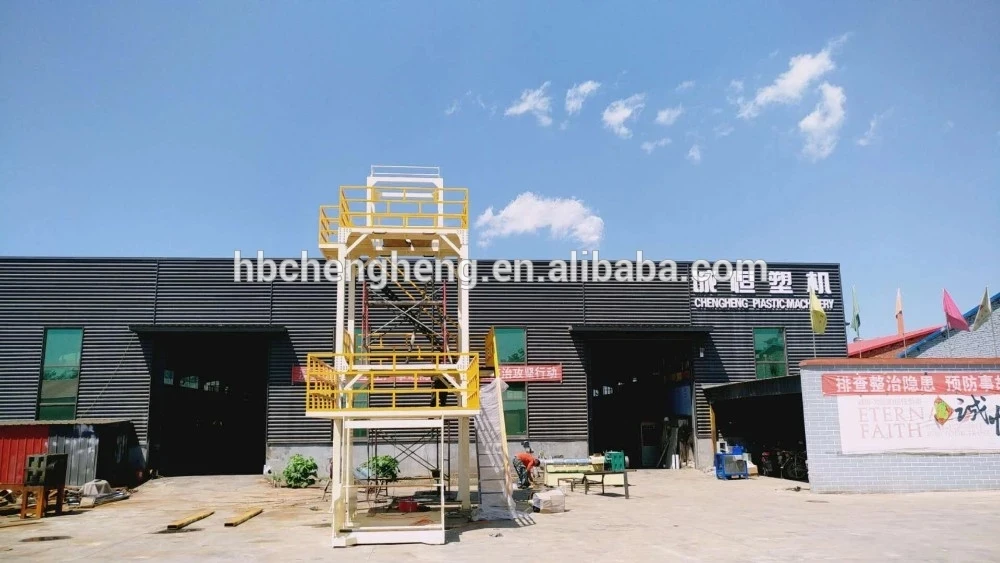

Our Company
