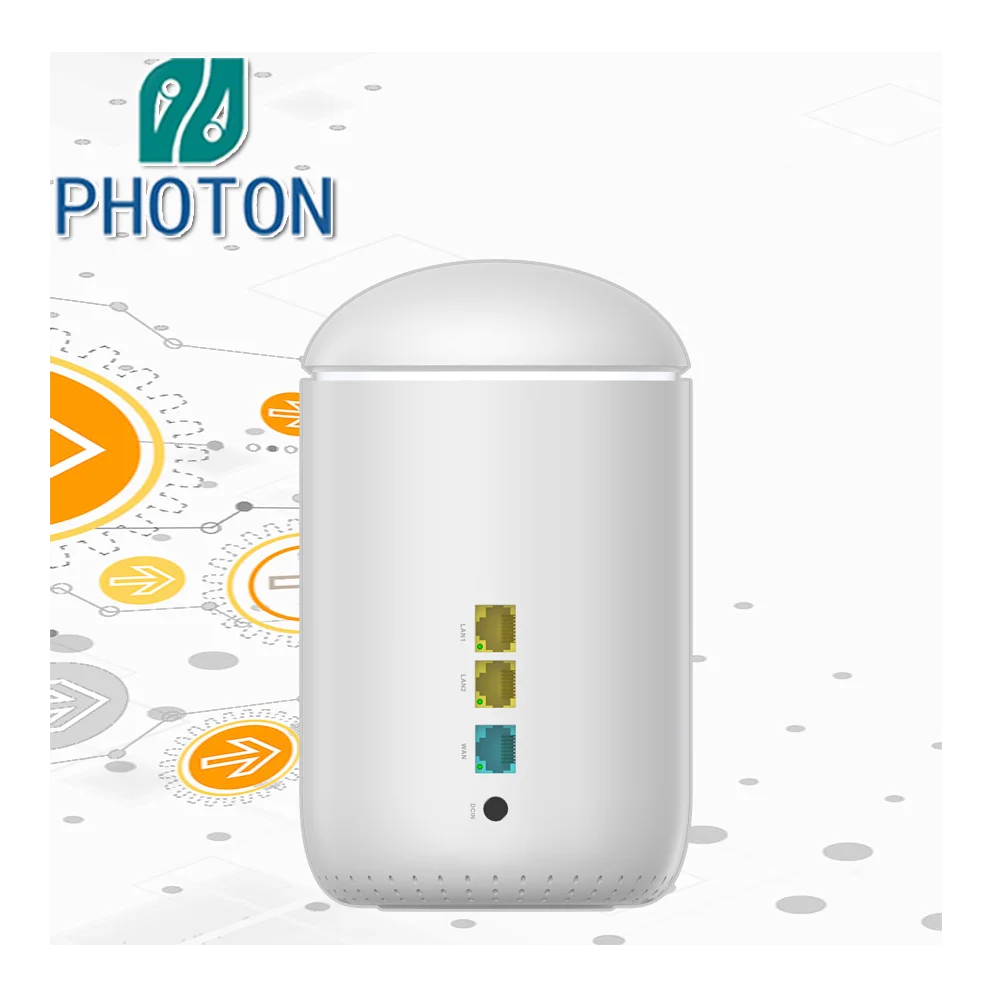

1GE WAN+2GE LAN Port 5G Wireless Wifi 6 Router PTW6303W



1.     Product Description(1GE WAN+2GE LAN Port 5G Wireless Wifi 6 Router PTW6303W)

PTW6303W is 1GE WAN+2GE LAN industrial-grade high-speed wireless router. This product adopts industrial-grade dedicated communication 1 GHz Quad-Core CPU processors, industrial-strength wireless mold piece, the LINUX embedded real-time operating system, support 2 GE LANs, 1GE WAN port, and 2.4G&5.8 High power WIFI interface, at the same time provide LAN port equipment or WIFI Internet or data transmission function.

Has been widely used in the Internet of things industry chain of M2M industry, such as self-service terminals, smart grid, smart transportation, smart home, supply chain automation, industrial automation, and so on.



2.     Features:(1GE WAN+2GE LAN Port 5G Wireless Wifi 6 Router PTW6303W)

Ø  Support PPPoE,DHCP Client,Static IP

Ø  QoS:WMM

Ø  Support IPsec/L2TP/PPTP/GRE/OPENVPN/IPIP etc.

Ø  Support IEEE802.11b/g/n/ac/ax 2x2.4G Antennas (Internal), 2x5G Antennas (Internal) transpeed up to 1.2Gbps

Ø  Support 64/128 No-auth, WEP, WPA-PSK and WPA2-PSK

Ø  Support IP filtering, port filtering and MAC address filtering

Ø  Support NAT/NAPT, Firewall function

Ø  Support strategy routing, DDNS, NET, more secure intranet access

Ø  Support IPv4/IPv6



3.     Technical parameters(1GE WAN+2GE LAN Port 5G Wireless Wifi 6 Router PTW6303W)

HARDWARE
Processor	1 GHz Quad-Core CPU
DDR	128MByte
Flash	16MByte
Ethernet Ports	1× Gigabit WAN Ports 2× Gigabit LAN Ports
Buttons	Reset Button
Power	Input:AC 110V~240V-50/60Hz Output:DC 12V/1A
Antennas	2x2.4G Antennas (Internal),2x5G Antennas (Internal)
Dimensions (W×D×H)
WIRELESS
Standards	IEEE 802.11A/B/G/N/AC/AX
frequency	2G:2.412~2.462GHz 5G:5.170~5.330&5.735~5.835GHz
WiFi Speeds	2G:574Mbbps 5G:1201Mbps
WiFi Encryption	WPA-PSK/WPA2-PSK/WPA3-PSK
WiFi Transmission Power	<22 dBm (2.4 GHz) <20 dBm (5 GHz)
SOFTWARE
Working Modes	Router Mode
Protocols	IPv4        IPv6
WAN Types	Dynamic IP Static IP PPPoE
Package
Package Contents	1xPTW6303W 1xRJ45 Ethernet Cable 1xPower Adapter 1xQuick Installation Guide
OTHERS
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
