300 м большой диапазон Лучшая цена умный шлюз gsm ble wifi bluetooth 5 0

Features

General:

● Input: DC 5.0V, 1A, micro-USB
● Supports 802.3af PoE standard
● Supports firmware upgrade Over-the-Air
● Operating temperature: -25℃ to 65℃
● Reads multiple BLE devices in the same time
● Supports TCP/HTTP/MQTT/mbed(ARM)
● Built-in RTC and NTP support
● RGB LED string as the status indicator
● Based on OpenWrt 15.05

Wi-Fi:

● Up to 150 Mbps PHY data rate
● With 3dBi flexible FPC antenna
● 100 meters range in open space
● 1T1R 2.4GHz frequency band
● IEEE 802.11b/g/n
● Web based UI for configuration
● Connects to the local server or remote cloud

● iBeacon / Eddystone / other BLE tag receiver
● BLE sensor reader / receiver
● Asset tracking
● Access control management
● Advertisement promotion
● Indoor location and position
● Industrial automation

S1: Bluetooth temperature & humidity sensor E2: 300 to 500 meters MaxBeacon

E6: Bluetooth ambient light sensor i3: Waterproof iBeacon & Eddystone

i7 : Bluetooth accelerometer sensor

C7: Credit card beacon with RFID/NFC

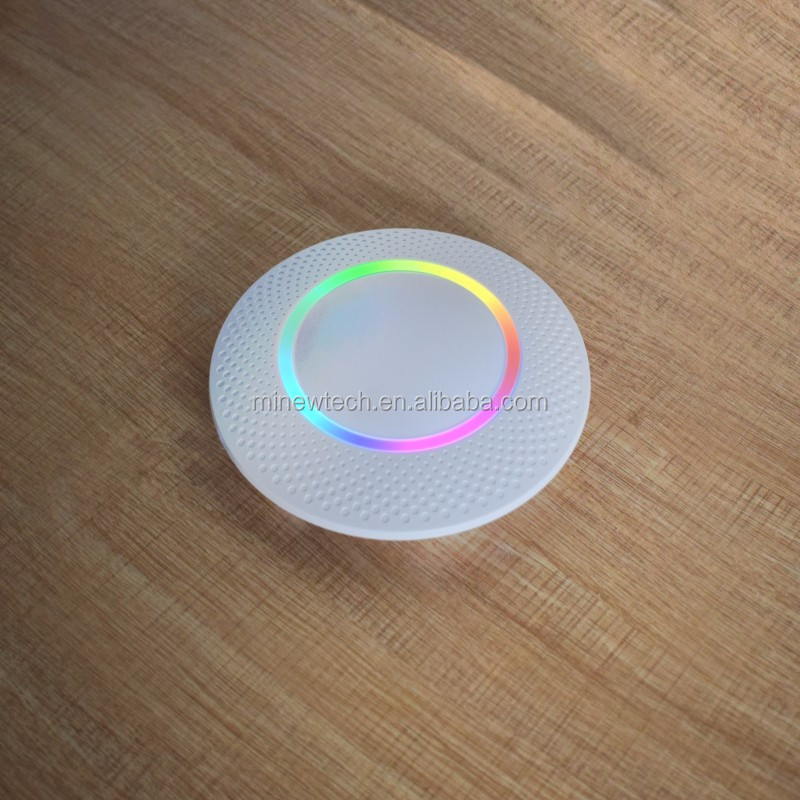

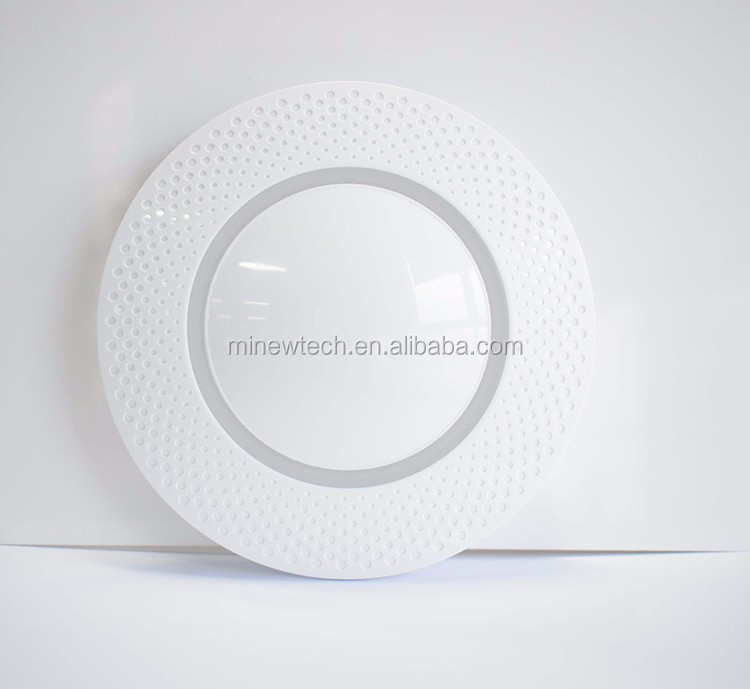

G1: Bluetooth & WiFi gateway

Certifications

Packing
Gift Package:

Delivery:

According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.

Fast Express like DHL,UPS, TNT, FedEx are all available here.
Or if our customers have their own Express account, freight forwarder in China, we are happy to contact their Express people or freight forwarder to pick up products from our factory..

Founded in 2007, Minew was specialized in IoT field for more than a decade and keeping up with customer demands all the time.

By providing smart devices and IoT solutions, we serve to optimize people's lives, works and businesses to make life easier. This is achieved by connecting our products to users' smart devices and target objects in a Wi-Fi covered space, with Bluetooth functions on. Thus people could position, find, track, receive messages, check status and control target objects.

Based on the functions above, our products can be applied in various scenarios. For example, message pushing functions enable merchants to advertise and promote themselves instantly and to serve customers in a better way. Besides, enterprises could also utilize smart devices and cloud platform to manage asset and human resource efficiently with minimized costs. Furthermore, any physical objects around you like furniture and home appliances could be intelligentialized under the IoT solution projects.

1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.

Factory Facilities

• Plenty of production lines
• Flexibility Capacity: 20K per day
• Over 150 professional stuff
• 100% tested

Warmly welcome the OEM and ODM projects.

1.Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

2.Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

3.Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

4. What's the warranty of the product?
Re: we supply 1 year warranty from the shipping date
