Цена:5 399,00 $ - 5 599,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

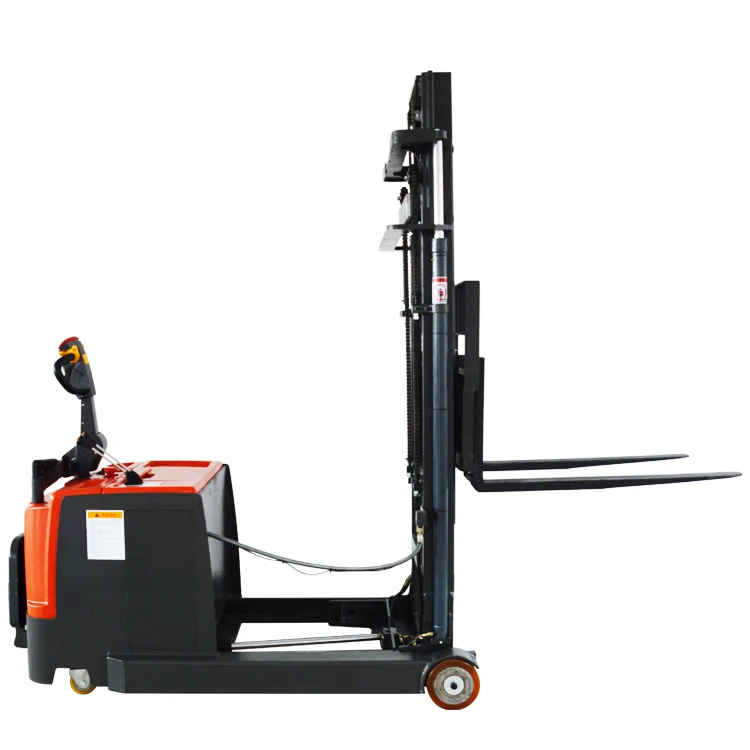

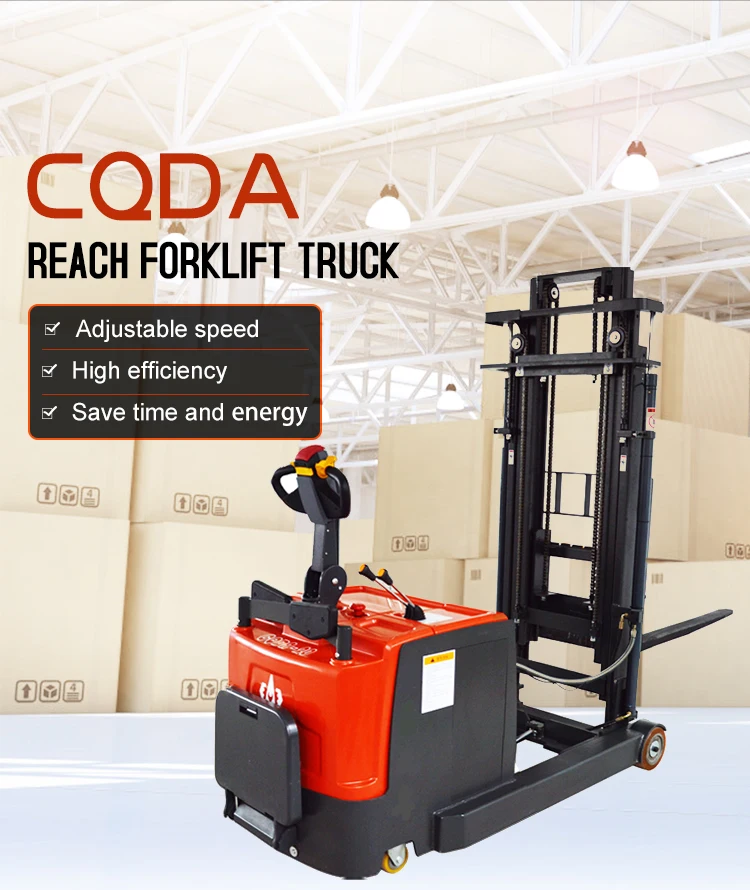

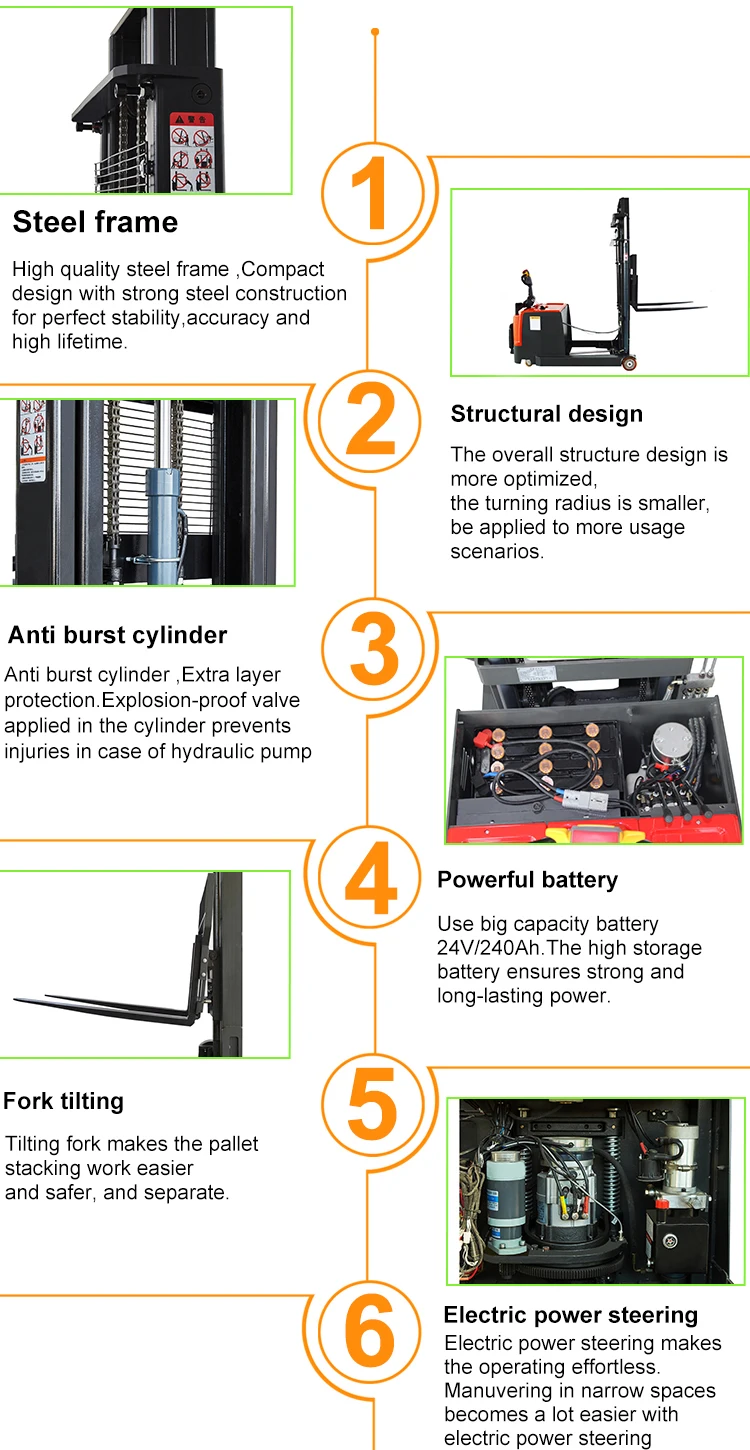

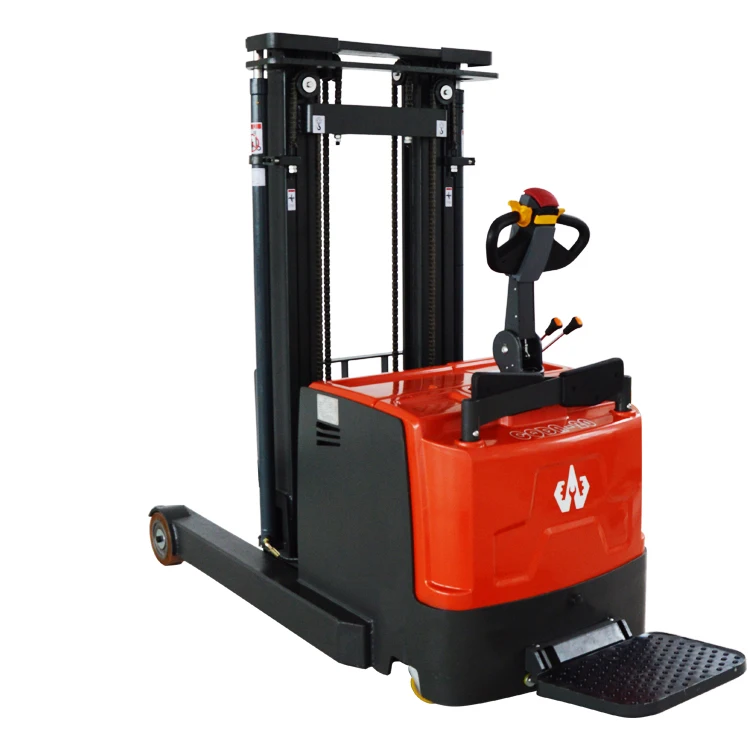

Products Display








Product Paramenters


Model
CQDA15/CQDA20
Performance
Maximum load capacity
kg
1500
2000
with load center at
mm
500
Travel speed without load/with load
%
4.5/3.5
Lifting speed without load /with load
km/h
80/50
Lowered speed without load /with load
km/h
130/140
Ascend slope ability without load /with load
mm/s
8/5

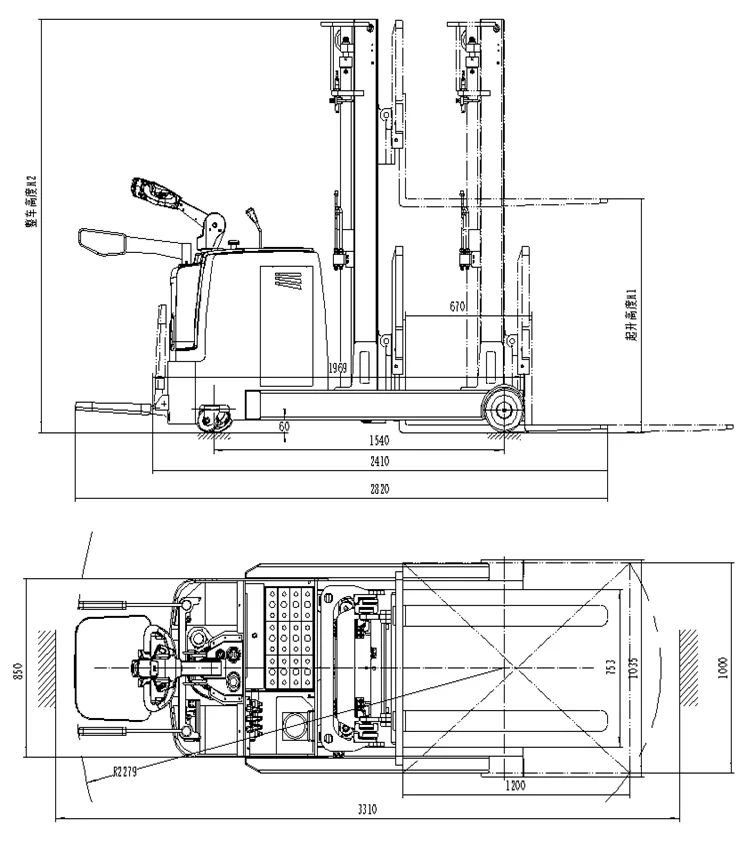

Dimensions
Overall length/width of frame(without platform)
mm
2310/1035
2410/1035
Wheelbase
mm
1540
Fork size（length *width*thickness）
mm
1070*100*35
1070*100*40
Mast reach length
mm
670
Fork outside width
mm
210-700
Fork lowered height
mm
35
40
Minimum turning radius
mm
60
Minimum intersecting aisie
mm
2280
Drive wheel
mm
3310
Tire
Front wheel
mm
210*85
Drive wheel
mm
230*80
Caster wheel
mm
115*55
Electrical components
Drive motor Rated output/AC motor
kw
1.5
Hoist motor Rated output/DC motor
kw
3
battery
Voltag/Capacity
V/AH
24/240
Weight
kg
220
Mast Type
Mast Lowered
Mast Extended
Weight：kg
CQDA15/CQDA20
CQDA15/CQDA20
CQDA15/CQDA20
Simplex Mast (2stage)
2080
2080
1950
1580
2500
2020
1830
3000
2050
2080
3500
2080
2330
4000
3110

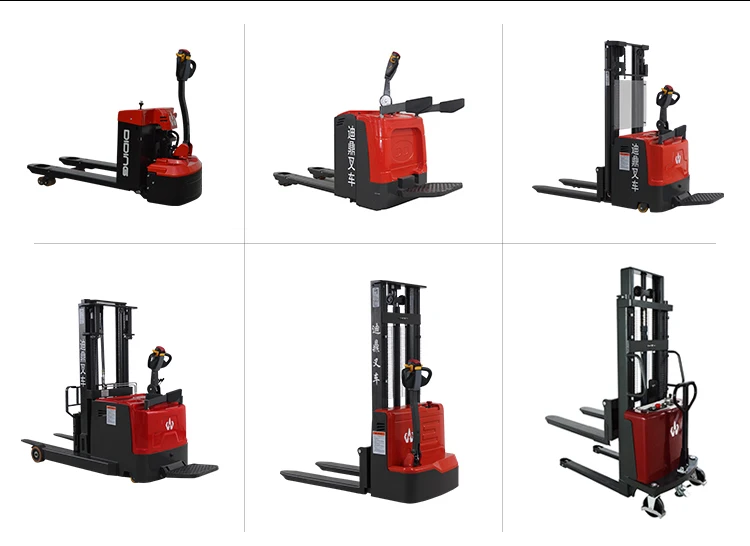

Related Products

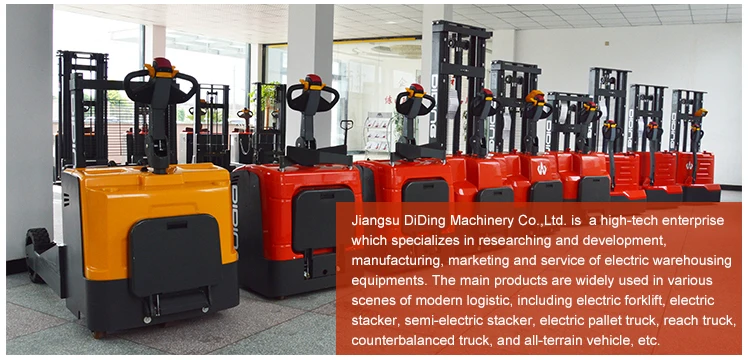

Company Profile

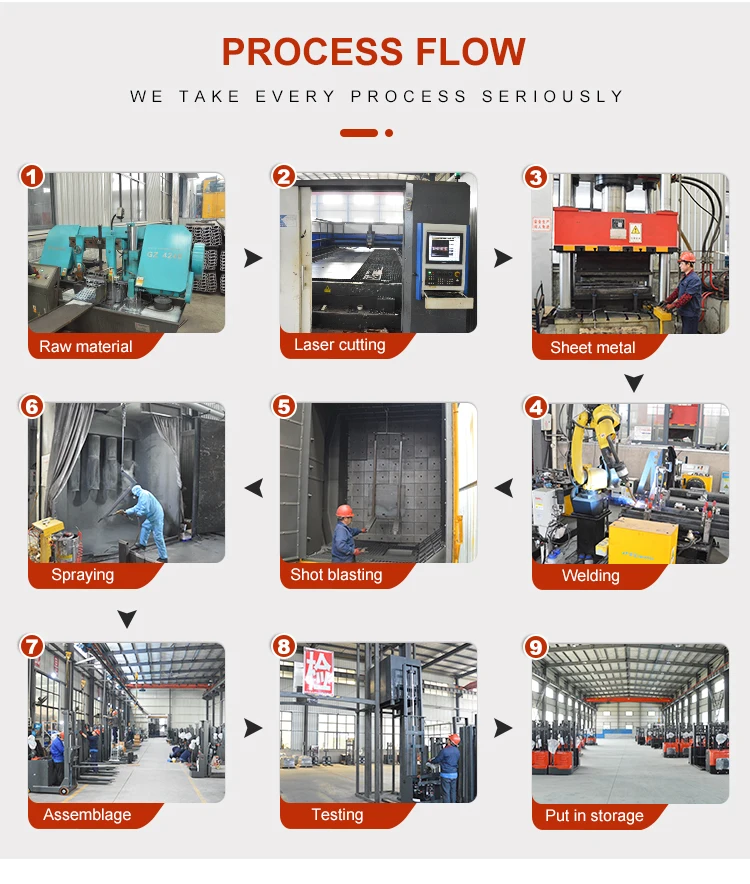

Diding covers an area of more than 20,000 square meters, with advanced and standard production workshops, perfect processing equipments and product testing centers. Besides ,The company owns advanced storage equipment manufacturing technology which has obtained a number of patents. Also, The R & D department provides strong technical support, enabling us to receive some OEM, ODM projects. The diversified products have been issued the Modeling Test Certificate for Special Equipment and the Production License of Equipment.
Diding attracts customers from all over the world with the professional engineer support, high efficiency sales team ,competitive price superiority and perfect after-sales service system. Our products are sold all over China and exported in batches to more than 30 countries.
Under the guidence of the business philosophy which is ‘pursuit of excellence, users first’,Diding has made all efforts to create corporate image and product image as a professional manufacturer of electric warehousing equipments as well as an integrated solution vendor of stacking.






Certifications




Exhibition




Product packaging




FAQ


Q1: Are you a factory?
A1: Of course. Jiangsu DiDing Machinery Co.Ltd., is a high-tech enterprise which specializes in researching and development, manufacturing, marketing and servings of electric warehousing equipments.

Q2: Can Diding provide customized products?
A2: Yes, Our R&D department provides the strong technical support and enables us to receive some OEM, ODM projects.

Q3: How about the delivery time?
A3: Usually our producing time is 7-20 working days after we receive the advanced payment. The specific delivery time depends on the items and the quantity of your order.
Most of our standard products are in stock，we can deliver immediately.

Q4: How long is the product warranty period
A4: The product warranty period is 12 months after delivery.

Q5: What is your payment term?
A5: T/T or L/C, if you want any other way, please contact us.



Mail：didinglift@gmail.com

Tel：+8613852691788

WhatsApp：+8613852691788

WeChat: ：Didinglift
